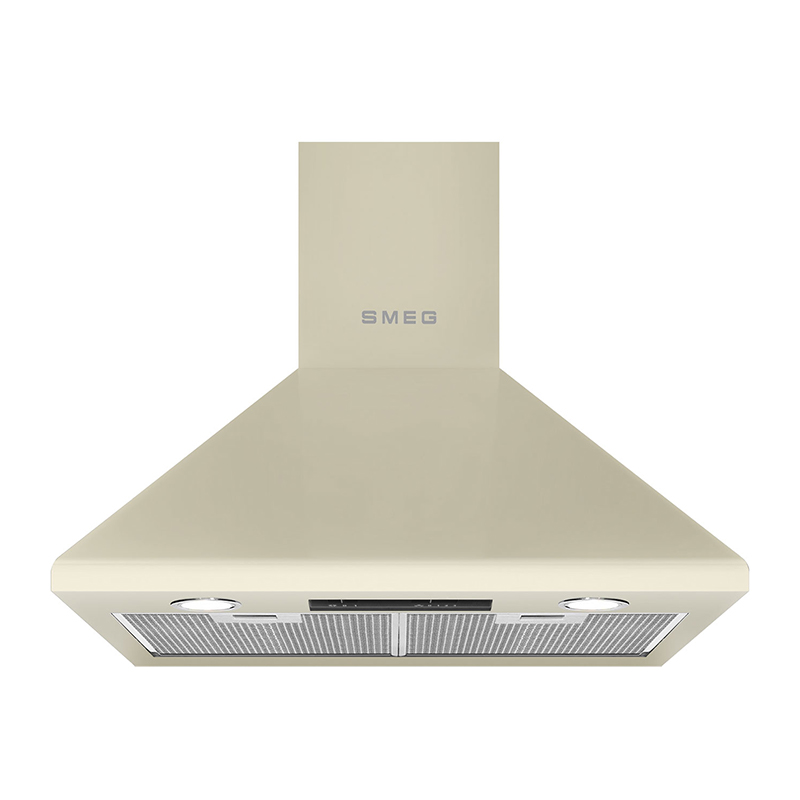

The SMEG KSED65PE is a 60 cm Victoria-style chimney cooker hood in cream, designed for both ducted extraction and re-circulation. It offers three speeds with a maximum extraction rate of 635 m³/h and aluminium anti-grease filters to help remove grease from cooking steam. LED lighting with a neutral 4000 K colour temperature provides clear illumination of the cooking area, while energy efficiency class B helps manage annual energy consumption.

Key Features

Product family: Hood with chimney design for cooker use.
Hood type: Chimney cooker hood suitable for kitchen extraction.
Installation options: Extraction can be ducted out or used in re-circulation mode.
Width: 60 cm hood width for standard hob sizes.
Aesthetics: Victoria range design with cream colour and silk screen logo.
Material: Painted material with brushed type of steel.
Controls: Slider control setting with 3 speeds.
Lighting: 2 LED lights, 1 W each, 4000 K colour temperature, lighting efficiency 100.2 lux/W.
Filtration: 2 aluminium anti-grease filters to help remove grease from steam during cooking.
Maximum extraction: Free outlet maximum capacity 600 m³/h; maximum extraction rate 635 m³/h.
Performance at speeds: 351 m³/h at speed 1 and 420 m³/h at speed 2 (IEC 61591).
Noise levels: From 53 dBA at minimum speed to 67 dBA at maximum speed (IEC 60704-2-13).
Energy efficiency: Annual efficiency consumption 60 kWh/year with energy efficiency class B.
Grease filtering efficiency: 74.4 % with grease filtering efficiency class D.
Lighting class: Lighting efficiency class A.
Vent outlet: 150 mm vent outlet with non return valve.
Safety distances: Minimum distance 750 mm from gas hob and 650 mm from electric hob.
Electrical connection: Nominal power 202 W, voltage 220–240 V, frequency 50–60 Hz.
Cable length: Power supply cable length 1000 mm.
Alternative colours: Also available in White, Black and Stainless steel.
Compatible accessories: FLT6 round charcoal filters (kit 2 pieces) and KITALLFC universal charcoal filter Stainless Steel AISI 304.
Lighting function: Cooker hood lights illuminate the cooking area or add to kitchen ambience.
Filter function: Filters help remove grease from steam emanating from pans during cooking.

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Extraction	Ducted out or re-circulation possible
Material	Painted material
Type of steel	Brushed
EAN code	8017709206062
Hood width	60 cm
Aesthetics	Victoria
Colour	Cream
Logo	Silk screen
Control setting	Slider
No. of speeds	3
No. of lights	2
Light type	LED
Light power	1 W
Light colour temperature	4000 K
Free outlet maximum capacity	600 m³/h
Motor power	200 W
No. of filters	2
Anti-grease filters	Aluminium
Vent outlet	150 mm
Minimum distance from gas hob	750 mm
Minimum distance from electric hob	650 mm
Non return valve	Yes
Extraction rate IEC 61591 – speed 1	351 m³/h
Noise level IEC 60704-2-13 – speed 1	53 dBA
Extraction rate IEC 61591 – speed 2	420 m³/h
Noise level IEC 60704-2-13 – speed 2	57 dBA
Extraction rate IEC 61591 – speed 3	635 m³/h
Noise level IEC 60704-2-13 – speed 3	67 dBA
Annual efficiency consumption (AEChood)	60 kWh/year
Energy efficiency class (EEC)	B
Fluid Dynamic Efficiency (FDE)	26
Fluid Dynamic Efficiency class (FDEC)	B
Lighting Efficiency (LE)	100.2 lux/W
Lighting Efficiency class (LEC)	A
Grease Filtering Efficiency (GFE)	74.4 %
Grease Filtering Efficiency class (GFEC)	D
Air flow at minimum speed (Qmin)	351 m³/h
Maximum extraction rate	635 m³/h
Airborne acoustical A-weighted sound power emission at minimum speed (SPEmin)	53 dBA
Airborne acoustical A-weighted sound power emission at maximum speed (SPEmax)	67 dBA
Time increase factor (F)	1.1
Energy Efficiency Index per first cavity	62.2
Measured air flow rate at best efficiency point (Qbep)	355 m³/h
Measured air pressure at best efficiency point (Qbep)	385 Pa
Measured electric power input at best efficiency point (Wbep)	146 W
Normal power of the light system (Wl)	2 W
Average illumination on cooking surface (Emiddle)	221 lux
Sound power level at highest setting (Lwa)	67 dBA
Nominal power	202 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
Alternative colours available	White, Black, Stainless steel
Compatible accessory – FLT6	Round Charcoal filters (kit 2 pieces)
Compatible accessory – KITALLFC	Universal Charcoal filter Stainless Steel AISI 304

Additional Details and Usage

This cooker hood offers flexible extraction, with the option to duct air out or use re-circulation. The integrated aluminium anti-grease filters are designed to help remove grease from the steam emanating from pans during cooking.

Two LED lights provide illumination of the cooking area and can also add to the ambience of the kitchen. The slider controls allow selection of three speeds, with airflow and noise levels suited to different cooking needs.

For safe installation, the hood should be positioned at a minimum distance of 750 mm from a gas hob and 650 mm from an electric hob. A non return valve is included on the 150 mm vent outlet.

Charcoal filter accessories are available: FLT6 round charcoal filters supplied as a kit of 2 pieces, and KITALLFC universal charcoal filter in Stainless Steel AISI 304. The KITALLFC filter can be washed in a dishwasher at 50 °C with water and suitable detergent, and to dry it should be put in an oven at 180 °C for 25 minutes.

Frequently Asked Questions

What is the maximum extraction rate of the SMEG KSED65PE?

The maximum extraction rate is 635 m³/h, with a free outlet maximum capacity of 600 m³/h.

Can this hood be used in both ducted and re-circulation modes?

Yes. Extraction can be ducted out or re-circulation is possible, allowing flexible installation options.

What are the recommended minimum installation heights above the hob?

The minimum distance from a gas hob is 750 mm, and the minimum distance from an electric hob is 650 mm.

How energy efficient is this chimney cooker hood?

The hood has an annual efficiency consumption of 60 kWh/year and an energy efficiency class B. The lighting efficiency class is A.

Does the hood provide good lighting over the cooking area?

The hood has 2 LED lights rated at 1 W each, with a lighting efficiency of 100.2 lux/W and average illumination on the cooking surface of 221 lux. The lights are intended to illuminate the cooking area or add to the ambience of the kitchen.

What compatible charcoal filters are available and how can they be cleaned?

Compatible accessories include FLT6 round charcoal filters (kit of 2 pieces) and KITALLFC universal charcoal filter Stainless Steel AISI 304. The KITALLFC filter can be washed in a dishwasher at 50 °C with water and suitable detergent, then dried in an oven at 180 °C for 25 minutes.
