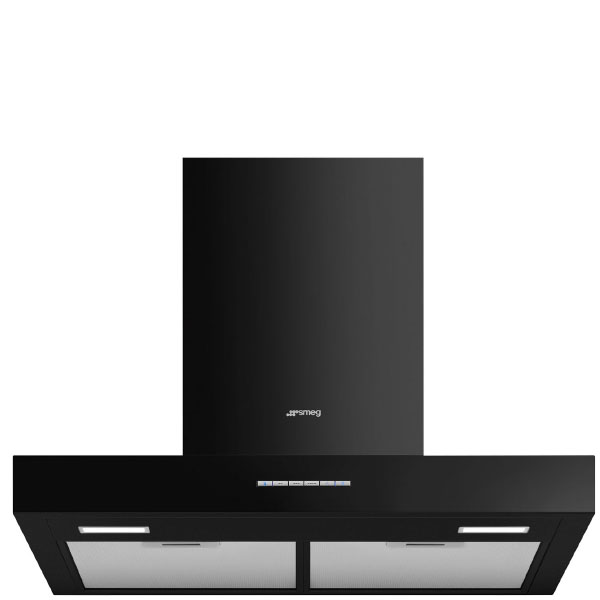

The SMEG KBT600BL is a 60 cm T flat chimney cooker hood in black with a universal stainless steel design for ducted or re-circulation extraction. It offers three speeds plus an intensive setting, LED lighting and aluminium anti-grease filters with a replacement indicator. With a maximum free outlet capacity of 820 m³/h and an A energy efficiency class, this electronically controlled hood is suitable for installation above gas or electric hobs within the stated clearances.

Key Features

Product family and type: Hood – Chimney Cooker Hood with T flat design.
Extraction options: Ducted out or re-circulation possible for flexible installation.
Control system: Electronic control with electronic buttons and 3 speeds plus intensive speed.
Hood width: 60 cm universal aesthetic in black stainless steel with silk screen logo.
Lighting: 2 LED lights, 1.3 W each, 3000 K colour temperature, Lighting Efficiency Class A.
Filtration: 2 aluminium anti-grease filters with filter replacement indicator.
Maximum extraction performance: Free outlet maximum capacity 820 m³/h; intensive extraction rate 686 m³/h.
Energy efficiency: Annual efficiency consumption 53 kWh/year; Energy efficiency class A; Energy Efficiency Index 52.0.
Efficient airflow: Fluid Dynamic Efficiency 29.8 with Fluid Dynamic Efficiency Class A.
Grease filtering: Grease Filtering Efficiency 79.7 % with Grease Filtering Efficiency Class C.
24h air filter function: Refreshes the air for about 10 minutes every hour over a 24 hour period at minimum speed and imperceptible noise level.
Time-setting options: Includes a setting to run after the end of cooking for a pre-set time and then switch off automatically.
Noise levels: From 48 dBA at minimum speed to 72 dBA at intensive speed (IEC 60704-2-13).
Minimum installation distances: 650 mm from gas hobs and 500 mm from electric hobs.
Vent connection: 150 mm vent outlet with non return valve and tube reduction supplied.
Electrical connection: Nominal power 230 W, 220–240 V, 50–60 Hz with 1500 mm power supply cable.
Lighting performance: Lighting efficiency 70.4 lux/W with average illumination on cooking surface of 156 lux.
Intensive/turbo setting: Provides extra fast extraction when required.
Warning lights: Advises when filters need changing.

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	T flat
Extraction	Ducted out or re-circulation possible
Electronic control	Yes
Material	Stainless steel
Colour	Black
Aesthetics	Universal
Logo	Silk screen
EAN code	8017709347246
Model code	KBT600BL
Hood width	60 cm
Control setting	Electronic buttons
Number of speeds	3 + intensive speed
24h air filter function	Yes
Time-setting options	Yes
Number of lights	2
Light type	LED
Light power	1.3 W (each)
Light colour temperature	3000 K
Free outlet maximum capacity	820 m³/h
Maximum extraction rate	473 m³/h
Intensive extraction rate	686 m³/h
Air flow at minimum speed (Qmin)	261 m³/h
Motor power	230 W
Number of filters	2
Anti-grease filters	Aluminium
Filter replacement indicator	Yes
Vent outlet	150 mm
Non return valve	Yes
Tube reduction	Yes (accessory included)
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Annual Efficiency Consumption (AEChood)	53 kWh/year
Energy efficiency class (EEC)	A
Fluid Dynamic Efficiency (FDE)	29.8
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	70.4 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	79.7 %
Grease Filtering Efficiency Class (GFEC)	C
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	48 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	64 dBA
Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)	71 dBA
Time increase factor (F)	0.9
Energy Efficiency Index per first cavity	52.0
Measured air flow rate at best efficiency point (Qbep)	395 m³/h
Measured air pressure at best efficiency point (Qbep)	451 Pa
Measured electric power input at best efficiency point (Wbep)	159 W
Normal power of the light system (Wl)	3 W
Average illumination on cooking surface (Emiddle)	156 lux
Sound power level at highest setting (Lwa)	70 dBA
Nominal power	230 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Extraction rate IEC 61591 – Speed 1	260 m³/h
Extraction rate IEC 61591 – Speed 2	358 m³/h
Extraction rate IEC 61591 – Speed 3	473 m³/h
Extraction rate IEC 61591 – Intensive speed	686 m³/h
Noise level IEC 60704-2-13 – Speed 1	49 dBA
Noise level IEC 60704-2-13 – Speed 2	57 dBA
Noise level IEC 60704-2-13 – Speed 3	64 dBA
Noise level IEC 60704-2-13 – Intensive speed	72 dBA

Additional Details and Usage

The hood offers three standard speeds plus an intensive/turbo setting for extra fast extraction when needed. An automatic time-setting option allows the hood to run after cooking for a pre-set period and then switch off automatically.

The 24h air filter function, when selected, refreshes the air for approximately 10 minutes every hour over a 24 hour period at minimum speed and an imperceptible noise level.

Aluminium anti-grease filters help remove grease from steam produced during cooking, and warning lights advise when filters need changing. All cooker hoods in this range feature lights to illuminate the cooking area or contribute to kitchen ambience.

Installation must respect the minimum distances of 650 mm above gas hobs and 500 mm above electric hobs. A 150 mm vent outlet with non return valve and tube reduction is provided to support ducted or re-circulated configurations.

Compatible Accessories

KITCEKBTBL: Not stated in source.
KITFCKBT: 1 piece of activated carbon filter for hood models KBT* / KBCT*.
KITFCKBTR: 1 piece of Charcoal filter Regenerable suitable for all the KBT/KBCT models. It can be washed in the dishwasher up to 12 times and dried in the oven at max 90° for 60 minutes. Dimensions 237.5(H) x 245 x 10 mm.

Frequently Asked Questions

Can this hood be used in both ducted and recirculation modes?

Yes. The extraction system can be ducted out or used in re-circulation mode. A 150 mm vent outlet with tube reduction and compatible carbon or charcoal filters is available for recirculating installation.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 650 mm, and the minimum distance from an electric hob is 500 mm.

How many speeds does the SMEG KBT600BL have?

It has three main speeds plus an intensive speed for higher extraction performance when extra fast extraction is required.

What type of filters are supplied and how do I know when to replace them?

The hood is supplied with aluminium anti-grease filters. It has warning lights and a filter replacement indicator to advise when filters need changing.

What is the energy efficiency rating and annual energy consumption?

The hood has an Energy efficiency class A with an annual efficiency consumption of 53 kWh/year and an Energy Efficiency Index of 52.0.

How bright is the lighting on the cooking surface?

The hood uses 2 LED lights with a lighting efficiency of 70.4 lux/W and provides an average illumination of 156 lux on the cooking surface at 3000 K.
