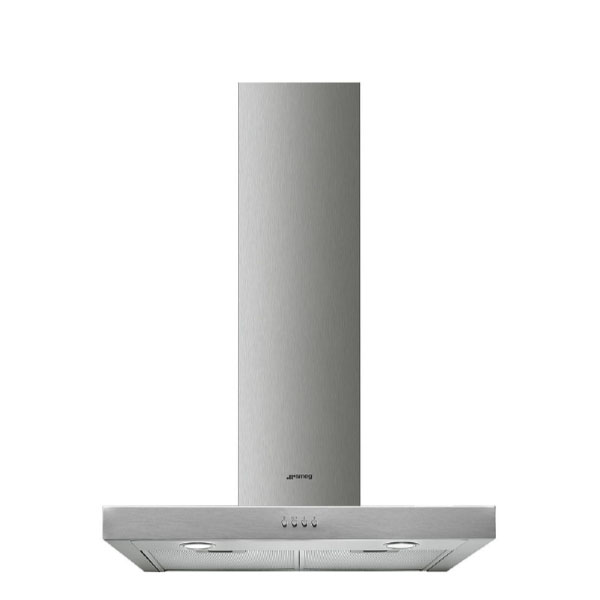

The SMEG KATE600EX is a 60 cm stainless steel T flat chimney cooker hood from the Universal aesthetics family. Designed for use with ducted extraction or re–circulation, it offers three button–controlled speeds and efficient LED lighting at 3500 K to illuminate the cooking area. With aluminium anti–grease filters, a non return valve and an energy efficiency class C rating, it provides effective kitchen ventilation and grease removal.

Key Features

Product family: Hood with chimney cooker hood type and T flat design.
Installation options: Extraction can be ducted out or re–circulation is possible.
Width: 60 cm hood width suitable for standard hob sizes.
Material and finish: Stainless steel body with brushed finishing and black serigraphy colour.
Control setting: Simple button controls with 3 speeds.
Lighting: 2 x LED lights, each 2.5 W, with 3500 K colour temperature.
Maximum free outlet capacity: 612 m³/h with 175 W motor power.
Filters: 2 aluminium anti–grease filters to help remove grease from steam during cooking.
Vent outlet: 150 mm vent outlet with non return valve and tube reduction included.
Minimum clearance: 650 mm from gas hobs and 500 mm from electric hobs.
Energy performance: Annual efficiency consumption 77 kWh/year with energy efficiency class C.
Lighting efficiency: 76.1 lux/W with lighting efficiency class A and average illumination of 381 lux on the cooking surface.
Grease filtering efficiency: 76 % with grease filtering efficiency class C.
Air flow range: Air flow at minimum speed (Qmin) 240 m³/h and maximum extraction rate 581 m³/h.
Noise levels: Airborne acoustical A–weighted sound power emission from 47 dBA (minimum) up to 68 dBA (maximum).
Electrical connection: Nominal power 180 W, voltage 220–240 V, frequency 50–60 Hz, with 1500 mm power supply cable.
Included accessory: Tube reduction is included.
Optional accessories: Charcoal filter KITFC900 and chimney extension KITCMNKAT compatible.

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	T flat
Model	KATE600EX
Extraction	Ducted out or re–circulation possible
Material	Stainless steel
Type of steel	Brushed
EAN code	8017709235130
Hood width	60 cm
Aesthetics	Universal
Colour	Stainless steel
Finishing	Brushed
Serigraphy colour	Black
Logo	Silk screen
Control setting	Buttons
Number of speeds	3
Number of lights	2
Light type	LED
Light power	2.5 W
Light colour temperature	3500 K
Free outlet maximum capacity	612 m³/h
Motor power	175 W
Number of filters	2
Anti–grease filters	Aluminium
Vent outlet	150 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Non return valve	Yes
Tube reduction	Yes
Extraction rate IEC 61591 – Speed 1	241 m³/h
Noise level IEC 60704–2–13 – Speed 1	46 dBA
Extraction rate IEC 61591 – Speed 2	370 m³/h
Noise level IEC 60704–2–13 – Speed 2	56 dBA
Extraction rate IEC 61591 – Speed 3	590 m³/h
Noise level IEC 60704–2–13 – Speed 3	67 dBA
Annual efficiency consumption (AEChood)	77 kWh/year
Energy efficiency class (EEC)	C
Fluid Dynamic Efficiency (FDE)	20.2
Fluid Dynamic Efficiency class (FDEC)	C
Lighting Efficiency (LE)	76.1 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	76 %
Grease Filtering Efficiency Class (GFEC)	C
Air flow at minimum speed (Qmin)	240 m³/h
Maximum extraction rate	581 m³/h
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	47 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	68 dBA
Time increase factor (F)	1.3
Measured air flow rate at best efficiency point (Qbep)	336 m³/h
Measured air pressure at best efficiency point (Qbep)	334 Pa
Measured electric power input at best efficiency point (Wbep)	155 W
Normal power of the light system (Wl)	5 W
Average illumination of the light on the cooking surface (Emiddle)	381 lux
Sound power level at highest setting (Lwa)	68 dBA
Nominal power	180 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm

Additional Details and Usage

This hood uses aluminium anti–grease filters to help remove grease from the steam emanating from pans during cooking. All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen, and this model includes LED lighting with high lighting efficiency.

For safe installation, the minimum distance from gas hobs is 650 mm and from electric hobs is 500 mm. The hood can operate either ducted out or in re–circulation mode using the appropriate ducting or charcoal filter.

Tube reduction and a non return valve are provided to support correct extraction configuration and help manage airflow through the 150 mm vent outlet.

Frequently Asked Questions

What type of cooker hood is the KATE600EX?

It is a chimney cooker hood with a T flat design in the hood product family and Universal aesthetics.

Can this hood be used in re–circulation mode?

Yes. Extraction can be ducted out or re–circulation is possible. A compatible charcoal filter (KITFC900) is listed as an optional accessory.

What is the minimum installation height above the hob?

The minimum distance is 650 mm from a gas hob and 500 mm from an electric hob.

How powerful is the extraction and how many speeds are there?

The hood has three speeds controlled by buttons. The maximum free outlet capacity is 612 m³/h, with a maximum extraction rate of 581 m³/h and extraction rates of 241, 370 and 590 m³/h at speeds 1, 2 and 3 respectively.

What are the noise levels during operation?

Noise levels according to IEC 60704–2–13 are 46 dBA at speed 1, 56 dBA at speed 2 and 67 dBA at speed 3. The airborne acoustical A–weighted sound power emission ranges from 47 dBA at minimum speed to 68 dBA at maximum speed.

Which optional accessories are compatible with this hood?

Compatible accessories are the KITFC900 charcoal filter kit (1 piece, high performances, washable) and the KITCMNKAT chimney extension for T–shape hood KAT & KATE in stainless steel.
