The Smeg CVI638LN3 is a built–in wine cooler designed for integration into an 82–87 cm niche, offering storage for up to 38 bottles of 0,75 l. It features dual adjustable temperature zones with fan assisted cooling and a low vibration compressor to help care for your wine. Touch controls, LED display and internal LED lighting provide easy operation and clear visibility, while automatic defrost and an activated charcoal air filter support convenient, hygienic use.

Key Features

Built–in wine cooler designed for installation in an 82–87 cm built–in niche.
Max capacity 38 bottles (0,75 l) with a total volume of 114 l.
Dual adjustable temperature zones with 2 independent cooling systems.
Temperature range 5–20 °C with electronic temperature control.
Fan assisted cooling for forced distribution of cold air and even temperature.
Low vibration compressor and integrated heating element.
Automatic defrost system eliminates the need to manually defrost.
Touch control panel with internal controls and LED display.
LED interior lighting providing energy efficient, long–lasting illumination.
Activated charcoal air filter in the compartment.
Anti–UV door glass with 2 glass layers to help protect contents.
Wooden shelving with 2 fixed shelves and 3 removable shelves.
Removable shelves on telescopic guide rails for easier access.
Door open alarm and temperature alarm for added monitoring.
Control lock to prevent accidental changes to settings.
LED functions display showing temperature alarm and temperature value.
Fan forced ON function and lighting forced ON for a maximum period.
Energy efficiency class G with annual energy consumption of 140 kWh/year.
Quiet operation with a noise level of 38 dB(A) re 1 pW (noise emission class C).
Adjustable feet with 2 front and 2 rear feet for levelling.
Door opening with handle and hinge positioned on the left.
SN, N, ST climatic class for specified climate performance.

Technical Specifications

Product family	Wine Cooler
Model	CVI638LN3
Installation	Built–in
Built–in niche	82–87 cm
Defrost	Automatic
Cooling type	Fan assisted / Ventilated (forced distribution of cold air)
Hinge type / position	Standard hinge – Left position
Door opening type	With handle
Number of fixed shelves	2
Number of removable shelves	3
Shelves material	Wood
Removable shelves on telescopic guide rails	Yes
Type of internal light	LED interior lighting
Air filter	Activated charcoal filter
Temperature range	5–20 °C
Type of temperature control	Electronic
Adjustable temperature zones	2
Independent cooling systems	2
Number of compressors	1 – Low vibration compressor
Integrated heating element	Yes
Anti–UV door glass	Yes – 2 door glasses
Metal panel on the back of the fridge	Metal
Adjustable feet	2 Front + 2 Rear
Max capacity (bottles 0,75 l)	38
Total volume	114 l
Sum of chill and unfrozen compartment volumes	114 l
Annual energy consumption	140 kWh/year
Energy efficiency class	G
EEI	165 %
Airborne acoustical noise emission	38 dB(A) re 1 pW
Airborne acoustical noise emission class	C
Climatic class	SN, N, ST
Refrigerant gas type	R600a
Refrigerant quantity	20 g
Foam agent	HFO
Controls	Touch control – Internal, in the compartment
Display type	LED display
Functions display	Temperature alarm, Temperature value
Power on lamp	Yes
Control lock	Yes
Lighting forced ON	Yes – In a maximum period
Fan forced ON	Yes
Temperature alarm	Yes
Door open alarm	Yes
Nominal power	40 W
Current	0,4 A
Voltage	220–240 V
Frequency	50 Hz
Power supply cable length	180 cm
Plug type	(F;E) Schuko

Additional Details and Functions

Cooling and defrosting

The automatic defrost system works by defrosting at regular intervals, removing the need for manual defrosting. Fan assisted, ventilated cooling ensures forced distribution of cold air in the refrigerator compartment, allowing even temperature distribution within the appliance.

Controls and display

Touch controls allow the appliance to be programmed at the touch of a button. The internal LED display shows the programmes, functions and options selected, including temperature alarm and temperature value, and provides a power on lamp indication. A control lock function is included.

Lighting and presentation

LED interior lighting offers an energy efficient and long lasting way of illuminating the interior. Lighting can be forced ON for a maximum period to showcase the contents when required.

Monitoring and alarms

The appliance includes a temperature alarm and a door open alarm to alert you to changes in operation. Fan forced ON functionality is available to support internal air circulation when needed.

Construction and protection

The wine cooler uses anti–UV door glass with two glass layers. A metal panel is fitted on the back of the fridge, and an activated charcoal air filter is included in the compartment. Adjustable front and rear feet enable correct positioning within the built–in niche.

Frequently Asked Questions

What is the bottle capacity of the Smeg CVI638LN3?

The maximum capacity is 38 bottles of 0,75 l, with a total internal volume of 114 l.

Can this wine cooler be built into kitchen furniture?

Yes. It is designed for built–in installation in a niche measuring 82–87 cm.

Does the appliance have dual temperature zones?

Yes. It provides 2 adjustable temperature zones with 2 independent cooling systems, within a temperature range of 5–20 °C.

Is manual defrosting required?

No. The wine cooler has an automatic defrost system that defrosts at regular intervals, eliminating the need for manual defrosting.

What type of lighting is used inside the cabinet?

It uses LED interior lighting, described as a more energy efficient and long lasting way of illuminating the interior of the appliance.

What is the noise level of the Smeg CVI638LN3?

The airborne acoustical noise emission is 38 dB(A) re 1 pW, with a noise emission class of C.

CVI638LN3

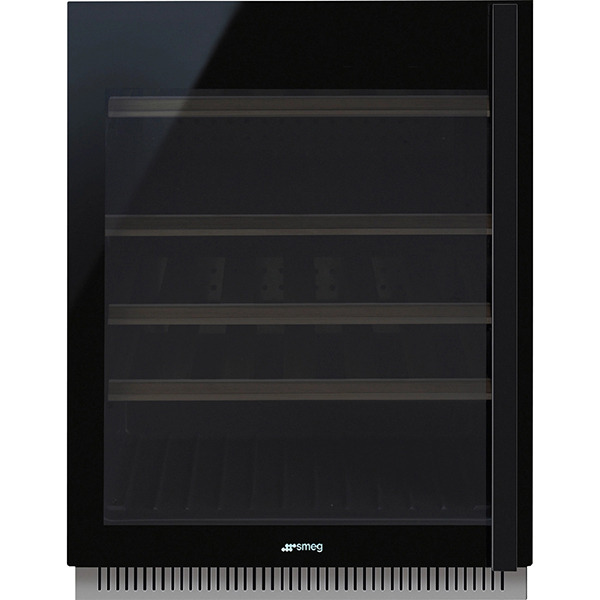

Smeg CVI638LN3 Dolce Stil Novo Winecellar
