The SMEG CVI338RX3 is a built–in wine cooler designed for an 82–87 cm niche, ideal for storing up to 38 standard 0,75 litre bottles. It features fan assisted cooling, automatic defrost and dual adjustable temperature zones with independent cooling systems. Touch controls, an internal LED display and LED lighting make operation straightforward, while a low vibration compressor, activated charcoal air filter and anti–UV door glass help create a stable environment for wine storage.

Key Features

Built–in wine cooler designed for a built–in niche of 82–87 cm.
Capacity up to 38 bottles (Max capacity 0,75 lt bottles: 38).
Dual adjustable temperature zones with 2 independent cooling systems.
Temperature range from 5–20 °C with electronic temperature control.
Fan assisted cooling for forced distribution of cold air in the compartment.
Automatic defrost eliminating the need to manually defrost.
Low vibration compressor to help maintain a stable storage environment.
Wooden shelving with 2 fixed shelves and 3 removable shelves on telescopic guide rails.
LED interior lighting with LED type internal light and lighting forced ON for a maximum period.
Touch controls with internal control setting and LED display.
Temperature and door alarms including temperature alarm and door open alarm.
Control lock to prevent unintentional changes to settings.
Activated charcoal air filter in the compartment.
Anti–UV door glass to help protect contents from light.
Integrated heating element and metal panel on the back of the fridge.
Energy efficiency class G with annual energy consumption of 140 kWh/year.
Quiet operation with noise level of 38 dB(A) re 1 pW and airborne acoustical noise emission class C.

Technical Specifications

Product family	Wine Cooler
Model	CVI338RX3
Installation	Built–in
Built–in niche	82–87 cm
Defrost	Automatic
Cooling type	Fan assisted
Hinge type / position	Standard – Right
Door opening type	With handle
Number of fixed shelves	2
Number of removable shelves	3
Shelves material	Wood
Removable shelves on telescopic guide rails	Yes
Type of internal light	LED
Air filter	Activated charcoal filter
Control setting	Touch control
Controls	Internal, in the compartment
Display	LED – functions display: Temperature alarm, Temperature value
Power on lamp	Yes
Control lock	Yes
Lighting forced ON	In a maximum period
Fan forced ON	Yes
Temperature alarm	Yes
Door open alarm	Yes
Adjustable temperature zones	2
Independent cooling systems	2
Number of door glasses	2
Compressor type	Low vibration compressor
Refrigerant gas type	R600a
Refrigerant quantity	20 g
Temperature range	5–20 °C
Type of temperature control	Electronic
Anti–UV door glass	Yes
Integrated heating element	Yes
Number of compressors	1
Foam agent	HFO
Metal panel on the back of the fridge	Metal
Adjustable feet	2 Front + 2 Rear
Max capacity (bottles 0,75 lt)	38
Annual energy consumption	140 kWh/year
Energy efficiency class	G
Airborne acoustical noise emission class	C
Total volume	114 l
Sum of the volumes of the chill and unfrozen compartments	114 l
Climatic class	SN, N, ST
EEI	165 %
Noise level	38 dB(A) re 1 pW
Nominal power	40 W
Current	0,4 A
Voltage	220–240 V
Frequency	50 Hz
Power supply cable length	180 cm
Plug type	(F;E) Schuko

Additional Details and Functions

The wine cooler uses a ventilated system with fan assisted cooling, providing forced distribution of cold air in the refrigerator compartment for even temperature distribution. Automatic defrost operates at regular intervals, removing the need for manual defrosting.

Touch controls allow the appliance to be programmed at the touch of a button, with an LED display showing selected functions, options and temperature values. A power on lamp, temperature alarm, door open alarm and control lock support everyday operation.

LED interior lighting offers an energy efficient and long lasting way of illuminating the interior. Lighting can be forced ON for a maximum period, and an activated charcoal air filter is fitted in the compartment. The door features anti–UV glass and there is a metal panel on the back of the fridge.

The appliance is described as fingerprint proof stainless steel in the symbols glossary. Energy efficiency class is G, and the airborne acoustical noise emission class is C.

Frequently Asked Questions

What is the bottle capacity of the SMEG CVI338RX3 wine cooler?

The maximum capacity is 38 bottles of 0,75 litre each.

What temperature range does this wine cooler offer?

The temperature range is from 5–20 °C, with electronic temperature control.

Does the appliance have more than one temperature zone?

Yes. It has 2 adjustable temperature zones supported by 2 independent cooling systems.

Is defrosting required manually?

No. The appliance has an automatic defrost system that defrosts at regular intervals, eliminating the need to defrost altogether.

What type of lighting is used inside the wine cooler?

It uses LED interior lighting, which is described as a more energy efficient and long lasting way of illuminating the interior.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is G, and the annual energy consumption is 140 kWh/year.

CVI338RX3

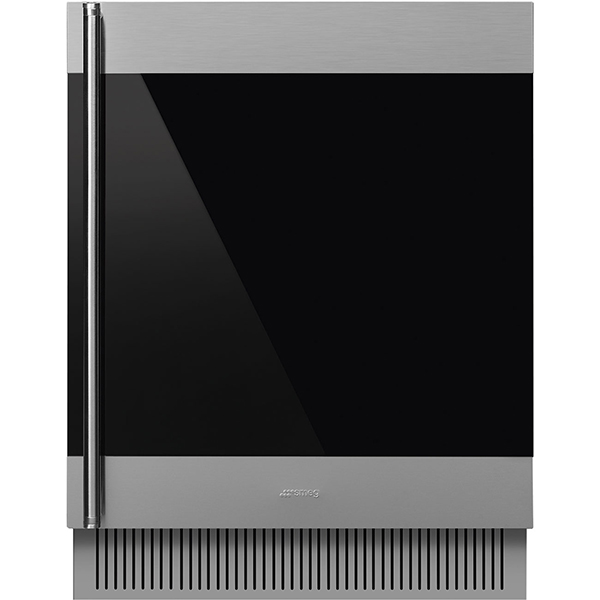

Smeg CVI338RX3 Classic Winecellar
