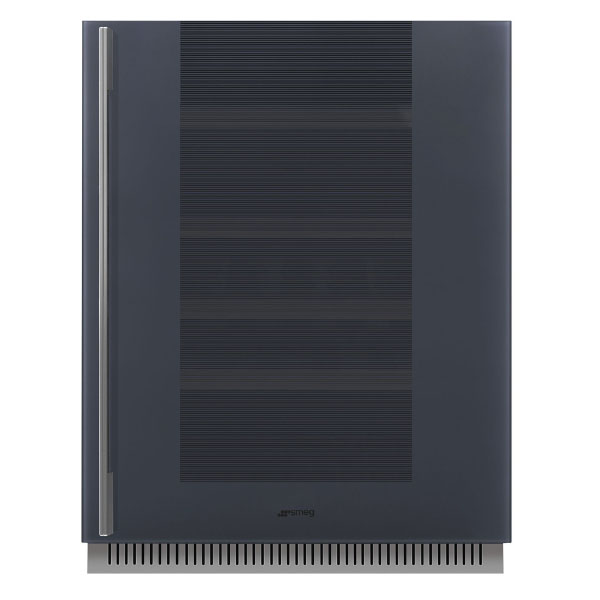

The SMEG CVI138RG is a built–in wine cooler designed for an 82–87 cm niche, offering storage for up to 38 bottles (0.75 l). It features dual adjustable temperature zones with fan assisted, independent cooling systems for even temperature distribution. An automatic defrost system, low vibration compressor, wooden shelves on telescopic guide rails, LED lighting and touch controls with LED display provide convenient, flexible storage for wine enthusiasts.

Key Features

Built–in wine cooler for a built–in niche of 82–87 cm with right–hand standard hinge.
Max capacity 38 bottles (0.75 l) with a total volume of 114 l.
Dual adjustable temperature zones with independent cooling systems (2) and electronic temperature control.
Temperature range 5–20 °C to accommodate different wine types.
Fan assisted cooling with ventilated cold air distribution in the compartment for even temperature.
Automatic defrost system eliminating the need to defrost altogether.
Low vibration compressor to protect wine from disturbance.
Wooden shelves with 2 fixed shelves and 3 removable shelves on telescopic guide rails.
LED interior lighting with 2 LED lights and lighting forced ON in a maximum period.
Touch controls with internal touch control panel and LED display.
Integrated safety and alerts including temperature alarm, door open alarm, control lock and power on lamp.
Anti–UV door glass with 2 door glasses and integrated heating element.
Activated charcoal air filter to help maintain air quality inside the compartment.
Energy efficiency class G with annual energy consumption of 140 kWh/year.
Quiet operation with noise level of 38 dB(A) re 1 pW and airborne acoustical noise emission class C.

Technical Specifications

Product family	Wine Cooler
Model	CVI138RG
Installation	Built–in

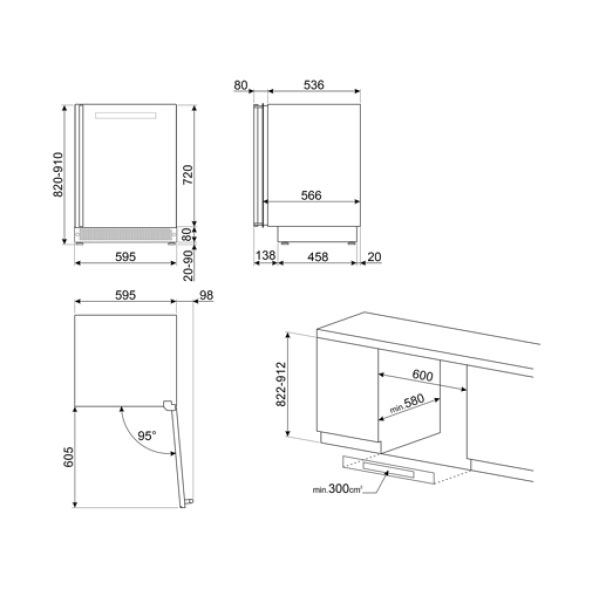

Built–in niche	82–87 cm
Defrost	Automatic
Cooling type	Fan assisted (Ventilated: forced distribution of cold air)
Hinge type / position	Standard, right
Door opening type	With handle
Number of fixed shelves	2
Number of removable shelves	3
Shelves material	Wood
Removable shelves on telescopic guide rails	Yes
Number of lights	2
Type of internal light	LED
Lighting forced ON	In a maximum period
Air filter	Activated charcoal filter
Control setting	Touch control
Controls position	Internal, in the compartment
Display type	LED display
Functions display	Temperature alarm, Temperature value
Power on lamp	Yes
Control lock	Yes
Fan forced ON	Yes
Temperature alarm	Yes
Door open alarm	Yes
Adjustable temperature zones	2
Independent cooling systems	2
Number of door glasses	2
Temperature range	5–20 °C
Type of temperature control	Electronic
Anti–UV door glass	Yes
Integrated heating element	Yes
Number of compressors	1
Compressor type	Low vibration compressor
Refrigerant gas type	R600a
Refrigerant quantity	20 g
Foam agent	HFO
Metal panel on the back of the fridge	Metal
Adjustable feet	2 Front + 2 Rear
Max capacity (bottles 0.75 l)	38
Total volume	114 l
Sum of volumes of chill and unfrozen compartments	114 l
Annual energy consumption	140 kWh/year
Energy efficiency class	G
EEI	165 %
Climatic class	SN, N, ST
Airborne acoustical noise emission class	C
Noise level	38 dB(A) re 1 pW
Nominal power	40 W
Current	0.4 A
Voltage	220–240 V
Frequency	50 Hz
Power supply cable length	180 cm
Plug	(F;E) Schuko

Additional Details and Functions

The LED display shows the programmes, functions, options selected and the time to the end of the cycle, while touch controls allow the appliance to be programmed at the touch of a button. Ventilated cooling provides forced distribution of cold air in the compartment, allowing even temperature distribution within the fridge.

The automatic defrost system works by automatically defrosting at regular intervals, eliminating the need to defrost altogether. LED interior lighting offers a more energy efficient and long lasting way of illuminating the interior of the appliance. The built–in niche design is intended for integrated installation.

Frequently Asked Questions

How many wine bottles can the SMEG CVI138RG hold?

The wine cooler has a maximum capacity of 38 bottles of 0.75 l.

What is the temperature range of the wine cooler?

The temperature range is from 5 to 20 °C, managed by electronic temperature control.

Does it have separate temperature zones?

Yes, it has 2 adjustable temperature zones with 2 independent cooling systems.

Is manual defrosting required?

No, the appliance features an automatic defrost system that eliminates the need to defrost altogether.

What type of lighting is inside the wine cooler?

The interior uses LED lighting with 2 LED lights, providing a more energy efficient and long lasting way of illuminating the appliance.

What alerts and safety features are included?

It includes a temperature alarm, door open alarm, control lock and a power on lamp, with the LED display showing the temperature value and alarms.
