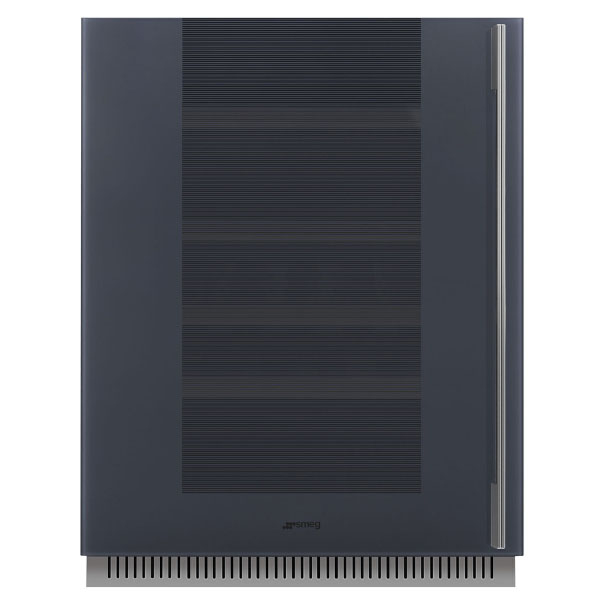

The SMEG CVI138LG is a built–in wine cooler designed for a niche height of 82–87 cm, offering storage for up to 38 bottles (0,75 lt). It features fan assisted cooling, automatic defrost and dual adjustable temperature zones from 5–20 °C. With touch controls, LED display, LED interior lighting and a low vibration compressor, it provides flexible wine storage with wooden shelves and an anti–UV glass door for integrated kitchen installations.

Key Features

Built–in installation for a built–in niche of 82–87 cm.
Max capacity of 38 bottles (0,75 lt) with a total volume of 114 l.
Dual adjustable temperature zones with independent cooling systems (2 zones, range 5–20 °C).
Fan assisted cooling with ventilated cold air distribution in the compartment.
Automatic defrost system that defrosts at regular intervals.
Low vibration compressor and electronic temperature control.
Internal touch controls with LED display showing functions and temperature value.
LED interior lighting with 2 LED lights and lighting forced ON function for a maximum period.
Wooden shelving with 2 fixed shelves and 3 removable shelves on telescopic guide rails.
Anti–UV door glass with 2 door glasses and integrated heating element.
Activated charcoal air filter to support air quality inside the compartment.
Safety and alerts with temperature alarm, door open alarm, power on lamp and control lock.
Energy efficiency class G with annual energy consumption of 140 kWh/year.
Quiet operation with a noise level of 38 dB(A) re 1 pW and airborne acoustical noise emission class C.
Adjustable feet with 2 front and 2 rear adjustable feet for positioning.
Door with handle and left hinge position using a standard hinge type.

Technical Specifications

Product family	Wine Cooler
Model	CVI138LG
Installation	Built–in
Built–in niche height	82–87 cm
Defrost	Automatic
Cooling type	Fan assisted (Ventilated)
Hinge type / position	Standard / Left
Door opening type	With handle
Number of fixed shelves	2
Number of removable shelves	3
Shelves material	Wood
Removable shelves on telescopic guide rails	Yes
Number of lights	2
Type of internal light	LED
Air filter	Activated charcoal filter
Control setting	Touch control
Controls location	Internal, in the compartment
Display type	LED
Functions display	Temperature alarm, Temperature value
Power on lamp	Yes
Control lock	Yes
Lighting forced ON	In a maximum period
Fan forced ON	Yes
Temperature alarm	Yes
Door open alarm	Yes
Adjustable temperature zones	2
Independent cooling systems	2
Temperature range	5–20 °C
Type of temperature control	Electronic
Compressor type	Low vibration compressor
Number of compressors	1
Refrigerant gas type	R600a
Refrigerant quantity	20 g
Foam agent	HFO
Metal panel on the back of the fridge	Metal
Number of door glasses	2
Anti–UV door glass	Yes
Integrated heating element	Yes
Adjustable feet	2 Front + 2 Rear
Max capacity (bottles 0,75 lt)	38
Total volume	114 l
Sum of the volumes of the chill and unfrozen compartments	114 l
Annual energy consumption	140 kWh/year
Energy efficiency class	G
EEI	165 %
Noise level	38 dB(A) re 1 pW
Airborne acoustical noise emission class	C
Climatic class	SN, N, ST
Nominal power	40 W
Current	0.4 A
Voltage	220–240 V
Frequency	50 Hz
Power supply cable length	180 cm
Plug type	(F;E) Schuko

Additional Details and Usage

The appliance uses touch controls, allowing it to be programmed at the touch of a button. The LED display shows programmes, functions and options selected, as well as the temperature value and temperature alarm status.

The automatic defrost system works by automatically defrosting at regular intervals, eliminating the need to defrost manually. Ventilated fan assisted cooling provides forced distribution of cold air in the compartment for even temperature distribution.

LED interior lighting offers an energy efficient and long lasting way of illuminating the interior, and can be forced ON for a maximum period when required. The control lock function helps prevent unintentional changes to the settings.

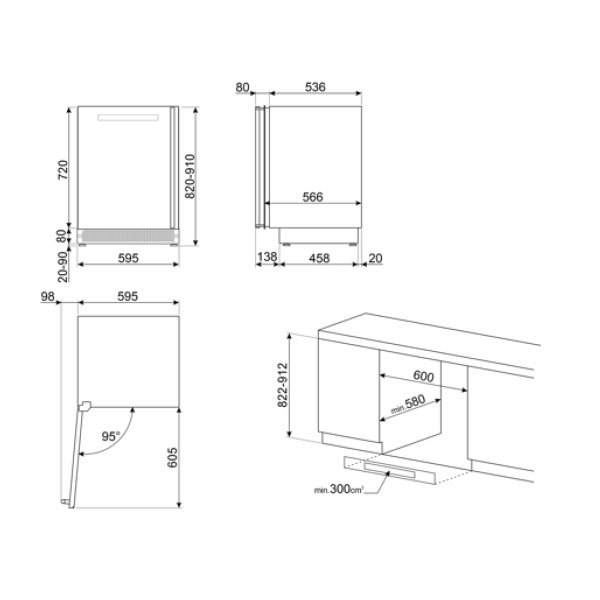

The unit is designed for built–in use within the specified niche height and includes adjustable front and rear feet to assist levelling during installation.

Frequently Asked Questions

What is the bottle capacity of the SMEG CVI138LG wine cooler?

The SMEG CVI138LG has a maximum capacity of 38 bottles of 0,75 lt.

What temperature range does this wine cooler offer?

The temperature range is 5–20 °C with electronic temperature control.

Does the wine cooler have dual temperature zones?

Yes, it has 2 adjustable temperature zones supported by 2 independent cooling systems.

Is this model suitable for built–in installation?

Yes, it is designed for built–in installation in a niche with a height of 82–87 cm.

What type of lighting is used inside the wine cooler?

The interior uses LED lighting, with 2 LED lights and a lighting forced ON function for a maximum period.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is G and the annual energy consumption is 140 kWh/year.

CVI138LG

Smeg CVI138LG Linea Winecellar
