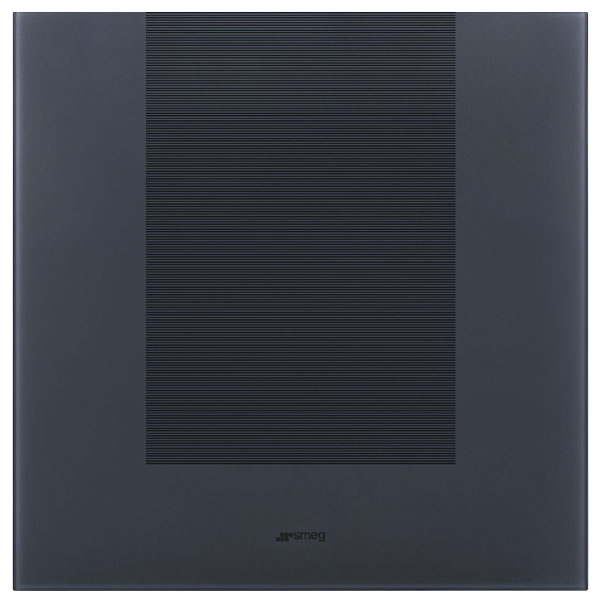

The SMEG CVI129G is a built–in 60 cm wine cooler designed for integrated kitchen installations. It offers two electronically controlled temperature zones and fan assisted cooling to help maintain even temperatures. With a maximum capacity of 29 bottles (0.75 litre), LED interior lighting, wooden shelves on telescopic guide rails and low vibration compressor technology, it is suitable for storing a selection of wines under controlled conditions.

Key Features

Built–in 60 cm niche design for integrated installation within cabinetry.
Two adjustable temperature zones with an electronic temperature range of 5–20 °C.
Fan assisted cooling with ventilated cold air distribution for even temperature.
Automatic defrost system eliminating the need for manual defrosting.
Maximum capacity of 29 bottles (0.75 litre) with a total volume of 79 l.
Wooden shelves including removable shelves on telescopic guide rails and one fixed shelf.
LED interior lighting with two lights and the option for lighting forced ON for a maximum period.
Touch control panel with internal LCD display for temperature value and temperature alarm.
Safety features including temperature alarm, door open alarm and control lock.
Anti–UV door glass with two door glass layers to help protect contents from light.
Low vibration compressor with independent cooling system and integrated heating element.
Reversible door with variable hinge and push pull door opening system.
Activated charcoal air filter for air filtration within the compartment.
Energy efficiency class G with annual energy consumption of 140 kWh/year.
Quiet operation with a noise level of 38 dB(A) re 1 pW and airborne acoustical noise emission class C.

Technical Specifications

Product family	Wine cooler
Installation	Built–in
Built–in niche	60 cm
Defrost	Automatic
Cooling type	Fan assisted (ventilated cold air distribution)
Hinge type	Variable hinge
Reversible door	Yes
Door opening type	With push pull system
Number of fixed shelves	1
Number of removable shelves	2
Shelves material	Wood
Removable shelves on telescopic guide rails	Yes
Number of lights	2
Type of internal light	LED
Lighting forced ON	In a maximum period
Air filter	Activated charcoal filter
Control setting	Touch control
Controls position	Internal, in the compartment
Display	LCD
Functions display	Temperature alarm, Temperature value
Power on lamp	Yes
Control lock	Yes
Fan forced ON	Yes
Temperature alarm	Yes
Door open alarm	Yes
Adjustable temperature zones	2
Number of compressors	1 – Low vibration compressor
Independent cooling systems	1
Number of door glasses	2
Temperature range	5–20 °C
Type of temperature control	Electronic
Anti–UV door glass	Yes
Integrated heating element	Yes
Metal panel on the back of the fridge	Metal
Refrigerant gas type	R600a
Refrigerant quantity	20 g
Foam agent	HFO
Max capacity (0.75 litre bottles)	29
Total volume	79 l
Sum of volumes of chill and unfrozen compartments	79 l
Annual energy consumption	140 kWh/year
Energy efficiency class	G
EEI	170 %
Climatic class	SN, N, ST
Airborne acoustical noise emission class	C
Noise level	38 dB(A) re 1 pW
Nominal power	40 W
Current	0.4 A
Voltage	220–240 V
Frequency	50 Hz
Power supply cable length	180 cm
Plug type	(F;E) Schuko

Additional Details and Usage

The fan assisted cooling provides forced distribution of cold air in the compartment, allowing even temperature distribution. The automatic defrost system works by defrosting at regular intervals, removing the need for manual defrosting. The LCD display is designed to optimise performance and simplify use, while touch controls allow the appliance to be programmed at the touch of a button.

LED interior lighting offers an energy efficient and long lasting way of illuminating the interior. The combination of temperature alarm, door open alarm, control lock and power on lamp provides clear visual and functional feedback during operation.

Frequently Asked Questions

What is the bottle capacity of the SMEG CVI129G wine cooler?

The maximum capacity is 29 bottles of 0.75 litre each, with a total internal volume of 79 litres.

Can the temperature be adjusted in different zones?

Yes, there are two adjustable temperature zones with electronic temperature control and a temperature range from 5 °C to 20 °C.

Does the wine cooler have automatic defrost?

Yes, it features an automatic defrost system that works by defrosting at regular intervals, eliminating the need to defrost altogether.

What type of controls and display does it use?

The appliance uses internal touch controls located in the compartment and an LCD display that shows the temperature value and temperature alarm indications.

Is the door reversible and what type of glass is used?

The door is reversible with a variable hinge and uses two layers of anti–UV door glass to help protect the contents from light.

How noisy is the SMEG CVI129G during operation?

The noise level is 38 dB(A) re 1 pW and it is classified as airborne acoustical noise emission class C.

CVI129G

Smeg CVI129G Linea Compact Winecellar
