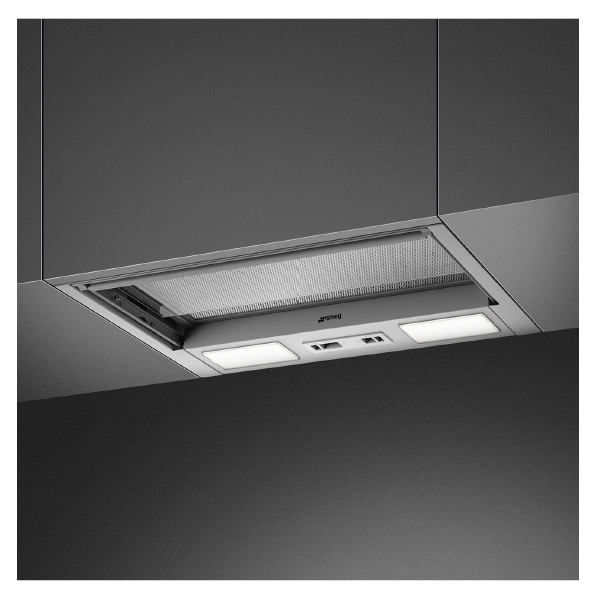

The SMEG KSET56LX3 is a 56 cm telescopic cooker hood with a visible front panel and universal stainless steel aesthetic. It offers ducted out or re–circulation extraction, with three slider–controlled speeds and a maximum extraction rate of 225 m³/h. Featuring LED lighting at 2700 K and an aluminium anti–grease filter, it is designed for installation above gas or electric hobs within the stated minimum distances.

Key Features

Telescopic cooker hood design – Telescopic hood type with a visible front panel, suitable for built–in installation.
56 cm hood width – Compact 56 cm width for integration into smaller kitchen spaces.
Stainless steel, brushed finish – Brushed stainless steel material with universal aesthetics and clear glass.
Ducted out or re–circulation extraction – Can be installed for external ducting or used in re–circulation mode.
Slider controls with 3 speeds – Slider control setting and three speed levels for extraction.
LED lighting 2700 K – Two LED lights with 6 W total power and 2700 K colour temperature.
Aluminium anti–grease filter – One aluminium anti–grease filter to help remove grease from steam while cooking.
Maximum extraction rate 225 m³/h – Maximum extraction rate stated as 225 m³/h; free outlet maximum capacity 237 m³/h.
Energy efficiency class C – Annual efficiency consumption (AEChood) 49 kWh/year with energy efficiency class C.
Grease filtering efficiency 65,1 % – Grease Filtering Efficiency (GFE) 65,1 % with class D.
Lighting efficiency class B – Lighting Efficiency 20,1 lux/W with Lighting Efficiency Class B.
Minimum hob clearances – Minimum distance from gas hob 650 mm and from electric hob 500 mm.
120 mm vent outlet with tube reduction – Vent outlet 120 mm and tube reduction accessory included.
LED illumination of cooking surface – Average illumination on the cooking surface (Emiddle) 121 lux.
Sound power up to 55 dBA – Sound power level at highest setting (Lwa) 55 dBA.
Compatible charcoal filter kit – Compatible with KITFC62 charcoal filter round (kit 2 pieces).

Technical Specifications

Product family	Hood
Hood type	Telescopic Cooker Hoods
Model	KSET56LX3
Design / aesthetics	Visible front panel; Universal aesthetics; Silk screen logo; Serigraphy colour: Black
Colour / finish	Stainless steel, brushed; Glass type: Clear
Material	Stainless steel; Type of steel: Brushed
Hood width	56 cm
Extraction	Ducted out or re-circulation possible
EAN code	8017709333638
Control setting	Slider
Number of speeds	3
Number of lights	2
Light type	LED
Light power	6 W
Light colour temperature	2700 K
Free outlet maximum capacity	237 m³/h
Maximum extraction rate	225 m³/h
Air flow at minimum speed (Qmin)	130 m³/h
Extraction rate IEC 61591 – Speed 1	132 m³/h
Extraction rate IEC 61591 – Speed 2	165 m³/h
Extraction rate IEC 61591 – Speed 3	230 m³/h
Noise level IEC 60704-2-13 – Speed 1	44 dBA
Noise level IEC 60704-2-13 – Speed 2	43 dBA
Noise level IEC 60704-2-13 – Speed 3	53 dBA
Motor power	75 W
Number of filters	1
Filter type	Aluminium anti-grease filters
Vent outlet	120 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Annual Efficiency Consumption (AEChood)	49 kWh/year
Energy efficiency class (EEC)	C
Fluid Dynamic Efficiency (FDE)	8,4
Fluid Dynamic Efficiency class (FDEC)	E
Lighting Efficiency (LE)	20,1 lux/W
Lighting Efficiency Class (LEC)	B
Grease Filtering Efficiency (GFE)	65,1 %
Grease Filtering Efficiency Class (GFEC)	D
Airborne acoustical A-weighted sound power emission at minimum speed (SPEmin)	47 dBA
Airborne acoustical A-weighted sound power emission at maximum speed (SPEmax)	55 dBA
Time increase factor (F)	1,7
Energy Efficiency Index per first cavity	84,1
Measured air flow rate at best efficiency point (Qbep)	135 m³/h
Measured air pressure at best efficiency point (Qbep)	160 Pa
Measured electric power input at best efficiency point (Wbep)	72 W
Normal power of the light system (Wl)	6 W
Average illumination on the cooking surface (Emiddle)	121 lux
Sound power level at highest setting (Lwa)	55 dBA
Nominal power	81 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Tube reduction	Yes

Additional Details and Usage

The model includes filters to help remove grease from the steam emanating from the pans during cooking. All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen.

Installation must respect the minimum distance of 650 mm from a gas hob and 500 mm from an electric hob. The hood can be configured for ducted out extraction or re–circulation, using the 120 mm vent outlet and the tube reduction where required.

Frequently Asked Questions

What type of cooker hood is the SMEG KSET56LX3?

It is a telescopic cooker hood with a visible front panel and universal stainless steel aesthetics.

Can this hood be used in both ducted and recirculation modes?

Yes. The extraction is ducted out or re–circulation possible, using the 120 mm vent outlet and tube reduction as specified.

What are the minimum installation distances above the hob?

The minimum distance from a gas hob is 650 mm and from an electric hob is 500 mm.

How many speeds and what controls does the hood have?

The hood has three speeds, controlled by a slider control setting.

What type of filters are included?

It includes one aluminium anti–grease filter to help remove grease from cooking steam.

Is there a compatible charcoal filter accessory?

Yes. The compatible accessory is KITFC62, a charcoal filter round kit (2 pieces).
