The SIM3644MWH is a 60 cm built–in induction hob in a classic matte white Eclipse ceramic glass finish, designed for ultra–low profile or fully flushed installation. It offers four induction cook zones with Multizone flexibility, EVO Slider touch control and up to 9 power levels. With functions such as keep warm, grill, quick start and rapid level selection, plus multiple safety systems including child lock and overflow protection, it supports versatile everyday cooking.

Key Features

60 cm built–in induction hob with ultra–low profile or fully flushed installation.
Four induction cook zones with Multizone option and two flexible MultiZone areas.
EVO Slider touch control with red slider and rapid level selection for adjusting power.
Powerful booster and double booster on all cooking zones for very intense cooking.
Keep warm automatic function to keep cooked food heated before serving.
Grill function for specific grilling-style cooking.
Auto–Vent 2.0 providing connection between hob and compatible hood.
Automatic pan detection with minimum 9 cm pot diameter and permanent auto pot detection.
Automatic setting according to pan dimension for flexible use of larger or smaller pans.
Safety features include control lock/child safety, protection against accidental start up, overheat and overflow automatic switch–off.
Residual heat indication and residual time indicator for cooking awareness.
Limited power consumption mode from 2400 W to 7400 W in 100 W steps, including showroom demo option.
Time–setting options with automatic switch–off, end–of–cooking timer and minute minder.
Pause option allowing temporary interruption of cooking.
Matte white Eclipse ceramic glass with straight edge, double ceramization and black serigraphy.
Main on/off switch and 9 power levels for each zone.
Gas replacement suitability for switching from gas to induction.
Compatible accessory: induction and ceramic hobs and teppanyaki scraper (SCRP).
Alternative colour options available in matte black and black (SIM3644N, SIM3644MB, SIM3644D).

Technical Specifications

Model	SIM3644MWH
Product family	Hob
Installation	Built–in ultra–low profile or fully flushed
Dimensions	60 cm
Power supply	Electric
Type	Induction
EAN code	8017709339661
Aesthetic style	Classic
Colour	Matte White
Finishing	Matte
Material	Glass, Eclipse ceramic
Glass edge	Straight edge
Double ceramization	Yes
Gas replacement	Yes
Type of control setting	EVO Slider, red slider, front position
Logo	Silk screen
Serigraphy colour	Black
Total number of cook zones	4
Number of induction zones	4
Number of zones with booster	4
Number of flexible zones	2
Flexible Zone type	MultiZone
Multizone option	Yes

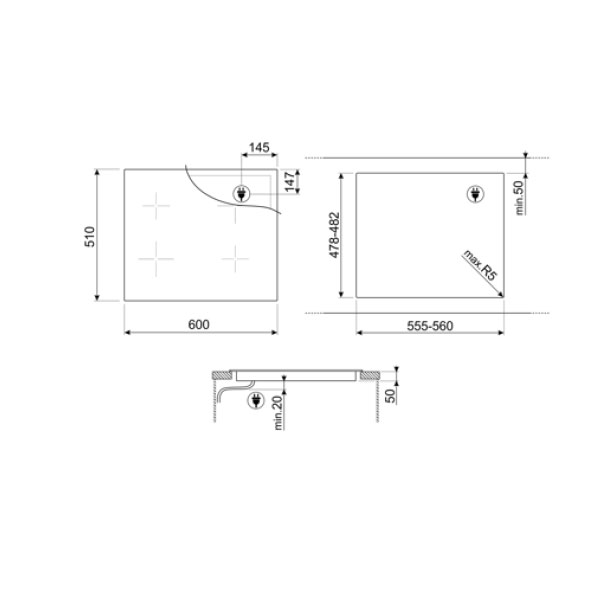

Standard cut–out size	478–482 x 555–560 mm
Main on/off switch	Yes
Power levels	9
Auto–Vent 2.0	Yes
Keep warm function	Yes, automatic function
Grill function	Yes
End cooking timer	4
Minute minder	1
End of cooking acoustic alarm	Yes
Residual time indicator	Yes
Residual heat indicator	Yes
Time–setting options	Automatic switch–off
Limited power consumption mode	Yes, advance – 2400 to 7400 W, step 100 W
Showroom demo option	Yes
Control lock / child safety	Yes
Bridge option	Yes
Quick start	Yes
Rapid level selection	Yes
Automatic pan detection	Yes, minimum 9 cm, permanent automatic pot detection with indication of relative control
Automatic switch–off when overheat	Yes
Automatic switch–off when overflow	Yes
Protection against accidental start up	Yes
Nominal power	7400 W
Current	33 A
Voltage 1	220–240 V
Voltage 2	380–415 V
Type of electric cable	Single phase; Yes, Double and Three Phase
Frequency	50/60 Hz
Power supply cable length	120 cm
Terminal box	5 poles
Front left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 21.5 x 18.0 cm
Rear left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 21.5 x 18.0 cm
Rear right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 21.5 x 18.0 cm
Front right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 21.5 x 18.0 cm
Left Multizone area	Booster 3.7 kW – 38.5 x 23.0 cm
Right Multizone area	Booster 3.7 kW – 38.5 x 23.0 cm

Additional Details and Usage

The induction hob operates using electromagnetic induction, generating heat directly in the base of the pan during contact with the surface. Multizone technology allows several pans of different sizes to be used at once, offering flexible placement and greater cooking freedom. The evolution slider control panel is totally back–lighted with a ghost effect and allows power to be adjusted simply by passing a finger across the touch device.

The keep warm function keeps cooked food heated: in this mode the heating zone operates at a minimum capacity for 120 minutes and then turns off automatically. The grill function and quick selection feature allow cooking to begin at the highest level and then automatically reduce after a set time, which is suitable for dishes that require quick boiling followed by continued cooking without constant control.

Quick Start works by operating the heating element at maximum power until the chosen temperature is reached. The hob includes a timer that automatically ends cooking after a preset time, and a time elapsed indication showing how long the cooking zone has been in use. Residual heat indicators remain lit while the temperature of a zone is above 60 °C and switch off when it falls below this level.

Safety systems include overheat protection that automatically turns off the hob in case of overheating of the control unit, and overfill protection that shuts down the hob in the presence of liquid overflow. Child lock allows the programme or cycle to be locked so it cannot be accidentally changed, and protection against accidental start up helps prevent unintended operation. The hob also offers the possibility to set the maximum power absorption.

Frequently Asked Questions

How many cooking zones does the SIM3644MWH have?

The hob has a total of four induction cook zones. All four zones have booster and double booster functions, and there are two flexible MultiZone areas that can be used as Multizone zones.

What are the dimensions of the cut–out required for installation?

The standard cut–out required for installation is 478–482 x 555–560 mm. The hob is designed for built–in ultra–low profile or fully flushed mounting.

Does the hob include child safety and other protection features?

Yes. It includes control lock/child safety, protection against accidental start up, automatic switch–off in case of overheating, automatic switch–off in case of overflow, and residual heat indication.

What power supply does the SIM3644MWH require?

The hob is electric with a nominal power of 7400 W. It can operate at 220–240 V or 380–415 V, has a current of 33 A, supports single phase, double and three phase electric cable types, and uses a 5–pole terminal box.

What is the minimum pan size for induction cooking on this hob?

The induction zones feature automatic pan detection with a minimum pot diameter of 9 cm. Permanent automatic pot detection indicates the relative control for the detected pan.

Is there a compatible cleaning accessory for this hob?

Yes. A compatible accessory identified as SCRP is available, described as an induction and ceramic hobs and teppanyaki scraper.
