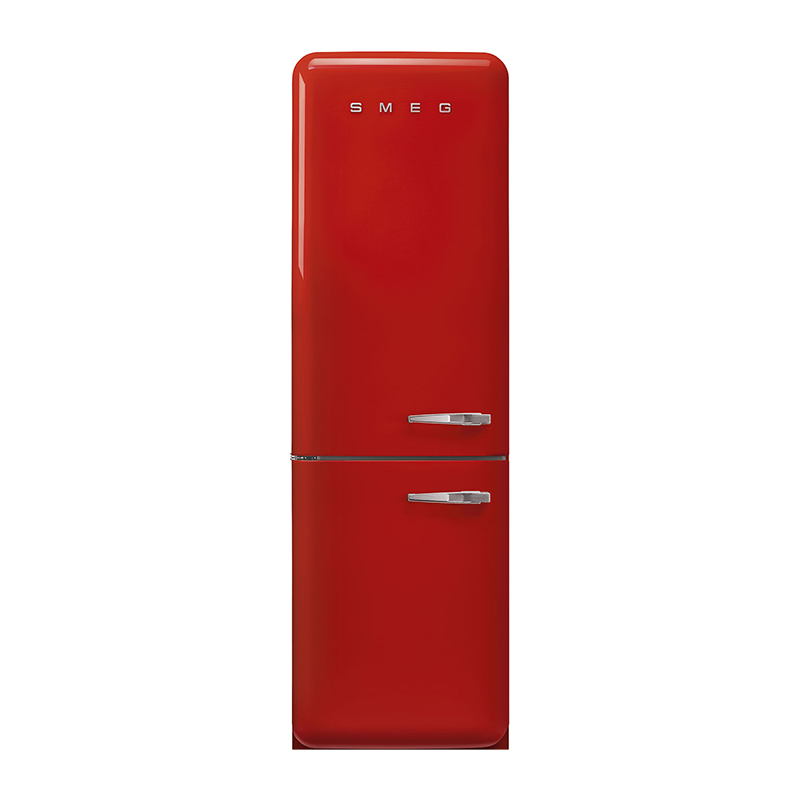

The SMEG FAB32LRD5UK is a freestanding, bottom mount refrigerator in iconic 50's Style with a glossy red, rounded design and chrome details. It offers Total No Frost with a double cooling system, automatic defrost and a Life Plus 0°C compartment for preserving fresh meat and fish longer. With LED interior lighting, an LED display and electronic temperature control, it combines style and practical refrigeration and freezing performance for the home.

Key Features

50's Style aesthetics with rounded, gloss red design, external fixed handle and chrome details for a distinctive look.
Total No Frost – Double Cooling system with automatic defrost, eliminating the need to defrost.
Life Plus 0°C compartment keeps temperature at 0°C to preserve fresh meat and fish longer.
LED interior lighting for long lasting, energy efficient illumination of the fridge compartment.
LED display positioned at the top inside to show programmes, functions, options and time to end of cycle.
Holiday, Fast freezing, Fast cooling and ECO functions available via the functions display.
Electronic temperature control with temperature alarm, power on lamp and temperature alarm lamp.
Acoustic and visual door open alarm to signal when the door is left open.
MultiFlow and fan for forced distribution of cold air and even temperature in the refrigerator compartment.
Fast freezing compartment and 4 star freezing capacity of 6 kg/24h for better food preservation.
Energy efficiency class D with annual energy consumption of 204 kWh/year and EEI 80%.
Low noise level of 37 dB(A) re 1 pW with airborne acoustical noise emission class C.
Spacious total volume of 331 l, including 234 l fridge and 97 l freezer capacity.
Variable Speed Compressor using R600a refrigerant gas and cyclopentane foam agent.
Flexible storage with 2 adjustable glass shelves, fruit and vegetable compartment and Life Plus compartment.
Practical inner door layout with 1 covered door shelf, 2 adjustable door shelves and 1 bottle shelf with wire support.
Stylish interior profiles including chrome door shelf, drawer and glass shelf profiles.
Freestanding installation with left hinge position and standard hinge type.
Wide climatic class range SN, N, ST, T to suit different ambient conditions.
Available colours include Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green and Lime green.

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	Bottom Mount
Reference width	Until 60 cm
Model code	FAB32LRD5UK
EAN code	8017709298272
No-Frost system	Total
Cooling type	Total No Frost – Double Cooling system
Defrost	Automatic
Hinge type / position	Standard hinge, Left position
Aesthetics	50's Style, rounded design, gloss finishing
Colour	Red
Material	Heat-moulded; sides in steel
Handle	External, fixed, chrome colour
Logo colour / type	Chrome, applied
Side colour	Red
Door shelf profile colour	Chrome
Drawer profile colour	Chrome
Glass shelf profile colour	Chrome
Display	LED, interior (on the top)
Available colours	Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green
Number of compartments (fridge)	2 (Fruit and vegetable compartment, Life Plus Compartment)
Number of adjustable shelves (fridge)	2, glass type
Crisper cover	Yes, glass, standard type
Number of fruit and vegetable drawers	1
Life Plus zone temperature	0°C
Internal light (fridge)	Yes, LED type
Covered door shelves	1 door shelf with transparent cover
Adjustable door shelves	2, with wire support
Bottle shelves	1, with wire support
MultiFlow	Yes
Fan	Yes
Number of drawers (freezer)	3
Number of compartments with flap	1
Freezer shelf type	Glass
Fast freezing compartment	Yes
Functions display	Holiday, Fast freezing, Fast cooling, ECO, Temperature alarm
Fast freezing button	Yes
Power on lamp	Yes
Temperature alarm lamp	Yes
Door open alarm	Acoustic and visual
Temperature alarm	Yes
Temperature control	Electronic
Number of compressors	1, Variable Speed Compressor
Refrigerant gas type	R600a
Refrigerant quantity	60 g
Foam agent	Cyclopentane
Annual energy consumption	204 kWh/year
Energy efficiency class	D
Airborne acoustical noise emission class	C
Noise level	37 dB(A) re 1 pW
Total volume	331 l
Fridge volume (chill + unfrozen)	234 l (sum of the volumes of the chill compartment(s) and the unfrozen compartment(s))
Freezer volume	97 l (sum of the volumes of the frozen compartment(s))
Thaw time	40 h
Freezing capacity	4 star, 6 kg/24h
Climatic class	SN, N, ST, T
EEI	80 %
Nominal power	127 W
Current	0.8 A
Voltage	220–240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug type	(G) UK e Singapore
Width	601 mm
Depth without handle	728 mm
Product height with feet	1968 mm
Product width with maximum doors opening	926 mm
Product depth with handle	768 mm
Product depth with doors open at 90°	1197 mm

Additional Details and Functions

The refrigerator compartment benefits from MultiFlow and a fan, providing forced distribution of cold air and even temperature distribution. The Life Plus 0°C compartment is designed to preserve fresh meat and fish longer by maintaining a temperature of 0°C. LED interior lighting offers energy efficient, long lasting illumination.

The LED display shows programmes, functions, options selected and the time to the end of the cycle. The functions display offers Holiday, Fast freezing, Fast cooling, ECO and Temperature alarm options. Fast freezing can be activated a few hours prior to usage to bring the compartment temperature down.

The Total No Frost system with automatic defrost eliminates the need to defrost altogether. A 4 star freezing compartment supports better food preservation with a freezing capacity of 6 kg/24h and a thaw time of 40 h. An acoustic and visual door open alarm, together with a temperature alarm, help protect stored food.

Frequently Asked Questions

What is the total capacity of the SMEG FAB32LRD5UK?

The total volume is 331 l, with 234 l in the chill and unfrozen compartments and 97 l in the frozen compartments.

Does this fridge freezer require manual defrosting?

No. It features a Total No Frost system with automatic defrost, which works by defrosting at regular intervals and eliminates the need to defrost altogether.

What energy rating does the FAB32LRD5UK have?

The appliance has an energy efficiency class of D, with an annual energy consumption of 204 kWh/year and an EEI of 80%.

How noisy is this fridge freezer in operation?

The noise level is 37 dB(A) re 1 pW, and it has an airborne acoustical noise emission class of C.

What special compartments are included in the fridge?

The fridge has a fruit and vegetable compartment, a Life Plus 0°C compartment, one fruit and vegetable drawer and a crisper cover in glass.

Which plug type and voltage does it use?

It uses a (G) plug suitable for UK and Singapore, with a voltage of 220–240 V and frequency of 50/60 Hz.
