The SMEG CVI321X3 is a built–in wine cooler designed for a 45 cm niche, offering fan assisted cooling and automatic defrost. It provides storage for up to 21 bottles (0.75 lt) with wooden shelves, including removable shelves on telescopic guide rails. Electronic touch controls with LED display, LED internal lighting and an activated charcoal air filter help maintain optimal conditions. A low vibration compressor and anti–UV door glass support careful wine storage in a compact 56 l appliance.

Key Features

Built–in 45 cm niche design for integrated installation in kitchen cabinetry.
Maximum capacity 21 bottles (0.75 lt) within a total volume of 56 l.
Fan assisted cooling with ventilated cold air distribution in the compartment.
Automatic defrost system that defrosts at regular intervals, removing the need for manual defrosting.
Electronic touch control settings with internal controls and LED display.
Temperature range 5–20 °C managed by electronic temperature control.
Wooden shelving with 1 fixed shelf and 2 removable shelves on telescopic guide rails.
LED internal lighting with lighting forced ON available for a maximum period.
Activated charcoal air filter to help maintain air quality inside the compartment.
Anti–UV door glass with 2 door glasses to help protect contents from light.
Low vibration compressor with 1 compressor and independent cooling system.
Temperature and door open alarms plus temperature value display and power on lamp.
Reversible door with standard right hinge and push pull door opening type.
Control lock function to secure the selected settings.
Energy efficiency class F with annual energy consumption of 100 kWh/year.
Quiet operation with a noise level of 36 dB(A) re 1 pW and noise emission class C.
Metal panel on the back of the fridge and foam agent HFO.
Integrated heating element and climatic class SN, N, ST.
Ventilated operation with fan forced ON functionality.
LED display to show programmes, functions, options selected and time to the end of the cycle.
Touch controls allowing the appliance to be programmed at the touch of a button.
Fingerprint proof stainless steel finish that keeps stainless steel looking as good as new. (Material implied by description; exact finish usage location not further detailed.)

Technical Specifications

Product family	Wine Cooler
Model	CVI321X3
Installation	Built–in

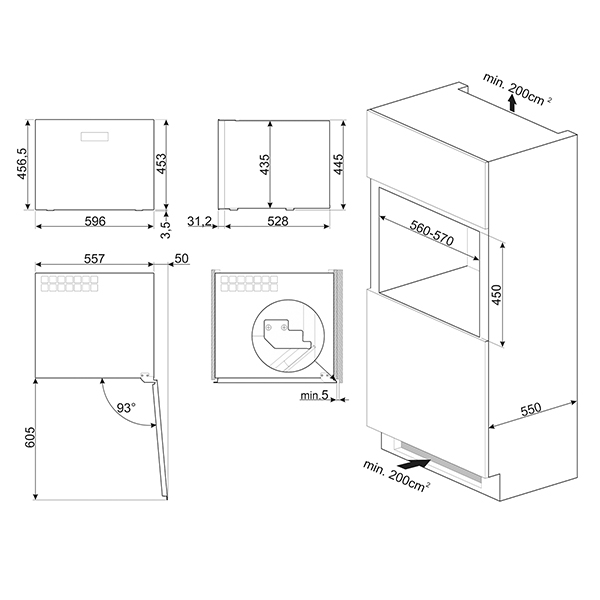

Built–in niche	45 cm
Defrost	Automatic
Cooling type	Fan assisted / Ventilated forced distribution of cold air
Hinge type	Standard
Hinge position	Right
Reversible door	Yes
Number of fixed shelves	1
Number of removable shelves	2
Shelves material	Wood
Removable shelves on telescopic guide rails	Yes
Type of internal light	LED
Air filter	Activated charcoal filter
Control setting	Touch control
Controls	Internal, in the compartment
Display	LED display
Functions display	Temperature alarm, Temperature value
Power on lamp	Yes
Control lock	Yes
Lighting forced ON	In a maximum period
Fan forced ON	Yes
Temperature alarm	Yes
Door open alarm	Yes
Adjustable temperature zones	1
Independent cooling systems	1
Number of door glasses	2
Number of compressors	1
Compressor type	Low vibration compressor
Refrigerant gas type	R600a
Temperature range	5–20 °C
Type of temperature control	Electronic
Anti–UV door glass	Yes
Integrated heating element	Yes
Refrigerant quantity	20 g
Foam agent	HFO
Metal panel on the back of the fridge	Metal
Door opening type	With push pull system
Max capacity (bottles 0.75 lt)	21
Annual energy consumption	100 kWh/year
Energy efficiency class	F
Airborne acoustical noise emission class	C
Total volume	56 l
Sum of the volumes of the chill and unfrozen compartments	56 l
Climatic class	SN, N, ST
EEI	124 %
Noise level	36 dB(A) re 1 pW
Nominal power	40 W
Current	0.4 A
Voltage	220–240 V
Frequency	50 Hz
Power supply cable length	180 cm
Plug	(F;E) Schuko

Additional Details and Operation

The wine cooler uses an automatic defrost system that works by automatically defrosting at regular intervals, eliminating the need to defrost altogether. Ventilated, forced distribution of cold air in the refrigerator compartment allows even temperature distribution within the appliance.

LED interior lighting provides an energy efficient and long lasting way of illuminating the interior and can be forced ON for a maximum period if required. Temperature management is via electronic touch controls with LED display showing programmes, functions, options selected and the time to the end of the cycle. A control lock can be activated to prevent unintended changes.

The appliance features temperature and door open alarms, plus a temperature value display and power on lamp. An activated charcoal air filter and anti–UV door glass help protect stored bottles. The reversible door with push pull opening system offers flexible built–in installation in a 45 cm niche.

Frequently Asked Questions

What is the bottle capacity of the SMEG CVI321X3 wine cooler?

The maximum capacity is 21 bottles of 0.75 lt within a total internal volume of 56 l.

What temperature range does this wine cooler offer?

The temperature range is from 5 to 20 °C, controlled electronically via the touch controls and LED display.

Is the SMEG CVI321X3 suitable for built–in installation?

Yes, it is designed for built–in installation in a 45 cm niche and features a reversible door with a push pull opening system.

Does the appliance need manual defrosting?

No, it has an automatic defrost system that defrosts at regular intervals, eliminating the need to defrost altogether.

How noisy is the SMEG CVI321X3 wine cooler?

The noise level is 36 dB(A) re 1 pW, and the airborne acoustical noise emission class is C.

What type of shelves and lighting does it use?

It has wood shelves, including 1 fixed shelf and 2 removable shelves on telescopic guide rails, and uses LED interior lighting.

CVI321X3

Smeg CVI321X3 Classic Compact Winecellar
