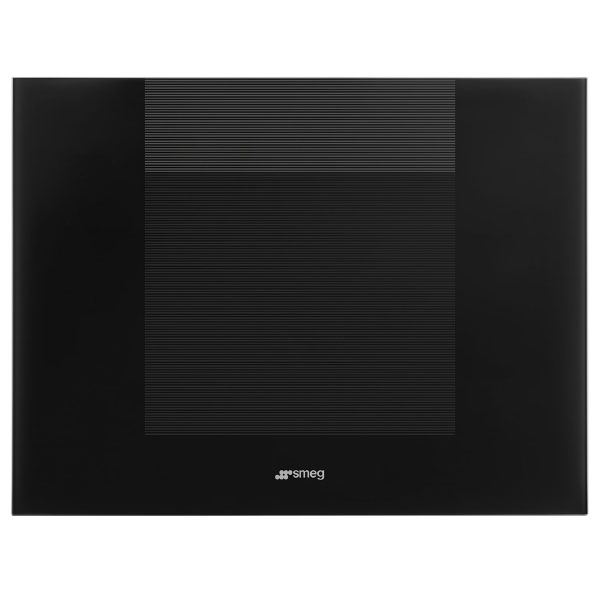

The SMEG CVI121B3 is a built–in wine cooler designed for a 45 cm niche, offering storage for up to 21 bottles (0.75 l) with a total volume of 56 l. It features fan assisted cooling, automatic defrost and a low vibration compressor to help protect wine. With electronic touch controls, LED display, LED interior lighting and an anti–UV glass door with activated charcoal air filter, it combines convenient control with practical wine storage.

Key Features

Built–in 45 cm niche design for integration into kitchen cabinetry.
Max capacity 21 bottles (0.75 l) with a total internal volume of 56 l.
Fan assisted cooling with ventilated cold air distribution in the compartment.
Automatic defrost system that defrosts at regular intervals, removing the need for manual defrosting.
Electronic temperature control with adjustable temperature in a single zone.
Temperature range 5–20 °C for flexible wine storage.
Low vibration compressor to support stable wine storage conditions.
Touch control panel with internal controls in the compartment.
LED display showing temperature value and temperature alarm information.
LED interior lighting for energy efficient and long–lasting illumination.
Wooden shelves including 1 fixed shelf and 2 removable shelves.
Removable shelves on telescopic guide rails for easier access.
Anti–UV door glass to help protect contents from light exposure.
Activated charcoal air filter in the compartment.
Door with push pull opening system and variable hinge, hinge on the right.
Reversible door for flexible installation direction.
Integrated heating element included.
Control lock to prevent accidental changes to settings.
Power on lamp to indicate the appliance is operating.
Temperature alarm and door open alarm for added user notification.
Fan forced ON function and lighting forced ON for a maximum period.
Independent cooling system with 1 compressor and 1 cooling system.
Energy efficiency class F with annual energy consumption of 100 kWh/year.
Noise level 36 dB(A) re 1 pW with airborne acoustical noise emission class C.
Climatic class SN, N, ST for a range of ambient conditions.
Metal back panel on the rear of the fridge compartment.

Technical Specifications

Product family	Wine cooler
Model	CVI121B3
Installation	Built–in
Built–in niche	45 cm
Defrost	Automatic
Cooling type	Fan assisted
Independent cooling systems	1
Hinge type	Variable hinge
Hinge position	Right
Reversible door	Yes
Door opening type	With push pull system
Number of door glasses	2
Anti–UV door glass	Yes
Metal back panel	Metal panel on the back of the fridge
Number of fixed shelves	1
Number of removable shelves	2
Shelves material	Wood
Removable shelves on telescopic guide rails	Yes
Number of lights	1
Type of internal light	LED
Air filter	Activated charcoal filter
Control setting	Touch control
Controls position	Internal, in the compartment
Display type	LED
Functions display	Temperature alarm, Temperature value
Power on lamp	Yes
Control lock	Yes
Lighting forced ON	In a maximum period
Fan forced ON	Yes
Temperature alarm	Yes
Door open alarm	Yes
Adjustable temperature zones	1
Number of compressors	1
Compressor type	Low vibration compressor
Refrigerant gas type	R600a
Refrigerant quantity	20 g
Foam agent	HFO
Integrated heating element	Yes
Temperature range	5–20 °C
Type of temperature control	Electronic
Max capacity (bottles 0.75 l)	21
Total volume	56 l
Sum of chill and unfrozen compartment volumes	56 l
Annual energy consumption	100 kWh/year
Energy efficiency class	F
EEI	124 %
Airborne acoustical noise emission class	C
Noise level	36 dB(A) re 1 pW
Climatic class	SN, N, ST
Nominal power	40 W
Current	0.4 A
Voltage	220–240 V
Frequency	50 Hz
Power supply cable length	180 cm
Plug	(F;E) Schuko

Additional Details and Functions

The wine cooler uses a ventilated, fan assisted cooling system to provide forced distribution of cold air in the refrigerator compartment, helping to maintain an even internal temperature. The automatic defrost system operates at regular intervals, removing the need for manual defrosting.

Easy to use touch controls allow programming at the touch of a button, with an LED display to show selected functions, temperature value and temperature alarms. A control lock is provided to secure the chosen settings. Lighting can be forced ON for a maximum period, and the fan can also be forced ON when required.

The interior is equipped with wooden fixed and removable shelves, some on telescopic guide rails for easier access to bottles. LED interior lighting offers an energy efficient and long lasting way of illuminating the compartment, while the anti–UV glass door and activated charcoal air filter contribute to maintaining suitable storage conditions for wine.

Frequently Asked Questions

What is the bottle capacity of the SMEG CVI121B3 wine cooler?

The wine cooler has a maximum capacity of 21 bottles of 0.75 l, with a total internal volume of 56 l.

What installation space is required?

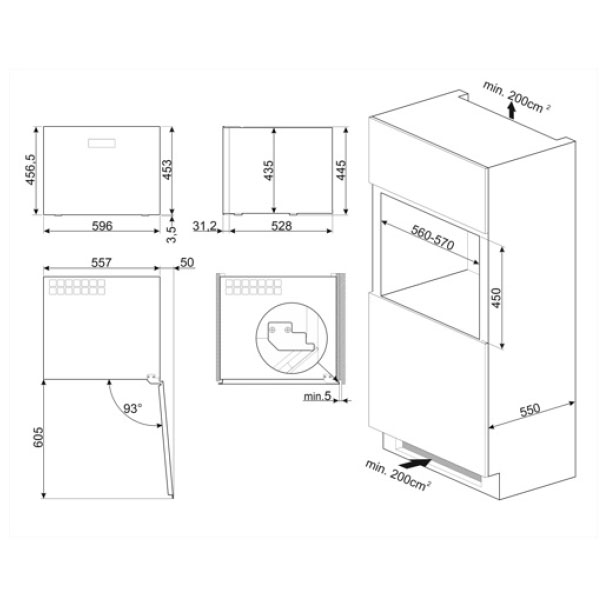

The appliance is designed for built–in installation in a 45 cm niche.

What temperature range can this wine cooler maintain?

The electronic temperature control allows a temperature range from 5–20 °C in a single adjustable temperature zone.

Does it have automatic defrost?

Yes. The appliance features an automatic defrost system that defrosts at regular intervals, so there is no need to defrost manually.

What type of lighting and controls does it use?

It uses LED interior lighting and has internal touch controls with an LED display showing temperature values and temperature alarms.

What is the energy efficiency class and noise level?

The wine cooler has an energy efficiency class F with annual energy consumption of 100 kWh/year, and a noise level of 36 dB(A) re 1 pW with airborne acoustical noise emission class C.

CVI121B3

Smeg CVI121B3 Linea Compact Winecellar
