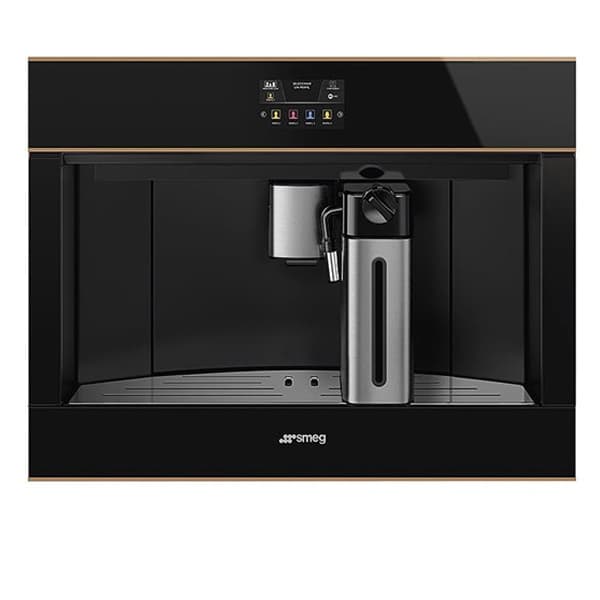

The SMEG CMS4604NR is a 45 cm compact automatic coffee machine from the Dolce Stil Novo family in gloss black with copper details and Eclipse glass. Designed for built‑in installation on telescopic guides, it offers touch control and a 4.3” TFT colour soft touch display with 17 languages. Features include an automatic cappuccino maker with separate milk tank, thermoblock and steamer heating system, stainless steel conical grinder and a heated cup holder.

Key Features

Automatic 45 cm compact coffee machine from the Coffee machine product family and Automatic type, ideal for compact kitchen sets.
Dolce Stil Novo aesthetics with gloss black colour, copper components finishing and Eclipse glass with applied logo.
4.3” TFT colour soft touch display with touch control and 17 display languages including GB, IT, FR, DE and more.
Wide drink selection including espresso, coffee, long, 2 x espresso, espresso macchiato, Americano, cappuccino, cappuccino mix, caffelatte, latte macchiato, hot milk, flat white and hot water.
Automatic cappuccino maker with separate stainless steel 0.5 L thermal milk carafe featuring autoclean system and adjustable milk froth.
Semiprofessional stainless steel conical grinder with 13 levels adjustable grinder and support for coffee beans and ground coffee.
Adjustable coffee settings with 5 levels adjustable coffee intensity, variable coffee length and variable coffee temperature.
Types of coffee portions available as Ristretto–Corto (small), Normale (medium) and Lungo (large).
Double coffee function to prepare two espressos at the same time with one infusion cycle.
Thermoblock + steamer heating system with brewing temperature between 88 and 96°C and semiprofessional steamer for hot recipes.
Hot water function to make hot water for tea or other hot drinks.
Heated cup holder with integrated cup warmer to keep cups warm before serving.
Height–adjustable coffee spout from 85–142 mm for different cup sizes.
Large water container capacity of 2.50 l and coffee granule container capacity of 350 g.
Used coffee waste container holding 14 single or 7 double portions.
Automatic rinsing and descaling functions, including rinsing at switch–on and descaling with product signalling.
Programmed automatic switch–on to have the machine ready for use at a required time.
Water management features including water hardness setting, lack of water signal and removable water container.
Safety and convenience with child lock, demo mode, drip tray and frontal approach to reach and extract components.
Lighting via 4 LED lights for clear visibility of the coffee area.
Steam dispenser suitable for recipes such as hot chocolate, punch, bombardino and vin brulé.
Milk froth temperature of 60°C with adjustment via thermal carafe knob.
Installation on telescopic guides for easy access and maintenance from the front.
Compatible accessory KITCABLE90UK cable with IEC connector and UK plug.

Technical Specifications

Product family	Coffee machine
Type	Automatic
Category	45 cm compact
Aesthetics	Dolce Stil Novo
Colour / Finishing	Black, gloss; components finishing copper; Eclipse glass; applied logo
Display	4.3'' TFT colour soft touch
Display languages (number)	17
Display languages (list)	IT, GB, FR, NL, SP, PT, SWE, RU, DE, DK, PL, NO, FI, TR, ET, KK, UK
Type of control setting	Touch control / touch controls
Coffee functions	Coffee function (single); Coffee function (double); Pre–heat infuser function
Automatic Cappuccino maker	Yes, with separate tank for milk
Hot water function	Yes, for tea or other drinks
Ground coffee option	Yes, ground coffee compartment
Coffee beans	Coffee granules compartment; coarseness of grind adjustable
Adjustable coffee intensity	5 levels adjustable coffee intensity
Variable coffee length	Five levels adjustable coffee length: espresso, normal, long, extra long and Americano
Adjustable cappuccino foam	Yes, via thermal carafe knob
Variable coffee temperature	Brewing temperature 88–96°C; three levels adjustable coffee temperature
Programmed automatic switch–on	Yes
Automatic rinsing	Yes, with hot water when the machine is switched on
Automatic descaling	Yes; need signalled by product
Water hardness setting	Yes
Lack of water signal	Yes
Child lock	Yes
Demo mode	Yes
Removable water container	Yes; capacity 2.50 l
Coffee granule container capacity	350 g
Used coffee waste container	Yes (14 single, 7 double)
Height–adjustable coffee spout	Yes, 85–142 mm
Steam dispenser	Yes; semiprofessional steamer with dedicated heating element
Drip tray	Yes
Removable milk jug	Yes; stainless steel thermal carafe 0.5 L with autoclean system
Milk froth temperature	60°C
Cup holder	Yes, warmed; integrated cup warmer
Heating system	Thermoblock + Steamer
Grinder	Semiprofessional stainless steel conical grinder; 13 levels adjustable grinder
Pump pressure	15 bar
Light type / number	LED; 4 lights
Installation	On telescopic guides; frontal approach to reach and extract components
Nominal power	1350 W
Current	5.6 A
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	180 cm
Width	595 mm
Depth	470 mm
Height	455 mm

Additional Details and Usage

Available drinks and coffee styles

This machine can create espresso, coffee, long, 2 x espresso, espresso macchiato, Americano, cappuccino, cappuccino mix, caffelatte, latte macchiato, hot milk, flat white and hot water. Coffee portions can be prepared as Ristretto–Corto (small portion), Normale (medium portion) or Lungo (large portion).

Coffee beans and ground coffee

The appliance can use both coffee beans and ground coffee. Coffee beans are processed by a conical stainless steel grinder with 13 levels adjustable grinder and the coarseness of grind can be adjusted. A separate ground coffee compartment is also provided.

Automatic rinsing and descaling

There is an automatic rinsing with hot water when the coffee machine is switched on. The descaling function removes excess limestone deposits in the tank and supports proper operation. The need to perform descaling is signalled by the product itself.

Programmable switch–on and temperature

It is possible to programme automatic switch–on so the machine is ready for use at the required time. Brewing temperature is between 88 and 96°C, with three levels of adjustable coffee temperature to suit taste.

Milk system and steam

The stainless steel thermal carafe (0.5 L) keeps milk fresh for longer, is fitted with an auto–clean system and a knob to adjust the milk froth. Milk froth temperature is 60°C. The semiprofessional steamer, with dedicated heating element, manages steam outlet and is suitable for hot chocolate, punch, bombardino and vin brulé.

Compact installation and access

This compact appliance with a height of 45 cm is a solution for kitchen sets of small height. Installation on telescopic guides and frontal approach make it possible to reach every point in the machine and extract components with one–hand use.

Controls and interface

Easy to use touch controls allow the appliance to be programmed at the touch of a button. The colour TFT display supports multiple languages to guide drink selection and settings.

Frequently Asked Questions

Can I use both coffee beans and ground coffee?

Yes. The machine has a coffee granules compartment for beans with adjustable grinder coarseness and a separate ground coffee compartment, allowing use of either coffee beans or ground coffee.

What drinks can this coffee machine prepare?

It can prepare espresso, coffee, long, 2 x espresso, espresso macchiato, Americano, cappuccino, cappuccino mix, caffelatte, latte macchiato, hot milk, flat white and hot water. It also offers Ristretto–Corto, Normale and Lungo portions.

Is the brewing temperature adjustable?

Brewing temperature ranges between 88 and 96°C and there are three levels of adjustable coffee temperature, allowing coffee to be served at the desired temperature.

Does the machine have automatic cleaning functions?

Yes. It has automatic rinsing with hot water when switched on and a descaling function to remove limestone deposits, with the need for descaling signalled by the product. The stainless steel thermal carafe also has an auto–clean system.

Can I adjust the strength and size of my coffee?

Yes. There are 5 levels of adjustable coffee intensity to set the quantity of beans ground per cycle and five levels of adjustable coffee length: espresso, normal, long, extra long and Americano.

Is this machine suitable for small kitchens?

The appliance is a compact 45 cm height model, described as a perfect solution to meet the functional requirements of kitchen sets of small height, and is installed on telescopic guides for easy access.

CMS4604NR

Smeg CMS4604NR Coffee machine
