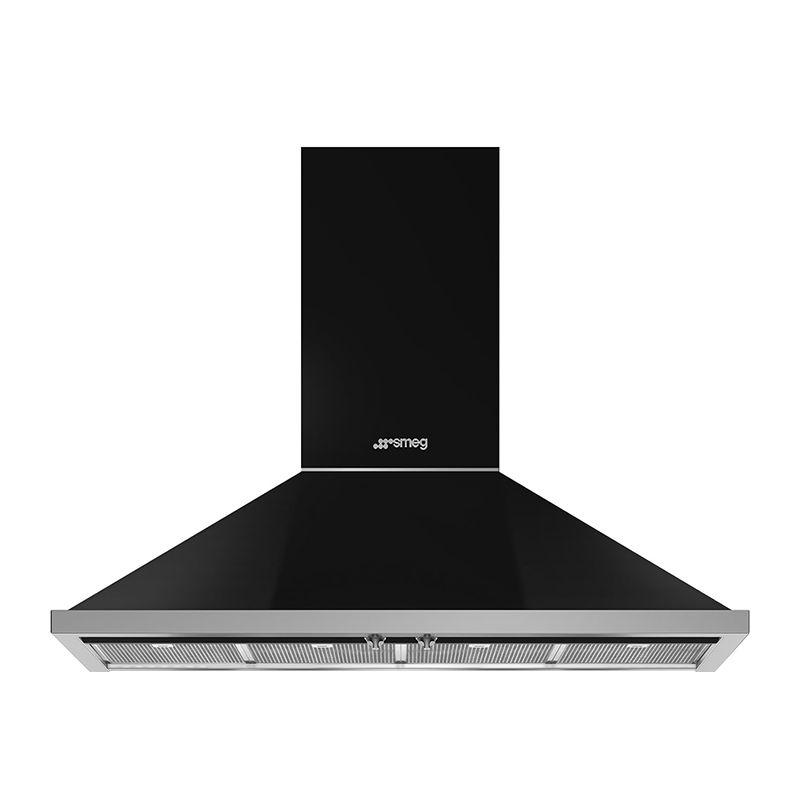

The Smeg KPF12BL is a 120 cm Portofino chimney cooker hood in black, designed for ducted or recirculation extraction. It features stainless steel and painted materials with brushed steel, LED lighting and control knobs. With three speeds plus intensive, a maximum extraction rate of 606 m³/h and an intensive rate of 777 m³/h, it offers A+ energy efficiency and stainless steel anti-grease filters.

Key Features

Product family & type: Chimney cooker hood from the Portofino aesthetics range.
Installation options: Extraction can be ducted out or re-circulation is possible.
Width: 120 cm hood width to cover larger cooking areas.
Finish and colour: Stainless steel and painted material with brushed steel and black colour.
Controls: Portofino control knobs with 2 controls and steel effect colour.
Speeds: 3 speeds plus intensive speed for extra fast extraction.
Lighting: 4 LED lights, 4 W each, 4000 K colour temperature, Lighting Efficiency Class A.
Filters: 4 stainless steel anti-grease filters fitted as standard.
Maximum extraction rate: 606 m³/h, with intensive extraction rate of 777 m³/h.
Free outlet maximum capacity: 815 m³/h with 275 W motor power.
Noise performance: 49 dBA at minimum speed, 67 dBA at maximum speed, 73 dBA at boost speed.
Energy efficiency: Energy Efficiency Class A+, Annual Efficiency Consumption 42 kWh/year.
Grease filtering: Grease Filtering Efficiency 74,9 % with Grease Filtering Efficiency Class D.
Vent outlet: 150 mm vent outlet with non return valve.
Minimum installation heights: 650 mm minimum distance from GAS hob and 650 mm from ELECTRIC hob.
Electrical connection: Nominal power 280 W, 220–240 V, 50–60 Hz, 1000 mm power supply cable length.
Available colours: White, Black, Stainless steel, Red, Turquoise (models KPF12WH/BL/X/RD/T).
Lighting benefits: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen.
Intensive/turbo function: Intensive/turbo setting for extra fast extraction when required.
Filter function: Filters help remove grease from the steam emanating from the pans during cooking.

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Aesthetics	Portofino
Colour	Black
Serigraphy colour	Black
Material	Stainless Steel + Painted Material
Type of steel	Brushed
Logo	Applied
EAN code	8017709261634
Hood width	120 cm
Extraction	Ducted out or re-circulation possible
Control setting	Control knobs
No. of controls	2
Control knobs	Portofino
Controls colour	Steel effect
No. of speeds	3 + intensive speed
No. of lights	4
Light type	LED
Light power	4 W
Light colour temperature	4000 K
Free outlet maximum capacity	815 m³/h
Motor power	275 W
No. of filters	4
Anti-grease filters	Stainless steel
Vent outlet	150 mm
Minimum distance from GAS hob	650 mm
Minimum distance from ELECTRIC hob	650 mm
Non return valve	Yes
Annual Efficiency Consumption (AEChood)	42 kWh/year
Energy efficiency class (EEC)	A+
Fluid Dynamic Efficiency (FDE)	36,3
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	74,8 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	74,9 %
Grease Filtering Efficiency Class (GFEC)	D
Air flow at minimum speed (Qmin)	287 m³/h
Maximum extraction rate	606 m³/h
Intensive extraction rate	777 m³/h
Speed 1 extraction rate (IEC 61591)	287 m³/h – 49 dBA
Speed 2 extraction rate (IEC 61591)	389 m³/h – 58 dBA
Speed 3 extraction rate (IEC 61591)	606 m³/h – 67 dBA
Intensive speed extraction rate (IEC 61591)	777 m³/h – 73 dBA
Airbourne acoustical A–weighted sound power emission at minimum speed (SPEmin)	49 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	67 dBA
Airbourne acoustical A–weighted sound power emission at boost speed (SPEboost)	73 dBA
Sound power level at highest setting (Lwa)	67 dBA
Time increase factor (F)	0,7
Energy Efficiency Index per first cavity	41,4
Measured air flow rate at best efficiency point (Qbep)	400 m³/h
Measured air pressure at best efficiency point (Qbep)	490 Pa
Measured electric power input at best efficiency point (Wbep)	150 W
Normal power of the light system (Wl)	4 W
Average illumination of the light on the cooking surface (Emiddle)	329 lux
Nominal power	280 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
Alternative colours available	White, Black, Stainless steel, Red, Turquoise
Available colours codes	KPF12WH/BL/X/RD/T

Additional Details and Usage

The cooker hood offers an intensive/turbo setting when extra fast extraction is required. It uses stainless steel anti-grease filters to help remove grease from the steam emanating from the pans during cooking.

All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Minimum installation distances are 650 mm from gas hobs and 650 mm from electric hobs.

Compatible Accessories

FLT6: Round charcoal filters (kit 2 pieces).
KITALLFC: Universal charcoal filter, Stainless Steel AISI 304. The filter can be washed in dishwasher 50 °C (water and suitable detergent) and to dry it put in the oven 180 °C 25 minutes.

Frequently Asked Questions

Can this hood be used in recirculation as well as ducted mode?

Yes. Extraction can be ducted out or re-circulation is possible.

What is the maximum extraction rate of the Smeg KPF12BL?

The maximum extraction rate is 606 m³/h, with an intensive extraction rate of 777 m³/h and a free outlet maximum capacity of 815 m³/h.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is A+, and the Annual Efficiency Consumption (AEChood) is 42 kWh/year. Energy efficiency class A+ helps to save up to 10% energy compared to class A.

How many speeds does the hood have?

It has 3 speeds plus an intensive speed for extra fast extraction when required.

What filters are included and what do they do?

The hood includes 4 stainless steel anti-grease filters. Filters help remove grease from the steam emanating from the pans during cooking.

What are the minimum installation heights above the hob?

The minimum distance is 650 mm from a GAS hob and 650 mm from an ELECTRIC hob.
