The iQ700 BV910E1B1 is a built–in vacuum drawer in black, sized 60 x 14 cm, designed for sous–vide cooking, aroma preservation and longer storage. It offers three vacuuming levels in the chamber and outside the chamber, with a handleless push–pull opening mechanism and touch control. With an 8 l cavity volume and automatic connection recognition for external vacuuming, it comes with a comprehensive set of vacuum bags and adaptors for versatile use.

Key Features

Built–in vacuum drawer (60 x 14 cm, black) designed for integration into kitchen cabinetry.
Vacuum drawer for sous–vide cooking as well as aroma preservation and longer storage.
Aroma preservation to preserve flavour and freshness with vacuum sealing.
3 vacuuming levels in the chamber with up to 99% vacuum.
3 vacuuming levels outside the chamber with up to 90% vacuum.
Handleless push–pull opening mechanism for easy opening and closing without a handle.
Touch Control with steel trim and touch key operation.
Automatic connection recognition for vacuuming outside the chamber.
Drying programme for vacuum pump to support appliance performance.
Door contact switch featured as part of the design.
8 l cavity volume providing space for vacuuming tasks.
Comprehensive accessories included such as vacuuming bags, hose and bottle adaptors.
Optional wireless food thermometer (HEZ32WA00) available as an accessory.

Technical Specifications

Product type	Built–in vacuum drawer
Model	iQ700 BV910E1B1
Colour	Black
Built–in / Free–standing	Built–in

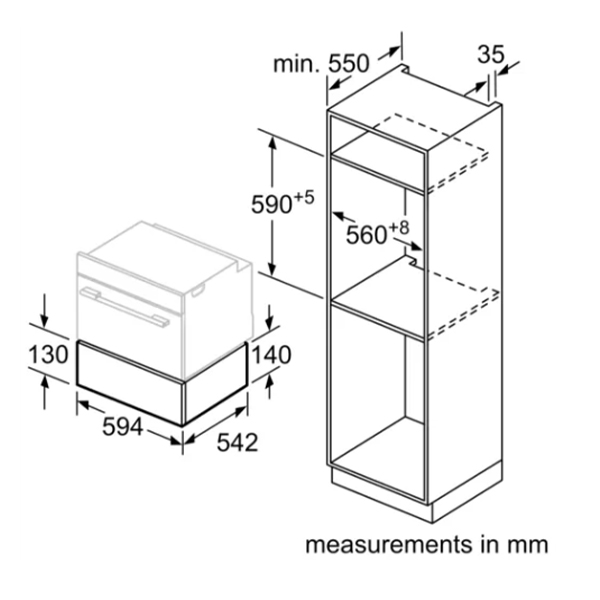

Appliance dimensions (H x W x D)	140 mm x 594 mm x 542 mm
Required niche size (H x W x D)	141 mm x 560 mm x 550 mm
Niche dimension (H x W x D)	141 mm x 560 mm – 568 mm x 550 mm
Cavity volume	8 l
Vacuum levels in chamber	3 vacuuming levels, max. 99%
Vacuum levels outside chamber	3 vacuuming levels, max. 90%
Total connected load (electric)	0.32 kW
Nominal voltage	220 – 240 V
Frequency	50; 60 Hz
Fuse protection	6 A
Plug type	Gardy plug w/ earthing
Power cord length	150 cm cable length
Dimensions of packed product (H x W x D)	230 x 660 x 660 mm
EAN code	4242003909638

Additional Details and Usage

Design and controls

The vacuum drawer features a handleless push–pull opening mechanism for easy access. Operation is via Touch Control with steel trim and touch key operation. A door contact switch is included as part of the features.

Programmes and functions

Vacuum drawer for sous–vide cooking, aroma preservation and longer storage.
3 vacuuming levels for vacuuming in the chamber, max. 99%.
3 vacuuming levels for vacuuming outside the chamber, max. 90%.
Automatic connection recognition for vacuuming outside the chamber.
Drying programme for vacuum pump.

Installation information

The appliance is designed as a built–in unit with specified niche dimensions. For details on installation and ventilation requirements, it is stated that the installation manual should be referred to prior to fitting.

Included accessories

50 x vacuuming bag, small
50 x vacuuming bag, big
1 x adaptor for vacuuming outside the chamber
1 x vacuuming hose
1 x adaptor for bottle plugs
3 x plugs for vacuuming of bottles

Optional accessories

Optional accessory: HEZ32WA00 wireless food thermometer.

Frequently Asked Questions

What is the main purpose of the iQ700 BV910E1B1 vacuum drawer?

It is a vacuum drawer for sous–vide cooking, aroma preservation and longer storage, helping to preserve flavour and freshness with vacuum sealing.

How many vacuum levels does the drawer offer?

It provides 3 vacuuming levels for vacuuming in the chamber with up to 99% vacuum, and 3 vacuuming levels for vacuuming outside the chamber with up to 90% vacuum.

What are the required niche dimensions for installation?

The required niche size for installation is 141 x 560 x 550 mm. It is also specified with a niche dimension of 141 mm x 560 mm – 568 mm x 550 mm.

Which accessories are included with the vacuum drawer?

Included accessories are 50 small vacuuming bags, 50 big vacuuming bags, 1 adaptor for vacuuming outside the chamber, 1 vacuuming hose, 1 adaptor for bottle plugs and 3 plugs for vacuuming of bottles.

Does the appliance support vacuuming containers outside the chamber?

Yes. It offers 3 vacuuming levels for vacuuming outside the chamber with a maximum of 90% vacuum and has automatic connection recognition for vacuuming outside the chamber.

Is there an optional accessory for temperature measurement?

An optional accessory, the HEZ32WA00 wireless food thermometer, is available.

BV910E1B1

Siemens StudioLine BV910E1B1 Vacuum Drawer
