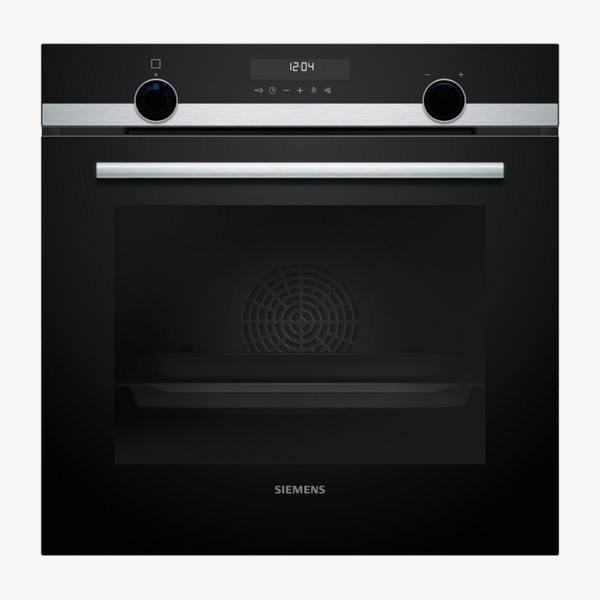

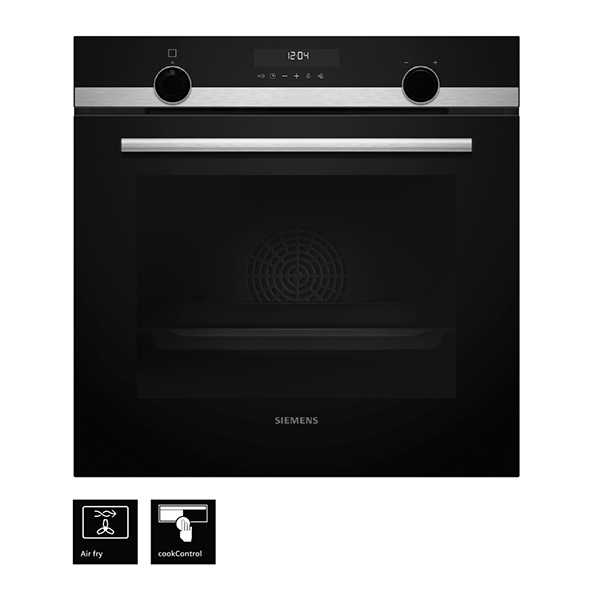

The Siemens iQ500 HB578GBS7B is a 60 × 60 cm built-in stainless steel oven designed for flexible everyday cooking. With a 71 litre cavity, 8 main heating functions and cookControl30 automatic programmes, it supports a wide range of dishes. Home Connect with Remote Control and Oven Assistant with Voice Control provide intuitive operation, while activeClean pyrolytic self-cleaning and a quadruple glazed CoolTouch door offer convenient maintenance and safety-focused design.

Key Features

Built-in 60 × 60 cm design – Stainless steel oven designed for integrated installation.
71 l cavity volume – Spacious main cavity with 5 shelf positions and shelf support rails.
8 main heating functions – 3D hot air, conventional top & bottom heating, hot air grilling, full width grill, Pizza setting, coolStart, low temperature cooking, Hotair gentle.
Additional app-only functions – air fry, bottom heating, let rest and preheating available via Home Connect App.
Home Connect with Remote Control – Unlocks smart oven functions when connected to a Home Connect and SingleKey ID account via the Internet. 1
Oven Assistant with Voice Control – Intuitively set the right programme using voice control. 1
activeClean® pyrolytic system – Automatic, self-cleaning oven system with low door temperature during pyrolitic cleaning.
cookControl30 automatic programmes – Automatic programs ensure best results with cookControl, 30.
3D hotAir Plus – Even heat distribution on up to three levels for excellent results.
A+ energy efficiency rating – Energy-efficient electric oven with fan-forced and conventional modes.
Temperature range 30 °C – 275 °C – Flexible settings for low temperature cooking and high-heat baking.
Stainless steel control dial with lightControl – Illuminated dials for intuitive operation, round with steel trim.
LCD display and electronic timer – White LCD display, electronic oven clock timer and digital temperature display with proposal.
Fast preheat and coolStart – Fast preheat function and coolStart setting.
SoftClose / softOpen door – Drop down oven door with softClose and softOpen for smooth handling.
Quadruple glazed CoolTouch door – Heat reflective glass with maximum door temperature of 30 °C.
Safety features – Electronic door lock, control panel lock, automatic safety switch off, residual heat indicator and door contact switch.
Interior halogen light – Interior halogen light with light on/off when door opened/closed.
Integral cooling fan – Built-in cooling fan for appliance operation.
Included accessories – Supplied with 2 × combination grid and 1 × universal pan.
Optional accessories range – Compatible with baking stones, pans, trays, rails, glass pans and more, as listed in the accessories section.
Enamel anthracite cavity – Cavity inner surface in enamel anthracite with full glass inner door.
Electric heat source – Total connected load 3.6 kW, nominal voltage 220 – 240 V.
Built-in design recommendation – Recommended to choose complementary products within iQ500 for optimal built-in design combination.

Technical Specifications

Product group	Built-in oven, iQ500
Model designation	HB578GBS7B
Colour / finish	Stainless steel, glass control panel and door
Built-in / Free-standing	Built-in
Integrated cleaning system	Pyrolytic (activeClean®)
Cavity volume	71 litres / 71 l usable volume of cavity
Number of cavities	1 (Main cavity)
Heat source	Electrical
Heating types (main)	Full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, low temperature cooking, coolStart, Hot air grilling / 3D hot air, conventional top & bottom heating, hot air grilling, full width grill, Pizza setting, coolStart, low temperature cooking, Hotair gentle
Heating via Home Connect App	air fry, bottom heating, let rest, preheating
Temperature range	30 °C – 275 °C
Energy efficiency rating	A+ (acc. EU Nr. 65/2014; 2010/30/EC)
Energy consumption conventional	0.94 kWh/cycle (0.94 kWh per cycle in conventional mode)
Energy consumption forced air	0.69 kWh/cycle (0.69 kWh per cycle in fan-forced convection mode)
Energy efficiency index	81.2 % (2010/30/EC)
Connection rating	3600 W / 3.6 kW total connected load electric
Nominal voltage	220 – 240 V
Frequency	50; 60 Hz
Fuse protection	16 A
Plug type	No plug (electrical connection by electrician)
Cable length	120 cm
Control panel material	Glass
Door material	Glass, quadruple glazed, heat reflective CoolTouch door
Maximum door temperature	30 °C

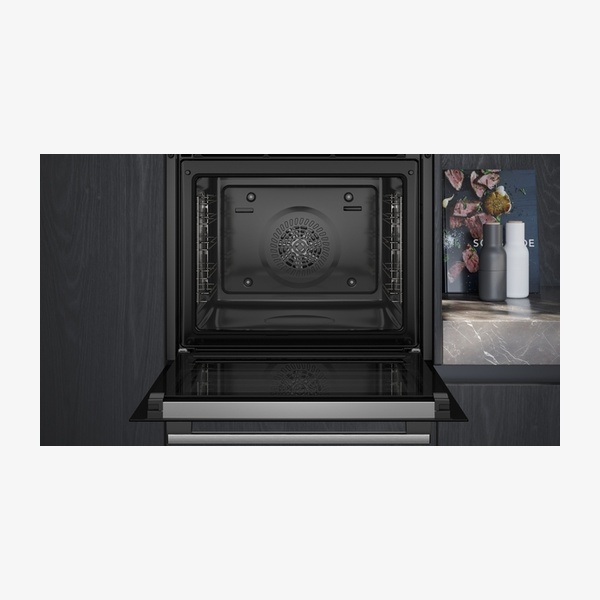

Interior surface	Cavity inner surface: enamel anthracite; full glass inner door
Usable shelf positions	5 shelf positions in oven; cavity with shelf support rails; level independent telescopic rails

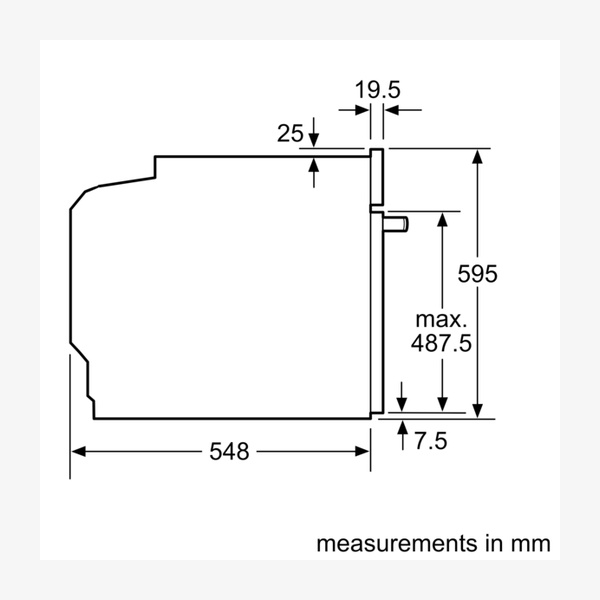

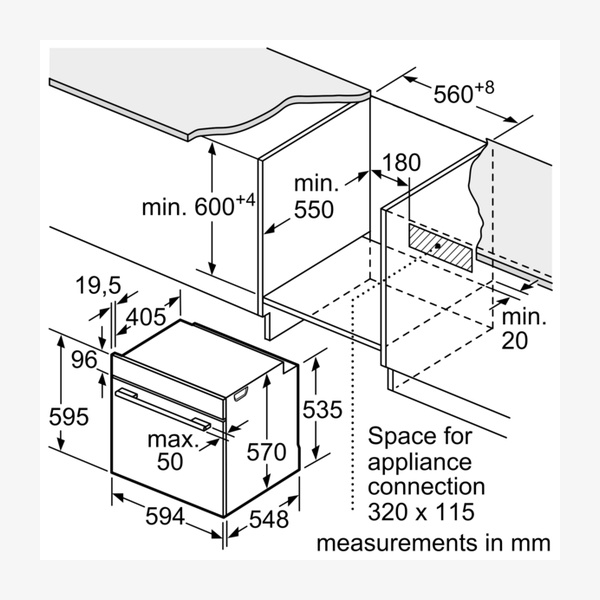

Appliance dimensions (H × W × D)	595 mm × 594 mm × 548 mm / 595 × 594 × 548 mm

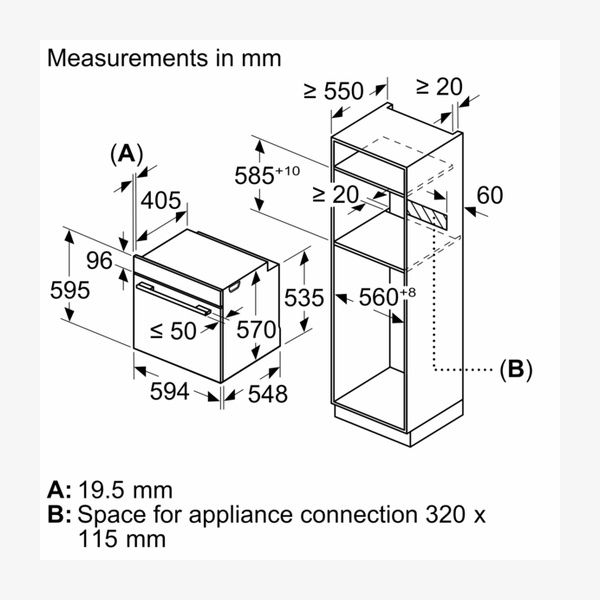

Niche dimensions (H × W × D)	585 mm – 595 mm × 560 mm – 568 mm × 550 mm / 585 – 595 × 560 – 568 × 550 mm
Packed product dimensions (H × W × D)	675 × 660 × 690 mm
Weight	36.9 kg
Interior lighting	Interior halogen light; light on/off when door opened/closed
Cooling	Integral cooling fan
Display and controls	LCD Display (White); stainless steel control dial with lightControl; electronic oven clock timer; digital temperature display with proposal; heating-up indicator; bar handle
Smart connectivity	WLAN – Home Connect enabled; Home Connect with Remote Control; Oven Assistant with Voice Control. 1
EAN code	4242003956274

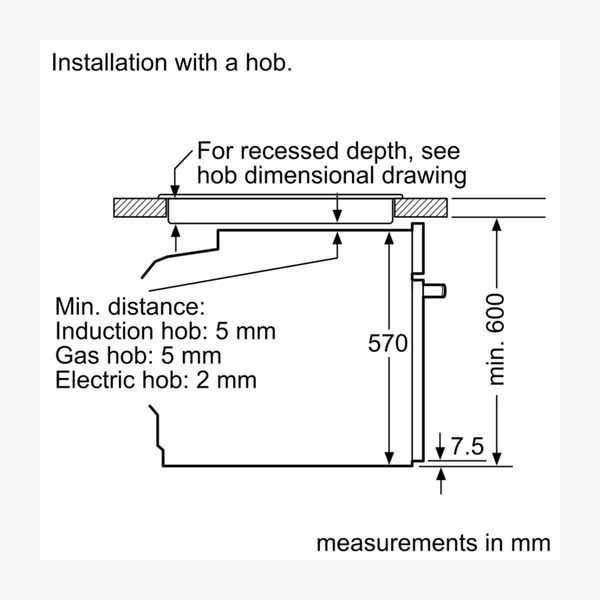

Installation notes	For details on installation and ventilation requirements – please refer to the installation manual prior to fitting.
Brand design recommendation	Recommended to choose complementary products within iQ500 for optimal design combination of built-in appliances.

1 Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH.

Programmes, Operation and Safety

Cooking programmes and functions

The oven provides 8 main functions: 3D hot air, conventional top & bottom heating, hot air grilling, full width grill, Pizza setting, coolStart, low temperature cooking and Hotair gentle. Additional heating methods air fry, bottom heating, let rest and preheating are available only via the Home Connect App. cookControl30 offers automatic programmes, including automatic start and cookControl functions.

Controls and display

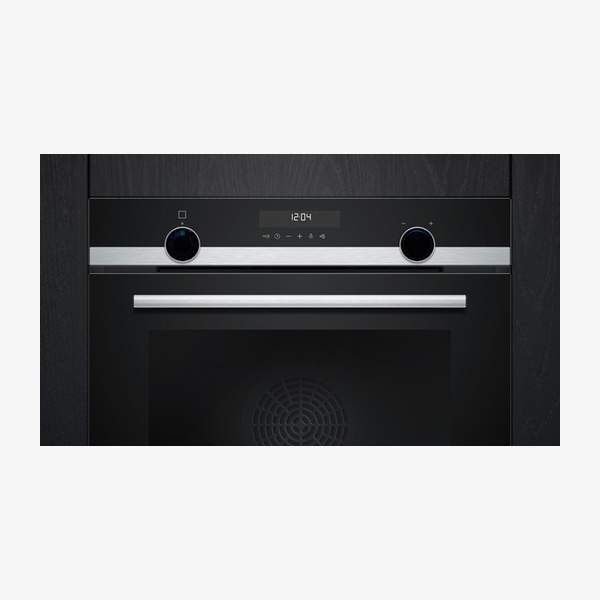

Operation is supported by an LCD Display (White), stainless steel control dial with lightControl and a bar handle. Features include an electronic oven clock timer, digital temperature display with proposal, a heating-up indicator, automatic programmes, fast preheat and coolStart.

Cleaning and maintenance

The activeClean pyrolytic system provides automatic, self-cleaning of the oven interior. The cavity inner surface in enamel anthracite and full glass inner door support cleaning, and the door maintains a low temperature during pyrolitic cleaning.

Door design and handling

The drop down oven door includes softClose and softOpen functions for gentle opening and closing. The quadruple glazed door with heat reflective glass forms a CoolTouch door with a maximum door temperature of 30 °C.

Safety features

Electronic door lock
Control panel lock
Automatic safety switch off
Residual heat indicator
Door contact switch
Low door temperature during pyrolitic cleaning

Accessories and compatibility

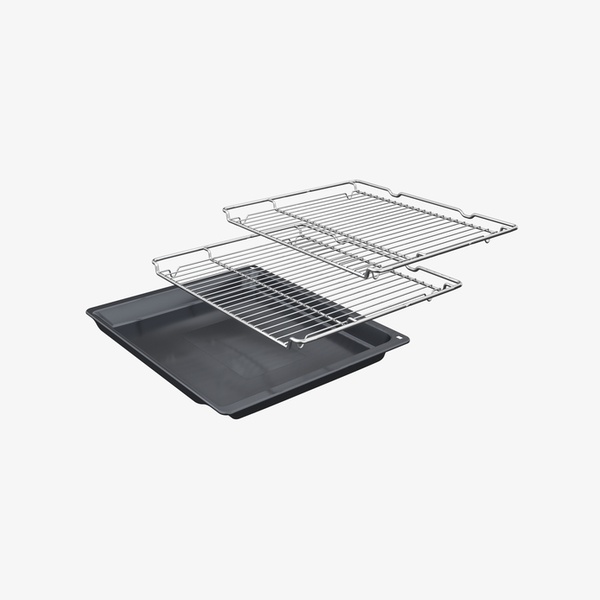

Included accessories:

2 × combination grid
1 × universal pan

Optional accessories:

HZ327000 Baking stone
HZ32WA00 wireless roastingSensor
HZ530000 2 multipurpose pans, slim size
HZ531010 Baking tray, non-stick ceramic coated
HZ532010 Universal pan, non-stick ceramic coated
HZ538000 varioClip rail
HZ617000 Pizza pan, enamelled
HZ629070 Air Fry & Grill tray
HZ631070 Baking tray, enamelled
HZ632070 Multipurpose pan, enamelled
HZ633001 Lid for professional pan, enamelled
HZ633070 Professional pan with grid, enamelled
HZ633073 Professional pan, enamelled
HZ634000 Baking and roasting grid (standard)
HZ636000 Glass pan
HZ638000 Full ext rails, level independent
HZ65MA00 Assembly kit for vertical installation
HZ664000 Baking and roasting grid (steam)
HZ66X650 Cover Strip
HZ915003 Glass roasting dish, 5,4 L

Frequently Asked Questions

What is the capacity of the Siemens iQ500 HB578GBS7B oven?

The oven has a cavity volume of 71 litres, with a usable volume of 71 l in the main cavity and 5 shelf positions supported by shelf support rails.

Which heating functions does this oven offer?

How does the self-cleaning feature work?

The oven uses the activeClean pyrolytic system, an automatic, self-cleaning oven system. During pyrolitic cleaning the door temperature remains low, and the enamel anthracite cavity and full glass inner door support cleaning.

Is this oven energy efficient?

Yes. The appliance has an A+ energy efficiency rating. Energy consumption per cycle is 0.94 kWh in conventional mode and 0.69 kWh in fan-forced convection mode, with an energy efficiency index of 81.2 %.

What safety features are included?

Safety equipment includes an electronic door lock, control panel lock, automatic safety switch off, residual heat indicator and a door contact switch. The door is quadruple glazed with heat reflective glass, forming a CoolTouch door with a maximum door temperature of 30 °C and low door temperature during pyrolitic cleaning.

Does the oven support smart connectivity and voice control?

The oven is WLAN – Home connect enabled and offers Home Connect with Remote Control and Oven Assistant with Voice Control. Some features can be accessed only when connected to a Home Connect Account and a SingleKey ID account via the Internet.
