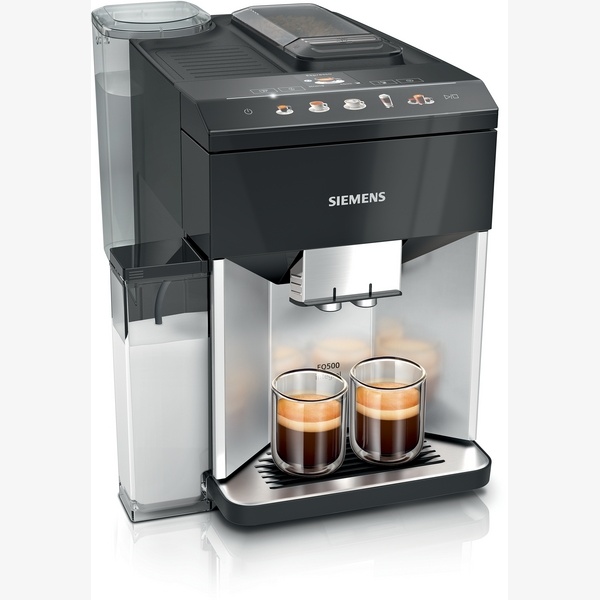

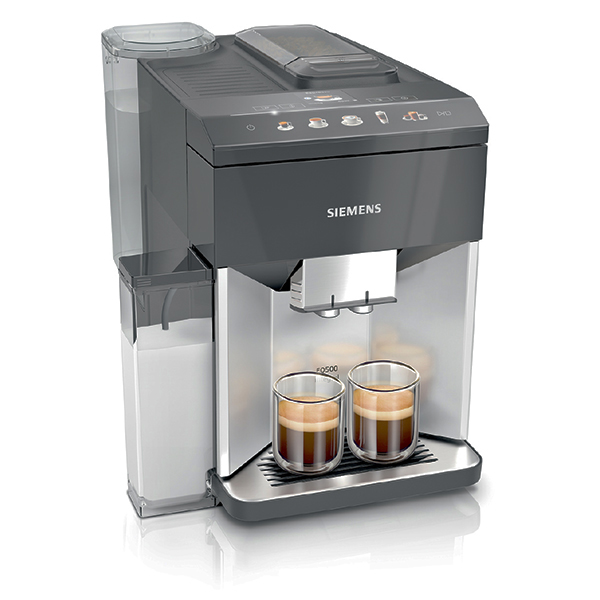

The Siemens EQ500 integral TQ513GB1 is a bean to cup coffee machine in Daylight silver and Piano black, designed for convenient preparation of coffee and milk specialities. It offers up to nine beverages including espresso, cappuccino and latte macchiato at the touch of a button, supported by the colourful coffeeSelect Display. With autoMilk Clean steam cleaning, a ceramic grinding unit and aromaDouble Shot, it combines ease of use, hygiene and flavour-focused performance.

Key Features

Great variety of beverages – 9 beverages including hot water, plus milk foam, for coffee and milk specialities.
One-touch coffee variety – Espresso, Espresso macchiato, Cappuccino and Latte macchiato at the touch of a button.
Additional coffee specialities – Americano and Flat white for an outstanding coffee moment.
Separate milk foam and hot water – Milk foam and hot water can also be dispensed separately.
aromaDouble Shot – Extra strong coffee without compromise in aroma thanks to a double grinding and brewing process.
coffeeSelect Display – Full colour, intuitive display for easy handling and beverage selection.
Integrated milk container – Easy to remove, fits into the fridge door and is dishwasher–proof.
autoMilk Clean steam blast – Fully automatic steam cleaning of the milk system after every beverage.
ceramDrive grinding unit – Ceramic grinding unit designed to grind the aroma out of every bean.
One-touch milk specialities – Coffee milk specialities with especially fine–pored milk froth via an innovative milk frother.
Removable 1.9 litre water tank – Convenient filling and handling.
15 bar water pump – Delivers the required pressure for coffee preparation.
Separate pre–ground coffee container – Allows use of pre–ground coffee in addition to beans.
Easy maintenance access – Service door on the appliance front for quick cleaning and maintenance.
Removable brewing unit – Easy, hygienic cleaning under running water.
Automatic quick rinse – Rinse programme runs automatically when switched on or off.
Dishwasher–proof milk parts – Milk nozzle parts are removable, separable, easy to clean and dishwasher proof.
Removable drip tray and grounds container – For straightforward emptying and cleaning.
Automatic descaling and cleaning programmes – Fully automatic programmes with timely reminders.
Bean container with aroma lid – Holds up to 270 grams of coffee beans with an aroma preserving lid.
Adjustable grind settings – 1–6 settings to tailor the grind.
Different display languages – Display language can be adjusted.
Child lock – Helps prevent unintended use of the machine.
Included accessories – 1 x milk container (simple), 1 x test strip, 1 x welcome–Box.

Technical Specifications

Product type	Bean to cup coffee machine, EQ500 integral
Model	TQ513GB1
Finish / colour	Daylight silver, Piano black
Dimensions (H x W x D)	373x318x448
Packed product dimensions (H x W x D)	510x345x425
Pallet dimensions	220.0 x 80.0 x 120.0
Standard units per pallet	24
Net weight	8.5
Gross weight	9.6
EAN code	4242003930175
Connection rating	1500
Wattage	1500 W
Voltage	220–240
Frequency	50
Length of electrical supply cord	100
Plug type	GB plug
Water tank capacity	1.9 litre (removable water tank)
Pump pressure	15 bar
Bean container capacity	Up to 270 grams
Grind settings	1–6 settings
Included accessories	1 x test strip, 1 x welcome–Box, 1 x milk container (simple)
Separately available accessories	Cleaning tablets (TZ80001...), descaling tablets (TZ80002...), BRITA Intenza water filter (TZ70003), care set for fully–automatic espresso makers (TZ80004...), adapter for milk carton (TZ50001)

Additional Details and Usage

Beverage options

The machine offers 9 beverages including hot water and milk foam. Coffee varieties available at the touch of a button include Espresso, Espresso macchiato, Cappuccino and Latte macchiato. Additional specialities such as Americano and Flat white are also available, and milk foam and hot water can be dispensed separately.

Operation and convenience

Operation is via the colourful, intuitive coffeeSelect Display. The removable 1.9 litre water tank allows convenient refilling, while a separate container for pre–ground coffee provides flexibility alongside the bean container with aroma preserving lid.

Coffee preparation and performance

The ceramDrive ceramic grinding unit is designed to grind the aroma out of every bean, with adjustable grind settings from 1 to 6. The aromaDouble Shot function enables extra strong coffee without compromising aroma by using a double grinding and brewing process. A water pump with 15 bar pressure supports the preparation of the beverages, and an innovative milk frother produces especially fine–pored milk froth for one–touch coffee milk specialities.

Cleaning and hygiene

Easily accessible service door on the appliance front for quick maintenance and cleaning.
Removable brewing unit for easy, hygienic cleaning under running water.
Integrated milk container that is easy to remove, fits into the fridge door and is dishwasher–proof.
Automatic quick rinse programme when the appliance is switched on or off.
steam blast for fully automatic steam cleaning of the milk system after every beverage.
Milk nozzle parts are easily removable, separable, easy to clean and dishwasher proof.
Removable drip tray including container for coffee grounds.
Fully automatic descaling and cleaning programme, with reminders given in time for descaling and cleaning.

Safety and control

The machine includes a child lock to help prevent unintended use. Different display languages are available so settings can be adjusted to user preference.

Frequently Asked Questions

Which beverages can this machine prepare?

It offers 9 beverages including hot water and milk foam. Coffee specialities available include Espresso, Espresso macchiato, Cappuccino, Latte macchiato, Americano and Flat white. Milk foam and hot water are also available separately.

How does the machine keep the milk system clean?

The integrated milk container is easy to remove, fits into the fridge door and is dishwasher–proof. The machine uses a steam blast for fully automatic steam cleaning of the milk system after every beverage, and all milk nozzle parts are removable, separable, easy to clean and dishwasher proof.

What is aromaDouble Shot?

aromaDouble Shot is a function that allows extra strong coffee without compromise in aroma. It uses a double grinding and brewing process to achieve a stronger beverage while maintaining flavour.

Can I use pre–ground coffee with this machine?

Yes. In addition to the bean container, there is a separate container for pre–ground coffee.

What automatic cleaning functions are included?

The machine features an automatic quick rinse programme when switched on or off, steam blast for the milk system after every beverage, a fully automatic descaling and cleaning programme, and reminders for descaling and cleaning at the appropriate time.

What accessories are included and what can be purchased separately?

Included accessories are 1 x milk container (simple), 1 x test strip and 1 x welcome–Box. Separately available accessories include cleaning tablets (TZ80001...), descaling tablets (TZ80002...), a BRITA Intenza water filter (TZ70003), a care set for fully–automatic espresso makers (TZ80004...) and an adapter for milk carton (TZ50001).

TQ513GB1

Siemens EQ500 TQ513GB1 Fully automatic coffee machine
