Product synopsis

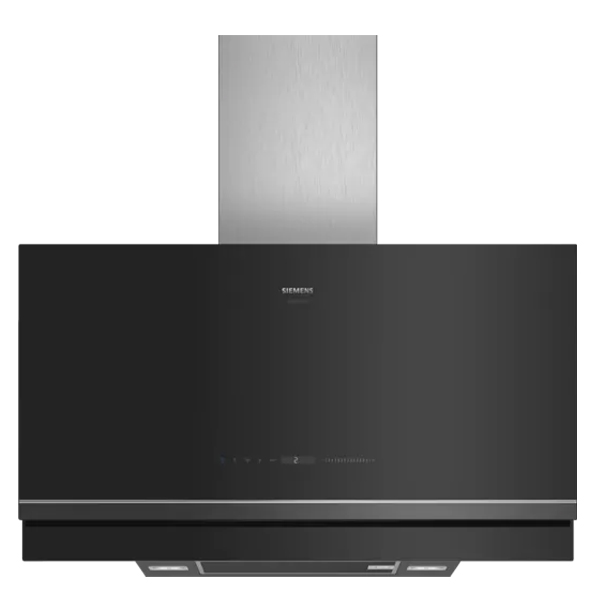

The Siemens iQ700 LC97FVW69B is a 90 cm wall–mounted chimney hood in black glass with a flat, modern design. It offers powerful extraction for ducted or recirculating operation, supported by an efficient iQdrive BLDC motor and twin channel fan. With electronic touch controls, cookConnect hob control, climateControl sensor, emotionLight Pro and Home Connect with voiceControl, it suits users seeking high performance, smart connectivity and flexible installation options.

Key Features

Flat design extractor hood with high extraction rate for powerful performance.
iQdrive motor – quiet, high–performance motor for efficient removal of odours and steam.
cookConnect hob based hood control for linked operation with compatible hobs.
climateControl sensor automatically detects and removes steam and odours.
emotionLight Pro / Ambient light RGB to adapt hood lighting to individual style.
voiceControl – control hood functions and lighting via popular voice assistants (service availability country–dependent).
Home Connect for remote monitoring and control via smartphone or tablet (service availability country–dependent).
3 power levels + 2 intensive settings including boost function for demanding cooking.
High extraction performance with max. extraction rate 717 m³/h (intensive).
Energy Efficiency Class B with average energy consumption 40 kWh/year*.
LED lighting – 2 × 3 W LEDs, 3500 K, softLight with dimmer and 589 lux light intensity.
Grease and charcoal filter saturation indicators to signal maintenance requirements.
Easy to clean inner frame with 2 metal grease filter cassettes and black grease filter.
Suitable for ducted and recirculating operation, including chimless recirculation.
Lighting Efficiency Class A* and Grease Filtering Efficiency Class B*.
touchControl panel with electronic control for extractor speeds and light.
Rim ventilation and twin channel high performance fan motor.
Automatic after running (10 minutes) and automatic intensive revert (6 minutes).
Black glass chimney hood for wall installation with inclined/flat/cube wall fixing system.
Blower Efficiency Class B* and noise max. normal level 57 dB(A) re 1 pW.

* In accordance with EU–Regulation No 65/2014.

Technical Specifications

Product series	iQ700
Product type	Wall–mounted cooker hood
Model designation	LC97FVW69B
Colour / finish	Clear glass black printed / black glass chimney hood
Typology / installation	Wall–mounted; Installation: wall; Installation system: Wall fixing inclined/flat/cube
Energy Efficiency Class	B (at a range of energy efficiency classes from A+++ to D)
Average energy consumption*	40 kWh/year
Blower Efficiency Class*	B
Lighting Efficiency Class*	A
Grease Filtering Efficiency Class*	B
Width	90 cm (890 mm)
Height of the appliance	430 mm
Depth	263 mm (main body depth as per dimensional data)

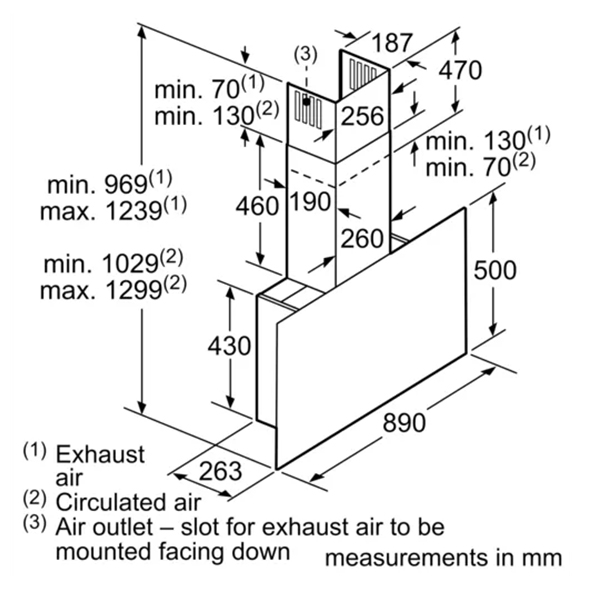

Dimensions exhaust air (H×W×D)	969–1239 × 890 × 263 mm
Dimensions recirculating, chimney (H×W×D)	1029–1299 × 890 × 263 mm
Dimensions recirculating, chimless (H×W×D)	500 × 890 × 263 mm
Dimensions recirculating with CleanAir module (H×W×D)	1159 × 890 × 263 mm (mounting with outer chimney); 1229–1499 × 890 × 263 mm (mounting with telescopic chimney)
Minimum distance above electric hob	450 mm
Minimum distance above gas hob	650 mm
Weight	25.5 kg
Control panel type	Electronic; touchControl for extractor speeds and light
Number of speed settings	3–stage + 2 intensive (3 power levels and 2 intensive settings)
Maximum output air extraction (normal)	394 m³/h according to EN 61591 (Ø 15 cm)
Boost position air extraction (intensive)	717 m³/h; Max. extraction rate: 717 m³/h
Maximum output recirculating air	249 m³/h
Boost position output recirculating	404 m³/h
Maximum air flow (normal)	394 m³/h
Noise level normal (exhaust air)	57 dB(A) re 1 pW (Max. normal use; Noise, max. speed in normal use: 57 dB dB*)
Noise level intensive (exhaust air)	70 dB(A) re 1 pW (according to EN 60704–3 and EN 60704–2–13)
Number of lights	2 × 3 W LED light
Colour temperature	3500 K
Light intensity	589 lux
Grease filter material	Other; 2 × metal grease filter cassettes; black grease filter
Filter indicators	Grease and charcoal filter saturation indicators
Motor type	Efficient BLDC motor; twin channel high performance fan motor; iQdrive motor
Operating modes	Suitable for ducted and re–circulating operation; recirculating operation chimless use possible
Required recirculation kit	For recirculated extraction a recirculating kit or a CleanAir recirculation kit (accessory) is needed
Diameter of air outlet	150 / 120 mm; Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Length of electrical supply cord	130.0 cm (1.3 m electrical cable length)
Connection rating	150 W (Power rating: 150 W)
Nominal power / voltage	220–240 V
Fuse protection	10 A
Frequency	50; 60 Hz
Plug type	GB plug
EAN code	4242003804285
Automatic functions	Automatic after running (10 minutes); Automatic intensive revert (6 mins)
Smart connectivity	Home Connect: Remote Monitoring and Control (service availability country–dependent)
Voice control	Voice Control enabled via popular voice assistants (service availability country–dependent)

* In accordance with the EU–Regulation No 65/2014.

Additional details and usage

Operation and controls

The hood is operated via an electronic touchControl panel, allowing direct selection of extractor speeds and lighting. It provides 3 power levels and 2 intensive settings, with a boost function for short–term high extraction. Automatic after running keeps the hood operating for 10 minutes after cooking, while automatic intensive revert returns from intensive to normal level after 6 minutes.

Home Connect enables remote monitoring and control via smartphone or tablet in countries where the service is available. VoiceControl allows hood functions and lighting to be managed through popular voice assistants where supported.

Air quality and performance

The iQdrive BLDC motor and twin channel high performance fan motor deliver extraction rates up to 717 m³/h. The climateControl sensor detects steam and odours and adjusts extraction automatically. The hood is suitable for both ducted and recirculating operation, with chimless recirculation possible when used accordingly.

Lighting

Two 3 W LED lights with 3500 K colour temperature provide a light intensity of 589 lux over the hob area. The softLight function with dimmer allows adjustment of light level. Ambient light RGB and emotionLight Pro enable customisation of the hood’s lighting ambience.

Installation guidance

Wall–mounted installation with wall fixing system (inclined/flat/cube).
Minimum distance above an electric hob: 450 mm.
Minimum distance above a gas hob: 650 mm.
Air outlet diameter 150 mm (120 mm adaptor enclosed).
Suitable for exhaust air or recirculating operation; recirculation requires an appropriate recirculating or CleanAir recirculation kit.

Cleaning and maintenance

The hood features an easy to clean inner frame and 2 metal grease filter cassettes with a black grease filter. Grease and charcoal filter saturation indicators help to identify when filters require attention.

Optional accessories

LZ00XXP00 Long Life odour filter (replacement)
LZ10AFR00 Long Life recirculation kit (chimless)
LZ10AFS00 Long Life recirculation kit
LZ10AXK50 Chimney extension 1000 mm
LZ10AXL50 Chimney extension 1500 mm
LZ11AFB16 Clean Air Plus odour filter (replacement)
LZ11AFI16 Clean Air Plus recirculation kit
LZ11AFV16 Clean Air Plus recirculation kit (chimless)
LZ11AXC56 Clean Air Plus recirculation kit external
LZ11AXE61 Chimney standard black
LZ31XXB16 Clean Air Plus odour filter (replacement)
Recirculating kit LZ00XXP00

Specific usage details for each accessory: Not stated in source.

Frequently Asked Questions

What is the maximum extraction rate of the Siemens iQ700 LC97FVW69B?

The maximum extraction rate is 717 m³/h in intensive mode. In normal operation, the maximum extraction rate is 394 m³/h according to EN 61591 with a 15 cm duct.

Can this cooker hood be used in recirculation mode?

Yes. The hood is suitable for ducted and recirculating operation, and chimless use in recirculation mode is possible. For recirculated extraction a recirculating kit or a CleanAir recirculation kit (accessory) is needed.

What are the noise levels during operation?

The noise level in max. normal use is 57 dB(A) re 1 pW according to EN 60704–3 and EN 60704–2–13. In intensive mode, the noise level is 70 dB(A) re 1 pW.

What is the minimum installation height above the hob?

The minimum distance above an electric hob is 450 mm, and the minimum distance above a gas hob is 650 mm.

Does the hood support smart home and voice control?

Yes. Home Connect allows remote monitoring and control via smartphone or tablet in countries where the service is available. Voice Control is enabled via popular voice assistants in countries where this service is available.

How many fan speeds are available?

The hood offers 3 power levels and 2 intensive settings, providing flexibility for everyday cooking and more demanding tasks.
