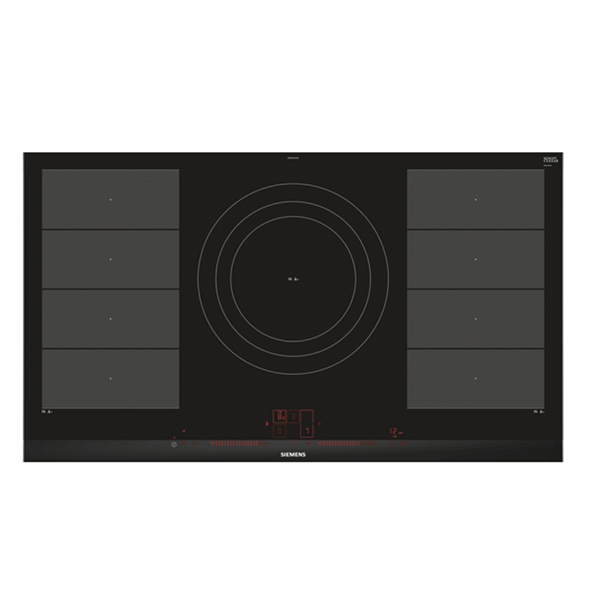

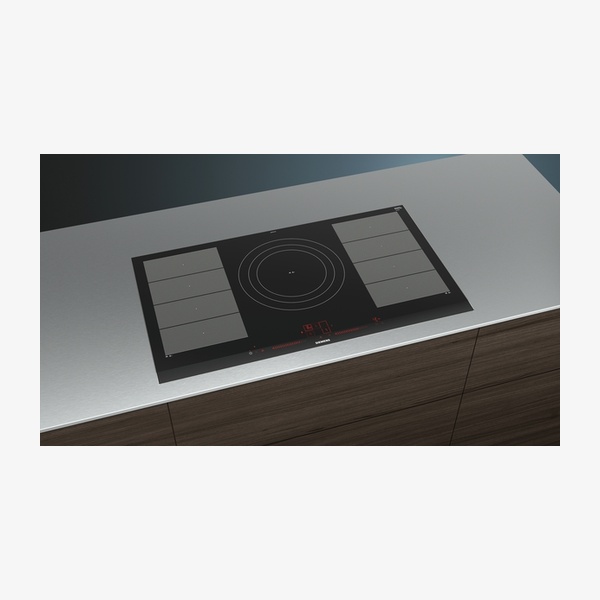

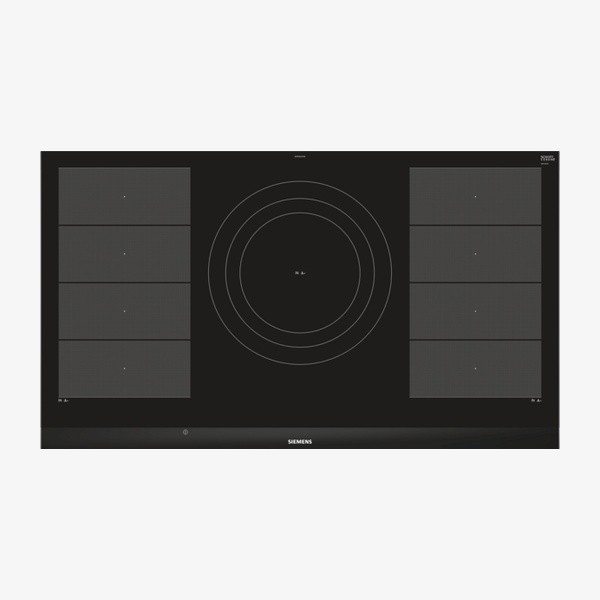

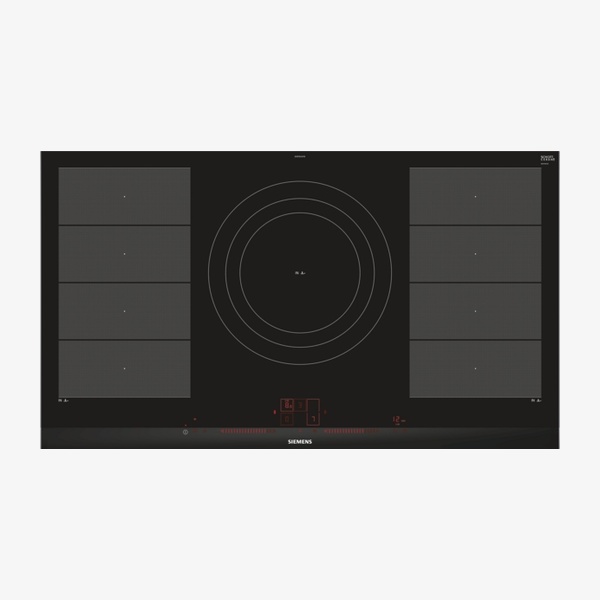

Product overview

The Siemens iQ700 EX975LVV1E is a 90 cm black built–in flexInduction hob with space for five pots or pans. It offers two flexInduction zones and a triple ring zone for extra–large cookware. Dual lightSlider controls, 17 power levels and dedicated functions such as powerBoost, panBoost and Keep Warm provide precise, convenient cooking. With fryingSensor Plus, Dish assistant and Home Connect, it supports temperature control, recipe guidance and remote monitoring.

Key Features

flexInduction zones – use cookware of any shape or size anywhere within the 40 cm long zone.
Triple ring cooking zone – extendable 32 cm three–ring zone for regular to extra–large pans such as paella pans.
Space for five pans – 90 cm wide hob with five cooking zones, including central 320/260/210 mm zone.
Dual lightSlider control – directly control power on two illuminated touch bars, invisible when switched off.
17 power levels – nine main levels plus eight intermediate levels for precise heat adjustment.
Keep warm function – keeps dishes warm at a preset low power level.
Timers with acoustic signal – timer for all zones, automatic switch–off and alarm at the end of the set time.
Power boost setting – boils water faster with 50% more energy than at the highest standard level.
panBoost function – heats up pans faster than the highest standard level while protecting the pan coating.
powerMove Plus – increase or decrease power simply by moving the pot forwards or backwards.
quickStart and reStart – automatic zone selection when cookware is placed and restoration of settings after unintentional switch–off within four seconds.
fryingSensor Plus – five temperature settings with automatic temperature regulation to help prevent overcooking.
Dish assistant – find suitable temperature settings for dishes via the Home Connect app.
Home Connect – remote monitoring, checking if the hob is switched off, plus recipes and additional functions via app.
cookConnect hood control – Wi–Fi connection to a suitable hood for automatic activation when cooking.
Stainless steel side trim – bevelled front edge and basic ceramic surface in black, alu, brushed.
Residual heat indicators – two–stage indicators show which zones are still hot or warm.
Comprehensive safety – control panel lock, pause function, main on/off switch, automatic safety switch–off and energy consumption display.
Optional accessories – compatible roastingSensor, pans, pots, paella pan, Teppan Yaki and griddle plates (various HZ and HZ9 accessories).

Technical Specifications

Product name/family	Cooking zone ceramic
Model	iQ700, Induction hob, 90 cm, Black, EX975LVV1E
Built–in / Free–standing	Built–in
Source of energy	Electric
Number of cooking zones	5
Required niche size (H x W x D)	51 x 880–880 x 490–500 mm / 51 x 880 x (490–500) mm
Product dimensions (H x W x D)	51 x 912 x 520 mm
Dimensions of packed product (H x W x D)	126 x 1073 x 603 mm
Width of appliance	912 mm
Min. worktop thickness	16 mm
Weight	20.9 kg
Gross weight	22.7 kg
Residual heat indicator	Separate; 2 stage residual heat indicators
Location of control panel	Front
Basic surface material	Ceramic
Colour of surface	Black, Alu, brushed
Side trim design	Stainless steel side trim with bevelled front edge
Length of electrical supply cord	110 cm / 1.1 m, cable included in packaging
Connected load	11.1 kW
Nominal voltage	220–240 V
Frequency	60; 50 Hz
Connection current management	20, 16, 13, 10 Amps options to limit maximum power (depends on fuse protection of electrical installation)
EAN code	4242003759783
Front left cooking zone	230 mm, 200 mm, 2.2 kW (max. power 3.7 kW)
Rear left cooking zone	230 mm, 200 mm, 2.2 kW (max. power 3.7 kW)
Middle cooking zone	320 mm, 260 mm, 210 mm, 3.3 kW (max. power 3.7 kW)
Rear right cooking zone	230 mm, 200 mm, 2.2 kW (max. power 3.7 kW)
Front right cooking zone	230 mm, 200 mm, 2.2 kW (max. power 3.7 kW)

Additional Details and Usage

Cooking flexibility

Two flexInduction zones allow you to place cookware of almost any shape and size anywhere within the 40 cm long zones. The triple ring zone accommodates regular to extra–large cookware, including paella pans, on an expandable cooking area.

Controls and convenience

Dual lightSlider provides direct control of power levels via two illuminated touch bars.
17 power levels offer fine adjustment with nine main and eight intermediate settings.
Keep warm function maintains dishes at a preset low power level.
Timer for all zones can switch off a zone at the end of the set time.
Acoustic signal sounds when the set time has elapsed.
Count up timer shows the time elapsed since starting, for example when boiling potatoes.

Time saving and efficiency

Power boost setting delivers about 50% more energy than the highest standard level for faster boiling.
panBoost heats pans quickly while helping to protect non–stick coatings.
powerMove Plus lets you change power by moving the pot forwards or backwards across the zone.
quickStart automatically selects the cooking zone where cookware is placed when switching on.
reStart restores previous settings if the hob is unintentionally switched off and turned back on within four seconds.
Energy Consumption Display shows electricity use of the last cooking process.

Cooking assistance and connectivity

fryingSensor Plus offers five temperature settings and automatic regulation via an integrated sensor.
Dish assistant helps you find suitable temperature settings for specific dishes via the Home Connect app.
Home Connect enables remote monitoring, including checking whether the hob is switched off, and access to recipes and additional functions.
cookConnect automatically activates a compatible Wi–Fi enabled hood when cooking.

Safety features

Two–stage residual heat indicators show whether zones are hot or warm.
Control panel lock helps prevent unintended activation.
Control panel pause blocks all touch buttons for 30 seconds to wipe overboiled liquids.
Main on/off switch turns off all cooking zones at once.
Automatic safety switch–off stops heating after a preset time if not used.

Installation information

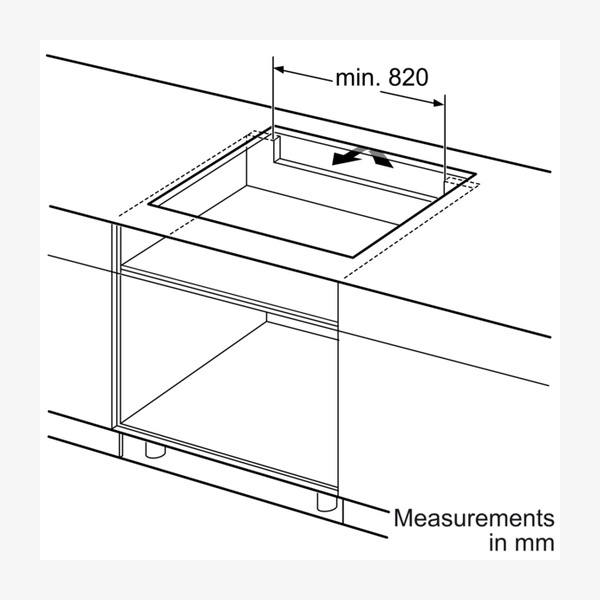

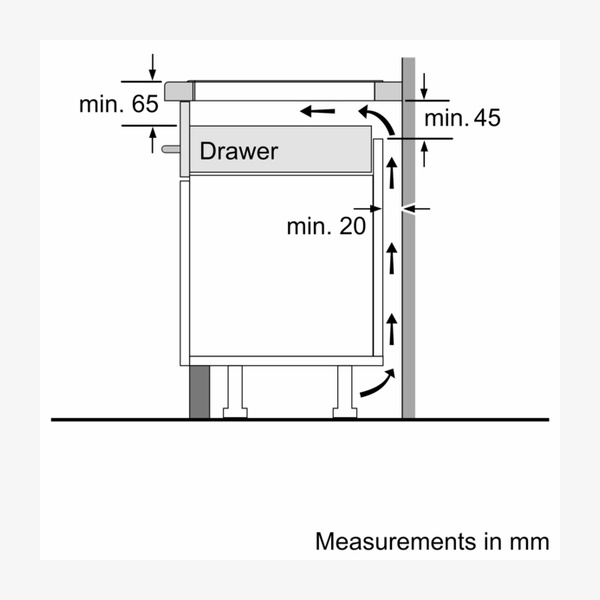

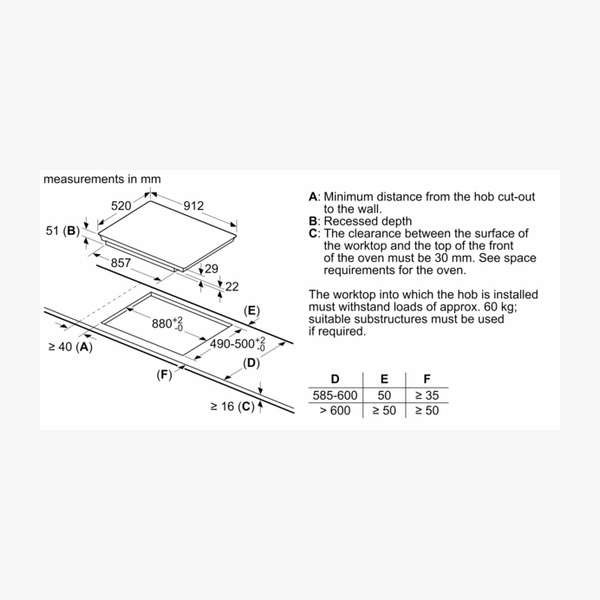

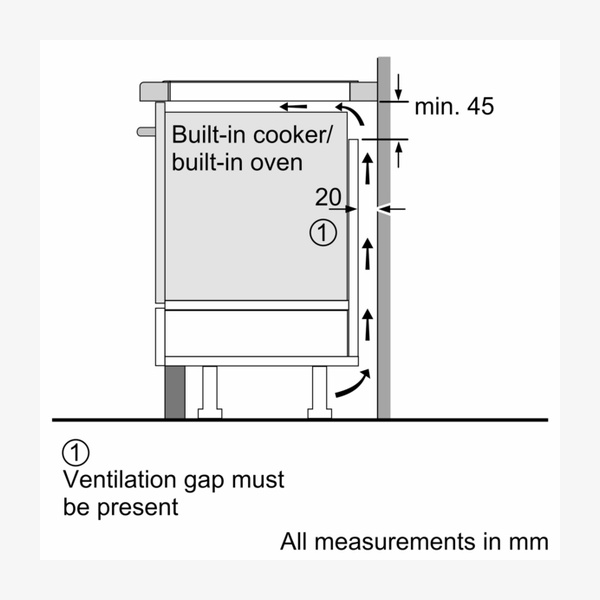

The hob is designed for built–in installation with a required niche size of 51 x 880 x 490–500 mm and a minimum worktop thickness of 16 mm. Connected load is 11.1 kW, with current management options of 20, 16, 13 or 10 Amps to limit maximum power depending on fuse protection. A 1.1 m power cord is included.

Optional accessories

Compatible accessories include:

HZ32WA00 wireless roastingSensor
HZ390011 stainless steel roaster with glass lid
HZ390012 steaming rack for stainless steel roaster
HZ390210, HZ390220, HZ390230 system pans (diameters 15, 19, 21 cm)
HZ390240 paella pan Ø 31 cm
HZ390250 system pan diameter 28 cm
HZ390512 Teppan Yaki (large)
HZ390522 griddle plate
HZ394301 connecting strip
HZ9CF240 and HZ9CF280 coated fry pans (24 cm Ø and 28 cm Ø)
HZ9ES100 espresso maker (4 cups)
HZ9FE280 iron pan Ø 18 / 28 cm
HZ9FF010 flex pan (large), HZ9FF030 flex pan set (3 pcs.), HZ9FF040 flex pan set (4 pcs.)
HZ9SE030 set of 2 pots and 1 pan; HZ9SE040 4 pieces set; HZ9SE060 6 pieces set
HZ9TY010 Teppan Yaki

Frequently Asked Questions

How many cooking zones does the Siemens iQ700 EX975LVV1E have?

The hob has five cooking zones, including two flexInduction zones and a central triple ring zone with diameters of 320 mm, 260 mm and 210 mm.

What are the dimensions required to install this hob?

The required niche size for installation is 51 x 880 x 490–500 mm, with a minimum worktop thickness of 16 mm. The hob itself measures 51 x 912 x 520 mm.

Does the hob support remote control or monitoring?

It supports Home Connect, enabling remote monitoring via an app. You can check whether the hob is switched off when you are not at home and access recipes and additional functions.

How does the fryingSensor Plus function help with cooking?

fryingSensor Plus offers five temperature settings and uses an integrated sensor for automatic temperature regulation, helping to prevent overcooking and burning.

What safety features are included on this induction hob?

Safety features include two–stage residual heat indicators, control panel lock, control panel pause, a main on/off switch, automatic safety switch–off and an energy consumption display for the last cooking process.

Can this hob be connected to a cooker hood?

Yes. With cookConnect, the hob can control a suitable Wi–Fi enabled hood, automatically activating it when you start cooking.
