The Siemens iQ700 ER9A6SH40 is a 90 cm built-in gas hob with a black tempered glass surface and frameless design for flush or slightly raised installation. It offers five burners including a dual control wok burner, stepFlame Technology with nine flame levels, and illuminated detachable metallic sword dials at the front for precise, convenient control. Cast iron pan supports with rubber feet, dishwasher-suitable supports and integrated safety features support comfortable, secure everyday cooking.

Key Features

stepFlame Technology – 9 steps: precisely control and adjust the flame in nine defined levels.
Tempered glass surface in black: sleek glass hob surface in a frameless design for flush or slightly raised installation.
Five-burner layout: includes a dual control wok burner plus standard, high-speed and economy burners for flexible cooking.
Dual control wok burner up to 5 kW: separately control two flame rings for an extra wide power range (depending on gas type).
Detachable metallic sword dials: easily removable dials with strong grip for effortless turning and easy cleaning.
Illuminated dials: instantly recognise when a burner is on and see the selected power level.
Electronic power level display: view the chosen power level and residual heat.
cookConnect hood control: control suitable Wi-Fi enabled hoods directly from the hob and enable Smart Hood Automatic.
Home Connect enabled: check if the hob is switched off remotely and access additional functions via the Home Connect app.
Flame failure safety device: prevents unwanted gas flow if the flame goes out.
Dishwasher-suitable pan supports: cast iron pan supports with rubber feet designed for easy cleaning and stable pot support.
Front control panel: design co-ordinated dials positioned at the front for easy access.
Acoustic signal with timer: an alarm sounds at the end of the time set, for example for pasta.
Built-in installation: designed as a built-in gas hob with integrated controls.
Optional accessories available: simmer plate, wok ring, small pot support, wireless roastingSensor and cookware sets.

Technical Specifications

Product name / family	Gas hob with integrated controls
Model	iQ700 ER9A6SH40
Construction type	Built-in
Source of energy	Gas
Number of cooking zones	5
Hob surface material	Tempered glass
Surface colour	Black
Frame colour	Black
Pan supports	Cast iron pan supports with rubber feet
Width of appliance	915 mm
Dimensions (H x W x D)	45 x 915 x 520 mm (one listing) / 54 x 915 x 520 mm (another listing)
Packed product dimensions (H x W x D)	170 x 1110 x 660 mm
Required niche size (H x W x D)	45 x 850–850 x 490–500 mm / 45 x 850 x (490–500) mm
Minimum worktop thickness	20 mm (30 mm if installed flush)
Weight	24.2 kg
Gross weight	27.6 kg
Location of control panel	Front
Residual heat indicator	Separate
Gas connection rating / connected load	12.5 kW / 12500 W
Nominal power	220–240 V
Frequency	50; 60 Hz
Fuse protection	3 A
Length of electrical supply cord	100 cm / 1 m
EAN code	4242003948408
Gas types usable	Nat gas L/LL G25/20mbar (DE); NG H/E 20mbar; E+ 20/25mbar; Natural gas H 25mbar (HU); Natural gas L 25mbar (NL); Liquid gas G30,31 28–30/37mbar; Liquid gas G30 37mbar (PL); Liquid gas 50mbar
Factory gas setting	Factory set for connection to mains gas
Nozzle set included	Nozzle set for LPG jets (28–30/37mbar) included; nozzles for other gas types can be ordered via customer service

Additional Details and Usage

Burners and Power

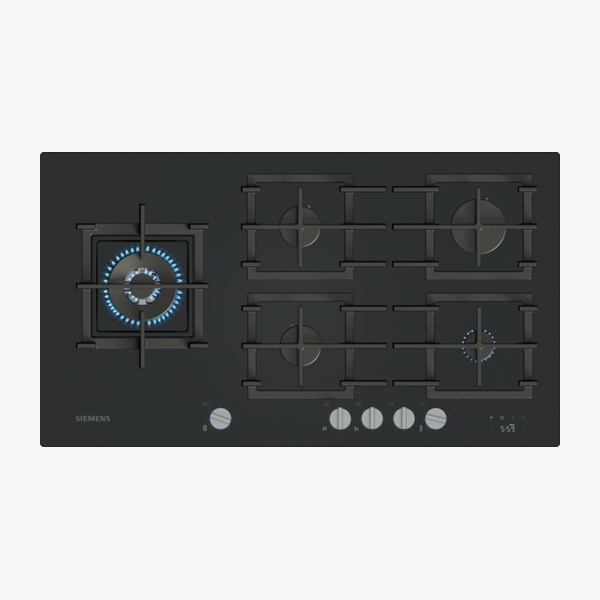

5 burner gas hob including 1 dual control wok burner.
Left: wok burner up to 5 kW (depending on gas type).
Centre front: standard burner up to 1.75 kW (depending on gas type).
Centre rear: standard burner up to 1.75 kW (depending on gas type).
Right rear: high-speed burner up to 3 kW (depending on gas type).
Right front: economy burner up to 1 kW (depending on gas type).

Design and Controls

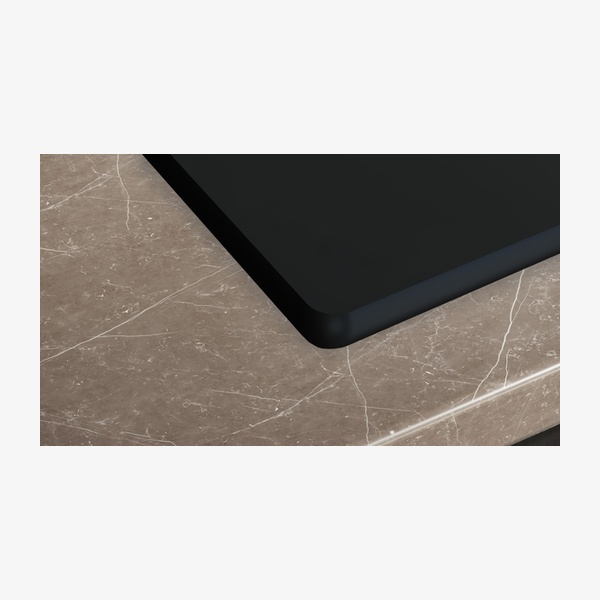

Tempered glass surface, black, with frameless design.

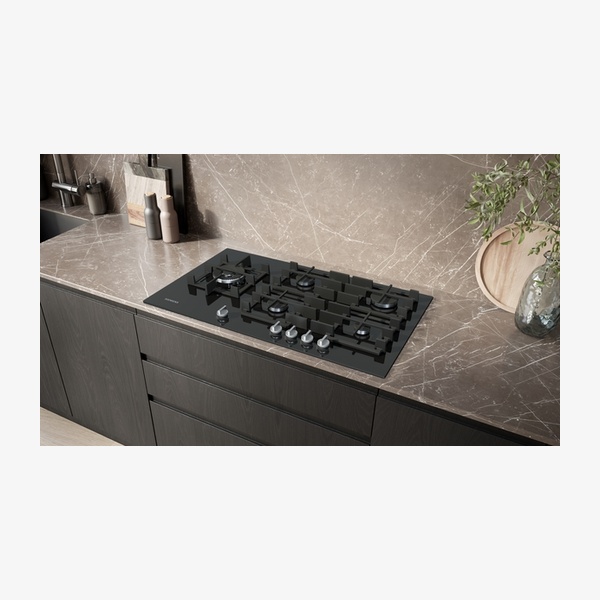

Hob can be installed flush or slightly raised on the worktop.

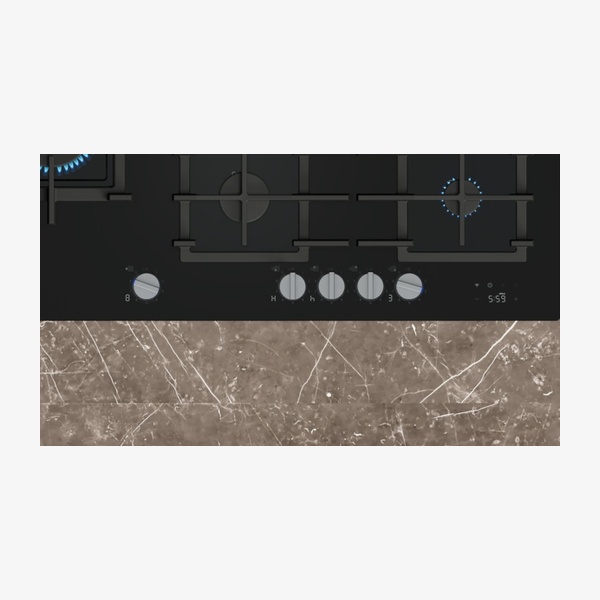

Design co-ordinated full metal control dials at the front with strong grip.
Ignition via control dials – push and turn to ignite the flame.
Illuminated dials indicate burner status and power level.
Electronic power level and residual heat display.

Cleaning and Maintenance

Removable control dials for easy cleaning between knobs.
Dishwasher-suitable pan supports for convenient cleaning.

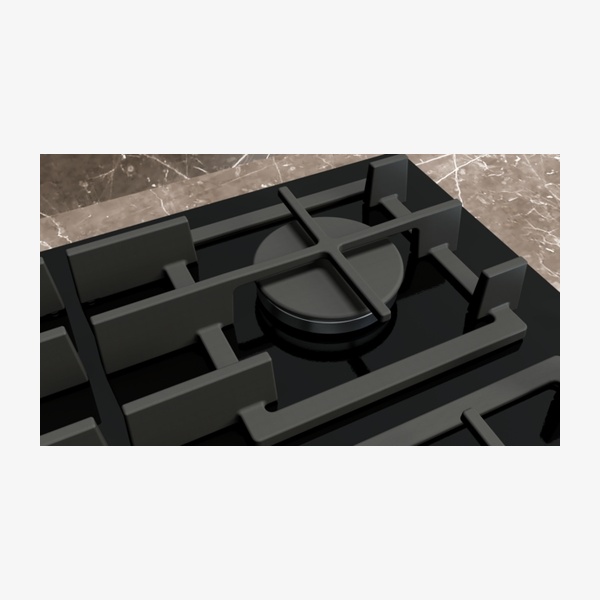

Cast iron pan supports with rubber feet combine light weight and compact form with high stability due to a semi-continuous surface.

Safety

Flame failure safety device prevents unwanted gas flow when the flame goes out.
Residual heat indication for each burner shows which burner parts and pan supports are still hot (5 burner indication).

Connectivity and Smart Functions

Home Connect functionality lets you check if the hob is switched off when you are not at home and access additional functions in the app.
cookConnect enables hood control (with Wi-Fi enabled hood), allowing automatic hood activation when cooking via Wi-Fi connection between hob and suitable hood.
Smart Hood Automatic adjusts hood fan speed automatically based on cooking data from the hob (with matching hood and connected Home Connect account).
Sound volume of touch control is adaptable to personal preference and needs via the app.

Installation and Gas Types

Usable for natural gas L/LL G25/20mbar (DE), NG H/E 20mbar, E+ 20/25mbar, natural gas H 25mbar (HU), natural gas L 25mbar (NL), liquid gas G30,31 28–30/37mbar, liquid gas G30 37mbar (PL) and liquid gas 50mbar.
Factory set for connection to mains gas.
Nozzle set for LPG jets (28–30/37mbar) included; nozzles for other gas types can be ordered via customer service, and nozzle changes should be handled by customer service.

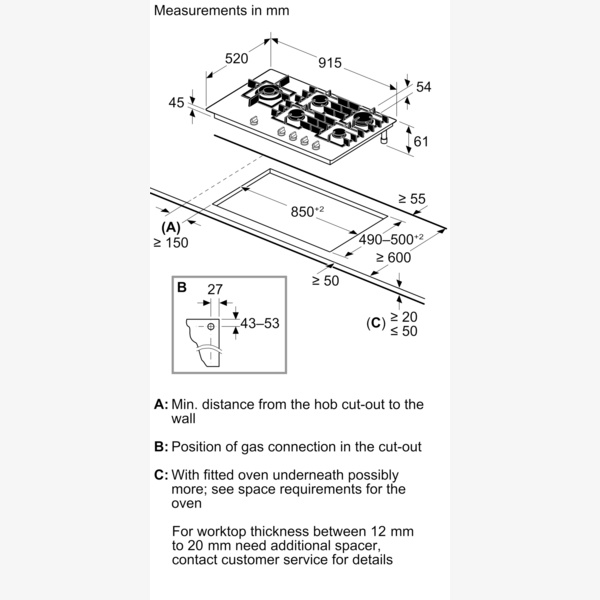

Required niche size approximately 45 x 850 x 490–500 mm, with minimum worktop thickness of 20 mm (30 mm for flush installation).
Power cord length 1 m.

Optional Accessories

HZ298105 Simmer plate
HZ298107 Wok ring
HZ298114 Small pot support
HZ32WA00 wireless roastingSensor
HZ9SE040 4 pieces set
HZ9SE060 6 pieces set

Frequently Asked Questions

How many burners does the Siemens iQ700 ER9A6SH40 gas hob have?

The hob has 5 gas burners, including a dual control wok burner, two standard burners, one high-speed burner and one economy burner.

What is stepFlame Technology on this hob?

stepFlame Technology allows you to precisely control and adjust the gas flame in nine defined power levels for accurate cooking results.

Is the hob suitable for flush installation in the worktop?

Yes. The frameless design lets you install the hob either flush or slightly raised on the worktop, with a minimum worktop thickness of 30 mm for flush installation.

Can the pan supports and control dials be cleaned in a dishwasher?

The cast iron pan supports are described as dishwasher suitable. The metallic sword dials are removable for easy cleaning; it is not stated whether they are dishwasher safe, so this is Not stated in source.

Does the hob work with smart home features or an app?

The hob includes Home Connect connectivity so you can check if it is switched off when you are not at home and access additional functions in the Home Connect app. It also supports cookConnect and Smart Hood Automatic with compatible Wi-Fi enabled hoods.

What safety features does this gas hob include?

The hob has a flame failure safety device that prevents unwanted gas flow if the flame goes out and provides residual heat indication for each of the five burners to show when burner parts and pan supports are still hot.
