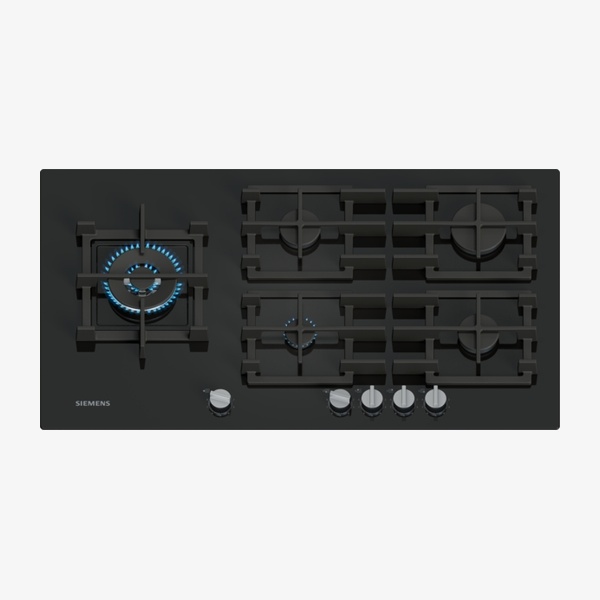

The iQ500 EP9A6MI40 is a 90 cm built–in gas hob in black tempered glass with integrated front controls. It offers five gas burners including a powerful wok burner, plus stepFlame Technology with nine defined flame levels for precise heat control. Detachable metallic sword dials, cast iron pan supports and dishwasher–suitable pan supports support easy cleaning, while the frameless design allows flush or slightly raised installation in the worktop.

Key Features

stepFlame Technology – precise flame control with nine different settings for accurate heat adjustment.
Black tempered glass surface – extremely heat–resistant basic surface material in a sleek black finish.
Detachable metallic sword dials – easily removable front control dials for easy cleaning and precise cooking control.

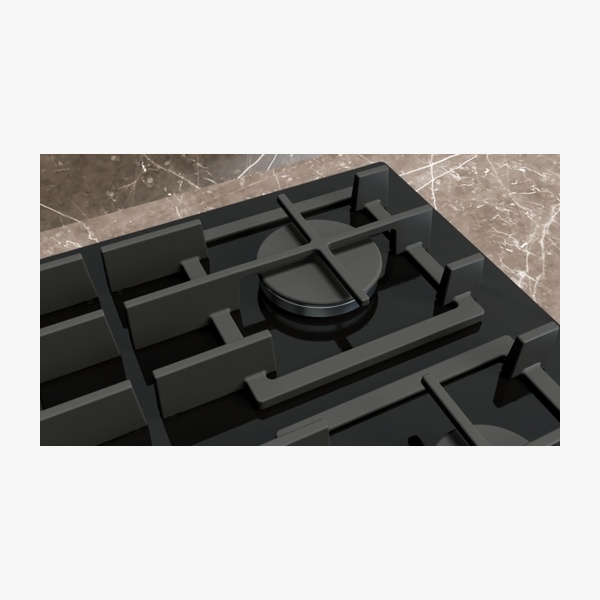

Semi–continuous pan support – easy to handle and easy to clean, with cast iron pan supports featuring rubber feet.
Five–burner layout – includes a wok burner, economy burner, two standard burners and a high–speed burner.
Wok burner up to 4.0 kW – supports fast cooking with even heat distribution (depending on gas type).
Ignition via control dials – push and turn the dials to ignite the flame for convenient operation.
Flame failure safety device – helps prevent unwanted gas flow when the flame goes out.

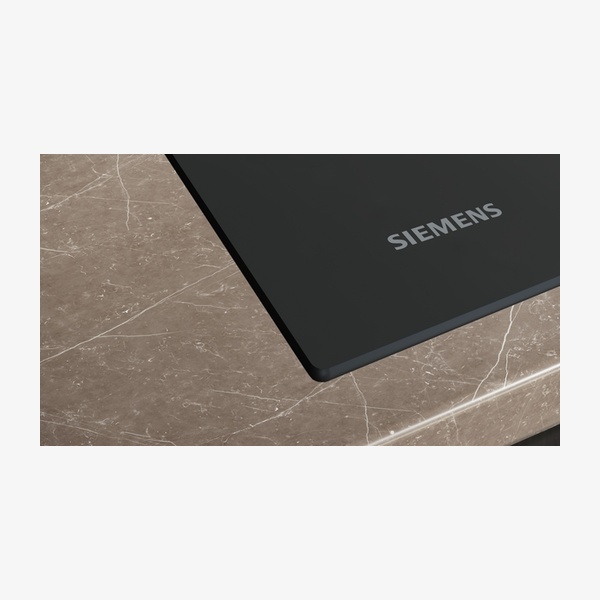

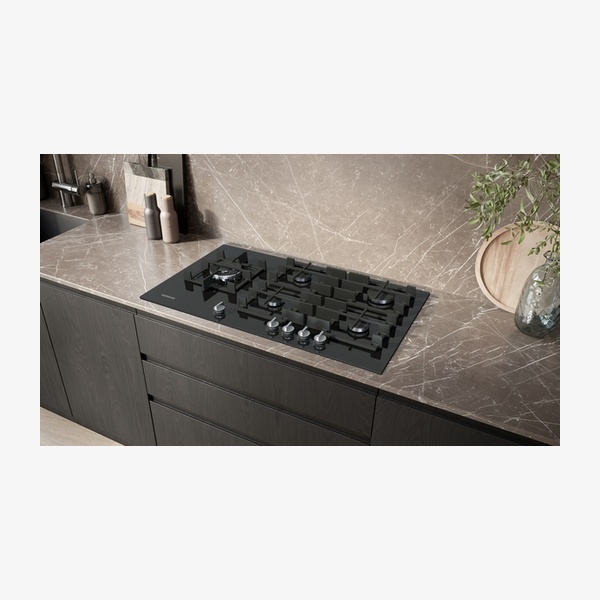

Frameless design – allows installation either flush with the worktop or slightly raised.
Dishwasher suitable pan supports – pan supports are suitable for dishwasher cleaning.
Integrated front controls – gas hob with integrated controls and design co–ordinated dials for strong grip and effortless turning.
Optional accessories – compatible simmer plate, wok ring, small pot support, wireless roasting sensor and cookware sets (4 or 6 pieces).

Technical Specifications

Product name / family	gas hob w integrated controls
Model	EP9A6MI40 (iQ500, gas hob, 90 cm, tempered glass, black)
Built–in / Free–standing	Built–in
Source of energy	Gas
Number of cooking zones	5
Width of appliance	915 mm
Dimensions (HxWxD)	45 x 915 x 520 mm
Dimensions of product (HxWxD)	54 x 915 x 520 mm
Required niche size (HxWxD)	45 x 850 x (490–500) mm
Dimensions of packed product (HxWxD)	170 x 1115 x 665 mm
Weight	23.2 kg
Gross weight	26.6 kg
Residual heat indicator	Without
Location of control panel	Front
Basic surface material	Tempered glass
Colour of surface	Black
Colour of frame	Black
Length of electrical supply cord	100 cm (Power cord: 1 m)
Gas connection rating / Connected load	11500 W / 11.5 kW
Nominal power	220–240 V
Frequency	50; 60 Hz
Fuse protection	3 A
EAN code	4242003966808
Min. worktop thickness	20 mm (30 mm if installed flush)

Additional Details and Usage

Design

This hob features a black tempered glass surface with a frameless design, allowing it to be installed either flush with the worktop or slightly raised. Cast iron pan supports with rubber feet provide a continuous surface with little weight and compact form, yet high stability.

Controls and Convenience

Step Flame Technology with nine steps lets you precisely control and adjust the flame in nine defined levels. Design co–ordinated control dials are positioned at the front and offer a strong grip for effortless turning. Ignition is via the control dials: simply push and turn to ignite the flame.

Burners and Power

5 burner gas hob including:
Left: Wok burner up to 4 kW (depending on gas type)
Centre front: Economy burner up to 1 kW (depending on gas type)
Centre rear: Standard burner up to 1.75 kW (depending on gas type)
Right rear: High–speed burner up to 3 kW (depending on gas type)
Right front: Standard burner up to 1.75 kW (depending on gas type)

Cleaning

Removable control dials for easy cleaning between knobs.
Dishwasher suitable pan supports for easy cleaning.
Cast iron pan supports with rubber feet support stability and handling during cleaning.

Safety

The hob includes a flame failure safety device, which helps prevent unwanted gas flow when the flame goes out.

Installation and Gas Types

Usable for: Nat gas L/LL G25/20 mbar (DE).
NG H/E 20 mbar, E+ 20/25 mbar Natural gas H 25 mbar (HU), Natural gas L 25 mbar (NL).
Liquid gas G30,31 28–30/37 mbar, Liquid gas G30 37 mbar (PL), Liquid gas 50 mbar.
Factory set for connection to mains gas.
Nozzle set for LPG jets (28–30/37 mbar) included.
Nozzles for all other gas types can be ordered via the customer service; nozzle change should be carried out by customer service.

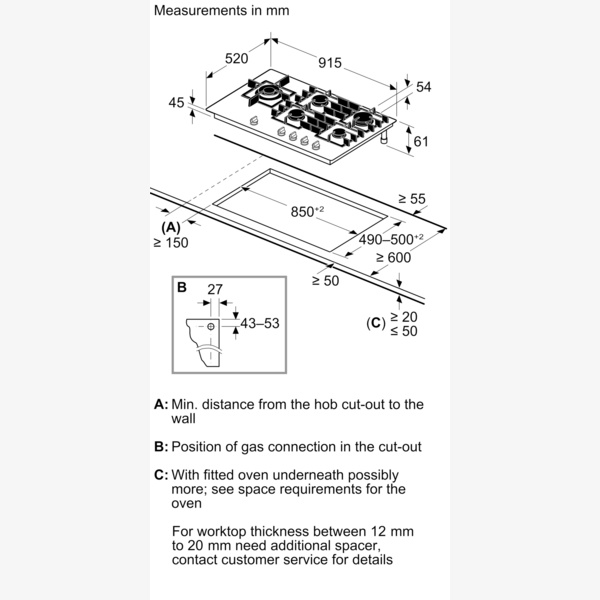

Required niche size: 45 x 850 x (490–500) mm.
Minimum worktop thickness: 20 mm, or 30 mm if installed flush.

Optional Accessories

HZ298105 Simmer plate
HZ298107 Wok ring
HZ298114 Small pot support
HZ32WA00 wireless roastingSensor
HZ9SE040 4 pieces Set
HZ9SE060 6 pieces Set

Frequently Asked Questions

How many burners does the iQ500 EP9A6MI40 gas hob have?

The hob has five gas burners: one wok burner, one economy burner, two standard burners and one high–speed burner, with power levels depending on the gas type used.

What is stepFlame Technology on this gas hob?

Step Flame Technology allows you to precisely control and adjust the flame in nine defined levels, offering accurate and repeatable heat settings for cooking.

Is the black glass surface suitable for high temperatures?

Yes. The hob uses a black tempered glass surface, which is described as extremely heat–resistant and forms the basic surface material of the appliance.

Can the pan supports and control dials be cleaned easily?

The metallic sword dials are detachable and removable for easy cleaning between knobs. The cast iron pan supports are suitable for cleaning in a dishwasher and feature rubber feet for improved handling.

Does the hob include any safety features for the gas supply?

The hob is equipped with a flame failure safety device, which helps prevent unwanted gas flow when the flame goes out, enhancing operational safety.

What type of installation is possible with this hob?

The EP9A6MI40 is a built–in gas hob with a frameless design. It can be installed either flush with the worktop or slightly raised, within a niche size of 45 x 850 x (490–500) mm, observing the minimum worktop thickness requirements.
