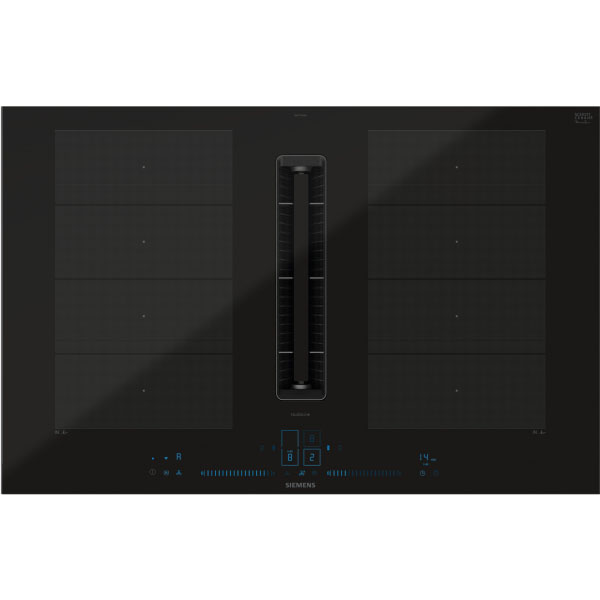

The iQ700 EX870NX68E is an 80 cm built-in induction hob with a fully integrated, high-performance downdraft ventilation system. Designed for flexible cooking, it offers two flexInduction zones for versatile cookware placement, precise dual lightSlider control and 17 power levels. Sensor-based ventilation automatically adjusts extraction, while features such as fryingSensor Plus, powerMove Plus and flexMotion support controlled, efficient cooking. Suitable for ducted or recirculated installation in 60 cm base cabinets.

Key Features

Integrated downdraft ventilation – induction cooktop with fully integrated high-performance extractor, suitable for ducted or recirculated operation.
80 cm cooktop with 4 zones – space for 4 pots or pans, including 2 flexInduction zones for cookware of almost any shape or size within 40 cm long zones.
Blue dual lightSlider control – directly control power on two illuminated touch bars, invisible when switched off.
17 power levels – precise heat control with 9 main and 8 intermediate levels, plus keep warm function.
Power boost and panBoost – boil water faster with up to 50% more energy than the highest standard level and heat pans quickly while protecting coatings.
Intelligent flexZones – automatic connection of cooking zones into one large zone when using large cookware on the Flex zone.
powerMove Plus – increase or decrease power simply by moving the pot forwards or backwards on the flexInduction area.
flexMotion and automatic zone selection – transfer settings to a new zone at the touch of a button and automatic recognition of cookware placement.
fryingSensor Plus – integrated sensor with 5 frying and 5 cooking levels for automatic temperature regulation and to help prevent overcooking.
cookingSensor Plus ready – supports an additional sensor (available separately) to help prevent overboiling via automatic temperature control.
Sensor-based climateControl ventilation – automatic adjustment of fan power levels based on steam and odours, with three sensitivity modes.
High-performance, low-noise blower – BLDC technology with high extraction rates and optimised psycho-acoustics, even with longer ducting.
Clean Air Plus odour filters – directly integrated for recirculation, optimised for complex odours and with anti-pollen functionality.
Easy-clean grease filter and liquid collector – 12-layer stainless-steel grease filters, dishwasher safe parts and overall liquid capturing capacity of 900 ml.
Helios LED Miradur glass ceramics – scratch-resistant black ceramic surface with minimalistic studioLine zone printing.
Home Connect enabled – remote monitoring, additional functions and dish assistant via the Home Connect app.
Comprehensive safety features – 2-stage residual heat indicators, control panel lock, control panel pause, main on/off switch and automatic safety switch-off.
Energy efficiency class B – fluid dynamic efficiency class A and grease filtration efficiency class B for the ventilation system (according to Regulation (EU) No 65/2014).
Included accessories – 1 slider for unducted recirculation and 1 Clean Air Plus odour filter for recirculation use.
Optional accessories available – including roasting sensors, pans, wok set, Teppan Yaki plates, recirculation and exhaust kits, ducting elements and replacement filters.

Technical Specifications

Product series	iQ700
Model	EX870NX68E
Product type	Induction hob with integrated ventilation system, surface mount with frame
Installation type	Built-in, suitable for installation into a 60 cm base cabinet
Source of energy	Electric
Number of cooking zones	4 (2 flexInduction zones)
Cooktop dimensions (H × W × D)	223 × 812 × 520 mm
Required niche size (H × W × D)	223 × 750 × 490 mm
Minimum worktop thickness	16 mm
Width of appliance	812 mm
Packed dimensions (H × W × D)	430 × 950 × 660 mm
Weight / Gross weight	27.3 kg / 32.0 kg (overall appliance weight mentioned as 26 kg in planning notes)
Basic surface material	Ceramic (Helios LED Miradur glass ceramics)
Surface colour	Black
Control panel location	Front, dual lightSlider
Cooking zone front left	200 mm, 240 mm, 2.2 kW (max. 3.7 kW)
Cooking zone rear left	200 mm, 240 mm, 2.2 kW (max. 3.7 kW)
Cooking zone rear right	200 mm, 240 mm, 2.2 kW (max. 3.7 kW)
Cooking zone front right	200 mm, 240 mm, 2.2 kW (max. 3.7 kW)
Power levels	17-stage (9 main levels, 8 intermediate levels) with powerBoost and panBoost
Residual heat indicator	Separate, 2-stage residual heat indicators
Ventilation type	Convertible (ducted or recirculated extraction)
Fan speed settings	17 electronically controlled fan levels + 2 Boost/Intensive levels
Max. air extraction (ducted)	500 m³/h (normal max), 622 m³/h (Boost/Intensive)
Air extraction range (ducted)	154 – 500 m³/h normal; up to 622 m³/h Boost (EN 61591)
Air extraction range (recirculation)	132 – 499 m³/h normal; up to 595 m³/h Boost (EN 61591)
Noise level (ducted)	42 dB re 1 pW (min normal), 69 dB re 1 pW (max normal), 74 dB re 1 pW (Boost/Intensive)
Noise level (recirculation)	41 dB re 1 pW (min normal), 68 dB re 1 pW (max normal), 72 dB re 1 pW (Boost/Intensive)
Maximum output air extraction	500 m³/h
Boost position air extraction	622 m³/h
Maximum output recirculating air	499 m³/h
Boost position output recirculating	595 m³/h
Grease filter efficiency	94 % (EN 61591), grease filtration efficiency class B
Energy efficiency class (ventilation)	B (range A+++ to D, Regulation (EU) No 65/2014)
Fluid dynamic efficiency	Class A
Average energy consumption	57 (unit not stated in source)
Noise (min & max normal)	42 dB & 69 dB (according to Regulation (EU) No 65/2014)
Nominal voltage / frequency	220–240 / 380–415 V, 50–60 Hz
Connected load	7.4 kW with connection current management (20, 16, 13, 10 A options)
Length of power cord	1.1 m, cable included in packaging
Odour filter	Clean Air Plus odour filters for recirculation; 1 Clean Air Plus odour filter included; odour filter lifetime 360 hours of cooking (non-regenerative)
Clean filter reminders	Yes, including saturation indications for cleanAir odour filter
Liquid collection capacity	Upper unit 200 ml + lower liquid safety collector 700 ml (total 900 ml)
Sealed burners	No (induction cooktop)
Energy consumption display	Shows electricity consumption of the last cooking process
Compliance	Needle Flame Test (IEC 60695-11-5), V2 flammability class (UL94)

Additional Details and Usage

Cooking functions and convenience

Keep warm function to maintain dishes at a preset low power level.
Switch-off timer that turns off a cooking zone at the end of a set time (e.g. for boiled eggs).
Count-down timer with acoustic signal at the end of the set time (e.g. for pasta).
Count-up timer showing elapsed time since activation (e.g. for potatoes).
quickStart function automatically selects the cooking zone with cookware when switching on.
reStart function restores previous settings if the hob is unintentionally switched off and switched on again within 4 seconds.

Ventilation operation

Automatic switch-on of the ventilation system when a cooking zone is used.
Sensor-based, fully automatic adjustment of fan power levels via an advanced algorithm.
Three algorithm modes: low-noise oriented, balanced, and performance-oriented.
Automatic delayed shut-off after cooking to remove residual odours (approx. 12 minutes in ducted extraction, 30 minutes in recirculated extraction; can be shut off manually).
Manual fan control remains possible via the dual lightSlider user interface.

Cleaning and maintenance

Grease filter and liquid collector unit can be removed conveniently with one hand via the floating glass ceramics handle.
Large-scale, high-performance stainless-steel grease filters with 12 filtration layers and a black top layer are fully dishwasher safe and heat resistant.
Upper liquid collector unit (200 ml) and lower liquid safety collector (700 ml) are dishwasher safe and easily accessible; the lower collector is detachable from below.
Watertight blower system designed to handle spillages via a powerful drainage system.
CleanAir Plus odour filters are easy to access and remove from above, with filter saturation notifications via the user interface and Home Connect app.

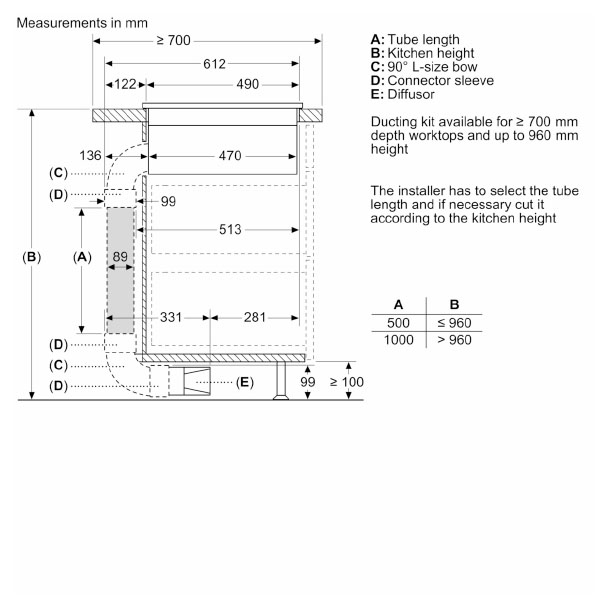

Installation notes

Suitable for ducted or recirculated extraction in four configurations: unducted, partly ducted and fully ducted recirculation, or ducted extraction.
Included accessories support unducted recirculation and allow planning in worktops with depth ≥60 cm.
Installation possible in island and wall-oriented configurations.
Maximum immersion depth is 223 mm below the worktop surface; the appliance must be freely accessible from below.
No false floor required; drawers or shelves in the floor unit must be removable; only a cut-out for the air outlet is needed in the back panel.
For unducted recirculation, a vertical aperture of at least 25 mm behind the back panel is required (50 mm suggested for ideal performance).
For partly ducted and unducted recirculation, a return-flow aperture of ≥400 cm² in the plinth area is required.
Air outlet on the back can be directly connected with a male flat duct element (DN 150); blower is pressure-drop resistant for ducting up to 8 m with three 90° bends.
When installing with ducted extraction and a chimney-vented fireplace, the power supply line requires a suitable safety switch (not required for recirculation).
In ducted extraction configuration, a one-way flap or backflow trap with max. opening pressure of 65 Pa should be installed.
Worktop bearing capacity and stability must be considered, especially with very thin worktops.

Lighting recommendations

For optimal visual appearance of the glass ceramics surface, the use of halogen, LED or daylight light sources is recommended. Neon and energy-saving bulbs are not recommended.

Accessories

Included accessories:

1 × Slider for unducted recirculation
1 × Clean Air Plus odour filter

Optional accessories (selection):

HZ32WA00 wireless roastingSensor; HZ39050 wireless temperature sensor for cooktop
HZ390011 stainless steel roaster with glass lid; HZ390012 steaming rack for stainless steel roaster
HZ390090 wok set (3 items); system pans HZ390210 (15 cm), HZ390220 (19 cm), HZ390230 (21 cm)
HZ390512 Teppan Yaki (large); HZ390522 Griddle Plate; HZ9TY010 Teppan Yaki
Fry pans: HZ9CF240 (24 cm Ø coated), HZ9CF280 (28 cm Ø coated), HZ9FE280 iron pan Ø 18 / 28 cm
Flex pans: HZ9FF010 Flex Pan (large), HZ9FF030 Flex Pan set (3 pieces), HZ9FF040 Flex Pan set (4 pieces)
Cookware sets: HZ9SE030 (2 pots and 1 pan), HZ9SE040 (4 pieces set), HZ9SE060 (6 pieces set)
Ventilation kits: HZ9VDKE1 exhaust kit; HZ9VDKR0, HZ9VDKR1, HZ9VDKR2 recirculation kits
Ducting elements: HZ9VDSB1–HZ9VDSB4 90° flat duct bends; HZ9VDSM1/HZ9VDSM2 straight tubes; HZ9VDSS1 connector sleeve; HZ9VDSS2 flexible connecting piece DN 150 flat
Filters and airflow: HZ9VEDU0 acoustics filter; HZ9VRCR1 Clean Air Plus odour filter (replacement); HZ9VRPD1 plinth diffusor

Frequently Asked Questions

Can this hob be installed with both ducted and recirculated extraction?

Yes. The induction cooktop has a fully integrated downdraft extractor and is suitable for ducted or recirculated extraction configurations. It supports unducted, partly and fully ducted recirculation, as well as ducted extraction, with appropriate accessories.

What cabinet size and worktop depth are required?

The hob is suitable for installation into a 60 cm base cabinet. The required niche size is 223 × 750 × 490 mm (H × W × D). The included accessories for unducted recirculation allow planning in worktops with depths of at least 60 cm, and additional kits are available for worktops of 70 cm depth.

How does the automatic ventilation control work?

When a cooking zone is used, the ventilation switches on automatically. Sensors and cooktop data are used to adjust the fan power via an algorithm. You can choose between low-noise oriented, balanced or performance-oriented modes. After cooking, the system can run at ultra low-noise level for a delayed shut-off period to remove residual odours.

Are the filters and liquid collectors dishwasher safe?

Yes. The stainless-steel grease filters, the upper liquid collector (200 ml) and the lower liquid safety collector (700 ml) are fully dishwasher safe and heat resistant. They are designed for easy removal and cleaning.

What smart features are available with Home Connect?

With Home Connect, you can remotely monitor the hob, check whether it is switched off, and access recipes or additional functions via the app. The dish assistant helps you find suitable temperature settings for dishes, and the app provides notifications such as cleanAir filter saturation and convenient re-order options.

What safety features does this hob offer?

Safety functions include 2-stage residual heat indicators, control panel lock, control panel pause (blocking all touch buttons for 30 seconds), a main on/off switch and automatic safety switch-off if heating is not used for a preset time. The product and accessories also comply with specified flammability and needle flame tests.
