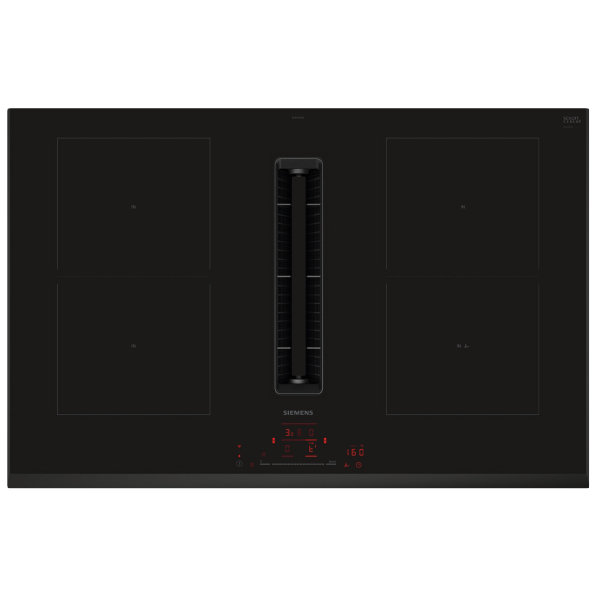

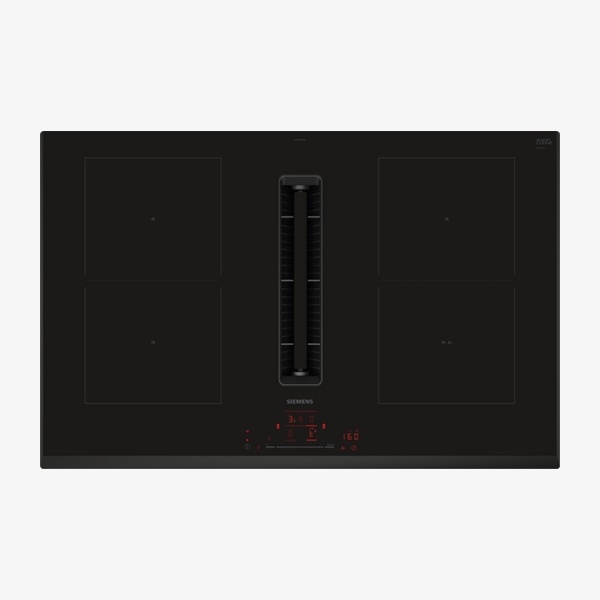

The ED851HQ26E iQ500 is an 80 cm built‑in induction hob with a fully integrated downdraft ventilation system and space for four pots or pans. It is designed for modern kitchens requiring efficient electric cooking and extraction in one appliance. With combiZones for larger cookware, multi‑level power control, Home Connect capabilities and easy‑to‑clean grease filters, it offers flexible cooking and high‑performance, low‑noise ventilation in a sleek, frameless black ceramic design.

Key Features

80 cm induction hob with 4 cooking zones – space for 4 pots or pans, powered by electric induction.
combiZone flexibility – connect two classic cooking zones into one large zone for bigger cookware.
Integrated downdraft ventilation – fully integrated high‑performance extractor with automatic switch‑on and delayed shut‑off.
Low‑noise, high‑performance blower – energy‑efficient BLDC technology and optimised acoustics for powerful yet quiet extraction.
touchSlider / Multitouch+ control – directly control power via an imprinted touch bar at the front of the hob.
17 power levels – 9 main levels and 8 intermediate levels for precise heat adjustment.
Power boost and panBoost – boil water faster and heat pans more quickly than at the highest standard level.
Home Connect enabled – remote monitoring, access to recipes, additional functions and updateable appliance software (with connected account).
11 frying levels with sensor control – helps prevent overcooking via automatic temperature regulation.
Easy cleaning extractor unit – one‑hand removal, stainless‑steel grease filters and liquid collectors are fully dishwasher safe.
High grease filtration efficiency – 12‑layer stainless‑steel grease filters with 94 % efficiency.
Clean Air Plus odour filters – optimised odour reduction, anti‑pollen functionality and easy access from above for recirculation use.
Energy efficiency Class B for ventilation – with Fluid Dynamic Efficiency class A and grease filtration efficiency class B.

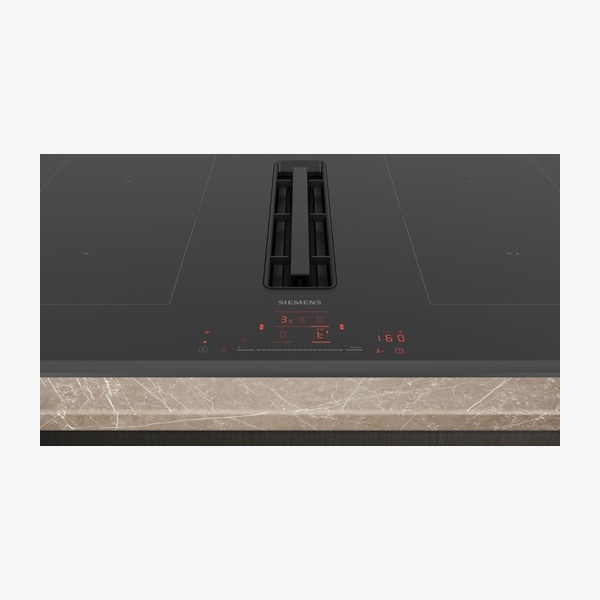

3‑sided bevelled frameless design – black ceramic surface with a fully flush air intake for free placement of cookware.
Safety functions – 2‑stage residual heat indicators, control panel lock, main on/off switch and automatic safety switch‑off.
Flexible installation options – suitable for ducted or recirculated extraction and installation into a 60 cm base cabinet.
Included accessories – slider for unducted recirculation and one Clean Air Plus odour filter in the packaging.

Technical Specifications

Product name/family	Cooking zone ceramic
Model designation	ED851HQ26E iQ500 induction hob with integrated ventilation system
Installation type	Built‑in, surface mount without frame
Source of energy	Electric induction
Number of cooking zones	4

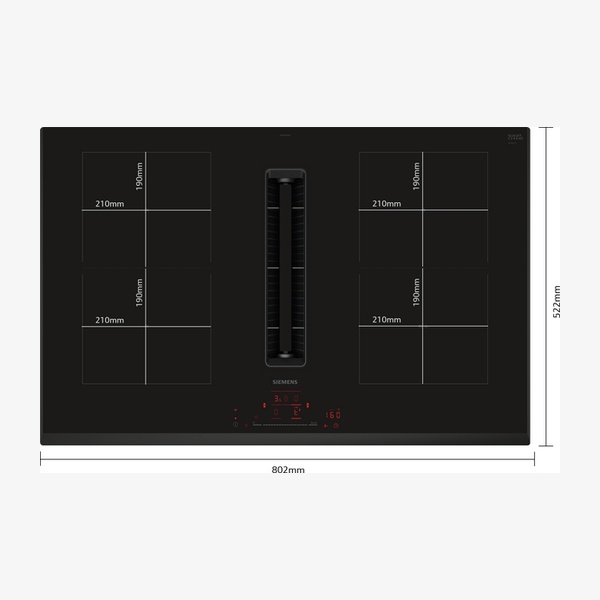

Hob width	80 cm (width of appliance 802 mm)
Dimensions (H×W×D)	223×802×522 mm

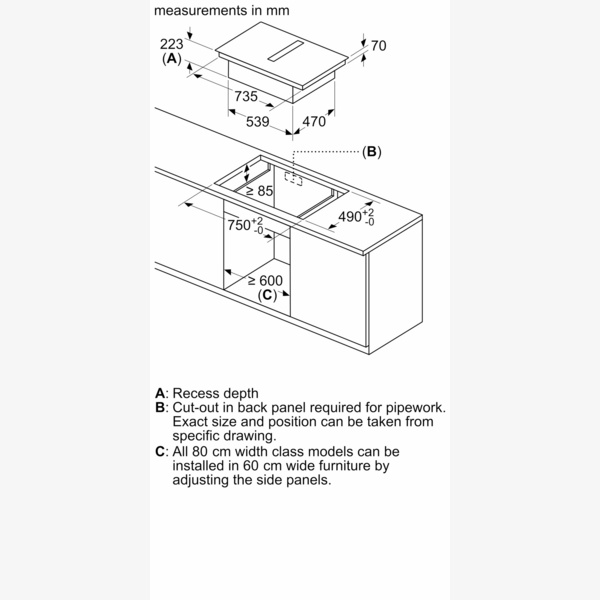

Required niche size (H×W×D)	223×750–750×490–490 mm
Minimum worktop thickness	16 mm
Suitable base cabinet width	60 cm
Packed product dimensions (H×W×D)	431×950×672 mm
Net / gross weight	25.3 kg / 30.0 kg (overall appliance weight 26 kg also stated)
Basic surface material	Ceramic
Surface colour	Black
Control panel location	Front
Control type	touchSlider / Multitouch+
Power levels	17 power levels (9 main + 8 intermediate)
Cooking zones (left front / left rear)	190 mm, 210 mm, 2.5 kW (max. power 3.7 kW) each
Cooking zones (right rear / right front)	190 mm, 210 mm, 2.5 kW (max. power 3.7 kW) each
Heating with booster	All cooking zones
Number of speed settings (ventilation)	9‑stage + 2 intensive
Max. extraction (ducted, normal)	500 m³/h (according to EN 61591)
Boost extraction (ducted)	622 m³/h (according to EN 61591)
Max. extraction (recirculation, normal)	487 m³/h (according to EN 61591)
Boost extraction (recirculation)	595 m³/h (according to EN 61591)
Noise level (max. normal, ducted)	69 dB(A) re 1pW (max. Boost 74 dB re 1pW)
Noise level (max. normal, recirculation)	68 dB re 1pW (max. Boost 72 dB re 1pW)
Grease filter efficiency	94 % (EN 61591)
Ventilation Energy Efficiency Class	B (A+++ to D scale)
Fluid Dynamic Efficiency class	A
Grease filtration efficiency class	B
Average energy consumption (ventilation)	57 (unit not stated in source)
Odour filter	Clean Air Plus odour filter (odour filter field “No” and Clean Air Plus filters specified separately)
Clean filter reminders	Yes
Residual heat indicator	Separate, 2‑stage indicators
Main on/off switch	Yes
Automatic safety switch‑off	Yes (heating stops after preset time if not used)
Nominal voltage	220–240 / 380–415 V
Frequency	50–60 Hz
Connected load	7.4 kW
Connection current management	20, 16, 13, 10 Amp options
Electrical supply cord length	1.1 m (110 cm), cable included
Ventilation configuration	Suitable for ducted or recirculated extraction (incl. differentiated software modes)
Liquid collector capacity	200 ml upper unit + 700 ml liquid safety collector (total 900 ml)
One‑way flap requirement (ducted)	Max. opening pressure 65 Pa

Additional Details and Usage

Cooking and convenience functions

Multitouch+ control lets you directly set power with the imprinted touch bar.
Favourite Button provides direct access to favourite functions with a configurable button (with connected Home Connect account).
Keep warm function (via Home Connect app/MyButton) keeps dishes warm at a preset low power level.
Switch‑off timer can turn off a cooking zone at the end of a set time (for example for boiled eggs).
Alternative timer option sounds an alarm at the end of the set time (for example for pasta).
Sound volume is adaptable to personal preference and needs.
quickStart selects the cooking zone with cookware automatically when you switch on the hob.
reStart restores all previous settings if the hob was unintentionally switched off, when switched back on within 4 seconds.
Pause function lets you pause the heating process, for example to answer the door.

Cooking assistance and connectivity

11 frying levels help prevent overcooking via automatic temperature regulation with an integrated sensor.
Dish assistant via Home Connect app helps you find the right temperature setting for specific dishes.
Home Connect enables remote monitoring, checking whether the hob is switched off when away from home.
Home Connect also provides access to recipes and additional functions in the app.
via MyButton you can open partner services from the cooktop.
Updateable appliance (with connected Home Connect account) keeps software up to date.

Integrated ventilation and filtration

Induction cooktop with fully integrated high‑performance downdraft extractor.
Aesthetically integrated fully flush air intake with a floating, heat‑resistant glass ceramics element for free cookware movement.
Automatic switch‑on of the ventilation system when a cooking zone is used.
Automatic delayed shut‑off in a specific ultra low‑noise fan level (12 minutes in ducted extraction, 30 minutes in recirculated extraction; can be switched off manually).
High‑performance, low‑noise blower with enclosed, non‑visible blower and strong pressure drop resistance for longer or more complex ducting.
Easy‑to‑detach grease filter and liquid collector unit with convenient one‑hand removal via the glass ceramics handle.
Integrated large‑scale stainless‑steel grease filters with 12 filtration layers and a black top layer for aesthetic integration.
All relevant parts are heat resistant and fully dishwasher safe.
Upper liquid collector unit has 200 ml capacity for standard spillages or condensate, with a powerful drainage system for larger amounts.
Liquid safety collector adds 700 ml capacity, is dishwasher safe and accessible from below.
Overall capturing capacity of liquids is 900 ml; blower system is watertight.
For recirculation, 2×2 batteries of directly integrated high‑performance Clean Air Plus odour filters are used.
Clean Air Plus filters offer optimised odour reduction, large filter surface, anti‑pollen functionality, 360 hours lifetime (non‑regenerative) and low‑noise operation.
Replenishment Clean Air filter set: HZ9VRCR0 (replacement also listed as HZ9VRCR1 Clean Air Plus odour filter).
For ducted extraction, 2×2 sets of directly integrated low‑noise acoustic filters improve psycho‑acoustics.

Safety features

2‑stage residual heat indicators show which cooking zones are still hot or warm.
Control panel lock helps prevent unintended activation of the hob.
Main on/off switch allows all cooking zones to be switched off at the touch of a button.
Automatic safety switch‑off stops heating after a preset time if not used.
The product and accessories comply with the Needle Flame Test (IEC 60695‑11‑5) and V2 flammability class (UL94).

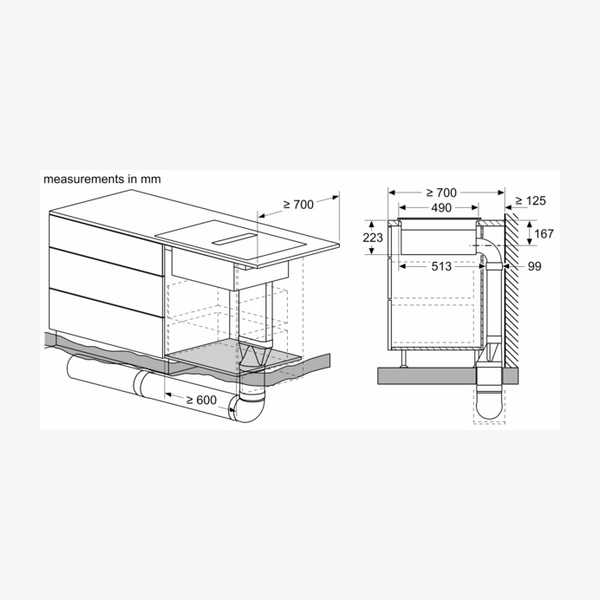

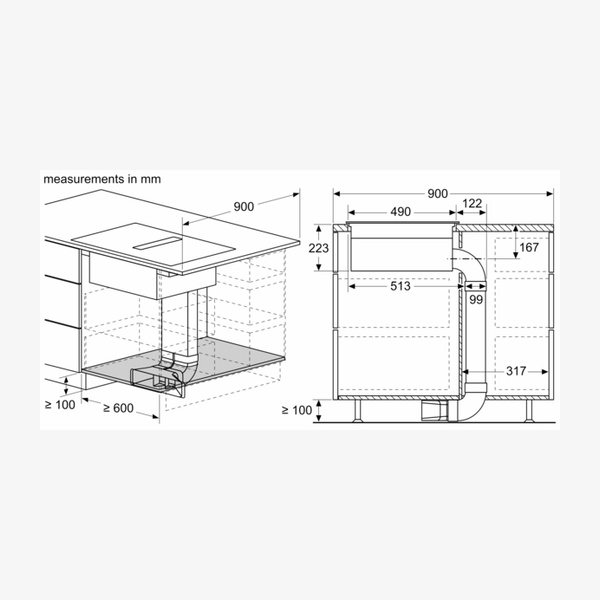

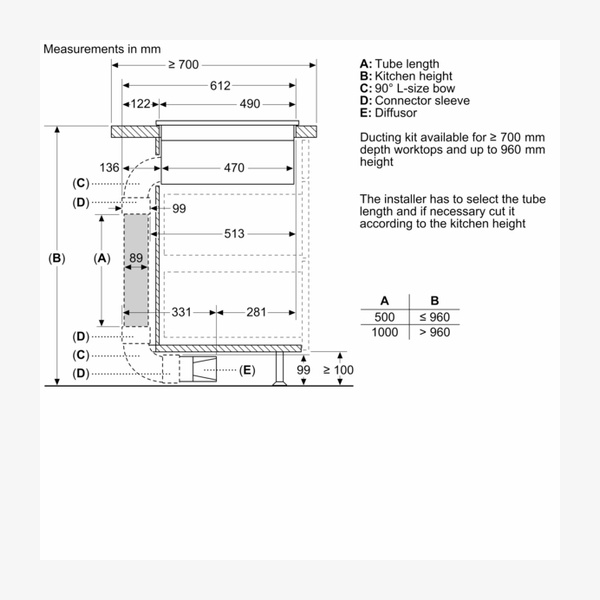

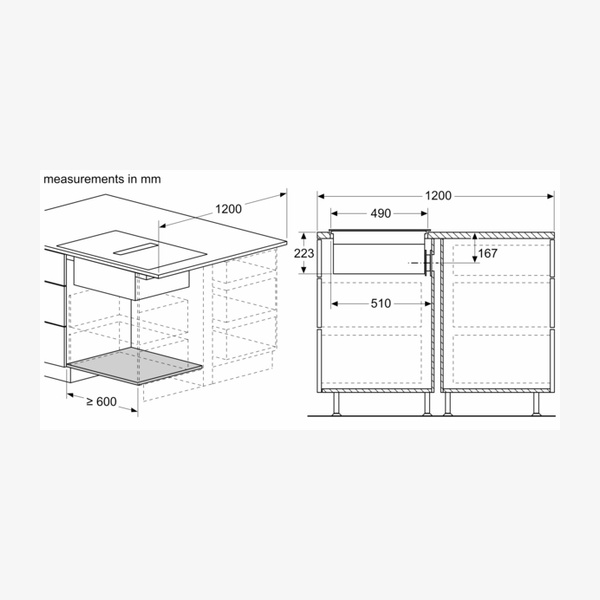

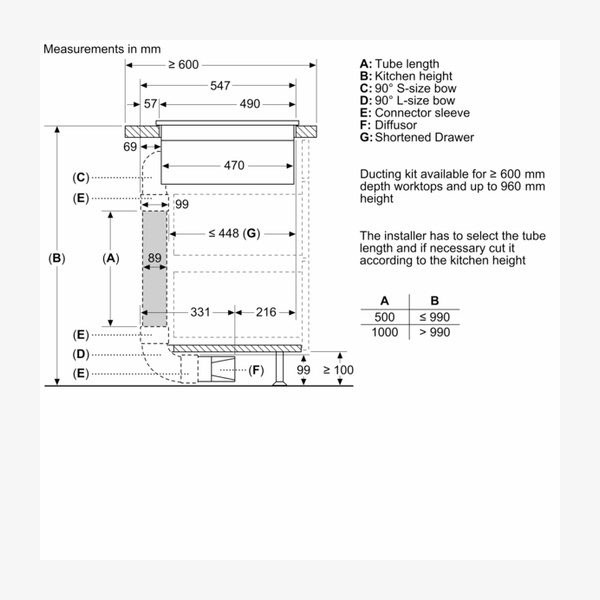

Installation notes

Suitable for ducted or recirculated extraction in four main options: unducted, partly and fully ducted recirculation, or ducted extraction.
Installation accessories for unducted recirculation, including four Clean Air Plus odour filters and a telescopic slider element, are included and support worktop depths ≥60 cm.
Recommended accessory kits: HZ9VDKR1 or HZ9VDKR0 for partly‑ducted recirculation; HZ9VDKE1 as starter kit for ducted extraction.
The appliance can be installed in island or wall‑oriented configurations.
Maximum immersion depth below the worktop surface is 223 mm.
The appliance must be freely accessible from below for access to the lower liquid safety collector.
No false floor is required; drawers or shelves in the base unit must be removable.

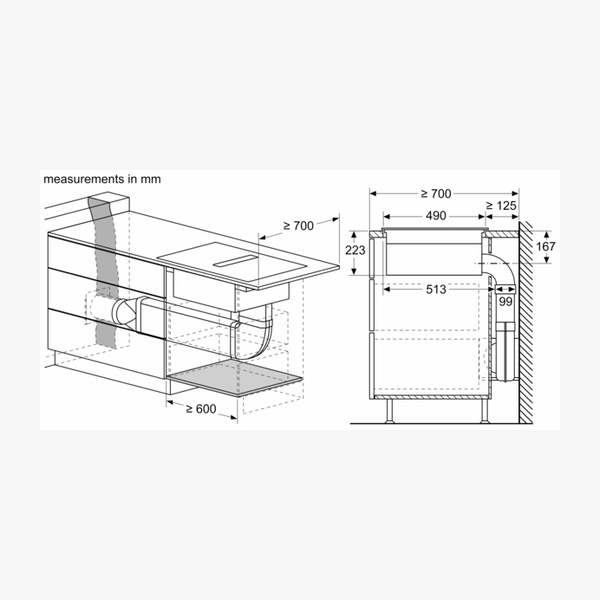

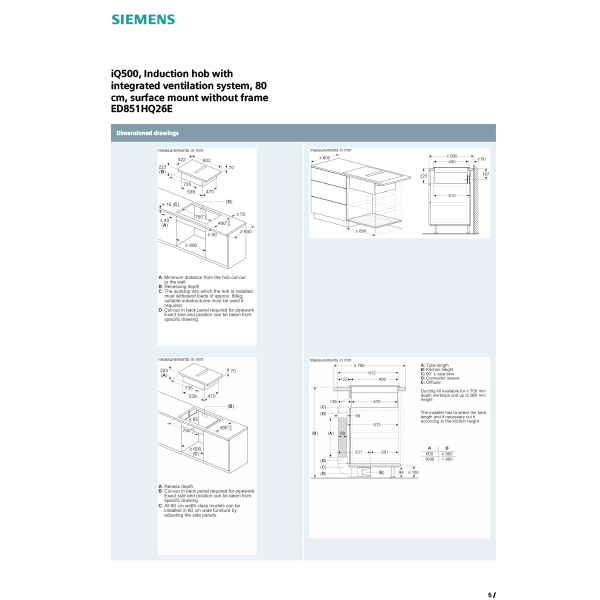

The base unit back panel can remain with a cut‑out for the air outlet; position and size are provided in installation instructions.
Unducted recirculation requires a vertical aperture of at least 25 mm behind the furniture back panel (50 mm suggested for ideal performance).
For partly ducted and unducted recirculation, a return‑flow aperture of ≥400 cm² is required in the plinth area.

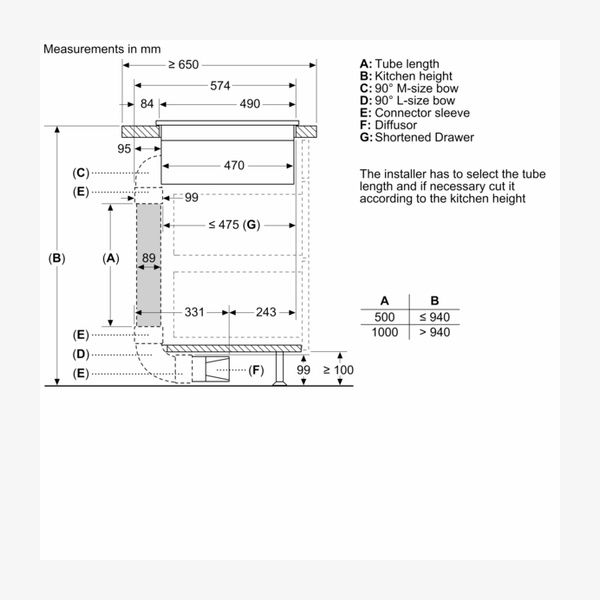

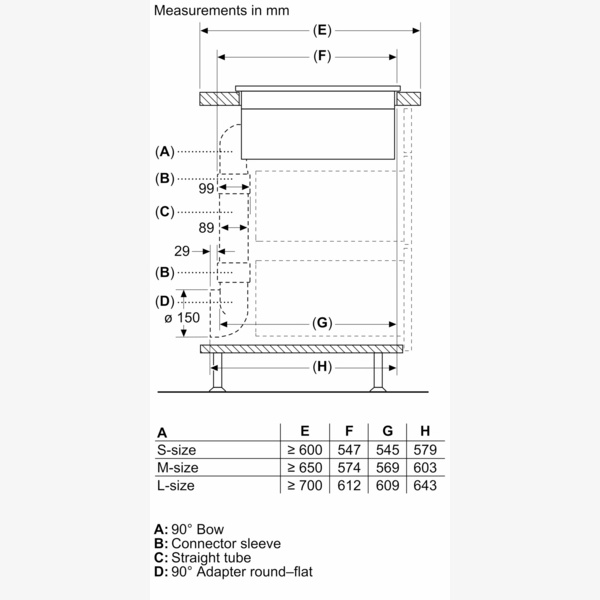

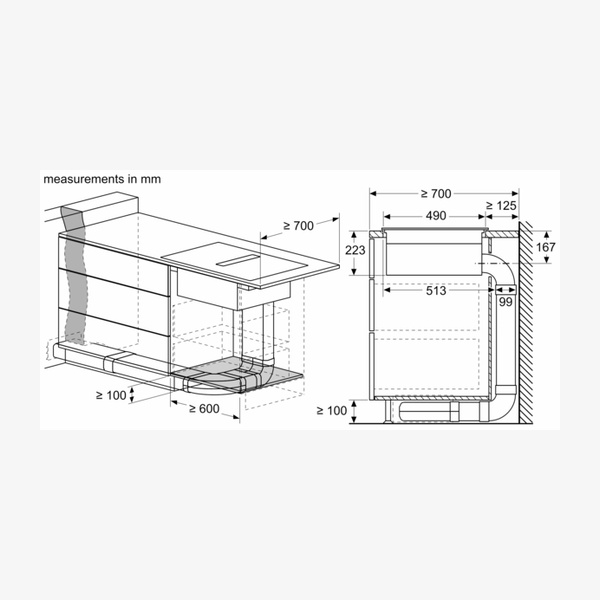

The air outlet on the back can be accessed directly with a male flat duct element (DN 150).
The blower supports ducting up to 8 m with three 90° bends while maintaining sufficient performance.
When used with ducted extraction and a chimney‑vented fireplace, the power supply line requires a suitable safety switch (not required for recirculation).
In ducted extraction, a one‑way flap/backflow trap with max. 65 Pa opening pressure should be installed.
Worktop bearing capacity and stability must support an overall appliance weight stated as 26 kg; worktop manufacturer specifications should be observed.

Included and optional accessories

Included: slider for unducted recirculation, Clean Air Plus odour filter.
Optional cooking accessories: HZ32WA00 ta; HZ390090 wok set (3 items); HZ9CF240 24 cm fry pan (coated); HZ9CF280 28 cm fry pan (coated); HZ9ES100 espresso maker (4 cups); HZ9FE280 iron pan Ø 18 / 28 cm; HZ9SE030 set of 2 pots and 1 pan; HZ9SE040 4‑piece set; HZ9SE060 6‑piece set.
Optional ventilation/ducting accessories: HZ9VDKE1 exhaust kit; HZ9VDKR0 / HZ9VDKR1 / HZ9VDKR2 recirculation kits; HZ9VDSB1, HZ9VDSB2, HZ9VDSB3, HZ9VDSB4 90° flat duct bends; HZ9VDSI0 adapter round‑flat; HZ9VDSI1 90° adapter round‑flat; HZ9VDSM1 straight tube 500 mm; HZ9VDSM2 straight tube 1000 mm; HZ9VDSS1 connector sleeve (female); HZ9VDSS2 flexible connecting piece DN 150 flat; HZ9VEDU0 acoustics filter; HZ9VRCR1 Clean Air Plus odour filter (replacement); HZ9VRPD1 plinth diffusor.

Frequently Asked Questions

Does the hob provide both ducted and recirculation extraction options?

Yes. The integrated ventilation system is suitable for ducted or recirculated extraction and supports unducted, partly and fully ducted recirculation, as well as ducted extraction. Accessories for unducted recirculation are included, and additional kits are available for other configurations.

How easy is it to clean the downdraft extractor and filters?

The grease filter and liquid collector unit can be removed with one hand using the glass ceramics handle. The large‑scale stainless‑steel grease filters, liquid collector and liquid safety collector are all heat resistant and fully dishwasher safe, helping to minimise cleaning effort.

What safety features are included on the ED851HQ26E hob?

Safety features include 2‑stage residual heat indicators, a control panel lock, a main on/off switch and automatic safety switch‑off if the hob is not used for a preset time. The product and its accessories also meet specified flame and flammability test standards.

Can I control or monitor the hob remotely?

Yes. With a connected Home Connect account, you can enable remote monitoring via the Home Connect app, check whether the hob is switched off, access recipes, use Dish assistant and update the appliance software. The Favourite Button and MyButton also integrate selected smart functions directly on the hob.

What is the capacity of the liquid collection system beneath the air intake?

The upper liquid collector unit holds 200 ml for standard spillages or condensate and is supported by a powerful drainage system. A separate liquid safety collector underneath adds 700 ml capacity, giving a total capturing capacity of 900 ml. Both collectors are dishwasher safe.
