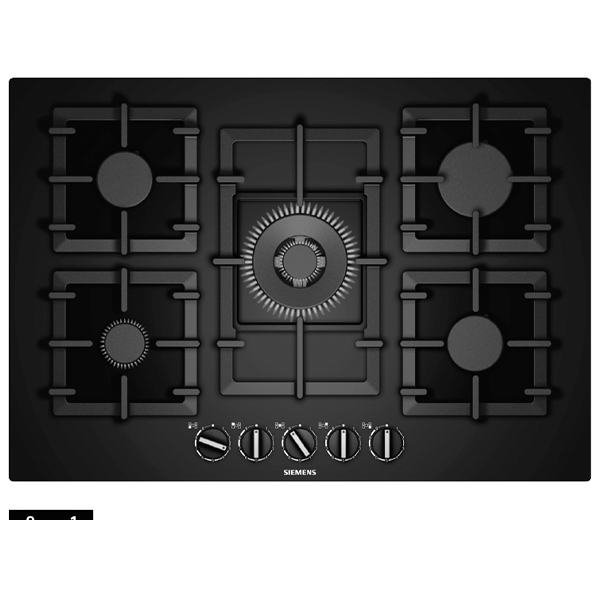

The Siemens iQ500 EP7A6QB90 is a 75 cm built–in gas hob with a black tempered glass surface and frameless design for flush or slightly raised installation. It offers five burners, including a wok burner, with stepFlame Technology for precise control in nine flame levels. Front–mounted sword knobs provide easy ignition and adjustment, while cast iron pan supports with rubber feet ensure stable cookware support. The hob is biomethane ready and includes a flame failure safety device.

Key Features

Biomethane ready – can be powered by renewable biomethane gas.
stepFlame Technology with 9 steps – precisely control and adjust the flame in nine defined levels.
75 cm tempered glass surface – black glass hob top with a sleek appearance.
Frameless design – install the hob either flush or slightly raised on the worktop.
Five burner layout – economy, two standard, high–speed and centre wok burner (up to 4 kW, depending on gas type).
Cast iron pan supports with rubber feet – robust support with improved stability for cookware.
Design co–ordinated control dials – front–mounted sword knobs with strong grip for effortless turning.
Ignition via control dials – just push and turn the dials to ignite the flame.
Flame failure safety device – prevents unwanted gas flow when the flame goes out.
Multiple gas compatibility – suitable for various natural gas and liquid gas types, with LPG nozzle set (28–30/37 mbar) included.
Built–in installation – designed as a built–in gas hob with integrated controls.
Optional accessories available – simmer cap, simmer plate, wok ring and small pot support (codes HZ211310, HZ298105, HZ298107, HZ298114).

Technical Specifications

Product name/family	gas hob w integrated controls
Model designation	iQ500 EP7A6QB90
Construction type	Built–in
Source of energy	Gas
Biomethane ready	Yes – power your gas hob with renewable biomethane gas
Number of cooking zones	5
Burner configuration	Left front: Economy burner up to 1 kW (depending on gas type); Left rear: Standard burner up to 1.75 kW (depending on gas type); Centre front: Wok burner up to 4 kW (depending on gas type); Right rear: High–speed burner up to 3 kW (depending on gas type); Right front: Standard burner up to 1.75 kW (depending on gas type)
Type of control setting devices	Sword knobs (design co–ordinated control dials)
Location of control panel	Front
Basic surface material	Tempered glass
Colour of surface	Black
Colour of frame	Black
Cast iron pan supports	Yes, with rubber feet
stepFlame Technology	9 steps
Residual heat indicator	Without
Dimensions (H x W x D)	45 x 752 x 520 mm / 58 x 752 x 520 mm (dimensions of the product)
Width of the appliance	752 mm
Required niche size (H x W x D)	45 x 560–562 x 480–492 mm / 45 x 560 x (480–492) mm
Min. worktop thickness	30 mm
Dimensions of packed product (H x W x D)	145 x 793 x 597 mm
Weight (net)	19.0 kg
Gross weight	20.5 kg
Length of electrical supply cord	100 cm / Power cord: 1 m
Gas connection rating	11500 W (11.5 kW connected load)
Nominal power	220–240 V
Frequency	60; 50 Hz
Fuse protection	3 A
EAN code	4242003742549
Residual safety feature	Flame failure safety device
Factory gas setting	Factory set for connection to mains gas
Included nozzle set	Nozzle set for LPG jets (28–30/37 mbar) included

Additional Details and Installation

Design and layout

The hob features a black tempered glass surface with a frameless design, allowing installation either flush with the worktop or slightly raised. Cast iron pan supports with rubber feet provide a stable base for cookware, while the front–mounted sword knobs are design co–ordinated for a consistent look.

Operation and convenience

stepFlame Technology offers nine clearly defined flame levels for precise heat control. Ignition is integrated into the control dials, so you simply push and turn to light the burners. The five–burner layout includes an economy burner, two standard burners, a high–speed burner and a powerful central wok burner (up to 4 kW, depending on gas type).

Gas types and connection

Usable for: Nat gas L/LL G25/20 mbar (DE)
NG H/E 20 mbar, E+ 20/25 mbar
Natural gas H 25 mbar (HU)
Natural gas L 25 mbar (NL)
Liquid gas G30,31 28–30/37 mbar
Liquid gas G30 37 mbar (PL)
Liquid gas 50 mbar

The hob is factory set for connection to mains gas. A nozzle set for LPG jets (28–30/37 mbar) is included. Nozzles for all other gas types can be ordered via the customer service. For nozzle changes, customer service should be contacted.

Installation measurements

The required niche size for installation is 45 x 560 x (480–492) mm, with a minimum worktop thickness of 30 mm. The product dimensions are stated as 58 x 752 x 520 mm, with an overall width of 752 mm.

Frequently Asked Questions

How many burners does the Siemens iQ500 EP7A6QB90 have?

This hob has five burners: one economy burner (up to 1 kW, depending on gas type), two standard burners (each up to 1.75 kW, depending on gas type), one high–speed burner (up to 3 kW, depending on gas type) and a central wok burner (up to 4 kW, depending on gas type).

What is stepFlame Technology?

stepFlame Technology allows you to precisely control and adjust the gas flame in nine defined levels. This provides accurate heat settings rather than a continuously variable but unmarked flame.

Is this hob compatible with renewable gas?

Yes. The hob is biomethane ready, meaning it can be powered by renewable biomethane gas.

What safety features does the hob include?

The hob is equipped with a flame failure safety device, which prevents unwanted gas flow when the flame goes out.

Which optional accessories are available?

Optional accessories include the HZ211310 simmer cap, HZ298105 simmer plate, HZ298107 wok ring and HZ298114 small pot support.

What are the main installation requirements?

The hob is designed as a built–in appliance with a required niche size of 45 x 560 x (480–492) mm and a minimum worktop thickness of 30 mm. It is factory set for mains gas, with an LPG nozzle set (28–30/37 mbar) included.
