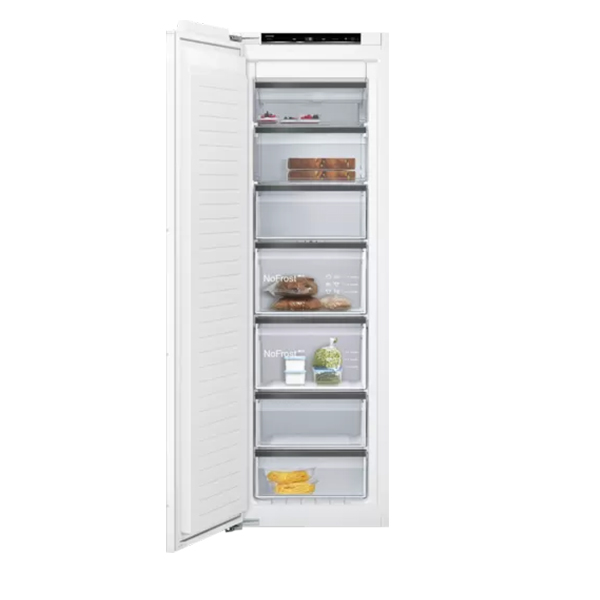

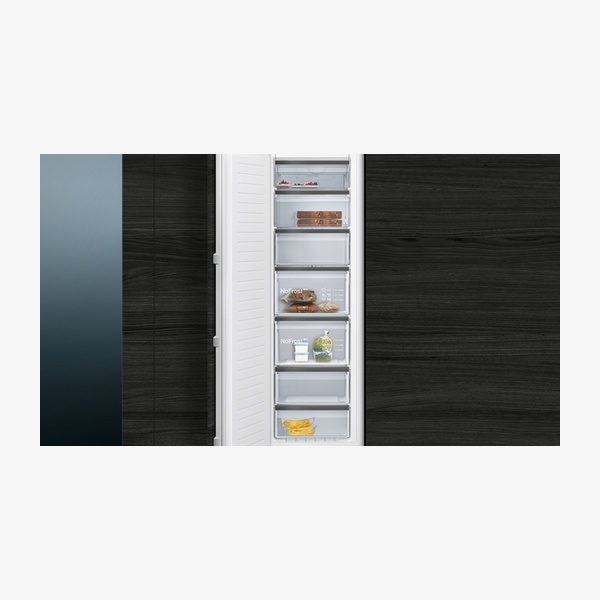

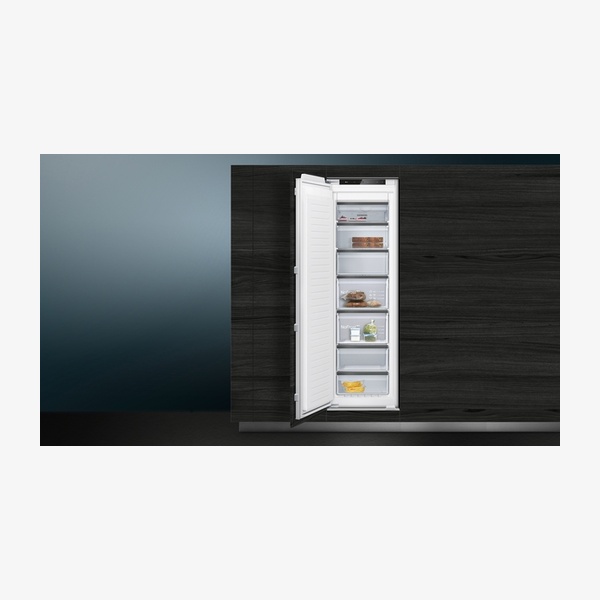

The Siemens iQ700 GI81NHCE0 is a built–in upright freezer designed for tall 177.5 cm niches, offering 212 l net freezer volume with noFrost technology so you never need to defrost. It features a soft–closing, left–mounted reversible door with fixed flat hinge and electronic temperature control with LED display. With five transparent drawers, two bigBoxes, varioZone glass shelves and an energy efficiency class E rating, it provides organised, flexible freezing for integrated kitchens.

Key Features

NoFrost technology – never defrost the freezer again, thanks to the frost free system in both fridge and freezer sections.
Soft closing door – door closes automatically and softly when open at a 20° angle or less.
VarioZone flexibility – removable safety glass shelves and drawers for adaptable freezer space.

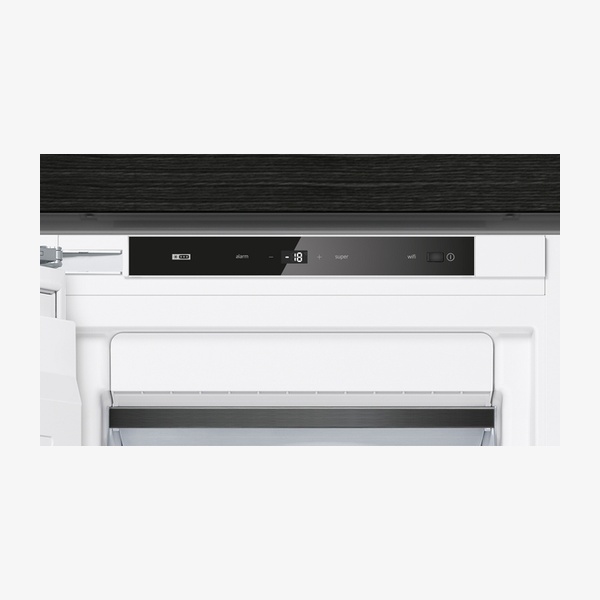

Electronic temperature control – clear digital control with LED display for setting the target temperature.
Intelligent Inverter Compressor – provides better temperature control and efficient performance.
Home Connect – remote monitoring and control capability.
SuperFreeze function – rapid freezing with automatic deactivation.
VitaControl sensor technology – constant temperature control by intelligent sensors.
Generous storage – 5 transparent freezer drawers including 2 bigBox compartments plus 2 freezer flaps with glass shelves.
Energy efficiency class E – average annual energy consumption of 235 kWh/annum.
Low noise operation – airborne acoustical noise emissions of 35 dB(A) re 1pW, noise emission class B.
Built–in tall design – 177.2 cm high, 55.8 cm wide and 54.5 cm deep with fixed hinge for integrated installation.
Left–mounted reversible door – door opening on the left with the option to reverse.
Visual and audible warnings – freezer malfunction and temperature warnings are both optical and acoustical.
Included accessories – supplied with 1 berry tray and 1 ice cube tray.
Optional accessory – compatible with KS0BZS00 heavy–duty hinge support.
Climate class SN–T – designed for operation within the SN–T climate range.

Technical Specifications

Brand	Siemens
Product range	iQ700
Product name / code	GI81NHCE0
Product category	Upright freezer / Built–in tall freezer
Energy efficiency class	E (scale A to G)
Annual energy consumption	235 kWh/annum
Total volume	212 l
Net freezer volume	212 l
Net fridge volume	0 l
Sum of volume of frozen compartments	212 l
Freezing capacity (24 h)	14 kg
Temperature rise time	9 h (EU19_Temperature rise time_D: 9 H)
Climate class	SN–T
Frost free system	Fridge and freezer (No Frost, never have to defrost ever again)
Defrost	Automatic
Thermometer freeze section	Digital
Control type	Electronic control with LED display
Home Connect	Remote monitoring and control
Noise level	35 dB(A) re 1pW
Noise emission class	B (EU19_Noise emission class_D: B)
Light	No
Warning signal / malfunction	Both visual and audible; freezer malfunction warning signal optical, acoustical
Door lock	No
Door opening	Left reversible (left–mounted, reversible door)
Door panel options	Not possible
Hinge type	Fixed hinge; soft close flat hinge
Included accessories	1 × berry tray, 1 × ice cube tray
Optional accessories	KS0BZS00 heavy–duty hinge support
Number of freezer drawers / baskets	5 transparent freezer drawers, 2 bigBox
Number of freezing flaps	2 freezer flaps with glass shelves
Home appliance type	Built–in

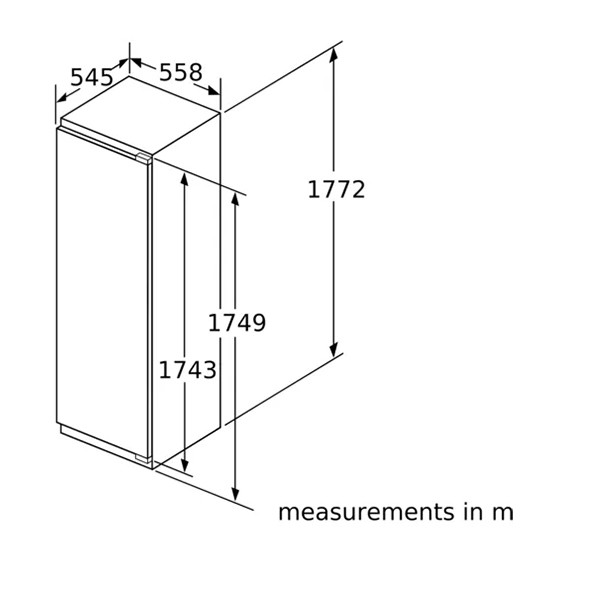

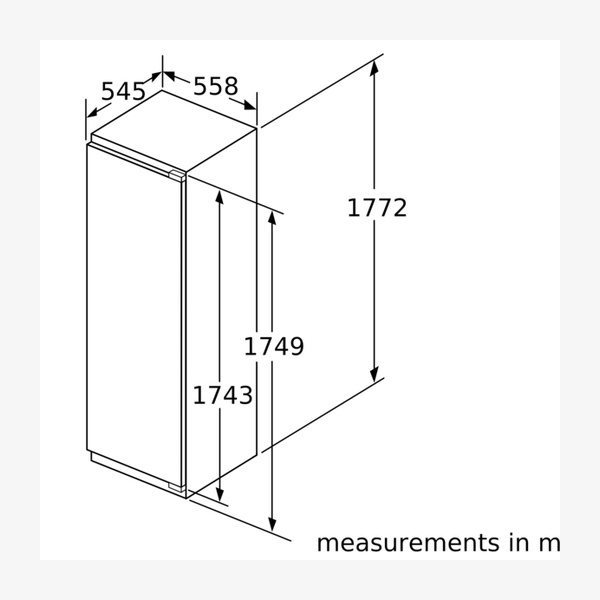

Height of the appliance	1772 mm (177.2 cm)
Width of the appliance	558 mm (55.8 cm)
Depth of the appliance	545 mm (54.5 cm)
Required niche size (H × W × D)	1775 × 560 × 550 mm (177.5 cm H × 56 cm W × 55 cm D)
Packed dimensions (H × W × D)	1840 × 610 × 640 mm
Weight (net)	68.5 kg
Gross weight	72.7 kg
Connection rating	120 W
Fuse protection	10 A
Frequency	50 Hz
Length of electrical supply cord	230 cm
EAN code	4242003878552
Energy label reference	EU19_EEK_D: E; EU19_Fast freezer facility_D
Additional note on consumption	Based on standard 24–hour test; actual consumption depends on usage and position.

Additional Details and Usage

Freezer functions

No Frost system means you never have to defrost the freezer.
SuperFreeze function with automatic deactivation helps quickly freeze fresh food.
VitaControl uses intelligent sensor technology for constant temperature control.
Intelligent Inverter Compressor supports efficient, stable temperature performance.

Storage layout

5 transparent freezer drawers make contents easy to see.
2 bigBox drawers provide extra space for bulky items.
2 freezer flaps with glass shelves offer additional storage flexibility.
VarioZone allows drawers and safety glass shelves to be rearranged or removed for larger items.
Berry tray and ice cube tray are included for convenient freezing of small items and ice.

Door and hinge system

Left–mounted, reversible door allows adjustment of opening direction.
Soft closing mechanism ensures the door closes automatically and gently at 20° opening angle or less.
Fixed flat hinge design; optional KS0BZS00 heavy–duty hinge support is available.

Installation information

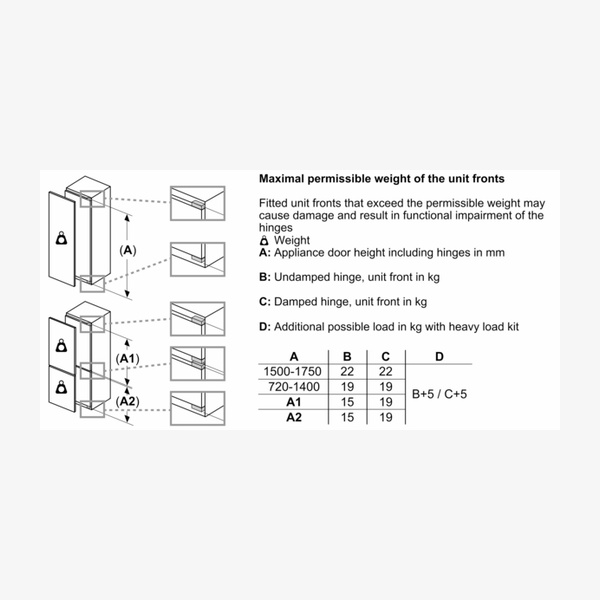

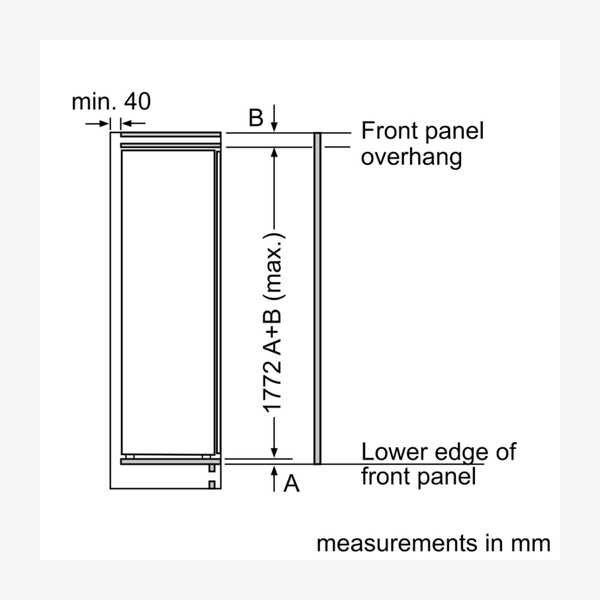

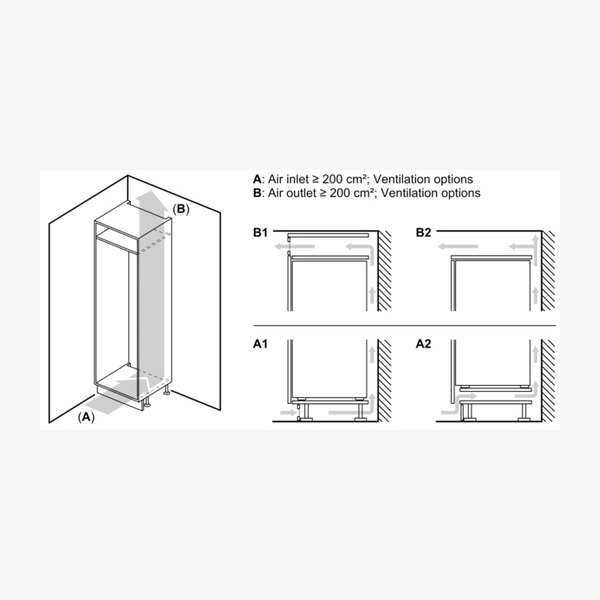

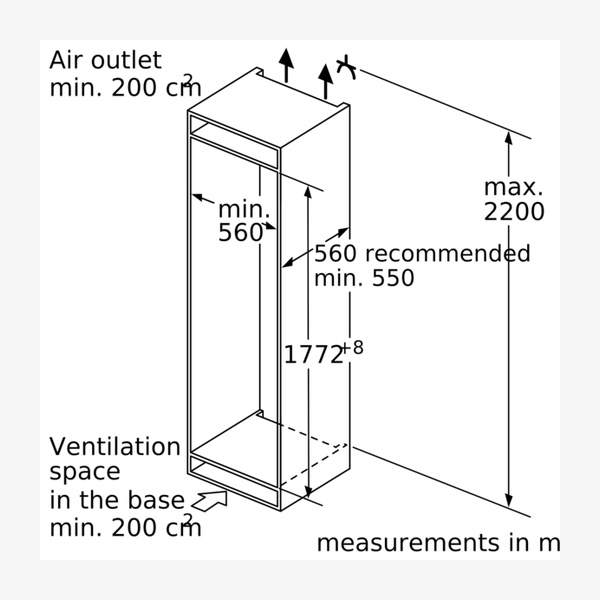

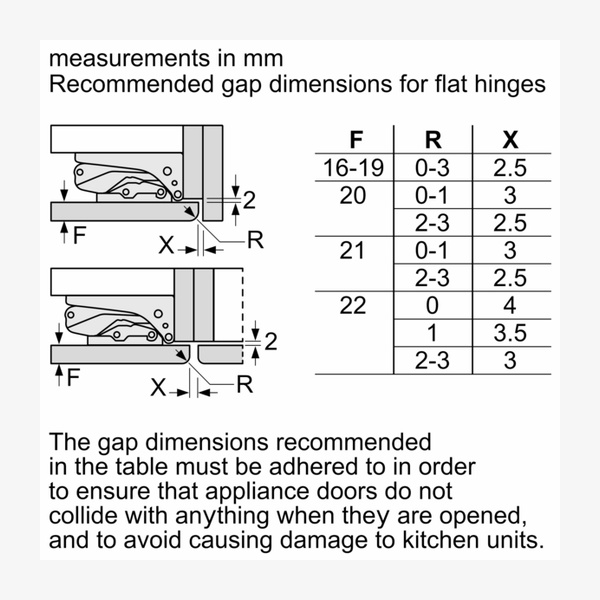

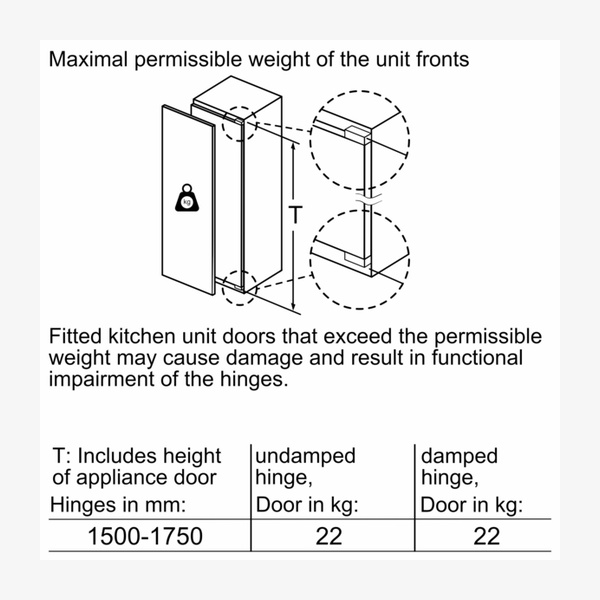

The appliance is designed for built–in installation in a tall niche. Required niche dimensions are 1775 mm height, 560 mm width and 550 mm depth. The appliance itself measures 1772 mm high, 558 mm wide and 545 mm deep. Ventilation and detailed gap recommendations are indicated in the dimensioned drawings for flat hinges, including maximal permissible weight of the unit fronts and recommended gap dimensions to help prevent collisions and damage to kitchen units.

Monitoring and safety

Optical and acoustical warning signals indicate freezer malfunction.
Both visual and audible warnings alert to temperature issues.
Home Connect enables remote monitoring and control of the appliance.

Frequently Asked Questions

Do I need to defrost the Siemens iQ700 GI81NHCE0 freezer?

No. The appliance features a No Frost system in the freezer, described as “never have to defrost ever again”, so manual defrosting is not required.

What is the capacity of this built–in freezer?

The total and net freezer volume is 212 l. There is no fridge volume, as it is an upright freezer only.

What are the installation dimensions for the niche?

The required niche size for installation is 1775 mm in height, 560 mm in width and 550 mm in depth. The appliance itself measures 1772 × 558 × 545 mm.

How loud is the GI81NHCE0 during operation?

The airborne acoustical noise emissions are 35 dB(A) re 1pW, with a noise emission class of B.

What accessories are included and what is optional?

The freezer is supplied with 1 berry tray and 1 ice cube tray. An optional KS0BZS00 heavy–duty hinge support is available.

Does the freezer have any special freezing functions?

Yes. It includes a SuperFreeze function with automatic deactivation and uses VitaControl intelligent sensor technology for constant temperature control, along with an Intelligent Inverter Compressor for better temperature regulation and efficient performance.
