The Siemens iQ700 ER3A6AI10 is a 30 cm built–in Domino gas hob with a black ceramic glass surface and low profile burner design. It features stepFlame Technology with nine defined flame levels and a powerful dual control wok burner up to 6 kW. Front–mounted metallic sword dials, individual cast iron pan support with rubber feet and dishwasher–suitable pan supports combine precise control with easy cleaning in compact kitchens or modular hob layouts.

Key Features

stepFlame Technology – 9 steps: precisely control and adjust the gas flame in nine defined levels.
Dual control wok burner up to 6.0 kW: extra wide power range with two separately controlled flame rings for simmering or stir–frying.
Ceramic glass surface, black: extremely heat–resistant glass ceramic that is easy to clean.
Detachable metallic sword dials: design co–ordinated front controls, easily removable for convenient cleaning.
Individual cast iron pan support with rubber feet: easy to handle, stable and simple to clean.
Ignition via control dials: just push and turn the dials to ignite the flame.
Dishwasher–suitable pan supports: pan supports can be cleaned in a dishwasher for added convenience.
Flame failure safety device: prevents unwanted gas flow when the flame goes out.
Compact 30 cm Domino format: single–burner gas hob suitable for modular combinations.
Facette front, rear and side profiles: brushed aluminium frame for an elegant, low profile appearance.
Built–in installation: designed for flush integration into the worktop with a minimum worktop thickness of 20 mm.
Optional accessories available: HZ32WA00 wireless roastingSensor, HZ394301 connecting strip, HZ9SE040 4 piece set and HZ9SE060 6 piece set.

Technical Specifications

Product series	iQ700
Product type	Vario/Domino gas hob with control
Model reference	ER3A6AI10
Construction type	Built–in
Source of energy	Gas
Number of cooking zones	1 burner gas hob, centre front wok burner
Burner type	Dual control wok burner, low profile burner design
Maximum burner power	Wok burner up to 6 kW / 6000 W (depending on gas type)
Connected load	6 kW gas connection rating
Nominal voltage	220–240 V
Frequency	50; 60 Hz
Fuse protection	3 A
Surface material	Ceramic glass
Surface colour	Black, aluminium brushed profiles

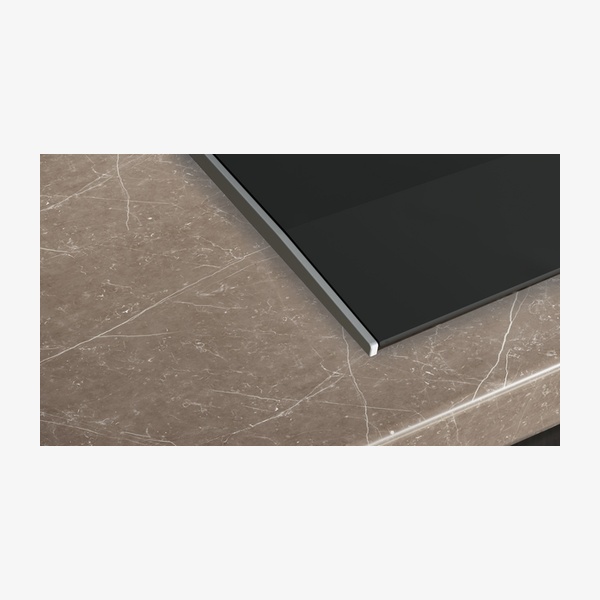

Frame design	Facette front, rear and side profiles, aluminium, brushed; frame colour black
Pan support	Cast iron pan support with rubber feet, single, dishwasher suitable

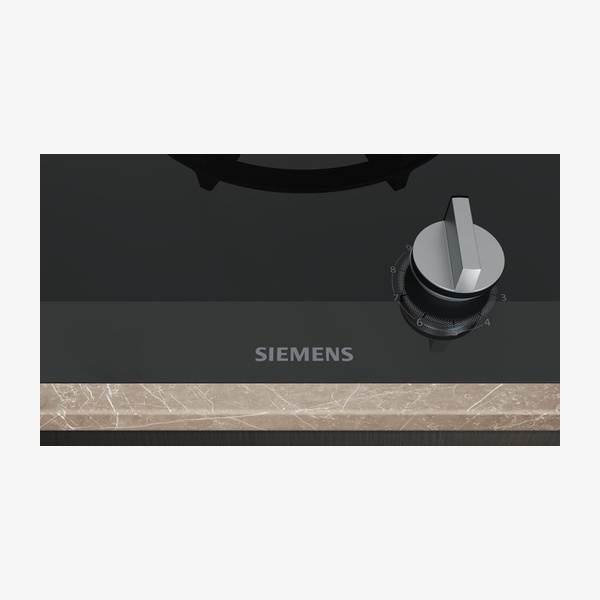

Control type and position	Design co–ordinated metallic sword dials, front, ignition via control dials
stepFlame levels	9 defined flame levels
Residual heat indicator	Without
Dimensions (H x W x D)	57 x 302 x 520 mm
Required niche size (H x W x D)	45 x 270 x 490–500 mm
Minimum worktop thickness	20 mm
Appliance width	302 mm
Packed dimensions (H x W x D)	185 x 580 x 385 mm
Net weight	7.2 kg
Gross weight	8.1 kg
Power cord length	1 m / 100 cm
Safety feature	Flame failure safety device
Gas types – natural gas	Nat gas L/LL G25/20 mbar (DE); NG H/E 20 mbar; E+ 20/25 mbar; Natural gas H 25 mbar (HU); Natural gas L 25 mbar (NL)
Gas types – liquid gas	Liquid gas G30,31 28–30/37 mbar; Liquid gas G30 37 mbar (PL); Liquid gas 50 mbar
Factory setting	Factory set for connection to mains gas
LPG nozzle set	Nozzle set for LPG jets (28–30/37 mbar) included; nozzles for other gas types available via customer service
Residual heat display	Without residual heat indicator
EAN code	4242003963081

Additional Details and Usage

Design and Layout

This Domino gas hob features a black ceramic glass surface with Facette front, rear and side aluminium profiles in a brushed finish. The single cast iron pan support with rubber feet provides stability for cookware and is easy to handle and clean. The low profile burner contributes to an elegant, streamlined appearance on the worktop.

Operation and Control

stepFlame Technology allows precise flame adjustment in nine defined levels, accessed via the design co–ordinated front control dials. Ignition is integrated into the metallic sword dials, so the flame is ignited simply by pushing and turning the control. The dual control wok burner enables separate control of the two flame rings for flexible cooking performance.

Cleaning and Care

Removable control dials make it easy to clean between and around the knobs.
Dishwasher–suitable pan supports allow convenient cleaning in a dishwasher.
The glass ceramic surface is described as extremely heat–resistant and easy to clean.

Safety

A flame failure safety device is integrated to prevent unwanted gas flow when the flame goes out. The hob is factory set for connection to mains gas, with an LPG nozzle set included for specific liquid gas pressures. Nozzles for other approved gas types can be ordered via customer service, and nozzle changes should be carried out by customer service.

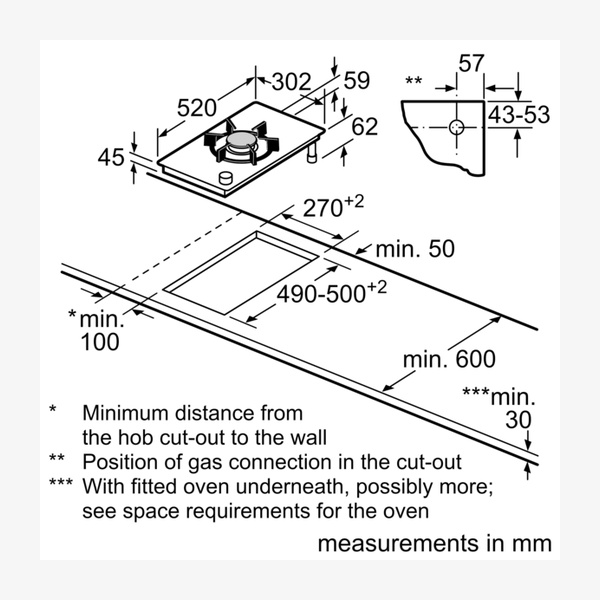

Installation Information

Built–in installation with required niche size of 45 x 270 x 490–500 mm (H x W x D).
Minimum worktop thickness of 20 mm is required.
Suitable for a range of natural gas and liquid gas types as specified in the technical data.
Power cord length is 1 m to connect the ignition system.

Frequently Asked Questions

How many burners does the Siemens iQ700 ER3A6AI10 Domino hob have?

This model is a single–burner gas hob with one centre front dual control wok burner.

What is the maximum power of the wok burner?

The dual control wok burner provides power up to 6 kW, or 6000 W gas connection rating, depending on the gas type used.

Can the pan supports and control dials be cleaned in a dishwasher?

The pan supports are described as dishwasher suitable for easy cleaning. The metallic sword dials are removable for cleaning, but it is not stated that they are dishwasher safe.

Which gas types is this hob suitable for?

The hob is usable with Nat gas L/LL G25/20 mbar (DE), NG H/E 20 mbar, E+ 20/25 mbar, Natural gas H 25 mbar (HU), Natural gas L 25 mbar (NL), Liquid gas G30,31 28–30/37 mbar, Liquid gas G30 37 mbar (PL) and Liquid gas 50 mbar.

Is an LPG nozzle set included with the hob?

Yes. A nozzle set for LPG jets (28–30/37 mbar) is included. Nozzles for other gas types can be ordered via customer service, and nozzle changes should be carried out by customer service.

Does the hob have a residual heat indicator?

No. The residual heat indicator is specified as “Without” for this model.

ER3A6AI10

Siemens iQ700 ER3A6AI10 Domino Gas Wok
