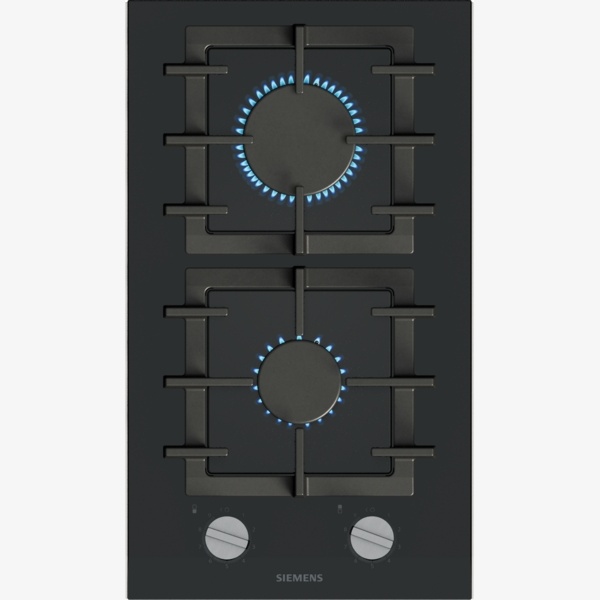

The iQ700 ER3A6BI40 is a 30 cm built-in Domino gas hob with a black ceramic glass surface and brushed aluminium profiles. Designed for precise cooking, it features stepFlame Technology with nine flame settings, two powerful gas burners and front-mounted sword dials with integrated ignition. Cast iron pan supports with rubber feet offer stability while being suitable for the dishwasher. Flame failure safety and a gas safety lock help provide secure operation across compatible natural gas and LPG setups.

Key Features

stepFlame Technology – 9 steps: precisely control and adjust the flame in nine defined levels.
Ceramic glass surface: extremely heat-resistant black glass ceramic that is easy to clean.
Detachable metallic sword dials: removable front control dials for easy cleaning and precise cooking control.
Cast iron pan supports with rubber feet: lightweight, compact and stable with a semi-continuous, easy-to-handle surface.
Dishwasher suitable pan supports: pan supports can be placed in the dishwasher for convenient cleaning.
Flame failure safety device / Gas Safety Lock: prevents unwanted gas flow by instantly halting gas supply if the flame goes out.
2-burner layout: includes one standard burner up to 1.75 kW and one high-speed burner up to 3 kW (depending on gas type).
Integrated ignition via control dials: simply push and turn the dials to ignite the burners.
Compact 30 cm Domino design: 302 mm wide built-in hob ideal for modular or small kitchen layouts.

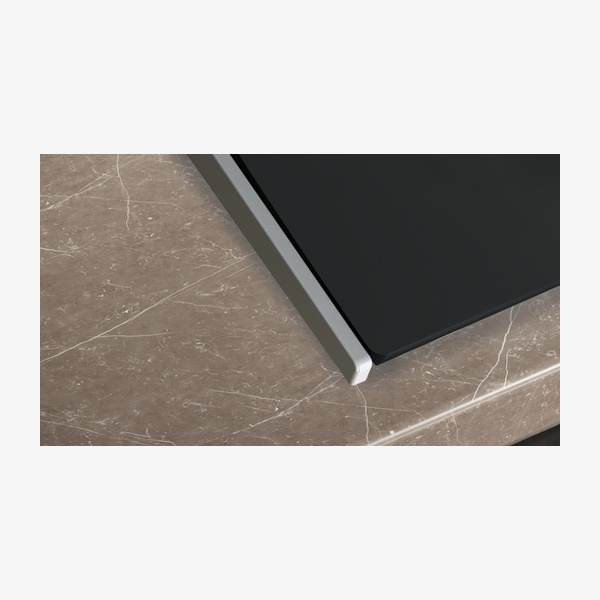

Design facette profiles: facette front, rear and side aluminium profiles in brushed finish.
Optional accessories available: compatible simmer plate, small pot support, wireless roastingSensor, connecting strip and pan set options.

Technical Specifications

Product name/family	Vario/Domino gas hob w control
Model designation	iQ700, Domino gas hob, 30 cm, Ceramic, Black, ER3A6BI40
Installation type	Built-in
Source of energy	Gas
Number of cooking zones	2
Burner configuration	Centre front: standard burner up to 1.75 kW (depending on gas type); centre rear: high-speed burner up to 3 kW (depending on gas type)
Dimensions (H x W x D)	49 x 302 x 520 mm

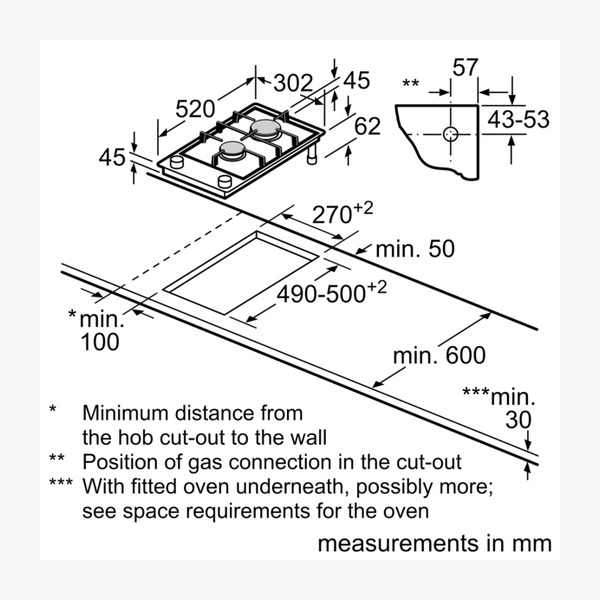

Required niche size (H x W x D)	45 x 270 x 490–500 mm
Minimum worktop thickness	20 mm
Width of the appliance	302 mm
Dimensions of packed product (H x W x D)	170 x 580 x 360 mm
Weight (net)	7.5 kg
Gross weight	8.3 kg
Residual heat indicator	Without
Location of control panel	Front

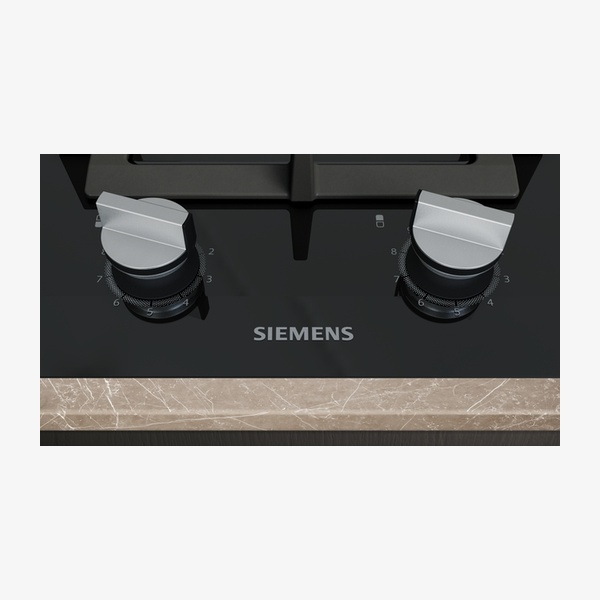

Control dials	Design co-ordinated metallic sword dials, detachable
Ignition	Ignition via control dials (push and turn)
Basic surface material	Ceramic
Colour of surface	Black, Alu, brushed
Colour of frame	Black

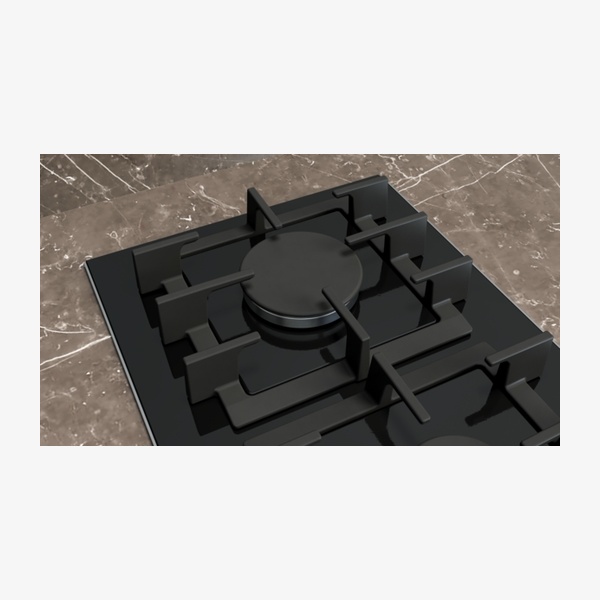

Pan supports	Cast iron pan supports with rubber feet; semi-continuous; dishwasher suitable
Gas connection rating / Connected load	4.75 kW
Nominal power	220–240 V
Frequency	50; 60 Hz
Fuse protection	3 A
Power cord length	100 cm / 1 m
Gas safety features	Flame failure safety device; gas safety lock
Gas types usable	Nat gas L/LL G25/20 mbar (DE); NG H/E 20 mbar; E+ 20/25 mbar; Natural gas H 25 mbar (HU); Natural gas L 25 mbar (NL); Liquid gas G30,31 28–30/37 mbar; Liquid gas G30 37 mbar (PL); Liquid gas 50 mbar
Factory gas setting	Factory set for connection to mains gas
LPG nozzle set	Nozzle set for LPG jets (28–30/37 mbar) included; other nozzles available via customer service
EAN code	4242003963098
Optional accessories	HZ298105 Simmer plate; HZ298114 Small pot support; HZ32WA00 wireless roastingSensor; HZ394301 Connecting strip; HZ9SE040 4 pieces Set; HZ9SE060 6 pieces Set

Additional Details and Usage

Design

The hob features a black ceramic glass surface with facette front, rear and side profiles in brushed aluminium. Cast iron pan supports with rubber feet create a semi-continuous, stable surface while remaining relatively light and compact.

Usage Convenience

Step Flame technology with nine defined levels for accurate control.
Front-positioned, design co-ordinated control dials for easy access and strong grip.
Ignition via control dials by simply pushing and turning.

Cleaning

Removable control dials allow cleaning between the knobs.
Dishwasher suitable cast iron pan supports make maintenance easier.
Glass ceramic surface is designed to be easy to clean.

Safety

Flame failure safety device prevents unwanted gas flow when the flame goes out.
Gas Safety Lock instantly halts gas flow if the flame is extinguished.

Installation and Gas Types

The hob is usable with various natural gas and liquid gas types, including Nat gas L/LL G25/20 mbar, NG H/E 20 mbar, E+ 20/25 mbar, Natural gas H 25 mbar, Natural gas L 25 mbar, Liquid gas G30,31 28–30/37 mbar, Liquid gas G30 37 mbar and Liquid gas 50 mbar. It is factory set for mains gas, with an LPG nozzle set (28–30/37 mbar) included. Nozzles for other gas types can be ordered via customer service; nozzle changes should be carried out by customer service.

Frequently Asked Questions

How many burners does the iQ700 ER3A6BI40 have and what are their outputs?

The hob has two gas burners: a centre front standard burner with up to 1.75 kW output and a centre rear high-speed burner with up to 3 kW output, depending on the gas type used.

What installation space is required for this 30 cm Domino gas hob?

The required niche size for installation is 45 x 270 x 490–500 mm (H x W x D), with a minimum worktop thickness of 20 mm. The hob itself measures 49 x 302 x 520 mm.

Is the hob suitable for LPG as well as mains gas?

Yes. It is factory set for connection to mains gas but can be used with various liquid gas types. A nozzle set for LPG jets (28–30/37 mbar) is included, and additional nozzles for other gas types can be ordered via customer service. Nozzle changes should be handled by customer service.

Can the pan supports and controls be cleaned in the dishwasher?

The cast iron pan supports are suitable for cleaning in the dishwasher. The metallic sword control dials are removable to allow easy cleaning between the knobs; the method of cleaning the dials themselves is not stated in source.

What safety features are included on this gas hob?

The hob includes a flame failure safety device and a gas safety lock. These functions prevent unwanted gas flow by instantly halting the gas supply if the flame goes out.

Are there any recommended accessories for this model?

Optional accessories listed for this hob are: HZ298105 Simmer plate, HZ298114 Small pot support, HZ32WA00 wireless roastingSensor, HZ394301 Connecting strip, HZ9SE040 4 pieces Set and HZ9SE060 6 pieces Set.

ER3A6BI40

Siemens iQ700 ER3A6BI40 Domino Gas Hob
