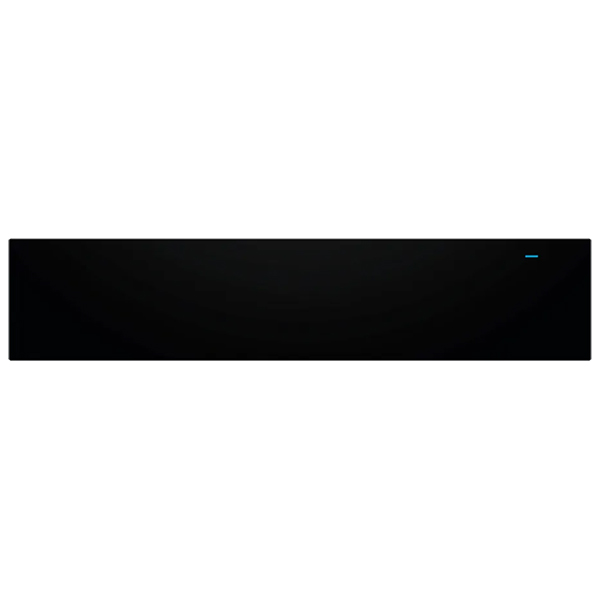

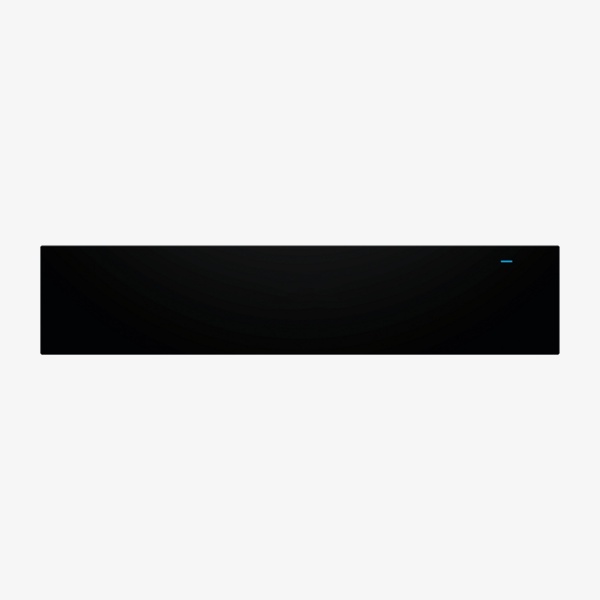

The iQ700 BI710C1B1B is a 60 x 14 cm built–in multifunctional warming drawer in black, designed for seamless integration in modern kitchens. With illuminated touch control, a handleless push–pull mechanism and an easy–to–clean toughened glass heating plate, it offers convenient warming for plates, cups and cooked dishes. Four temperature levels from 30°–80°C support low temperature cooking and keeping food warm, while Home Connect enables control at any time from anywhere.

Key Features

Multifunctional warming drawer with heating functions for low temperature cooking, plate warming and cup warming.
Home Connect for controlling the multifunctional warming drawer at any time from wherever you want.
touchControl illuminated interface with user–friendly electronics for extremely easy and comfortable operation.
Handleless push–pull opening mechanism for a no–handle drawer that is easy to open and close.
Four temperature levels with glass surface temperature control from 30°–80°C.
Keep warm function specifically for keeping cooked dishes warm.
Easy to clean toughened glass heating plate for simple maintenance.
Generous capacity with 20 l cavity volume and loading up to 25 kg.

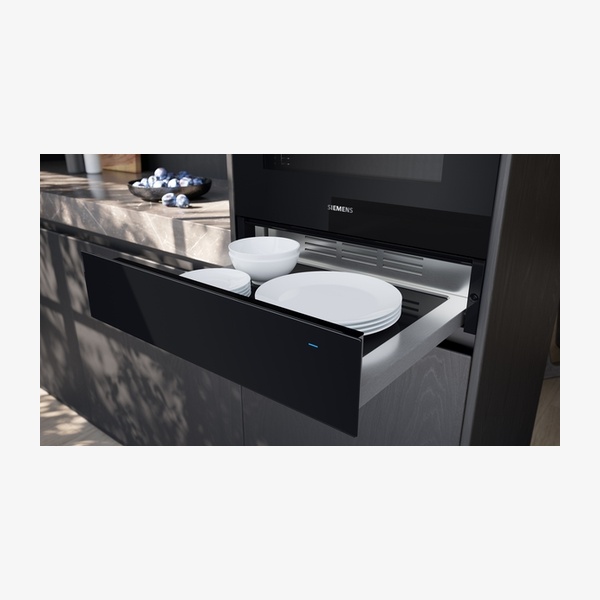

High loading flexibility accommodating up to 12 plates or 64 espresso cups.

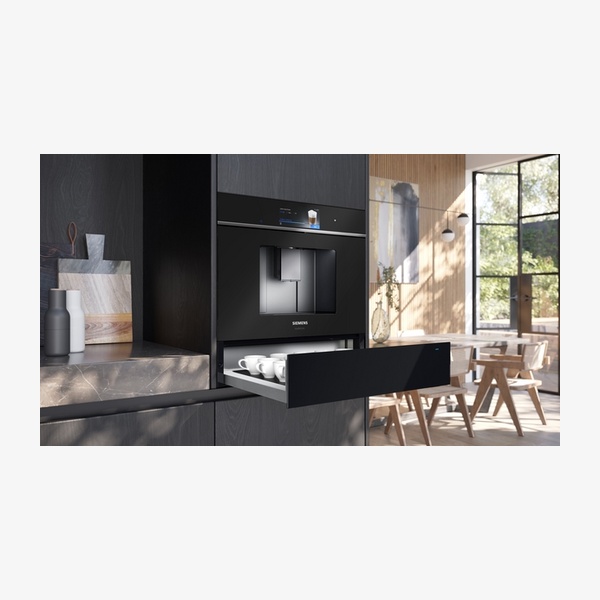

14 cm high accessory drawer that is ideally combined with a 45 cm compact appliance.
Built–in design with 60 x 14 cm front in black and steel trim for integrated installation.
GB plug and 220–240 V connection with 0.82 kW total connected load and 10 A fuse protection.

Technical Specifications

Product series	iQ700
Product type	Built–in warming drawer
Model designation	BI710C1B1B
Colour	Black
Installation type	Built–in
Front dimensions (H x W)	60 x 14 cm

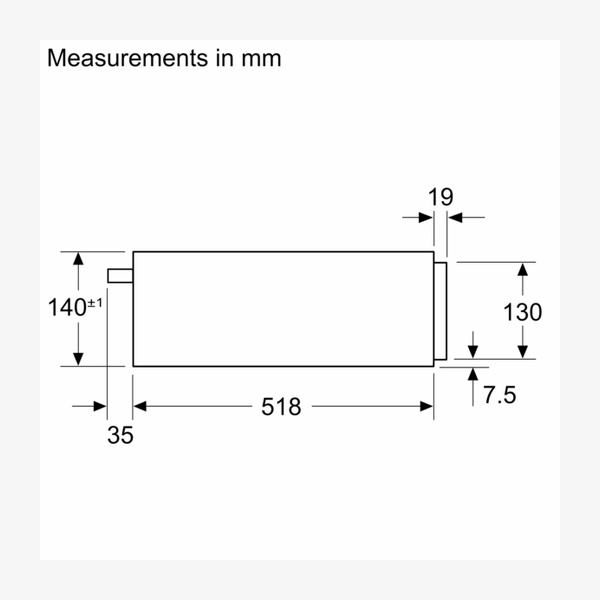

Appliance dimensions (H x W x D)	140 mm x 594 mm x 518 mm

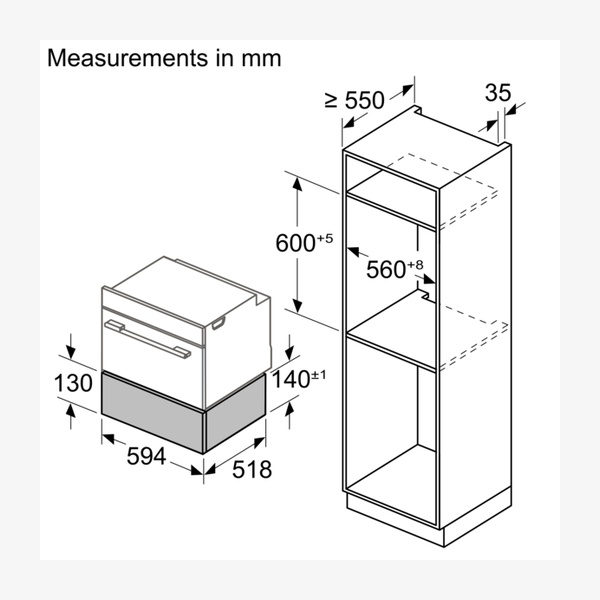

Niche dimensions (H x W x D)	140 mm x 560 mm – 568 mm x 550 mm
Required niche size for installation (H x W x D)	140 x 560 x 550 mm
Dimensions of packed product (H x W x D)	260 x 650 x 700 mm
Cavity volume	20 l
Maximum loading	Up to 25 kg
Maximum number of espresso cups	64
Plate capacity	Up to 12 plates
Temperature range (glass surface)	ca. 30°C – 80°C in 4 levels
Control type	Touch key, touchControl illuminated
Total connected load (electric)	0.82 kW
Nominal voltage	220 – 240 V
Frequency	50; 60 Hz
Fuse protection	10 A
Plug type	GB plug
EAN code	4242003900352

Programmes, Functions and Installation

The multifunctional warming drawer provides heating functions for low temperature cooking, plate warming and cup warming, as well as a keep warm function for cooked dishes. Temperature control is managed in four levels between approximately 30°C and 80°C glass surface temperature using touch key operation and illuminated touchControl.

Designed with a handleless push–pull opening mechanism and an easy to clean toughened glass heating plate, the drawer offers user–friendly electronics for extremely easy and comfortable operation. The 14 cm high accessory drawer is ideally combined with a 45 cm compact appliance.

For combined installation of some electrical appliances, support frames are required. In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed. For details on installation and ventilation requirements, the installation manual should be referred to prior to fitting.

Frequently Asked Questions

What functions does the iQ700 BI710C1B1B warming drawer offer?

It is a multifunctional warming drawer with heating functions for low temperature cooking, plate warming and cup warming, plus a keep warm function for keeping cooked dishes warm.

What is the temperature range of the warming drawer?

The heated sheet allows regulation in four temperature levels from approximately 30°C to 80°C glass surface temperature.

How many dishes and cups can the drawer hold?

The cavity volume is 20 l with loading up to 25 kg. It can accommodate up to 12 plates or up to 64 espresso cups.

Is this warming drawer suitable for integration with other kitchen appliances?

Yes. It is a built–in appliance with a 14 cm high accessory drawer ideally combined with a 45 cm compact appliance. For combined installation of some electrical appliances, support frames are required.

What is required for installation under a worktop?

In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed. Details on installation and ventilation requirements are provided in the installation manual.

Can the warming drawer be controlled remotely?

Yes. With Home Connect, the multifunctional warming drawer can be controlled at any time from wherever you want.
