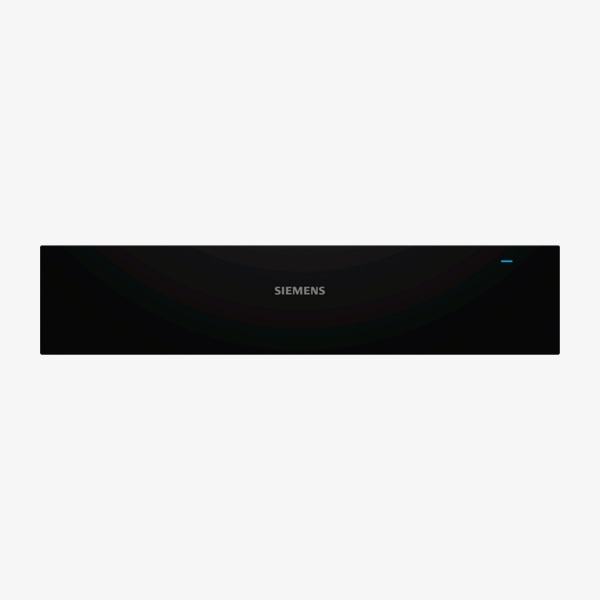

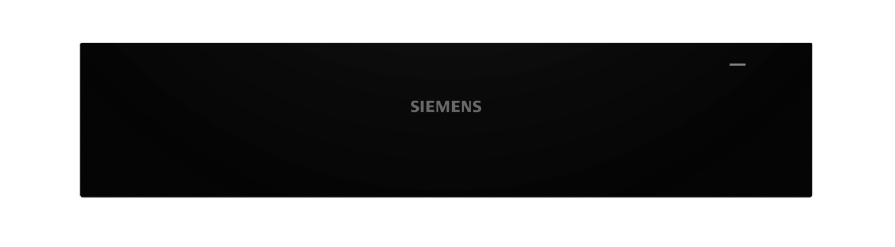

The iQ500 BI510CNR0B is a built-in warming drawer in black, sized 60 x 14 cm, designed for preheating crockery and keeping foods warm. With a handleless push&pull opening mechanism, it offers adjustable temperature regulation from 30°–80°C. The 14 cm high accessory drawer combines ideally with a 45 cm compact appliance and can accommodate up to 14 plates or 64 espresso cups, with a 23 litre cavity volume and loading capacity up to 15 kg.

Key Features

Built-in warming drawer for preheating crockery and keeping foods warm.

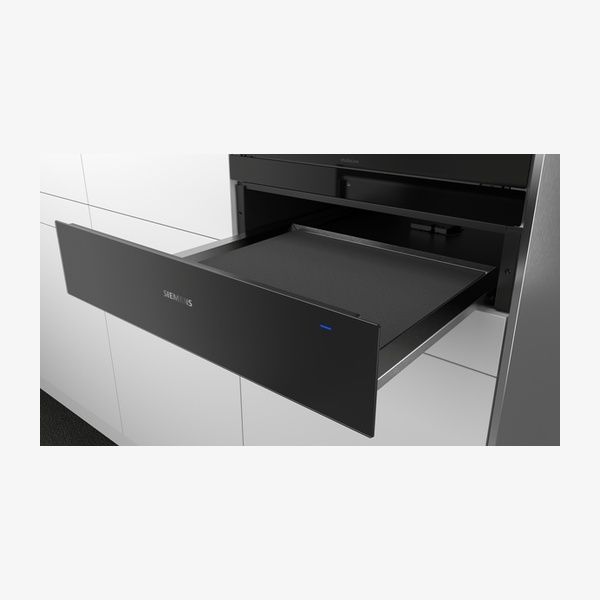

Handleless push&pull opening mechanism for easy drawer access.
Adjustable temperature regulation 30°–80°C for flexible warming performance.

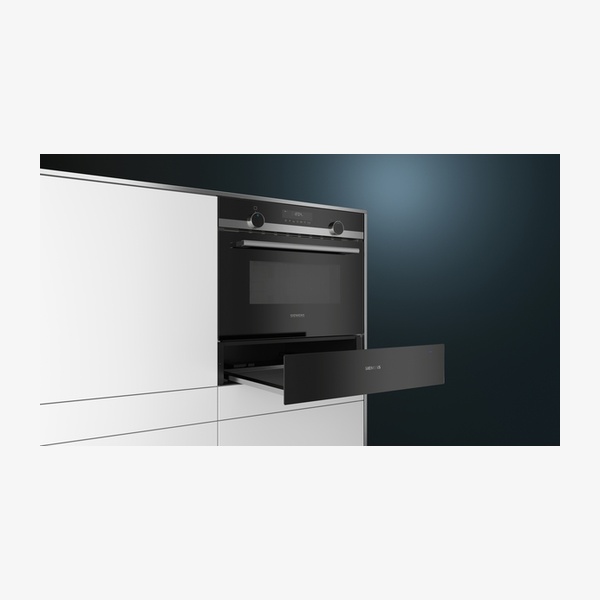

14 cm high accessory drawer ideally combined with a 45 cm compact appliance.
Generous capacity – accommodates up to 14 plates or 64 espresso cups.
23 litre cavity volume with loading capacity up to 15 kg.
Stainless steel cavity inner surface for a robust interior.
Stainless steel control dial with steel trim for precise control.
Four warming functions – keeping drinks and food warm, pre-warming tableware, yeast dough proving, and thawing delicate foods.
Included anti-slip mat to help keep items stable inside the drawer.
Designed for built-in installation with specified niche dimensions for an integrated fit.
GB plug with 150 cm power cord for connection to 220–240 V supply.

Technical Specifications

Product type	Built-in warming drawer
Model	BI510CNR0B
Product line	iQ500
Colour	Black
Front size	60 x 14 cm
Temperature range	30°–80°C
Functions	Keeping drinks and food warm; pre-warming of tableware; yeast dough proving; thawing of delicate foods
Cavity volume	23 l
Maximum load	Loading up to 15 kg
Capacity – plates	Up to 14 plates
Capacity – espresso cups	Up to 64 espresso cups
Cavity inner surface	Stainless steel
Control	Stainless steel control dial with steel trim
Opening mechanism	Handleless push-pull opening mechanism

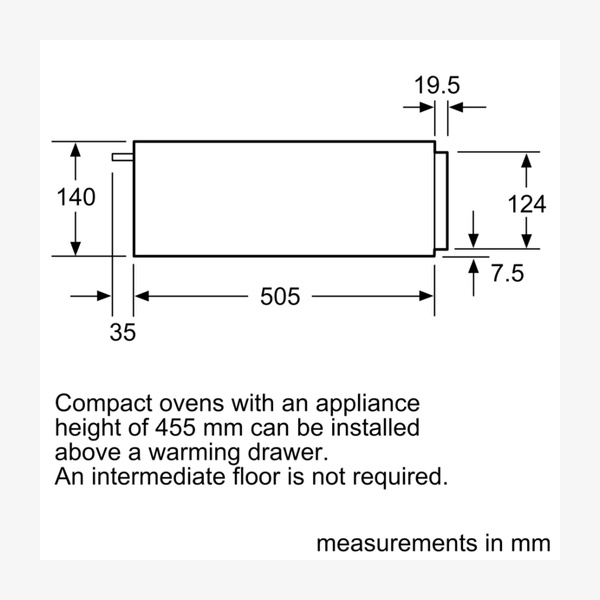

Appliance dimensions (H x W x D)	140 mm x 594 mm x 540 mm

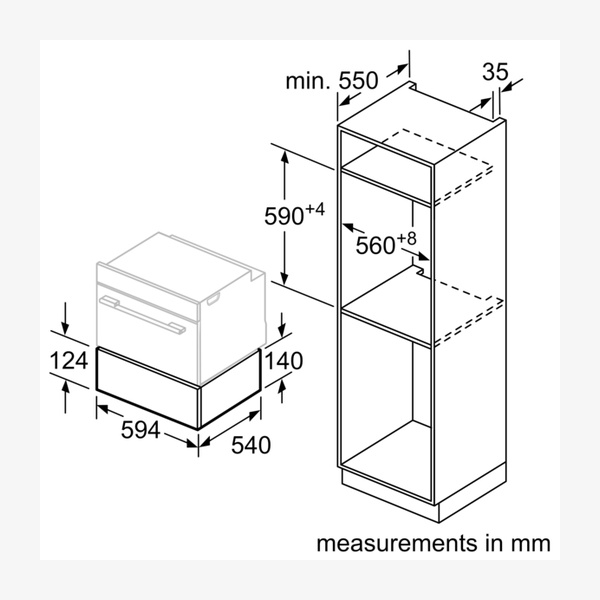

Niche dimensions (H x W x D)	140 mm x 560 mm – 568 mm x 550 mm
Dimensions of packed product (H x W x D)	210 x 660 x 660 mm
Required niche size for installation (H x W x D)	140 x 560 x 550 mm
Total connected load (electric)	0.4 kW
Nominal voltage	220–240 V / 220 - 240 V
Frequency	60; 50 Hz
Fuse protection	6 A
Plug type	GB plug
Power cord length	150 cm
EAN code	4242003803868
Included accessories	1 x anti-slip mat

Additional Details and Usage

This built-in warming drawer is designed for multiple uses, including keeping drinks and food warm, pre-warming tableware, proving yeast dough and thawing delicate foods. It can be ideally combined with a 45 cm compact appliance and accommodates a large number of plates or espresso cups within its 23 litre cavity.

The handleless push-pull mechanism allows easy opening and closing, while the stainless steel cavity and control dial with steel trim provide a durable finish. For details on installation and ventilation requirements, the installation manual should be referred to prior to fitting.

Frequently Asked Questions

What is the temperature range of the BI510CNR0B warming drawer?

The multifunctional warming drawer allows temperature regulation from 30°C to 80°C.

How much crockery can this warming drawer hold?

It can accommodate up to 14 plates or up to 64 espresso cups, with a loading capacity of up to 15 kg.

What functions does the warming drawer offer?

It has four functions: keeping drinks and food warm, pre-warming tableware, yeast dough proving and thawing delicate foods.

Is this warming drawer suitable for built-in installation?

Yes, it is a built-in appliance with a niche dimension of 140 mm x 560 mm – 568 mm x 550 mm. The required niche size for installation is stated as 140 x 560 x 550 mm.

What accessory is supplied with the BI510CNR0B?

It is supplied with 1 x anti-slip mat.
