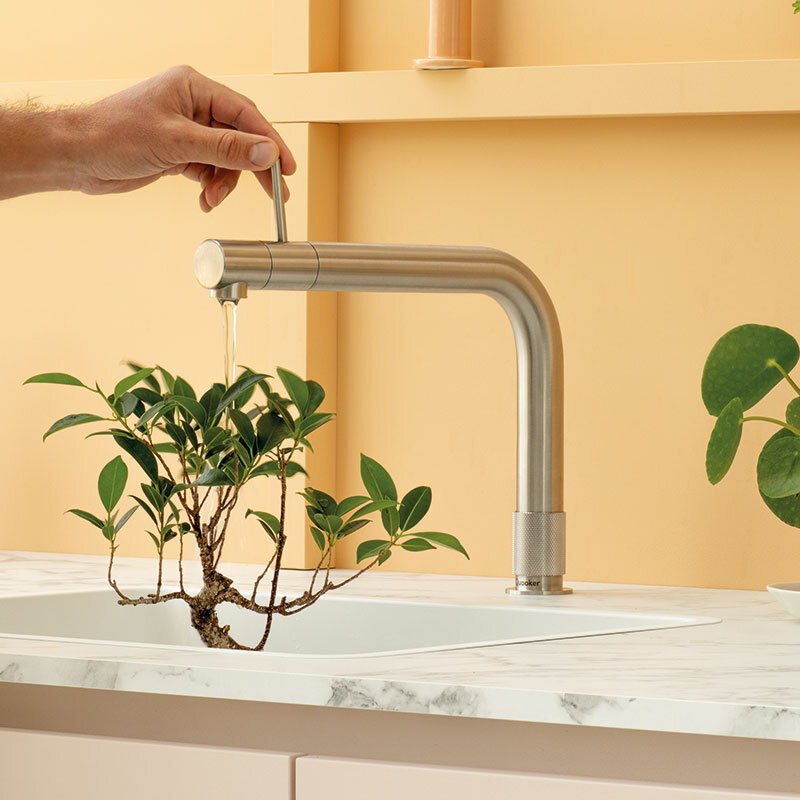

The Front combines a boiling-water tap and mixer tap in a single design, operated via a childproof double push-and-turn handle. It can dispense 108°C filtered water and, with the CUBE tank, also filtered chilled and filtered sparkling water. Available in stainless steel (RVS) and black (BLK) finishes, it works with the COMBI tank for hot water delivery and offers thermostatic temperature regulation and integrated safety features for controlled water heating.

Key Features

Combined boiling-water and mixer tap – the boiling-water tap and mixer tap are combined in the Front.
Childproof double push-and-turn handle – manufactured with a childproof double push-and-turn handle for operation.
Chilled and sparkling water control – click the handle once to dispense chilled water and twice for sparkling water.
108°C filtered water – provides 108°C filtered water via the COMBI tank.
Filtered chilled and sparkling water – with the CUBE tank, supplies filtered chilled and filtered sparkling water.
Multiple finishes – available in stainless steel (RVS) and black (BLK).
Thermostatic temperature regulation – warm water temperature settings of 40–60°C with thermostatic control.
HiTAC® water filter – High Temperature Activated Carbon filtration in the COMBI tank.
Energy-efficient water heating – water heating energy efficiency class A with a declared load profile XXS.
Safety valve – maximum temperature/pressure relief valve set at 8 bar.
Optional mounting bracket – mounting bracket for the COMBI tank is optional (yes).
Water filter HF + AC in CUBE – uses HF + AC filtration for chilled and sparkling water.

Technical Specifications

Tap type	Boiling-water tap and mixer tap combined
Finishes	stainless steel (RVS), black (BLK)
Filtered water types	Filtered chilled, filtered sparkling and 108°C filtered
Tap hole Front	35mm
COMBI tank
Tank type	COMBI
Voltage	230V
Wattage	2200W
Capacity	7 litres
Heating-up time*	20 minutes*
Stand-by power consumption*	10W*
Tank height	49cm
Total height requirement	55cm
Tank diameter	20cm
Min. mains pressure	200kPa (2 bar)
Recommended pressure	200–400kPa (2–4 bar)
Volume at 40°C*	27 litres*
Volume at 60°C*	15 litres*
Mounting bracket optional	yes
Temperature regulation	thermostatic
Safety feature	maximum temperature/pressure relief valve 8 bar
Water filter type	HiTAC® water filter: High Temperature Activated Carbon
Declared load profile	XXS
Water heating energy efficiency class	A
Water heating energy efficiency	36%
Annual electricity consumption	511 kWh/A
Warm water temperature settings	40–60°C
CUBE tank
Tank type	CUBE
Voltage	220–240 V
Wattage	100 W
Flow rate filtered chilled water	2,4 litres /min
Flow rate filtered sparkling water	2 litres /min
Chilling time*	30 min*
Standby consumption*	5 W*
Tank height	50 cm
Tank width	15,3 cm (22,3cm including CO₂ cylinder)
Depth	27 cm (34cm including CO₂ cylinder)
Min. water pressure	200kPa (2bar)
Max. water pressure	400 kPa (4bar)
Max. CO₂ pressure	400 kPa (4bar)
Water filter type	HF + AC
* These are average values. / *These values are averages.

Additional Details and Usage

The Front tap uses a childproof double push-and-turn handle for control. A single click dispenses chilled water, while a double click dispenses sparkling water. It is designed to work with the COMBI tank for 108°C filtered water and thermostatically regulated warm water between 40–60°C, and with the CUBE tank to provide filtered chilled and filtered sparkling water.

Installation configurations include the Front with COMBI and the Front with COMBI and CUBE. A mounting bracket for the COMBI tank is optional. Safety is supported by a maximum temperature/pressure relief valve set at 8 bar.

The COMBI tank incorporates a HiTAC® High Temperature Activated Carbon water filter, while the CUBE system uses HF + AC filtration for filtered chilled and sparkling water.

Frequently Asked Questions

What types of water can the Front tap provide?

The Front can provide 108°C filtered water via the COMBI tank. When used with the CUBE tank, it can also dispense filtered chilled and filtered sparkling water.

How is chilled and sparkling water selected on the tap?

The handle is manufactured as a childproof double push-and-turn handle. Click the handle once to dispense chilled water and twice for sparkling water.

What are the warm water temperature settings?

The warm water temperature settings of the water heater are 40–60°C, with thermostatic temperature regulation.

What energy efficiency rating does the COMBI tank have?

The COMBI tank has a declared load profile of XXS, a water heating energy efficiency class A, and a water heating energy efficiency of 36%.

What filtration systems are used?

The COMBI tank uses a HiTAC® water filter (High Temperature Activated Carbon). The CUBE tank uses a water filter described as HF + AC.
