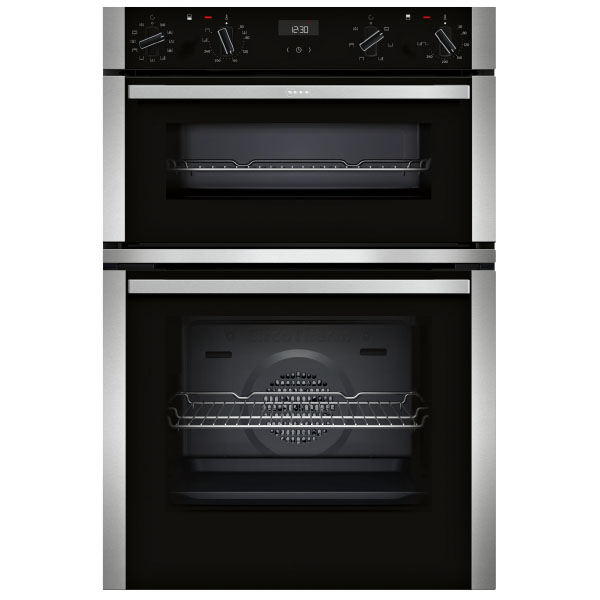

The NEFF N 50 U1ACE5HN0B is a built–in double oven designed for grilling, baking and roasting multiple dishes at once. It features an LCD display with large characters for clear reading, versatile cooking methods including Hot Air and Pizza setting, and a main oven with EcoClean Direct on the ceiling, back panel and side liners. With a 71 l usable volume cavity and included combination grids and universal pan, it supports flexible everyday cooking.

Key Features

Built–in double oven – designed for grilling, baking and roasting of multiple dishes at the same time.
LCD–Display (White) – simple, straightforward with large characters for clear reading.
Multiple cooking methods – Full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat and Hot air grilling.
Main oven EcoClean Direct – ceiling, back panel and side liners plus EcoClean programme and Base Clean programme.
Top oven additional heating methods – Top/bottom heat, Full surface grill, Small area grill and Bottom heat.
Temperature range – 50 °C – 275 °C in the main oven.
Spacious cavity volume – 71 l usable volume and 34 litre top cavity.
Included accessories – 3 × combination grid and 1 × universal pan for flexible cooking.
Cliprails – place dishes exactly where you want them in your oven, with 1 clip rail with Stop function in the main cavity.
Interior halogen light – illumination inside the oven cavity.
Control panel lock – added control and security over settings.
Full glass inner door – for the small cavity.
Energy efficiency – main cavity energy efficiency rating A with energy efficiency index 95.3 %.
Built–in design – glass control panel and glass door for a coordinated look.
Optional accessories available – including baking trays, pans, grids, cliprails, wireless food thermometer, Air Fry & Grill tray and baking stone.

Technical Specifications

Product type	Built–in double oven
Model	N 50 U1ACE5HN0B
Integrated cleaning system	No (EcoClean Direct and cleaning programmes as features)
Dimensions (H × W × D)	888x594x550 mm
Packed dimensions (H × W × D)	960x660x690 mm
Appliance dimension (H × W × D)	888 mm x 594 mm x 550 mm
Usable volume of cavity	71 l
Top oven cavity volume	34 Litre
Control panel material	Glass
Door material	Glass
Top cavity inner surface	Enamel grey
Main cavity inner surface (bottom)	Enamel anthracite
Net weight	53.7 kg
Cooking methods	Full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat, Hot air grilling
Top oven heating methods	Top/bottom heat, Full surface grill, Small area grill, Bottom heat
Temperature range (main oven)	50 °C - 275 °C
Energy efficiency rating (main cavity)	A
Energy consumption per cycle conventional (main)	1.02 kWh/cycle
Energy consumption per cycle forced air convection (main)	0.81 kWh/cycle
Energy efficiency index (main cavity)	95.3 %
Energy efficiency class – cavity 2	B
Energy consumption per cycle conventional – cavity 2	0.83 kWh/cycle
Energy efficiency index cavity 2	120.3 %
Connection rating	5900 W
Fuse protection	32 A
Nominal voltage	220 - 240 V
Frequency	50 Hz
Plug type	No plug, fixed connection (electrical connection by electrician)
Door hinge small cavity	Bottom
Door hinge big cavity	Drop down door
EAN code	4242004234043
Included accessories	3 x combination grid, 1 x universal pan
Optional accessories	Z11AB15A0 Baking tray, non–stick ceramic coated; Z11AU15A0 Universal pan, non–stick ceramic coated; Z11CR10X0 Baking and roasting grid (standard); Z11TI15X0 Cliprails; Z12CB10A0 Baking tray, enamelled; Z12CL10A0 Lid for professional pan, enamelled; Z12CM10A0 Moussaka pan, enamelled; Z12CN10A0 Professional pan, enamelled; Z12CP10A0 Pizza pan, enamelled; Z12CU10A0 Multipurpose pan, enamelled; Z1365WX0 Wireless food thermometer; Z13CR10X0 Baking and roasting grid (steam); Z1608BX0 Full ext rails, level independent; Z1655CA0 Air Fry & Grill tray; Z1913X0 Baking Stone

Additional Details and Usage

The appliance offers an LCD display in white, a control panel lock and an interior halogen light for clear visibility inside the cavity. The full glass inner door on the small cavity adds a smooth internal surface.

EcoClean Direct is provided on the main oven ceiling, back panel and side liners, supported by an EcoClean programme and a Base Clean programme. The main cavity also includes 1 clip rail with Stop function to help position cookware securely.

For details on installation and ventilation requirements – please refer to the installation manual prior to fitting.

Frequently Asked Questions

What is the usable volume of the main cavity?

The usable volume of the cavity is 71 l, providing ample space for everyday cooking and larger dishes.

Which cooking methods does this double oven offer?

It offers Full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat and Hot air grilling. The top oven also has Top/bottom heat, Full surface grill, Small area grill and Bottom heat.

What is the energy efficiency rating of the oven?

The main cavity has an energy efficiency rating of A with an energy efficiency index of 95.3 %. Cavity 2 has an energy efficiency class of B.

Are any accessories included with the oven?

Yes. The oven comes with 3 x combination grid and 1 x universal pan. A wide range of optional accessories is also available.

Does the oven have a cleaning aid?

The main oven features EcoClean Direct on the ceiling, back panel and side liners, along with an EcoClean programme and a Base Clean programme.

How should the oven be connected electrically?

The oven has no plug and is designed for a fixed connection. Electrical connection should be carried out by an electrician, with fuse protection of 32 A and nominal voltage of 220–240 V at 50 Hz.
