The N 70 T18FDH9L is an 80 cm built-in electric ceramic hob offering space for four pots or pans. It is designed for users who want precise TouchControl operation, flexible roasting and double ring zones, and practical functions such as Power Boost, keep warm, timers and energy consumption display. Front controls, bevelled front edge and multiple safety features support convenient everyday cooking in a modern kitchen layout.

Key Features

80 cm wide hob – provides space for 4 pots or pans.
TouchControl operation – control the power with imprinted +/- touch buttons.
Power Boost – delivers an extra surge of heat when fast results are needed.
Roasting Zone – ring zone roaster automatically supports roasters on the extendable cooking zone.
Double ring zone – ring zone double lets you use regular or larger cookware on the extendable zone.
17-stage power settings – precisely adapt heat with 9 main levels and 8 intermediate levels for each zone.
Keep warm function – keeps dishes warm at a preset low power level.
Switch-off timer – automatically switches off a cooking zone at the end of the set time.
Count-down timer – sounds an alarm when the set time is reached.
Front cooking zones boost – front left and rear centre can boil water more quickly with about 20% more energy than the highest standard level.
ReStart function – restores previous settings if the hob is unintentionally switched off and switched on again within 4 seconds.
Quick-Off – quickly switches off a cooking zone with one longer touch.
Bevelled front edge design – for a clean, modern look on the worktop.
2 stage residual heat indicators – show which cooking zones are still hot or warm.
Control panel lock – helps prevent unintended activation of the hob.
Control panel suspension – blocks all touch buttons for 30 seconds, so overboiled liquids can be wiped away without changing settings.
Main switch – switches off all cooking zones at the touch of a button.
Safety cut-out facility – heating stops after a preset time if the hob is not used.
Energy consumption display – shows electricity consumption of the last cooking process.
Separate residual heat indicator – provides clear feedback on remaining heat.
Black ceramic surface – basic surface material is ceramic, colour black.
Built-in installation – designed as a built-in cooking zone ceramic hob.
Optional accessories – compatible with wireless food thermometer Z1365WX0, intermediate bottom Z9381X0, iron pan Ø 18 / 28 cm Z9428FE0 and set of 2 pots and 1 pan Z943SE0.

Technical Specifications

Product name/family	Cooking zone ceramic
Model designation	T18FDH9L
Installation type	Built-in
Energy input	Electric
Number of cooking zones	4
Hob width	80 cm (width of the appliance 802 mm)
Dimensions (H × W × D)	45 x 802 x 522 mm
Required niche size (H × W × D)	45 x 780–780 x 500–500 mm
Min. worktop thickness	16 mm
Dimensions of packed product (H × W × D)	100 x 1025 x 620 mm
Net weight	10.0 kg
Gross weight	11.6 kg
Basic surface material	Ceramic
Surface colour	Black
Location of control panel	Front
Residual heat indicator	Separate; 2 stage residual heat indicators
Voltage	220–240 V
Frequency	50; 60 Hz
Connected load	9.3 kW
EAN code	4242004271857

Cooking Zones, Functions and Safety

Cooking zone flexibility

Cooking zone front left: 120 mm, 210 mm, 0.8 kW (max. power 2.6 kW).
Cooking zone rear left: 145 mm, 1.2 kW.
Cooking zone middle: 180 mm, 230 mm, 1.7 kW (max. power 3.4 kW).
Cooking zone front right: 170 mm, 265 mm, 1.8 kW.
Ring zone roaster for use with roasters on the extendable cooking zone.
Ring zone double for regular or larger cookware on the extendable cooking zone.

Usage convenience

Touch control with imprinted +/- touch buttons for power selection.
Variable 17-stage power settings for each zone.
Keep warm function to maintain dishes at a low power level.
Switch-off timer to turn off a cooking zone automatically at the end of the set time.
Count-down timer providing an acoustic alarm when time elapses.

Time saving and efficiency

Front left and rear centre zones can boil water more quickly thanks to about 20% more energy than at the highest standard level.
ReStart function restores all previous settings if the hob is switched on again within 4 seconds after unintentional switch-off.
Quick-Off enables rapid switch-off of a cooking zone with one longer touch.
Energy consumption display shows electricity consumption of the last cooking process.

Safety features

2 stage residual heat indicators highlight zones that are still hot or warm.
Control panel lock helps prevent unintended activation.
Control panel suspension blocks all touch buttons for 30 seconds to allow cleaning of overboiled liquids.
Main switch turns off all cooking zones at the touch of a button.
Power on indicator light shows when the hob is heating.
Safety cut-out facility stops heating after a preset time if not used.

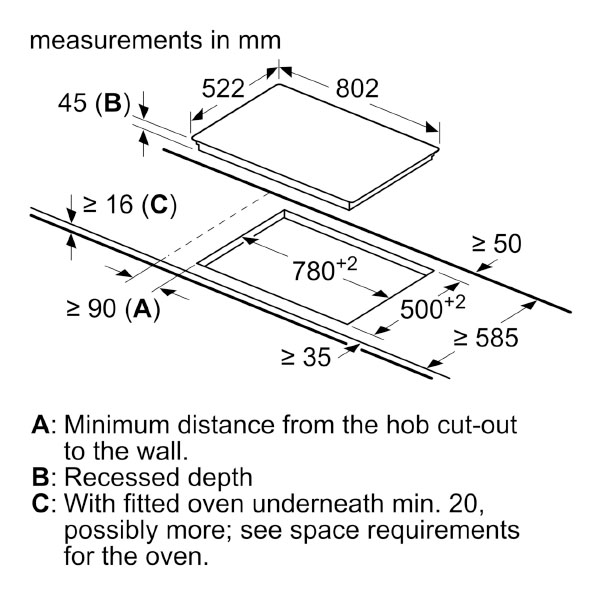

Installation information

The hob is designed for built-in installation with product dimensions of 45 x 802 x 522 mm and a required niche size of 45 x 780 x 500 mm. The minimum worktop thickness is 16 mm and the connected load is 9.3 kW.

Frequently Asked Questions

How wide is the N 70 T18FDH9L hob?

The hob is 80 cm wide, with appliance width listed as 802 mm, providing space for four pots or pans.

How many power levels does each cooking zone have?

Each cooking zone offers variable 17-stage power settings, with 9 main levels and 8 intermediate levels for precise heat control.

Does this hob have a timer function?

Yes. It includes a switch-off timer that turns off a cooking zone at the end of the set time and a count-down timer that sounds an alarm when the time has elapsed.

What safety features are included?

Safety features include 2 stage residual heat indicators, control panel lock, control panel suspension, main switch, power on indicator light, safety cut-out facility and an energy consumption display.

What optional accessories are available?

Optional accessories listed are the Z1365WX0 wireless food thermometer, Z9381X0 intermediate bottom, Z9428FE0 iron pan Ø 18 / 28 cm and Z943SE0 set of 2 pots and 1 pan.
