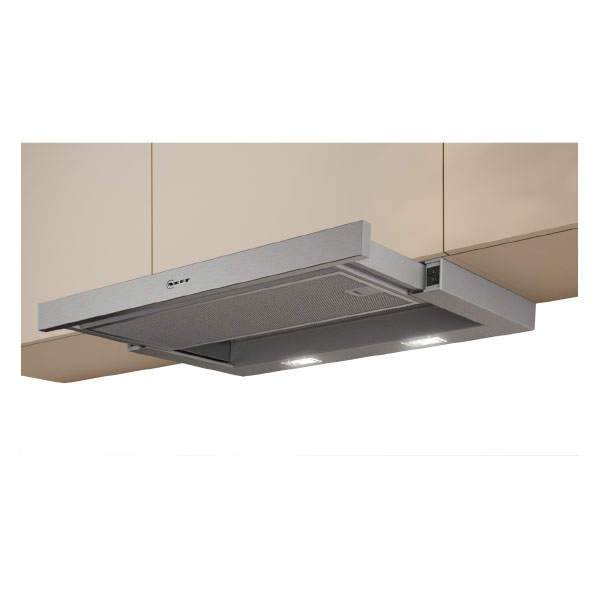

The N 30 D46BR22N1B is a 60 cm silver metallic telescopic cooker hood designed to pull out from beneath a cabinet for powerful extraction in a streamlined kitchen. It offers three power levels, mechanical controls and automatic on/off when the canopy is slid in and out. With LED lighting, washable aluminium grease filters and suitability for ducted extraction or recirculation, it combines efficient performance with discreet built-in installation in a 60 cm cupboard.

Key Features

Telescopic pull–out design – hood pulls out from underneath a cabinet when required for a streamlined kitchen.
Automatic on/off operation – telescopic canopy starts and stops when it is pulled out and pushed back.
LED lighting – 2 × 1.5 W LEDs provide clear illumination while you cook.
Three power levels – mechanical controls with 3 speed settings to match your cooking.
High extraction performance – maximum air extraction up to 388–389 m³/h.
Suitable for ducted or recirculating use – can be installed for exhaust air or recirculated extraction (recirculation kit required for recirculated mode).
Washable aluminium grease filters – 2 metal grease filter cassettes with stainless steel, perforated and dishwasher–safe filter cover.
Energy Efficiency Class B – with Lighting Efficiency Class A*, Grease Filtering Efficiency Class B* and Blower Efficiency Class C*.
Compact built–in installation – designed for a 60 cm cupboard with integrated handle strip in stainless steel with logo.
Silver metallic grey finish – modern appearance to match contemporary kitchen designs.

Technical Specifications

Product name	N 30, Telescopic cooker hood, 60 cm, silver metallic
Model	D46BR22N1B
Typology	Pull–out
Installation typology	Built–in (Cupboard 60 cm)
Width	60 cm (appliance width 598 mm)
Colour	Silver metallic grey
Handle strip specification	Stainless steel with logo
Filter cover	Stainless steel, perforated and dishwasher safe
Type of control	Mechanical
Number of speed settings	3 power levels
Motor type	Capacitor motor
Suitable extraction modes	Ducted extraction and recirculation (recirculating kit needed for recirculated extraction)
Energy Efficiency Class	B (range A+++ to D)
Blower Efficiency Class*	C*
Lighting Efficiency Class*	A*
Grease Filtering Efficiency Class*	B*
Maximum output air extraction	388 m³/h
Maximum output recirculating air	257 m³/h
Maximum air flow (EN 61591)	388–389 m³/h
Noise level	67 dB(A) re 1 pW (at max. normal use exhaust air)
Number of lights	2
Lamp specification	2 × 1,5 W LED
Colour temperature	3500 K
Light intensity	131 lux
Grease filter material	Washable aluminium (2 metal grease filter cassettes)
Energy consumption (annual)*	Average Energy Consumption: 40.3 kWh/year*
Connection rating	108 W
Fuse protection	10 A
Voltage	220–240 V
Frequency	50 Hz
Plug type	GB plug
Connection rating (Performance section)	Power rating: 108 W
Net weight	8.4 kg
Length of electrical supply cord	175 cm (electrical cable length 1.75 m)
Minimum distance above an electric hob	430 mm
Minimum distance above a gas hob	650 mm
Dimensions (H × W × D)	203 × 598 × 290 mm
Built-in dimensions (H × W × D)	162 × 526 × 290 mm
Required niche size for installation (H × W × D)	162 mm × 526.0 mm × 290 mm
Height of the appliance	203 mm
Diameter of air outlet	150 mm (120 mm enclosed)
Diameter pipe	Ø 150 mm (Ø 120 mm enclosed)
EAN code	4242004250784
Optional accessories	Z51ITB1X4 Clean Air Standard odor filter (repl.) Z51ITI1X4 Clean Air Standard recirculation kit Z54TS01X0 Standard recirculation kit
Regulation reference	In accordance with the EU–Regulation No 65/2014*

* As stated in the product information in accordance with EU–Regulation No 65/2014.

Additional Details and Usage

Operation and control

The integrated power button enables automatic on/off operation: the telescopic hood starts when pulled out and stops when pushed back. Mechanical controls provide access to three power levels for flexible extraction performance.

Lighting

Two 1.5 W LED lamps with a colour temperature of 3500 K and light intensity of 131 lux ensure clear illumination of the cooking area while you cook.

Filters and cleaning

The cooker hood uses washable aluminium grease filters housed in 2 metal grease filter cassettes. The stainless steel filter cover is perforated and dishwasher safe, supporting easy cleaning of the visible filter area.

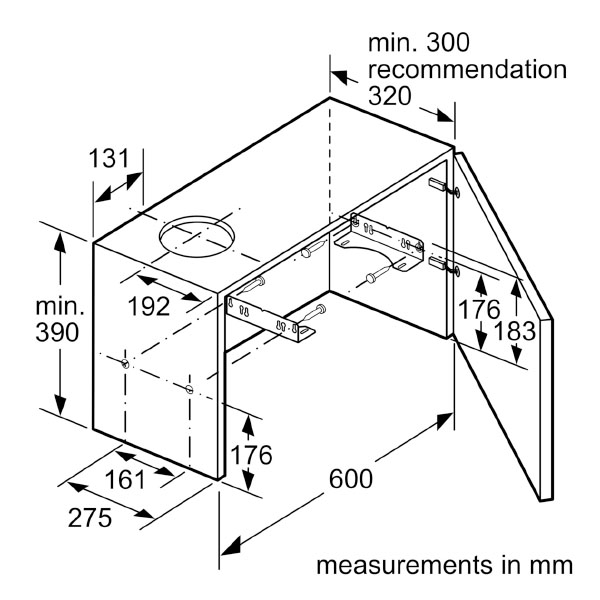

Installation and planning

Designed for installation in a 60 cm cupboard.
Overall appliance dimensions are 203 × 598 × 290 mm (H × W × D).
Built–in dimensions are 162 × 526 × 290 mm (H × W × D).
Required niche size for installation is 162 mm × 526.0 mm × 290 mm (H × W × D).
Minimum distance above an electric hob is 430 mm.
Minimum distance above a gas hob is 650 mm.
The diameter of the air outlet/pipe is 150 mm, with a 120 mm option enclosed.
Electrical connection requires a 220–240 V, 50 Hz supply with 10 A fuse protection and GB plug.

Recirculation accessories

For recirculated extraction, a recirculating kit is needed. Available accessories include the Z51ITB1X4 Clean Air Standard odour filter (replacement), Z51ITI1X4 Clean Air Standard recirculation kit and Z54TS01X0 Standard recirculation kit.

Frequently Asked Questions

Can this cooker hood be used in both ducted and recirculation modes?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculated extraction, a recirculating kit (accessory) is needed, such as the listed recirculation kits.

What is the maximum extraction rate of the N 30 D46BR22N1B?

The maximum output air extraction is 388 m³/h, and the extraction rate according to EN 61591 is stated as a maximum of 389 m³/h.

How loud is the hood during operation?

The noise level according to EN 60704–3 and EN 60704–2–13 at maximum normal use in exhaust air mode is 67 dB(A) re 1 pW.

What are the installation clearances above the hob?

The minimum distance above an electric hob is 430 mm, and the minimum distance above a gas hob is 650 mm.

Are the grease filters washable?

Yes. The grease filter material is washable aluminium, and the hood includes 2 metal grease filter cassettes with a stainless steel, perforated and dishwasher–safe filter cover.

What is the energy efficiency rating of this cooker hood?

The hood has an Energy Efficiency Class of B (within a range from A+++ to D). The Lighting Efficiency Class is A*, the Grease Filtering Efficiency Class is B*, and the Blower Efficiency Class is C*.
