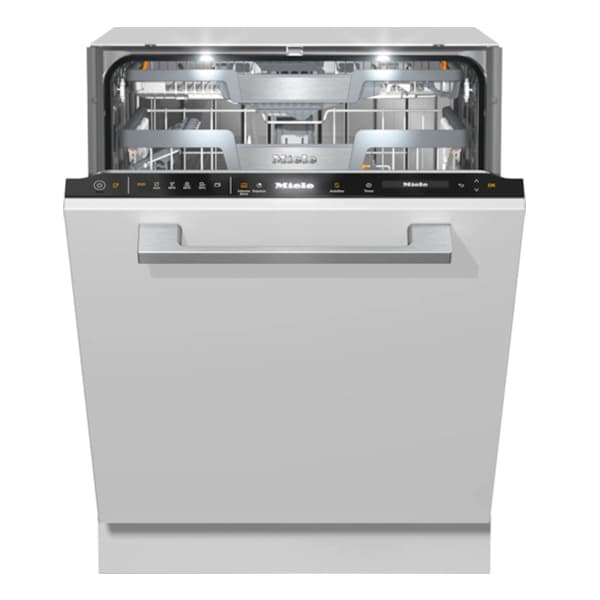

The G 7660 SCVi AutoDos is a fully integrated 60 cm fresh water dishwasher with automatic dispensing via AutoDos and an integrated PowerDisk. Designed for convenient, flexible loading, it offers a 3D MultiFlex tray and MaxiComfort baskets for up to 14 place settings. Features such as QuickPowerWash, AutoOpen drying, BrilliantLight and Miele@home networking deliver efficient cleaning performance, modern control options and practical everyday usability.

Key Features

Fully integrated 60 cm dishwasher with CleanSteel/Obsidian black fully integrated fascia and softkey controls.
Automatic dispensing with AutoDos using integrated PowerDisk for detergent dosing.
3D MultiFlex tray for wonderful use of space and more room for cutlery.
MaxiComfort basket design providing maximum flexibility and premium basket layout.
Miele@home networking for more information options and modern domestic appliance connectivity.
QuickPowerWash programme delivering perfect results in less than one hour.
BrilliantLight interior lighting for a perfect view and convenient loading even in the dark.
14 place settings capacity with EcoPower Technology and EcoFeedback.
Energy efficiency class A with ECO programme water consumption of 8.4 l and 0.54 kWh per cycle.
Fresh water dishwasher with Active condensation drying, AutoOpen drying and SensorDry.
Extensive wash programmes including ECO, Automatic, Intensive 75 °C, Normal 60 °C, Gentle, Hygiene, SolarSave and more.
ExtraQuiet 38 dB(A) programme for particularly quiet operation when selected.
Hot water connection and Half load options to support efficient operation.
Waterproof system and filter indicator light for enhanced safety and maintenance awareness.
MultiLingua display with selectable display languages, including english (GB).
Accessories included: 1 × PowerDisk and voucher for 6 × PowerDisk.

Technical Specifications

Model	G 7660 SCVi AutoDos
Product type	Fully integrated dishwasher, 60 cm
Control panel colour	CleanSteel/Obsidian black
Control type	Softkeys, fully integrated fascia
Display	1-line text display, white
Energy efficiency class (A–G)	A
Number of place settings	14
Water consumption, Automatic programme	from 6.0 l
Water consumption, ECO programme	8.4 l per programme cycle
Electricity consumption, ECO programme	0.54 kWh per programme cycle
Energy consumption, ECO (100 cycles)	54 kWh
Consumption with hot water connection (ECO)	0.29 kWh
Duration of ECO programme	230 minutes
Noise emission class	B
Cutlery loading	3D MultiFlex tray
Basket design	MaxiComfort with 4 FlexCare glass holders and 1 FlexCare cup rack
Niche width (min–max)	600–600 mm
Niche height (min–max)	805–870 mm
Niche depth	550 mm
Appliance width	598 mm
Appliance height	805 mm
Appliance depth	550 mm
Depth with door open	116.5 cm
Net weight	48.0 kg
Total rated load	2.00 kW
Voltage / frequency	230 V / 50 Hz (standard)
Fuse rating	10 A
Number of phases	1
Water inlet hose length	1.50 m
Water drain hose length	1.50 m
Supply lead length	1.80 m
Front panel weight (min–max)	4.0–11.0 kg (service retrofittable to 7.0–14.0 kg)
Plinth height range (installation notes)	35–155 mm or 100–220 mm; appliance height max. 930 mm with plinth height conversion kit (Mat.-Nr. 6.394.761)

Programmes, Options and Features

Wash programmes

The appliance offers a wide range of wash programmes to suit different loads and soiling levels:

QuickPowerWash
ECO
Automatic
Intensive 75 °C
Normal 60 °C
PowerWash
Gentle
Hygiene
SolarSave
ExtraQuiet 38 dB(A)
Pasta/Paella
Tall items 65 °C
Glasses warm
Appliance care

Dishwashing options

AutoDos
IntenseZone
Express
Extra Clean
Extra dry

Convenience and operation

Networking with Miele@home.
Door closing aid AutoClose.
BrilliantLight for interior illumination.
Time left display and delay start up to 24 hours.
Optical and acoustic in-operation indicator light with volume control.
Display language selection via MultiLingua.

Efficiency and care

EcoFeedback and EcoPower Technology.
Proven hygiene.
Hot water connection.
Half load function.
BrilliantGlassCare for glassware.
Fresh water dishwasher design.
Active condensation drying, AutoOpen drying and SensorDry.

Safety and service

Waterproof system.
Filter indicator light.
Replacing lamps: Service.

Available display languages

Available via MultiLingua: bahasa malaysia, deutsch, english (AU), english (GB), 日本語, ةيبرعلا.

Frequently Asked Questions

What type of dishwasher is the G 7660 SCVi AutoDos?

It is a fully integrated 60 cm fresh water dishwasher with a fully integrated fascia and softkey controls, designed to be built into a kitchen niche.

How many place settings does this dishwasher hold?

The dishwasher accommodates up to 14 place settings.

Does it have automatic detergent dispensing?

Yes. It features AutoDos with an integrated PowerDisk for automatic dispensing, and it is supplied with 1 × PowerDisk plus a voucher for 6 × PowerDisk.

What are the energy and water consumption values in the ECO programme?

In the ECO programme, water consumption is 8.4 l per cycle and electricity consumption is 0.54 kWh per cycle, with 54 kWh over 100 programme cycles.

Which special wash programmes are available?

Special programmes include QuickPowerWash, Intensive 75 °C, ExtraQuiet 38 dB(A), Pasta/Paella, Tall items 65 °C, Glasses warm, Hygiene, SolarSave and an Appliance care programme.

Can the dishwasher be connected to a smart home network?

Yes. The appliance supports networking with Miele@home for modern domestic appliance networking and additional information options.
