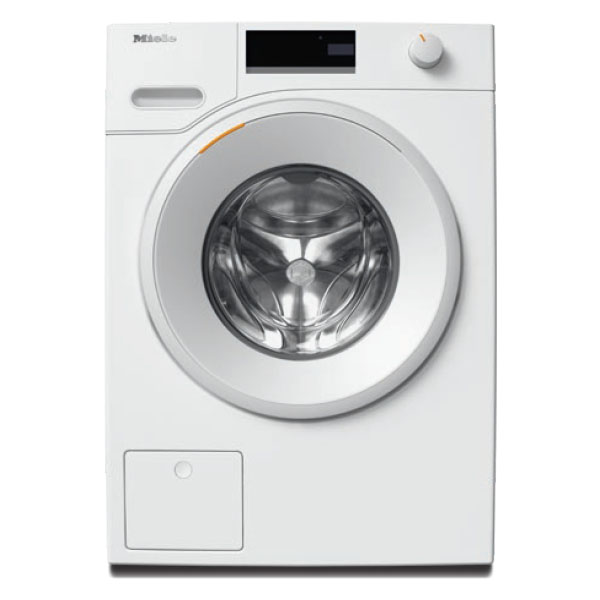

The Miele WSA123 WCS 8kg Active is a W1 White Edition front-loader washing machine with a generous 8 kg load capacity and up to 1400 rpm spin speed. It offers A –10 % energy efficiency, CapDosing portioned dispensing and a Honeycomb drum for gentle laundry care. With AddLoad, delay start up to 24 hours and an EasyControl yellow display, it combines convenience, efficiency and fabric care in a Lotus white design.

Key Features

A –10 % energy efficiency – 10 % more economical than the threshold value (52) for energy efficiency class A.
8 kg load capacity – Suitable for handling up to 8.0 kg of laundry.
Max. 1400 rpm spin speed – Efficient spinning with spin efficiency class B.
CapDosing portioned dispensing – Exclusive range for different fabrics and stains (patent EP 2 365 120).
Honeycomb drum – Designed for gentle laundry care so that laundry stays in perfect condition.
AddLoad function – Add or remove individual items during the wash cycle.
Tested for 20 years of perfect laundry care* – Models and core components tested in 5000 wash loads.
Wide programme selection – Including Cottons, Delicates, Woollens (hand-washable), Express 20 and ECO 40–60.
User-friendly controls – Rotary control with 5° inclined control panel and EasyControl yellow display.
AutoClean detergent drawer – Designed for easy maintenance and cleanliness.
Energy and water saving features – Automatic load control, flow meter, foam sensing and low temperature wash 'Cold' and 20 °C.
ProfiEco motor – High-performance motor technology (further characteristics Not stated in source).
Flexible installation – Suitable for stacking, side-by-side or slot-in installation, with right-hand door hinging.
Comprehensive safety features – Watercontrol-System, safety lock, PIN-code and optical interface.
Low airborne noise in spin – Acoustic airborne noise emission class A, with 72 dB(A) during spin cycle.

* During the development phase of the W1 washing machine series, Miele tested models and core components in 5000 wash loads (= 5 wash loads per week for 50 weeks per year) in various programmes.

Technical Specifications

Product brand / model	W1 White Edition – WSA123 WCS 8kg Active
Construction type	Front-loader; suitable for stacking; side-by-side; slot-in
Door hinging	Right
Appliance colour	Lotus white
Control panel / door / selector colour	Control panel: Lotus white; door: Lotus white; rotary selector: Lotus white
Control panel version	5° inclined
Control type / display	Rotary control; EasyControl yellow display
Load capacity	8.0 kg
Max. spin speed	1400 rpm
Spin efficiency class	B
Rinse hold / without spin function	Rinse hold; without spin function available
Drum type	Honeycomb drum
Energy efficiency class (A–G)	A (10 % more economical than the threshold value (52) for energy efficiency class A)
Weighted energy consumption	43 kWh per 100 operating cycles for the wash cycle
Weighted water consumption	48 l per cycle
Programme duration ECO 40–60	219 minutes at nominal capacity
Acoustic airborne noise emission class	A (spin cycle)
Sound emissions during spin cycle	72 dB(A) re 1 pW
Power rating in off mode	0.30 W
Low temperature wash options	'Cold' and 20 °C
Automation features	Automatic load control; flow meter; foam sensing
Motor	ProfiEco motor
Delay start / time left display	Delay start up to 24 hours; time left display
AutoClean detergent drawer	Yes
Water protection system	Watercontrol-System
Safety features	Safety lock; PIN-code; optical interface

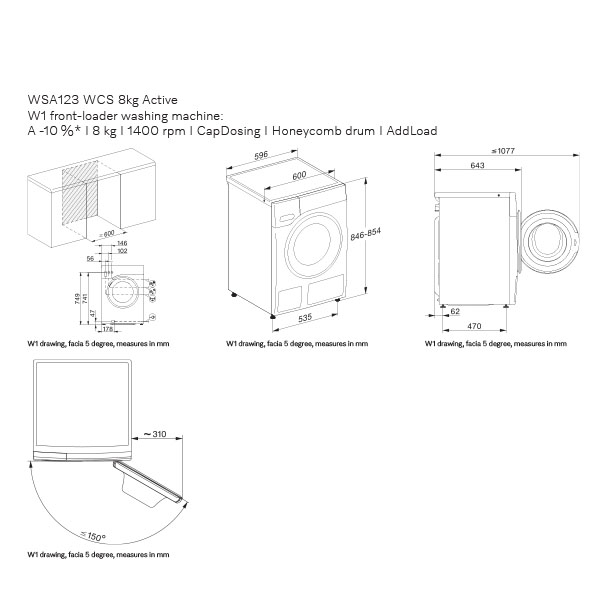

Dimensions (W × H × D)	596 mm × 850 mm × 643 mm
Appliance depth with opened door	1054 mm
Appliance depth excluding door (for building-under)	600 mm
Weight	82 kg
Voltage / frequency	220–240 V; 50 Hz
Fuse rating	13 A
Total rated load	2.10–2.40 kW
Length of water inlet hose	1.60 m
Length of water drain hose	1.50 m
Length of supply lead	2 m

Programmes, Functions and Safety

Wash programmes

Cottons (coloureds)
Cottons with pre-wash
Minimum iron
Delicates
Woollens (hand-washable)
Express 20
Dark garments / Denim
Outerwear
Proofing
Separate rinse / Starch
Drain / Spin
ECO 40–60

Washing extras and convenience

Short
Soak
Water plus
Additional rinse cycle
Delay start up to 24 hours
Time left display
AddLoad for adding or removing individual items during the wash cycle
AutoClean detergent drawer
CapDosing portioned dispensing

Safety and protection

Watercontrol-System water protection
Safety lock
PIN-code
Optical interface

Frequently Asked Questions

What is the load capacity of the WSA123 WCS 8kg Active?

The washing machine has a load capacity of 8.0 kg.

What is the energy efficiency rating of this washing machine?

It is rated energy efficiency class A and is 10 % more economical than the threshold value (52) for energy efficiency class A.

Which special programmes are available for delicate items?

The machine offers Delicates and Woollens (hand-washable) programmes, as well as programmes for Dark garments / Denim and Outerwear.

Can I add laundry after the programme has started?

Yes. The AddLoad function allows you to add or remove individual items during the wash cycle.

What safety features are included?

Safety features include the Watercontrol-System water protection system, a safety lock, PIN-code and an optical interface.

What is CapDosing on this machine?

CapDosing is portioned dispensing with an exclusive range for different fabrics and stains, covered by patent EP 2 365 120.

WSA123WCS

Miele WSA123 WCS Washing Machine
