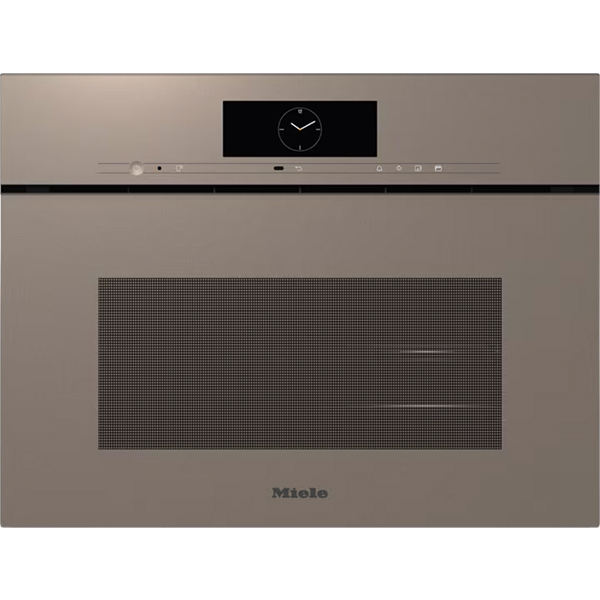

The Miele DGC 7840 HCX Pro is a handleless compact combination steam oven in Pearl beige, designed for steam cooking, baking and roasting. It combines DualSteam technology, combination cooking and a wireless food probe for precise results. The large M Touch display with MotionReact makes operation convenient, while Miele@home connectivity and Mix & Match support flexible meal preparation. HydroClean, a stainless-steel oven compartment and multiple maintenance programmes support easy cleaning.

Key Features

Handleless compact combination steam oven for steam cooking, baking and roasting with wireless food probe and HydroClean.
Large M Touch display with MotionReact proximity sensor for convenient, touch-based operation.
DualSteam technology for steam cooking and Eco steam cooking.
Combination cooking options including Fan plus, Conventional heat and grill combinations.
Miele@home networking with Mix & Match to prepare plated meals.
Individual humidity settings in combination cooking and menu cooking without transfer of taste.
Wireless food probe without cable for temperature-controlled cooking.
HydroClean system with dedicated cleaning agent and maintenance programmes.
Stainless-steel oven compartment with linen structure and CleanGlass door.
Energy efficiency class A+ with automatic switch to standby, networked standby and off modes.
Steam cooking on up to 3 levels at the same time with quantity-independent cooking.
Wide range of operating modes including Sous-vide, Intensive bake, Defrost, Reheat and Plate warming.
Safety features such as appliance cooling system, touch-cool front, safety switch-off and system lock.
BrilliantLight oven lighting and motorised lift-up control panel with SoftClose.
Accessories included such as PerfectClean trays, FlexiClip runners, cooking containers and descaling tablets.

Technical Specifications

Model identifier	DGC 7840 HCX Pro
Manufacturer material number	12641110
EAN number	4002516835714
Colour	Pearl beige
Construction type	Steam combination oven, handleless, ArtLine
Energy efficiency class (A+++ – D)	A+
Power rating in off mode	0.3 W
Power rating in standby mode	0.8 W
Power rating in networked standby	2.0 W
Automatic switch to standby	20 min
Automatic switch to networked standby	20 min
Automatic switch to off mode	20 min
Steam technology	DualSteam with external steam generator
Steam generator power	3.30 kW
Fresh water container volume	1.4 l
Oven compartment volume	47 l
No. of shelf levels	3 (numbered shelf levels)
Door hinge	Bottom
Oven light	BrilliantLight
Oven temperature range	30–230 °C
Steam oven temperature range	40–100 °C (electronic regulation)
Appliance dimensions (W x H x D)	595 x 456 x 569 mm
Niche dimensions (W x H x D)	560–568 x 450–452 x 550 mm
Appliance width	595 mm
Appliance height	455.5 mm
Appliance depth	568.5 mm
Weight	40.2 kg
Total rated load	3.40 kW
Voltage	230 V
Frequency	50 Hz
Fuse rating	16 A
Number of phases	1 (neutral conductor: Yes)
Mains cable	Mains cable with plug, length 2 m
DirectWater connection	No
Display	M Touch with MotionReact proximity sensor
Replacing lamps	Service

Functions, Cleaning and Usage Details

Operating modes

The appliance offers a wide range of operating modes: Fan plus, Conventional heat, Steam cooking, Combination cooking, Combination cooking with Fan plus, Combination cooking with Conventional heat, Combination cooking with grill, Sous-vide, Intensive bake, Fan grill, Grill, Economy grill, Grill operating modes, Top heat, Bottom heat, Cake plus, Eco fan heat, Eco steam cooking, Defrost, Roast with moisture, Reheat, Plate warming, Automatic programmes and country-specific automatic programmes.

Convenience features

Rapid heat-up and pre-heating.
External steam generation with oxygen sensor.
Individual humidity settings in combination cooking.
Menu cooking without transfer of taste.
Prepare plated meals with Mix & Match.
Food probe without cable.
Automatic programmes with ability to make individual adjustments.
Keeping warm and crisp function.

User convenience and controls

Networking with Miele@home.
MotionReact proximity sensor, SoftOpen and Touch2Open.
MultiLingua with numerous display languages.
MyMiele and help function.
Motorised lift-up control panel with SoftClose.
Quantity-independent cooking and steam cooking on up to 3 levels at the same time.
Automatic menu cooking and steam reduction before end of programme.
Polyphonic buzzers and timer functions.
Time of day and date display, minute minder.
Programmable start, end and duration of cooking.
Actual and target temperature display, buzzer when desired temperature is reached.
Recommended temperature, user programmes and individual settings.

Cleaning and care

Stainless-steel oven compartment with linen structure.
Hinged grill element and external steam generator.
HydroClean system with dedicated cleaning agent.
Maintenance programmes including soak programme, rinse programme and oven compartment drying programme.
Quick-release side racks and removable stainless-steel side racks.
Automatic descaling and CleanGlass door.

Steam technology and water handling

DualSteam steam technology.
Fresh water container (1.4 l) behind motorised control panel.
Condensate container behind motorised lift-up control panel with SoftClose.
Drain filter.

Safety features

Appliance cooling system and touch-cool front.
Safety switch-off and system lock.
Vapour cooling system.
Sensor lock.

Installation notes

The appliance is designed as a DGC XL built-in unit with specified niche dimensions of 560–568 mm width, 450–452 mm height and 550 mm depth. Installation drawings indicate mains connection cable length of 2,000 mm, required ventilation cut-out of at least 180 cm², and the swivel range of the aperture and screw joints for tall cabinet and build-under configurations. Further dimensional details include front view, side view and cabinet integration measurements.

Accessories Included

Universal tray with PerfectClean HUBB 71 – 1
Baking and roasting rack with PerfectClean HBBR 71 – 1
PerfectClean FlexiClip runners HFC 71 (pair) – 1
Wireless food probe – 1
Removable side runners (pair) – 1
Perforated stainless-steel cooking containers – 2
Solid stainless steel cooking containers – 1
HydroClean cleaning agent – 1
Descaling tablets – 2

Display Languages

Available display languages via MultiLingua: ةيبرعلا, 中文, 繁體中文, deutsch, dansk, english, suomi, français, ελληνικά, italiano, 日本語, 한국어, hrvatski, bahasa malaysia, nederlands, norsk, polski, português, română, pусский, svenska, srpski, slovenčina, slovenščina, español, čeština, türkçe, yкраїнська, magyar.

Frequently Asked Questions

What cooking functions does the DGC 7840 HCX Pro offer?

The appliance provides Fan plus, Conventional heat, Steam cooking, several combination cooking modes (including with Fan plus, Conventional heat and grill), Sous-vide, Intensive bake, Fan grill, Grill, Economy grill, Top heat, Bottom heat, Cake plus, Eco fan heat, Eco steam cooking, Defrost, Roast with moisture, Reheat, Plate warming, Automatic programmes and country-specific automatic programmes.

Does this oven support steam cooking on multiple levels?

Yes. The oven enables steam cooking on up to 3 levels at the same time and supports quantity-independent cooking, allowing different quantities to be cooked without adjusting the basic settings.

How is the oven cleaned and descaled?

Cleaning is supported by the HydroClean system, stainless-steel oven compartment with linen structure, hinged grill element and CleanGlass door. Maintenance programmes include a soak programme, rinse programme, oven compartment drying programme and automatic descaling. Quick-release and removable stainless-steel side racks assist with access for cleaning. Descaling tablets and a HydroClean cleaning agent are supplied.

What connectivity features are available?

The DGC 7840 HCX Pro is network-enabled as a WiFi appliance and can be integrated with Miele@home. It also offers Mix & Match to prepare plated meals and includes features such as MyMiele, help function and polyphonic buzzers for user guidance.

What are the installation niche dimensions?

The required niche dimensions are a width of 560–568 mm, height of 450–452 mm and depth of 550 mm. Installation drawings also specify a ventilation cut-out of at least 180 cm² and a mains connection cable length of 2,000 mm.

What safety features does the oven include?

Safety features include an appliance cooling system and touch-cool front, safety switch-off, system lock, vapour cooling system and sensor lock. These functions help protect users during operation.
