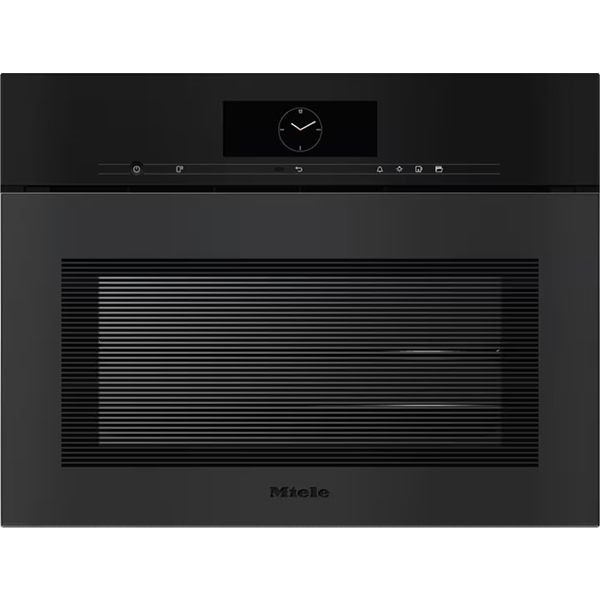

The Miele DGC 7840 HCX Pro is a handleless compact steam combination oven in obsidian black matt, designed for steam cooking, baking and roasting. It features DualSteam technology, combination cooking and a wireless food probe for precise results. M Touch with MotionReact offers intuitive control, while Miele@home connectivity and Mix & Match support flexible cooking. HydroClean, a stainless steel oven compartment and dedicated maintenance programmes simplify cleaning and care.

Key Features

Handleless compact combination steam oven for steam cooking, baking and roasting with wireless food probe and HydroClean.
Large M Touch display with MotionReact proximity sensor for intuitive, touch-based operation.
DualSteam technology for steam cooking, including Eco steam cooking and steam cooking on up to 3 levels at the same time.
Combination cooking functions including Fan plus, Conventional heat, grill options and roast with moisture.
Wireless food probe without cable for targeted temperature control during roasting.
Miele@home network-enabled WiFi appliance with Mix & Match for preparing plated meals.
HydroClean system with maintenance, soak, rinse and drying programmes for easier cleaning.
Stainless-steel oven compartment with linen structure and CleanGlass door for a high-quality interior.
Wide range of operating modes including sous-vide, Intensive bake, Defrost, Reheat, Plate warming and automatic programmes.
Energy efficiency class A+ with automatic switch to standby, networked standby or off mode after set times.
Safety features including appliance cooling system, touch-cool front, vapour cooling system, safety switch-off, system lock and sensor lock.
BrilliantLight oven illumination and motorised lift-up control panel with SoftClose and storage for water and condensate containers.
Extensive accessories included such as PerfectClean trays and runners, stainless-steel cooking containers and descaling tablets.

Technical Specifications

Model identifier	DGC 7840 HCX Pro
Manufacturer material number	12310230
EAN number	4002516713715
Construction type	Steam combination oven
Design	Handleless, ArtLine, obsidian black matt
Energy efficiency class	A+ (A+++ – D)
Oven compartment volume	47 l
Number of shelf levels	3, numbered shelf levels
Door hinge	Bottom
Display	M Touch with MotionReact proximity sensor
Networking	Miele@home network-enabled WiFi appliance
Steam technology	DualSteam, external steam generation
Steam generator power	3.30 kW
Fresh water container volume	1.4 l, behind motorised control panel
Condensate container	Behind motorised lift-up control panel with SoftClose
DirectWater	No
Oven temperature range	30°C – 230°C
Steam oven temperature range	40°C – 100°C (electronic regulation)
Appliance dimensions (W x H x D)	595 x 456 x 569 mm
Appliance width	595 mm
Appliance height	455.5 mm
Appliance depth	568.5 mm
Niche dimensions (W x H x D)	560–568 x 450–452 x 550 mm
Niche width (min – max)	560 – 568 mm
Niche height (min – max)	450 – 452 mm
Niche depth	550 mm
Weight	40.2 kg
Total rated load	3.40 kW
Voltage / frequency	230 V / 50 Hz
Fuse rating	16 A
Number of phases	1, neutral conductor: Yes
Mains connection	Mains cable with plug, supply lead length 2 m
Power rating in off mode	0.3 W
Power rating in standby	0.8 W
Power rating in networked standby	2.0 W
Time to standby	20 min (standby, networked standby and off mode)
Oven light	BrilliantLight

Programmes, Functions and Cleaning

This oven offers rapid heat-up, pre-heating, external steam generation and an oxygen sensor. Individual humidity settings are available in combination cooking. Menu cooking is possible without transfer of taste, and plated meals can be prepared using Mix & Match. Automatic programmes can be customised, and a keeping warm function and crisp function are included.

Operating modes include Fan plus, Conventional heat, Steam cooking, Combination cooking (with Fan plus, Conventional heat or grill), sous-vide, Intensive bake, Fan grill, Grill, Economy grill, grill operating modes, Top heat, Bottom heat, Cake plus, Eco fan heat, Eco steam cooking, Defrost, Roast with moisture, Reheat, Plate warming, automatic programmes and country-specific automatic programmes.

User convenience features comprise SoftOpen and Touch2Open, MultiLingua, MyMiele, a help function, a motorised lift-up control panel with SoftClose, quantity-independent cooking, steam reduction before the end of the programme, polyphonic buzzers and comprehensive timer functions. These include time of day and date display, minute minder, programmable start, end and duration of cooking, actual and target temperature displays, a buzzer when the desired temperature is reached, recommended temperature, user programmes and individual settings.

Cleaning and care are supported by a stainless-steel oven compartment with linen structure, a hinged grill element and an external steam generator. The HydroClean system is complemented by maintenance, soak, rinse and oven compartment drying programmes. Quick-release, removable stainless-steel side racks and automatic descaling further enhance ease of maintenance. The CleanGlass door aids in keeping the front clean.

Safety equipment includes an appliance cooling system, touch-cool front, safety switch-off, system lock, vapour cooling system and sensor lock. A drain filter is also provided in the steam system.

Accessories Included

Universal tray with PerfectClean HUBB 71 – 1
Baking and roasting rack with PerfectClean HBBR 71 – 1
PerfectClean FlexiClip runners HFC 71 (pair) – 1
Wireless food probe – 1
Removable side runners (pair) – 1
Perforated stainless-steel cooking containers – 2
Solid stainless steel cooking containers – 1
Descaling tablets – 2

Available Display Languages

Available via MultiLingua: ةيبرعلا, 中文, 繁體中文, deutsch, dansk, english, suomi, français, ελληνικά, italiano, 日本語, 한국어, hrvatski, bahasa malaysia, nederlands, norsk, polski, português, română, pусский, svenska, srpski, slovenčina, slovenščina, español, čeština, türkçe, yкраїнська, magyar.

Frequently Asked Questions

What cooking functions does the DGC 7840 HCX Pro offer?

The oven provides Fan plus, Conventional heat, Steam cooking, several combination cooking modes (with Fan plus, Conventional heat and grill), sous-vide, Intensive bake, Fan grill, Grill, Economy grill, Top heat, Bottom heat, Cake plus, Eco fan heat, Eco steam cooking, Defrost, Roast with moisture, Reheat, Plate warming, automatic programmes and country-specific automatic programmes.

How does the cleaning system work?

The appliance features HydroClean, supported by maintenance, soak, rinse and oven compartment drying programmes. It has a stainless-steel oven compartment with linen structure, a hinged grill element, external steam generator, quick-release and removable stainless-steel side racks and automatic descaling. The CleanGlass door also contributes to easier cleaning.

Is this oven suitable for steam cooking on multiple levels?

Yes. It supports steam cooking on up to 3 levels at the same time and includes Eco steam cooking, enabled by DualSteam and external steam generation.

Does the appliance have WiFi and smart features?

The DGC 7840 HCX Pro is a network-enabled WiFi appliance compatible with Miele@home. It offers Mix & Match for preparing plated meals, MyMiele personalisation, MultiLingua and a range of individual settings and user programmes.

What safety features are included?

Safety is supported by an appliance cooling system, touch-cool front, vapour cooling system, safety switch-off, system lock and sensor lock. A drain filter is also integrated into the steam system.

What accessories come as standard?

Included accessories are a universal tray with PerfectClean HUBB 71, baking and roasting rack with PerfectClean HBBR 71, PerfectClean FlexiClip runners HFC 71 (pair), wireless food probe, removable side runners (pair), two perforated stainless-steel cooking containers, one solid stainless steel cooking container and two descaling tablets.
