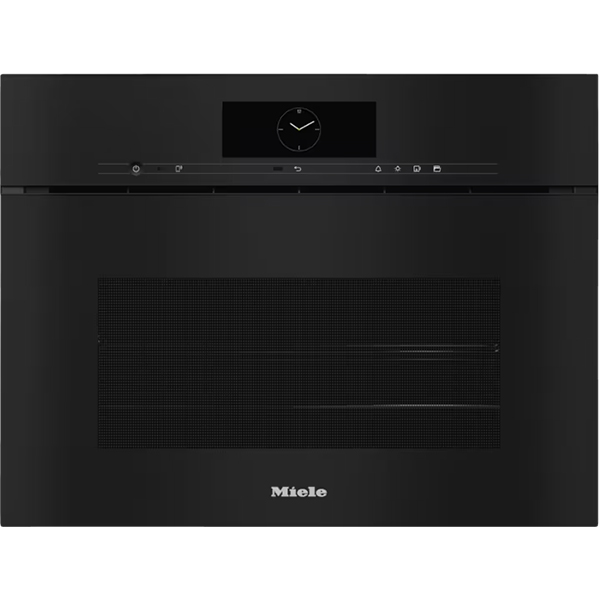

The DGC 7840 HCX Pro is a handleless compact steam combination oven for steam cooking, baking and roasting. It features a large M Touch display with MotionReact proximity sensor, DualSteam technology and combination cooking for crispy outside, succulent inside results. With Miele@home networking, Mix & Match, a wireless food probe and HydroClean, it offers convenient cooking and easy cleaning in a stainless-steel oven compartment with linen structure.

Key Features

Handleless ArtLine design for a sleek, integrated look with Touch2Open and SoftOpen functions.
Steam combination oven for steam cooking, baking and roasting with numerous operating modes.
Large M Touch display with MotionReact proximity sensor for intuitive, responsive control.
DualSteam technology for perfect steam cooking performance.
Combination cooking delivers crispy outside, succulent inside results, including options with Fan plus, Conventional heat and grill.
Wireless food probe (without cable) for precise temperature-controlled roasting.
Miele@home connectivity with Mix & Match for preparing plated meals.
HydroClean system with soak, rinse and drying programmes for easy cleaning.
Stainless-steel oven compartment with linen structure and CleanGlass door for convenient care.
Rapid heat-up and pre-heating for faster cooking readiness.
Automatic programmes including country-specific options and user programmes.
Steam cooking on up to 3 levels at the same time, with menu cooking without transfer of taste.
Energy efficiency class A+ with low standby and off-mode power ratings.
BrilliantLight oven illumination and motorised lift-up control panel with SoftClose.
Comprehensive safety features including appliance cooling system, safety switch-off, system lock, sensor lock and vapour cooling system.
MultiLingua support offering a wide choice of display languages.
Generous 47 l oven compartment with 3 numbered shelf levels and DualSteam external steam generation.
Supplied accessories include trays, racks, cooking containers, FlexiClip runners, wireless food probe, HydroClean agent and descaling tablets.

Technical Specifications

Product name	DGC 7840 HCX Pro
Type	Handleless compact steam combination oven
Construction line	ArtLine
Colour	Obsidian black
Material number	12101450 (Old Material Number: 23784068GB)
EAN	4002516626329
Oven compartment volume	47 l
Number of shelf levels	3 (numbered shelf levels)
Appliance dimensions (W × H × D)	595 × 456 × 569 mm
Appliance width	595 mm
Appliance height	455.5 mm
Appliance depth	568.5 mm
Niche width (min – max)	560 – 568 mm
Niche height (min – max)	450 – 452 mm
Niche depth	550 mm
Door hinge	Bottom
Oven light	BrilliantLight
Oven temperature range	30 °C to 230 °C
Steam temperature range (electronic)	40 °C to 100 °C
Energy efficiency class	A+ (A+++ – D)
Power rating in off mode	0.3 W
Power rating in standby	0.8 W
Power rating in networked standby	2.0 W
Time until automatic standby	20 min
Time until networked standby	20 min
Time until off mode	20 min
Total rated load	3.40 kW
Voltage	230 V
Frequency	50 Hz
Fuse rating	16 A
Number of phases	1 (neutral conductor: Yes)
Mains cable	Mains cable with plug, length 2 m
Weight	40.2 kg
Steam technology	DualSteam with external steam generation
Steam generator power	3.30 kW
Fresh water container volume	1.4 l (behind motorised control panel)
Condensate container	Behind motorised lift-up control panel with SoftClose
DirectWater	No
Drain filter	Yes
Oven compartment material	Stainless steel with linen structure
Cleaning features	HydroClean, soak, rinse and drying programmes, automatic descaling, CleanGlass door, hinged grill element, quick-release and removable stainless-steel side racks
Safety features	Appliance cooling system, touch-cool front, vapour cooling system, safety switch-off, system lock, sensor lock
Replacing lamps	Service

Functions, Programmes and Convenience

The appliance offers extensive operating modes: Fan plus, Conventional heat, Steam cooking, Combination cooking, Combination cooking with Fan plus, Combination cooking with Conventional heat, Combination cooking with grill, Sous-vide, Intensive bake, Fan grill, Grill, Economy grill, Top heat, Bottom heat, Cake plus, Eco fan heat, Eco steam cooking, Defrost, Roast with moisture, Reheat, Plate warming, Automatic programmes, country-specific automatic programmes and Special applications.

User convenience is enhanced by networking with Miele@home, M Touch display, MotionReact functions (light on, display on, audible signal acknowledgement and detection of cabinet fronts), SoftOpen, Touch2Open, MultiLingua, MyMiele, a help function and a motorised lift-up control panel with SoftClose. Quantity-independent cooking, steam cooking on up to 3 levels, automatic menu cooking, steam reduction before the end of the programme and polyphonic buzzers are also provided.

Time functions include time of day and date display, minute minder, programmable start, end and duration of cooking, actual and target temperature display, a buzzer when the desired temperature is reached, recommended temperature, user programmes and individual settings.

Cleaning and Care

HydroClean system with dedicated cleaning programme.
Soak, rinse and oven compartment drying programmes.
Automatic descaling for the steam system.
Stainless-steel oven compartment with linen structure for durable surfaces.
Hinged grill element for improved access when cleaning.
Quick-release and removable stainless-steel side racks.
CleanGlass door for easier cleaning of the inner door surface.

Accessories Included

Universal tray with PerfectClean HUBB 71 × 1
Baking and roasting rack with PerfectClean HBBR 71 × 1
PerfectClean FlexiClip runners HFC 71 (pair) × 1
Wireless food probe × 1
Removable side runners (pair) × 1
Perforated stainless-steel cooking containers × 2
Solid stainless steel cooking containers × 1
HydroClean cleaning agent × 1
Descaling tablets × 2

Display Languages

Available via MultiLingua: ةيبرعلا, 中文, 繁體中文, deutsch, dansk, english, suomi, français, ελληνικά, italiano, 日本語, 한국어, hrvatski, bahasa malaysia, nederlands, norsk, polski, português, română, pусский, svenska, srpski, slovenčina, slovenščina, español, čeština, türkçe, yкраїнська, magyar.

Frequently Asked Questions

What types of cooking does the DGC 7840 HCX Pro support?

It supports steam cooking, baking and roasting, with operating modes including Fan plus, Conventional heat, Steam cooking, multiple combination cooking options, Sous-vide, Intensive bake, various grill functions, Eco programmes, Defrost, Roast with moisture, Reheat, Plate warming, Automatic programmes, country-specific automatic programmes and Special applications.

Does this oven have built-in cleaning programmes?

Yes. It features HydroClean, soak and rinse programmes, an oven compartment drying programme, automatic descaling, a CleanGlass door, a hinged grill element and removable stainless-steel side racks for easier cleaning.

Is the DGC 7840 HCX Pro network-enabled?

Yes. It is a WiFi appliance that supports networking with Miele@home and includes Mix & Match for preparing plated meals.

What safety features are provided?

Safety features include an appliance cooling system, touch-cool front, vapour cooling system, safety switch-off, system lock and sensor lock.

How much space is required for installation?

The required niche dimensions are a width of 560 – 568 mm, height of 450 – 452 mm and depth of 550 mm. The appliance itself measures 595 × 456 × 569 mm (W × H × D).
