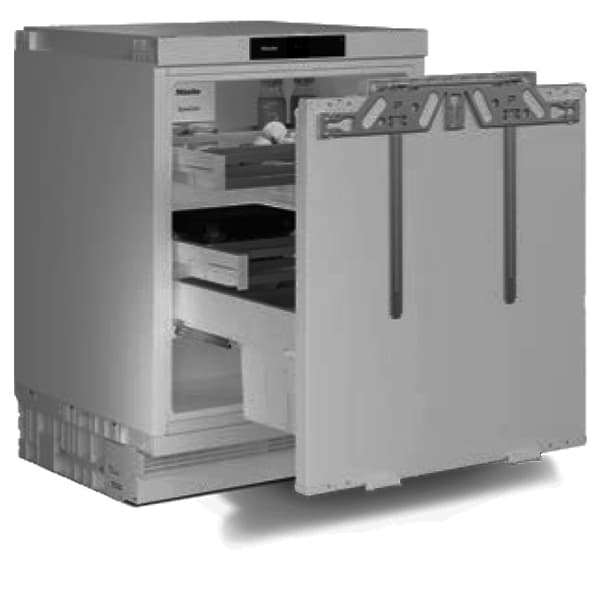

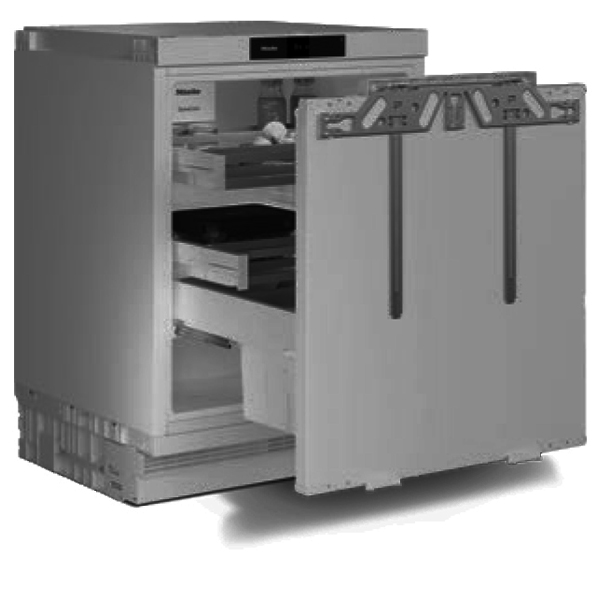

The KU 7030 D is a built-under, integrated refrigerator designed for installation in a compact niche. It features maintenance-free LED lighting, DynaCool for uniform temperature distribution and SuperCool to chill food quickly. SoftClose ensures soft closing of the door. With a 125 l refrigerator compartment, energy efficiency class D and quiet operation, it suits users seeking a compact undercounter appliance with convenient functions and modern control via FreshTouch.

Key Features

Built-under integrated design – refrigerator for undercounter, integrated installation with pull-out front door hinge.
LED lighting – optimum and maintenance-free LED fridge zone lighting.
DynaCool – ensures uniform temperature distribution inside the appliance.
SuperCool function – cool food down quickly when needed.
SoftClose door – soft closing of the door for added convenience.
Miele@home networking – networking with Miele@home is supported.
FreshTouch controls – operates via FreshTouch control concept.
Holiday mode – includes a dedicated holiday mode.
Sabbath mode – appliance can be operated in Sabbath mode.
Energy efficiency class D – annual energy consumption of 73.90 kWh.
Quiet operation – airborne noise emission class B with sound emissions of 32 dB(A) re 1 pW.
125 l refrigerator compartment – total usable capacity of 124 l across 1 temperature zone and 3 shelves.
Safety features – lock function plus acoustic and optical door alarms.
Climate range SN–T – designed for operation in climate range SN–T.
Egg tray included – supplied with an egg tray accessory.

Technical Specifications

Appliance category	Refrigerator
Construction type	Integrated appliance; Undercounter appliance
Door hinge	Pull-out front
Fridge zone lighting	LED
Networking	Networking with Miele@home
DynaCool	Yes
Holiday mode	Yes
SoftClose	Yes
Operating concept	FreshTouch
Independent temperature regulation (fridge/freezer)	No
SuperCool	Yes
Number of temperature zones	1
Sabbath mode	Yes
Number of shelves (fridge)	3
Energy efficiency class (A–G)	D
Annual energy consumption	73.90 kWh
Energy consumption in 24 h	0.20 kWh
Lock function	Yes
Acoustic door alarm	Yes
Optical door alarm	Yes
Niche width (min–max)	600–600 mm
Niche height (min–max)	820–880 mm
Niche depth	560 mm
Appliance width	597 mm
Appliance height	818 mm
Appliance depth	550 mm
Weight	40.0 kg
Max. door front weight (refrigerator)	10 kg
Climate range	SN–T
Refrigerator compartment capacity	125 l
Total usable capacity	124 l
Airborne noise emission class (A–D)	B
Sound emissions	32 dB(A) re 1 pW
Current consumption	2000 mA
Voltage	220–240 V
Fuse rating	10 A
Number of phases	1
Frequency	50–60 Hz
Length of supply lead	2.2 m
Replacing lamps	Service
Accessories included	Egg tray

Additional Details and Installation

The appliance is designed as a built-under refrigerator for installation in a niche with a width of 600 mm, height between 820 and 880 mm, and depth of 560 mm. It is shown in installation drawings and diagrams as a built-under model with a mains connection cable of 2200 mm and an indicated area with no connection.

The refrigerator operates within climate range SN–T and offers functions including Holiday mode, Sabbath mode, SuperCool, DynaCool and SoftClose, supported by LED lighting and FreshTouch controls. Safety is enhanced by a lock function and both acoustic and optical door alarms.

Frequently Asked Questions

What type of appliance is the KU 7030 D?

It is a built-under, integrated refrigerator designed as an undercounter appliance with a pull-out front door hinge.

What is the capacity of the refrigerator compartment?

The refrigerator compartment has a capacity of 125 l, with a total usable capacity of 124 l.

How many shelves and temperature zones does it have?

The appliance has 3 shelves and 1 temperature zone, with no independent temperature regulation between fridge and freezer zones.

What energy efficiency and noise levels does it offer?

It has an energy efficiency class D, with annual energy consumption of 73.90 kWh. The airborne noise emission class is B, with sound emissions of 32 dB(A) re 1 pW.

Which convenience and safety features are included?

Convenience features include LED lighting, DynaCool, SuperCool, SoftClose, Holiday mode, Sabbath mode, FreshTouch controls and networking with Miele@home. Safety features include a lock function plus acoustic and optical door alarms.

What accessories come with the KU 7030 D?

An egg tray is included as standard.

KU7030D

Miele KU7030D Pull out Drawer Larder Fridge
