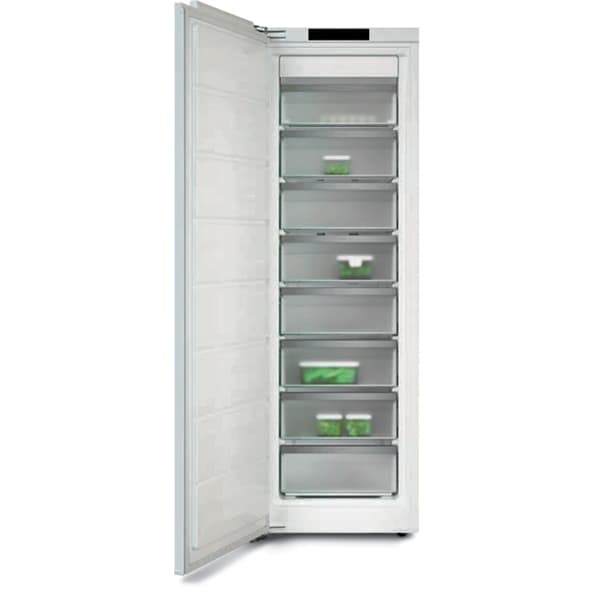

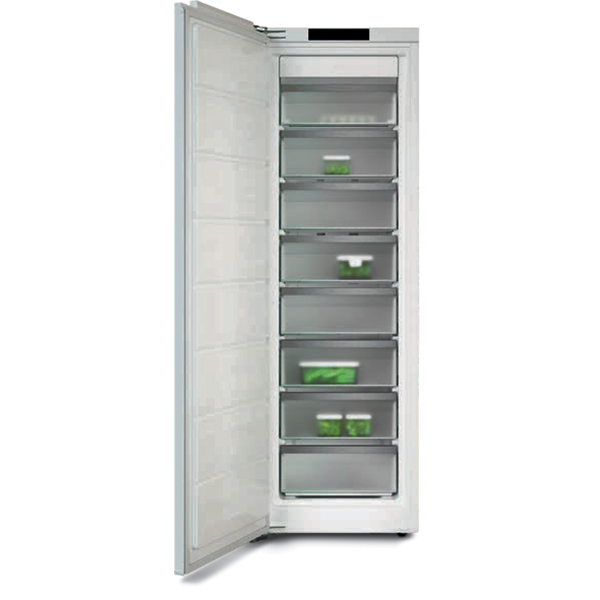

The Miele FNS 7710 E is a built-in freezer designed for integrated kitchen installations, offering 8 freezer drawers and a total usable capacity of 213 l. It features NoFrost to prevent icing and remove the need for defrosting, plus SuperFreeze for quick, gentle freezing. VarioRoom allows flexible adjustment of the freezer space. With SensorTouch controls, Sabbath mode, lock function and acoustic and optical alarms, it provides convenient and secure food storage.

Key Features

NoFrost technology – no icing up of food and no need to defrost.
SuperFreeze function – food is frozen quickly and gently.
VarioRoom flexibility – flexible increase in freezer volume.
8 freezer drawers – multiple storage compartments for organised freezing.
Built-in, integrated design – suitable as a built-in and integrated appliance, side-by-side enabled.
SensorTouch controls – convenient operating concept with modern touch control.
Miele@home networking – networking capability for enhanced user convenience.
Sabbath and Party modes – additional operating modes for specific needs.
Comprehensive safety features – lock function, acoustic door and temperature alarms, optical temperature alarm and power cut indication.
213 l 4* freezer compartment – total usable capacity of 213 l for frozen food.
Energy efficiency class E – annual energy consumption of 237.25 kWh.
Quiet operation – sound emissions of 33 dB(A), acoustic airborne noise emission class B.
Climate class SN–T – suitable for a wide range of ambient conditions.
Included ice cube tray – supplied accessory for convenient ice making.
Left door hinge with convertible hinging – door hinge on the left with convertible door hinging and fixed-door technology.

Technical Specifications

Product name	FNS 7710 E
Appliance category	Freezer
Construction type	Built-in appliance, integrated appliance, side-by-side enabled
Door hinge	Left, convertible door hinging, fixed door technology
Networking	Networking with Miele@home
Control system	Operating concept SensorTouch
Temperature zones	No. of temperature zones 1; independent temperature regulation of fridge and freezer zones: No
Sabbath mode / Party mode	Sabbath mode • Party mode •
NoFrost / SuperFreeze / VarioRoom	NoFrost • SuperFreeze • VarioRoom •
Number of freezer drawers	8
Energy efficiency class (A–G)	E
Annual energy consumption	237.25 kWh
Energy consumption in 24 h	0.64 kWh
Lock and alarms	Lock function • acoustic door alarm • acoustic temperature alarm • optical temperature alarm • power cut indication for freezer section •
Niche width (min–max)	560–570 mm
Niche height (min–max)	1772–1788 mm
Niche depth	550 mm
Appliance width	559 mm
Appliance height	1770 mm
Appliance depth	546 mm
Weight	58.5 kg
Max. door front weight	Max. door front weight – refrigerator, in kg: 26
Climate class	SN-T
*4 freezer compartment volume**	213 l
Total usable capacity	213 l
Storage time in case of fault	9 h
Freezer capacity	Freezer capacity in kg/24 h: 12.00
Noise emission class	Acoustic airborne noise emission class (A–D): B
Sound emissions	Sound emissions in dB(A) re 1 pW: 33
Electrical connection	Current consumption (mA): 1300; Voltage in V: 220–240; Fuse rating in A: 10; Number of phases: 1; Frequency in Hz: 50–60
Supply lead length	Length of supply lead in m: 2.2
Lighting replacement	Replacing lamps: Service
Accessories included	Ice cube tray •
EAN	EAN: 4002516797517
Material numbers	Material number: 12565320; Old Material Number: 37771000GB

Additional Details and Installation Information

The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche, but the energy consumption will be slightly higher.

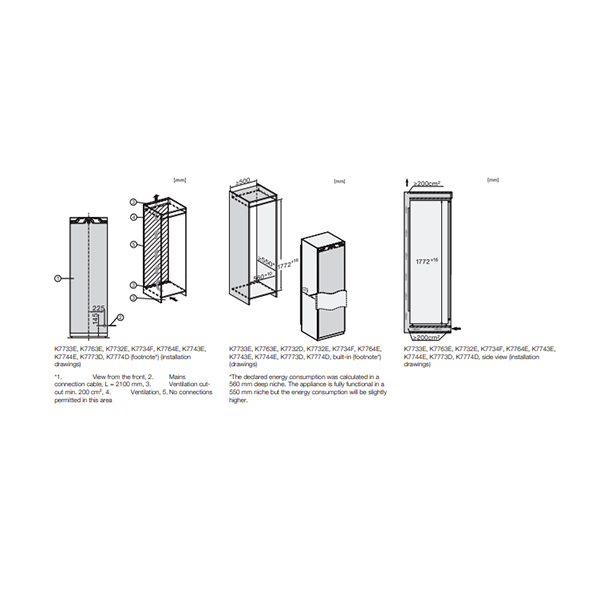

Installation drawings reference a ventilation cut-out of at least 200 cm² and specific areas where no connections are permitted. The mains connection cable has a length of 2100 mm. Detailed dimensional and installation references are provided for combinations with related models (K7733E, K7763E, K7732E, K7734F, K7764E, K7743E, K7744E, K7773D, K7774D).

Frequently Asked Questions

Does the FNS 7710 E need to be defrosted manually?

No. Thanks to NoFrost, there is no icing up of food and no need to defrost.

How many freezer drawers does this appliance have?

The FNS 7710 E has 8 freezer drawers.

What is the total usable capacity of the freezer?

The total usable capacity is 213 l, corresponding to a 4* freezer compartment of 213 l.

What are the niche dimensions required for installation?

The required niche width is 560–570 mm, niche height 1772–1788 mm and niche depth 550 mm.

Is this freezer suitable for networking and special operating modes?

Yes. It supports networking with Miele@home and includes Sabbath mode and Party mode.

What happens in the event of a power cut?

There is power cut indication for the freezer section, and the stated storage time in case of fault is 9 hours.
