The Gaggenau GO470120 is an expressive series 60 x 60 cm oven with a right–hand, side–hinged handleless glass door and electronic one–touch opening for ergonomic access. It features a full touch display with stainless steel control ring, pyrolytic self–cleaning and an invisible full surface grill. With 19 heating methods from 30°C to 300°C, a net volume of 77 litres, core temperature probe and rotisserie spit, it supports precise cooking results and modern built–in planning.

Key Features

Expressive series 60 x 60 cm oven with right–hinged, side–opening design for easy, ergonomic access.
Handleless full glass door with electronic opening and cushioned side–opening action with approx. 110° opening angle.
Pyrolytic self–cleaning system delivers high–efficiency cleaning in less than 4 hours with minimised odour thanks to a heated catalyser.
19 heating methods from 30°C to 300°C, including baking stone function, roaster function, air frying, dehydrating, dough proving and more.
Invisible full surface grill behind enamel (3.4 kW) for enhanced cooking precision and the option to add brief browning in hot air mode.
Full touch display with stainless steel control ring featuring light and display response upon user detection and info texts.
Automatic programmes and setting recommendations with 160 programmes and capacity to save up to 30 favourites.
Three–point core temperature probe with cooking time estimation via selected digital services.
Rotisserie spit for grilling food from all sides, supported by side lighting for optimum visibility.
Net volume 77 litres with 4 tray levels for flexible oven loading.
Hot air fan rotating in both directions for ideal heat distribution and rapid heating functionality.
Energy efficiency class A at a range of energy efficiency classes from A+++ to D.
Selected Home Connect digital services including remote control and monitoring, software updates and door opening via voice assistant.
Comprehensive safety features including child lock, electronic door lock, safety shut–off and thermally insulated quintuple glazed door.
Heated air cleaning catalyser and seamless compartment with enamelled, pyrolysis–safe side shelf supports for easier cleaning.
Planning–friendly design with specified niche requirements, corner solution guidance and minimum cooktop clearance information.
Included accessories 1 x baking tray, 1 x grill tray, 1 x wire rack, 1 x core temperature probe, 1 x rotisserie spit.
Optional accessories available including air frying tray, baking and grill trays, wire rack, glass tray, baking stone, pizza paddle and gastronorm roaster.
Total connected load 3.7 kW with 1.75 m connection cable, pluggable mains connection.

Technical Specifications

Product name	Oven Gaggenau Expressive series
Model code	GO470120
Series	Expressive series
Dimensions	60 x 60 cm
Door hinge	Right (door hinge not reversible)
Door type	Handleless full glass door with electronic door opening, cushioned side–opening
Door opening angle	Approx. 110° (delivery status), can be reduced to approx. 97°
Net volume	77 litres
Heating methods	19 heating methods from 30°C to 300°C
Grill type and power	Invisible full surface grill behind enamel, 3.4 kW
Tray levels	4 tray levels
Display and controls	Full touch display with stainless steel control ring; light and display response upon user detection
Display languages	42 display languages available
Automatic programmes	160 programmes (automatic programmes and setting recommendations); option to save up to 30 favourites
Core temperature probe	Three–point core temperature probe with cooking time estimation via Home Connect
Cleaning system	Pyrolytic self–cleaning; heated air cleaning catalyser; enamelled, pyrolysis–safe side shelf supports; seamless cooking compartment
Energy efficiency class	A (at a range of energy efficiency classes from A+++ to D)
Total connected load	3.7 kW
Connection cable	1.75 m, pluggable
Cooling and door glazing	Cooled housing with temperature protection; thermally insulated door with quintuple glazing
Planning – niche	Plan niche without back wall; protrusion from appliance front to furniture cabinet 42 mm
Planning – cooktop installation	For installation underneath cooktops: distance between underside of cooktop and top edge of oven housing minimum 15 mm
Planning – mains socket	Mains socket must be accessible and located outside the built–in niche
Selected digital services	Remote control and monitoring; software updates; cooking time estimation when using the core temperature probe; door opening via voice assistant
Date on datasheet	2025-12-12

Programmes, Functions and Usage

Heating methods / Programmes

Hot air plus
Hot air eco
Top + bottom heat
Top + 1/3 bottom heat
Top heat
Bottom + 1/3 top heat
Bottom heat
Hot air + bottom heat
Hot air + 1/3 bottom heat
Moist baking
Grill + circulated air
Grill
Baking stone function
Roaster function
Air frying
Dehydrating
Dough proving
Keeping warm
Defrosting

Handling and Control

Operation is via a full touch display with stainless steel control ring. The oven offers user detection with adjustable distance, light and display response, and info texts providing additional information. Animated quick guides assist with appliance operation. Timer functions include cooking time, cooking time end, count–up timer and a long–term timer with pre–programmable heating cycles.

Programmable automatic door opening at cooking time end helps avoid overcooking. Precise temperature control is supported by a display of the current temperature. Rapid heating and a hot air fan that rotates in both directions promote ideal heat distribution and faster heat–up.

Cooking Features

Invisible full surface grill behind enamel with the option to briefly add grill in hot air mode for additional browning.
Extra powerful bottom heating optimised for baking stone and roaster function.
Rotisserie spit for grilling from all sides.
Core temperature probe with three measuring points and cooking time estimation via digital services.
Side lighting ensures optimum visibility of the food.

Included and Optional Accessories

Included accessories:

1 x baking tray
1 x grill tray
1 x wire rack
1 x core temperature probe
1 x rotisserie spit

Optional accessories:

BA020110: Air frying tray 60 cm
BA026116: Baking tray, for 60 cm oven
BA026117: Grill tray, for 60 cm oven
BA036106: Wire rack, for 60 cm oven
BA046118: Glass tray 60 cm
BA056134: Baking stone for 60 cm pyro oven
BS020003: Pizza paddle
GN340231: Gastronorm roaster GN 2/3

Safety Features

Child lock to prevent accidental switch–on or operation.
Electronic door lock to prevent unintentional opening of the appliance door.
Safety shut–off.
Thermally insulated door with quintuple glazing.
Cooled housing with temperature protection.

Cleaning and Maintenance

The pyrolysis system offers self–cleaning in less than 4 hours, with minimised odour development thanks to the heated catalyser. Side shelf supports are enamelled and pyrolysis–safe, and the cooking compartment is seamless without obstructive elements to facilitate cleaning. Heated air cleaning catalyser contributes to maintaining a spotless oven.

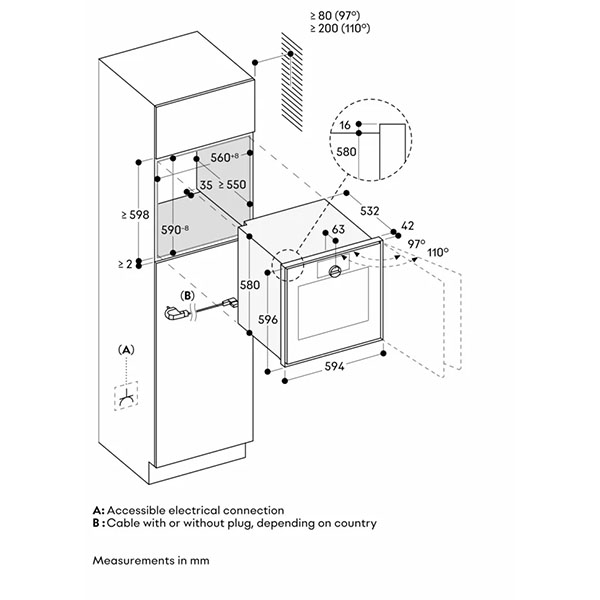

Installation and Planning Notes

The niche should be planned without a back wall. Door hinge is not reversible. Protrusion from the appliance front to the furniture cabinet is 42 mm. When planning a corner solution, the side–opening door and minimum required distance to the wall must be taken into account.

For installation underneath cooktops, the distance between the underside of the cooktop and the top edge of the oven housing must be at least 15 mm. Planning notes for cooktops, particularly regarding ventilation and gas/electric connection, must be taken into account. The mains socket must be accessible and located outside the built–in niche.

Frequently Asked Questions

What is the capacity of the Gaggenau GO470120 oven?

The oven has a net volume of 77 litres with 4 tray levels, providing generous space for a wide range of dishes.

Which cleaning system does this oven use?

It uses a pyrolytic self–cleaning system that offers high–efficiency cleaning in less than 4 hours. A heated air cleaning catalyser minimises odour, and the seamless, enamelled interior with pyrolysis–safe shelf supports is designed to aid cleaning.

What heating methods are available?

There are 19 heating methods from 30°C to 300°C, including hot air plus, hot air eco, various top and bottom heat combinations, moist baking, grill and grill with circulated air, baking stone function, roaster function, air frying, dehydrating, dough proving, keeping warm and defrosting.

What accessories are supplied with the oven?

Supplied accessories are 1 x baking tray, 1 x grill tray, 1 x wire rack, 1 x core temperature probe and 1 x rotisserie spit. Additional optional accessories such as an air frying tray, extra trays, wire rack, glass tray, baking stone, pizza paddle and gastronorm roaster are available.

Does the oven support remote control or smart functions?

Selected digital services via Gaggenau Home Connect include remote control and monitoring, software updates, cooking time estimation when using the core temperature probe and door opening via voice assistant.

What safety features does the GO470120 include?

Safety features include a child lock, electronic door lock, safety shut–off, thermally insulated door with quintuple glazing and a cooled housing with temperature protection.
