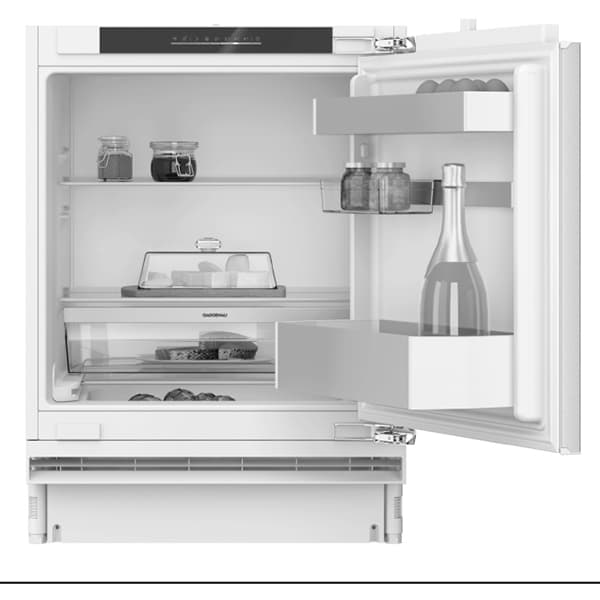

The Gaggenau RC202180 is a built-under fridge from the 200 series, designed for seamless integration beneath the worktop. It offers a total volume of 134 litres with an interior in light satin aluminium and height-adjustable safety glass shelves. Warm white, glare-free LED side lighting immerses the cabinet in an even glow. With a drawer close to 0 °C, fast cooling and electronic touch control, it supports flexible, precise refrigeration for fresh food storage.

Key Features

Built-under fridge 200 series designed for installation at 82 × 60 cm.
Glare-free LED Light Spots with warm white interior lighting (3500 K) to showcase stored food.
Interior in light satin aluminium with solid elements and aluminium profiles for a premium look.
Height-adjustable safety glass shelves with aluminium profile for flexible storage layout.
Drawer close to 0 °C with solid aluminium handle, ideal for meat, fish and poultry.
Total volume 134 litres across all refrigerator compartments.
LED electronic touch control for precise and convenient temperature setting.
Cushioned door closing system from 20° opening angle for soft, controlled closure.
Fast cooling function for rapid chilling of fresh groceries.
Temperature adjustable from +2 °C to +6 °C to suit different cooling needs.
Flexible door storage with large extra-deep bottle rack, height-adjustable rack and small adjustable rack.
Open-door alarm to signal when the door is not properly closed.
Holiday and rest modes to adapt appliance operation to different usage patterns.
Selected digital services (Gaggenau Home Connect) including remote control, monitoring and diagnostics.
Energy efficiency class E with an energy consumption of 93 kWh/year.
Quiet operation with a noise level of 35 dB (A) re 1 pW.
Right-hinged, reversible door with flat hinge and 115° opening angle, fixable at 90°.
Included accessory: 1 × egg tray.
Optional accessory: RA430100 storage container with lid, anthracite.

Technical Specifications

Product type	Built-under fridge 200 series
Model	RC202180
Dimensions	82 × 60 cm
Total volume (all refrigerator compartments)	134 litres
Temperature range	+2 °C to +6 °C (adjustable)
Lighting	Warm white interior lighting (3500 K) with integrated glare-free LED side light
Shelves	2 height-adjustable safety glass shelves with aluminium profile
Drawers and compartments	1 drawer with solid aluminium handle, close to 0 °C; 1 bottom compartment with sliding glass lid
Door storage	1 large extra-deep aluminium door rack for bottles; 1 height-adjustable aluminium door rack; 1 small adjustable door rack
Interior finish	Interior with solid elements in light satin aluminium
Control	LED electronic with touch control
Energy efficiency class	E (range of energy efficiency classes from A to G)
Energy consumption	93 kWh/year
Noise level	35 dB (A) re 1 pW
Door hinge	Right, reversible; flat hinge
Door opening angle	115°, fixable at 90°
Cushioned door closing	From 20° door opening angle, integrated in door hinge
Max. door panel weight	12 kg
Feet	Height-adjustable feet
Ventilation	The enclosed ventilation grille must be used
Mains connection	The main socket needs to be planned outside of the niche
Connecting cable	2.3 m with plug
Included accessories	1 × egg tray
Optional accessories	RA430100: Storage container with lid, anthracite

Additional Details and Usage

The fridge uses LED electronic touch control for straightforward adjustment of the interior temperature between +2 °C and +6 °C. Fast cooling helps chill newly loaded groceries quickly, while the drawer close to 0 °C is stated as ideal for meat, fish and poultry.

A cushioned door closing system is integrated into the door hinge and becomes effective from a 20° opening angle, ensuring soft and controlled closure. An open-door alarm provides an audible reminder if the door remains open, and holiday mode plus rest mode support adapted operation when the appliance is not in regular daily use.

Selected digital services are available via Gaggenau Home Connect, including remote control and monitoring as well as remote diagnostics. For correct installation, the flat-hinged, right-hinged door can be reversed, the enclosed ventilation grille must be used, and the main socket needs to be planned outside of the niche. Height-adjustable feet assist in precise alignment within the cabinetry.

Frequently Asked Questions

What is the total capacity of the RC202180 fridge?

The total volume of all refrigerator compartments is 134 litres.

What temperature range can be set?

The temperature is adjustable from +2 °C to +6 °C using the LED electronic touch control.

Is there a special compartment for meat and fish?

Yes. The appliance has 1 drawer with a solid aluminium handle, close to 0 °C, which is described as ideal for meat, fish and poultry.

What kind of lighting does the fridge use?

It features warm white interior lighting at 3500 K with integrated glare-free LED side light and Gaggenau’s glare-free LED Light Spots.

Can the door hinge be changed?

The door hinge is on the right as standard but is reversible, allowing it to be changed to suit the kitchen layout.

Does the RC202180 support remote control?

Yes. Selected digital services via Gaggenau Home Connect include remote control and monitoring as well as remote diagnostics.
