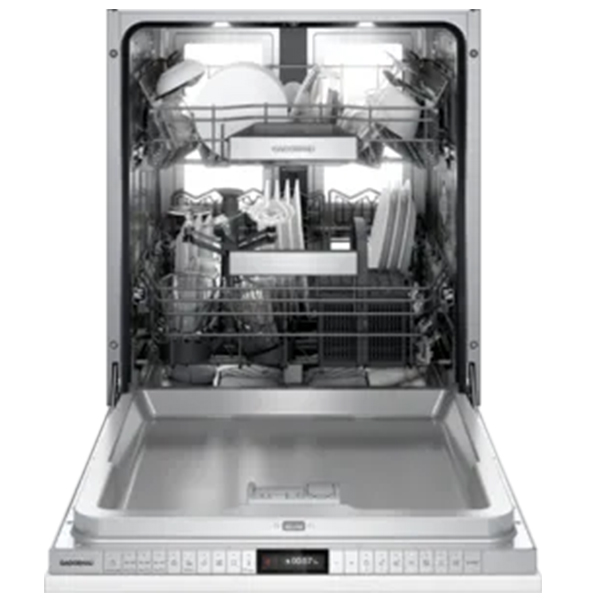

The DF480101F is a 60 cm Dishwasher 400 series with a variable hinge designed for seamless integration, including handleless kitchen fronts thanks to its push-to-open function. It offers 8 programmes with aqua sensor, 4 options and a flexible basket system with smooth running rails. With zeolite glass protection, very quiet 43 dB operation, energy efficiency class B and selected digital services via Home Connect, it is suited to refined, modern kitchen environments.

Key Features

Push-to-open function for perfect integration into handleless furniture fronts.
8 programmes with aqua sensor and 4 options, including Power from 57 minutes and Intensive Plus.
Perfectly illuminated interior with unique backlighting and two front LED lights plus Lateral Info-Light.
Glass protection with zeolite, elaborated basket design and intelligent water softening for sensitive glassware.
Flexible basket system with smooth running rails on all levels and cushioned closing of upper and lower baskets.
Flexible hinge enables reduced plinth height from 50 mm or tall unit installation.
Very quiet operation at 43 dB (re 1 pW) for low-noise use.
TFT display and touch key operation showing remaining time, end time and refill indications.
Flexible cycle time reduction, even during an active cycle, with personalisation function for saving programme combinations.
Drying assistant for optional door opening at the end of the programme.
Integrated WiFi module enabling selected digital services (Gaggenau Home Connect), including downloadable programmes.
Safety features including Aqua stop, soft lock and triple self-cleaning filter system.
Energy efficiency class B with water consumption from 9.5 l and from 0.626 kWh.
12 place setting capacity with maximum glass loading capacity of 23 wine glasses.
Connection to hot or cold water possible with 3/4 ' screw joint.

Technical Specifications

Product name	Dishwasher 400 series
Model reference	DF480101F
Width	60 cm
Hinge type	Variable hinge / flexible hinge
Energy efficiency class	B (range from A to G)
Water consumption	From 9.5 l water
Energy consumption	From 0.626 kWh
Noise level	43 dB (re 1 pW)
Programmes	8 programmes with aqua sensor and 4 options
Place settings	12 place setting capacity
Maximum glass loading	23 wine glasses
Maximum dish sizes (upper/lower)	27/25, 24.5/27.5 or 22/31 cm respectively
Included accessories	1 x baking tray spray head; 1 x GN container insert; 1 x holder for long-stemmed glasses; 1 x stainless steel trim kit
Optional accessories	DA041160 Cutlery Drawer with smooth running rails; DA042030 Silver polishing cassette; DA043000 Holder for long-stemmed glasses; GZ010011 inlet and outlet hose extention
Installation accessories	GZ010011 inlet and outlet hose extention
Height-adjustable feet	Yes (rear feet adjustable at front)
Appliance plinth recess	100 mm
Minimum plinth height	50 mm (with flexible hinge)
Door weight	Up to 11 kg
Door panel	Dimension dependent on plinth height of kitchen furniture; installation and usage also with furniture handle possible (push-to-open remains active)
Total connected load	2000–2400 W
Connecting cable	Plugable
Water connection	3/4 ' screw joint; connection to hot or cold water possible
Power consumption standby/network	2 W
Time auto-standby/network	2 min

Programmes, Functions and Use

Programmes

The appliance offers 8 programmes: Auto 35 °C–45 °C, Auto 45 °C–65 °C, Auto 65 °C–75 °C, Intensive 70 °C, Eco 50 °C, Night programme, Quick wash 45 °C (35 min.) and a Personalisation function (default setting: Pre-rinse).

Four options are available: Intensive Plus, Power, Half Load and Hygiene. Machine Care is also provided.

Handling and controls

TFT display indicating remaining or end time, refill for salt and rinsing agent, and inflow of water.
Touch key operation for programme and option selection.
Flexible cycle time reduction, even during an active cycle.
Personalisation function for saving individual combinations of programmes.
Drying assistant enabling optional door opening at the end of the programme.
Information key with use indications.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Lateral Info-Light.

Features and care

Perfectly illuminated interior.
Glass protection with zeolite.
Aqua sensor and load sensor.
Automatic detergent function and regeneration electronics.
Continuous flow heater and heat exchanger.
Triple filter system, self-cleaning.
Soft lock and Aqua stop.

Basket design and loading

The flexible basket system includes smooth running rails on all levels and cushioned closing of the upper and lower basket.

Upper basket: Over extension; optional extra cleaning area by activating additional spray nozzles; Rackmatic with 3 levels, adjustable in height up to 5 cm; 6 folding spines; 4 folding racks for optimal protection of glass.
Lower basket: Motorised spray arm; 8 folding spines; 2 folding racks for optimal protection of glass; dividable glass support; cutlery basket.

Digital services (Gaggenau Home Connect)

Selected digital services include Programme Intelligent for adapting a cycle based on user feedback, programme assistant, downloadable programmes, temporary noise reduction and software updates. An integrated WiFi module enables these services.

The availability of the Home Connect functionality depends on the availability of the Home Connect Services in the country. Home Connect Services are not available in every country.

Planning and installation notes

Height-adjustable feet with rear feet adjustable from the front.
Appliance plinth recess 100 mm.
Flexible hinge for reduced plinth height as of 50 mm or tall unit installation.
Door weight up to 11 kg.
Door panel dimension dependent on plinth height of kitchen furniture.
Installation and usage also possible with furniture handle; the push-to-open function remains active.
Please check the user manual for how to switch off the WiFi module.

Frequently Asked Questions

How many place settings does the DF480101F hold?

The dishwasher has a 12 place setting capacity and a maximum glass loading capacity of 23 wine glasses.

Is this dishwasher suitable for handleless kitchen fronts?

Yes. It features a push-to-open function for perfect integration into handleless furniture fronts and can also be installed and used with a furniture handle while keeping push-to-open active.

What are the available washing programmes?

The appliance offers Auto 35 °C–45 °C, Auto 45 °C–65 °C, Auto 65 °C–75 °C, Intensive 70 °C, Eco 50 °C, Night programme, Quick wash 45 °C (35 min.) and a Personalisation function (default setting: Pre-rinse).

How quiet is the DF480101F in operation?

The dishwasher is described as very quiet, with a noise level of 43 dB (re 1 pW).

Does the dishwasher protect delicate glassware?

Yes. It provides optimal protection for sensitive glassware through low temperature drying with zeolite, an elaborated basket design and intelligent water softening, along with folding racks and supports designed for glass in both baskets.

Can I connect the dishwasher to hot water?

Yes. Connection to hot or cold water is possible using a 3/4 ' screw joint.
