The Gaggenau DF480101 is a 60 cm built-in Dishwasher 400 series model designed for flexible loading and quiet performance. It offers 8 programmes with aqua sensor and 4 options, including Power and Intensive Plus, alongside a flexible basket system with smooth running rails. With a very quiet 43 dB operation, perfectly illuminated interior, push-to-open function for handleless fronts and selected digital services via Home Connect, it supports efficient, convenient dishwashing.

Key Features

Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower basket.
Push-to-open function for perfect integration into handleless furniture fronts; also usable with furniture handle.
8 programmes with aqua sensor and 4 options, including Power from 57 minutes and Intensive Plus for adjusting cleaning areas in the lower basket.
Optimal glass protection with low temperature drying using zeolite, elaborated basket design and intelligent water softening.
Very quiet operation at only 43 dB for discreet dishwashing.
Perfectly illuminated interior for clear visibility of all baskets and loading areas.
Remaining time projection onto the kitchen floor for easy monitoring of the cycle.
TFT display and touch key operation showing remaining or end time, salt and rinsing agent refill, and water inflow.
Flexible cycle time reduction, even during an active cycle, for added convenience.
Personalisation function for saving individual combinations of programmes.
Drying assistant for optional door opening at the end of the programme.
Advanced sensors including aqua sensor, load sensor and automatic detergent function.
Efficient water and energy use from 9.5 l of water and from 0.626 kWh with energy efficiency class B (A to G scale).
Home Connect digital services with integrated WiFi module, including Programme Intelligent, Programme assistant and downloadable programmes.
Aqua stop and soft lock for added safety and user comfort.
Large capacity with 12 place settings and up to 23 wine glasses maximum glass loading capacity.
Included accessories such as baking tray spray head, GN container insert, holder for long-stemmed glasses and stainless steel trim kit.

Technical Specifications

Product series	Dishwasher 400 series
Model	DF480101
Appliance width	60 cm
Place setting capacity	12 place setting capacity
Maximum glass loading capacity	23 wine glasses
Energy efficiency class	B (range from A to G)
Water consumption	From 9.5 l water
Energy consumption	From 0.626 kWh
Noise level	43 dB (re 1 pW)
Programmes	8 programmes with aqua sensor and 4 options
Programme temperatures	Auto 35 °C – 45 °C; Auto 45 °C – 65 °C; Auto 65 °C – 75 °C; Intensive 70 °C; Eco 50 °C; Quick wash 45 °C (35 min.); Night programme; Personalisation function (default setting: Pre-rinse)
Options	Intensive Plus; Power; Half Load; Hygiene; Machine Care
Maximum dish sizes	Upper/lower basket: 27/25, 24.5/27.5 or 22/31 cm respectively
Total connected load	2000–2400 W
Water connection	Water connection with 3/4 ' screw joint; connection to hot or cold water possible
Standby/network power	2 W; time auto-standby/network 2 min.
WiFi module	Integrated WiFi module for digital services (Home Connect)
Height-adjustable feet	Yes, including rear feet adjustable at front
Plinth recess	Appliance plinth recess 100 mm (minimum plinth protrusion required for time projection: 40 mm + furniture front thickness)
Maximum plinth height note	Maximum plinth height must be reduced by 30 mm for optimal remaining time projection display
Door weight	Up to 8.5 kg
Door panel dimensions	Door panel dimension dependent on plinth height of kitchen furniture
Connecting cable	Connecting cable plugable

Programmes, Features and Usage

Programmes and options

The appliance provides 8 programmes with aqua sensor: Auto 35 °C – 45 °C, Auto 45 °C – 65 °C, Auto 65 °C – 75 °C, Intensive 70 °C, Eco 50 °C, Night programme, Quick wash 45 °C (35 min.) and a Personalisation function (default setting: Pre-rinse). Four options are available: Intensive Plus, Power, Half Load and Hygiene, plus Machine Care.

Control and display

TFT display indicating remaining or end time, refill for salt and rinsing agent, and inflow of water.
Touch key operation for simple programme and option selection.
Flexible cycle time reduction, including during an active cycle.
Information key with use indications.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Remaining time projection onto the kitchen floor.

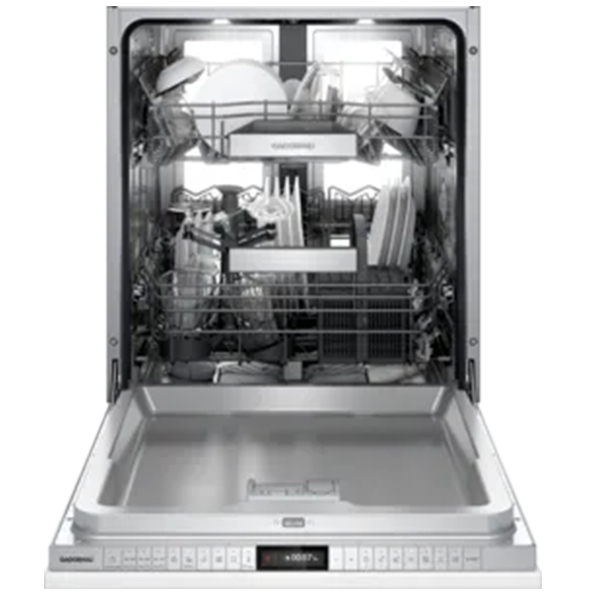

Interior and loading

Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower basket.
Upper basket with over extension, optional extra cleaning area via additional spray nozzles, Rackmatic with 3 levels adjustable in height up to 5 cm, 6 folding spines and 4 folding racks for optimal protection of glass.
Lower basket with motorised spray arm, 8 folding spines, 2 folding racks for optimal protection of glass, dividable glass support and cutlery basket.
Maximum dish sizes in upper/lower basket: 27/25, 24.5/27.5 or 22/31 cm respectively.
Perfectly illuminated interior for clear loading visibility.

Performance and care features

Glass protection with zeolite and intelligent water softening for sensitive glassware.
Aqua sensor and load sensor for optimised water use.
Automatic detergent function.
Regeneration electronics, heat exchanger and continuous flow heater.
Triple filter system, self-cleaning.
Soft lock for cushioned door closing and aqua stop for protection against water damage.
Drying assistant for optional door opening at the end of the programme.

Digital services (Home Connect)

Selected digital services via Gaggenau Home Connect include Programme Intelligent for adapting a cycle based on user feedback, Programme assistant, downloadable programmes, temporary noise reduction and software updates. An integrated WiFi module enables these digital services. The availability of Home Connect functionality depends on the availability of Home Connect Services in the relevant country.

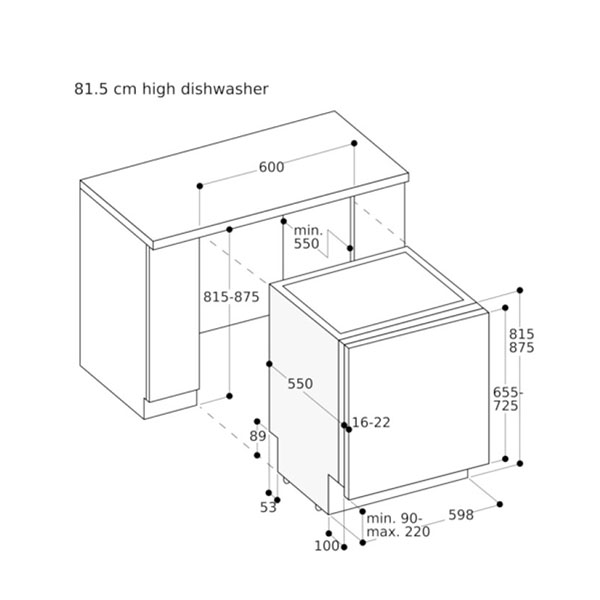

Installation and planning notes

Height-adjustable feet with rear feet adjustable from the front.
Appliance plinth recess 100 mm; a minimum plinth protrusion of 40 mm plus furniture front thickness is required for displaying remaining time projection.
Maximum plinth height must be reduced by 30 mm for optimal projection visibility.
Door weight up to 8.5 kg; door panel dimension depends on plinth height of kitchen furniture.
Installation and usage also possible with furniture handle; the push-to-open function remains active.
Water connection via 3/4 ' screw joint; connection to hot or cold water possible.
Please check the user manual for how to switch off the WiFi module.

Accessories

Included accessories:

1 x baking tray spray head
1 x GN container insert
1 x holder for long-stemmed glasses
1 x stainless steel trim kit

Optional accessories:

DA021000: Retractable hinge f. high corpus dimens.
DA041160: Cutlery Drawer with smooth running rails
DA042030: Silver polishing cassette
DA043000: Holder for long-stemmed glasses
GZ010011: inlet and outlet hose extention

Installation accessories:

DA021000: Retractable hinge f. high corpus dimens.
GZ010011: inlet and outlet hose extention

Frequently Asked Questions

How many place settings can the DF480101 hold?

The DF480101 offers a 12 place setting capacity and a maximum glass loading capacity of 23 wine glasses.

Which wash programmes are available?

The dishwasher has 8 programmes with aqua sensor: Auto 35 °C – 45 °C, Auto 45 °C – 65 °C, Auto 65 °C – 75 °C, Intensive 70 °C, Eco 50 °C, Night programme, Quick wash 45 °C (35 min.) and a Personalisation function (default setting: Pre-rinse).

Is the DF480101 suitable for handleless kitchen fronts?

Yes. The push-to-open function allows perfect integration into handleless furniture fronts. Installation and usage with a furniture handle are also possible, and the push-to-open function remains active.

How quiet is the dishwasher during operation?

The DF480101 is rated at 43 dB (re 1 pW), described as very quiet, making it suitable for open-plan or noise-sensitive environments.

Does the DF480101 support WiFi and Home Connect services?

The appliance includes an integrated WiFi module for digital services (Home Connect), offering features such as Programme Intelligent, Programme assistant, downloadable programmes, temporary noise reduction and software updates. Availability of Home Connect Services depends on the country.

What safety and protection features are included?

Safety-related features include aqua stop, soft lock, glass protection with zeolite, regeneration electronics, a heat exchanger, continuous flow heater and a triple filter system that is self-cleaning.
