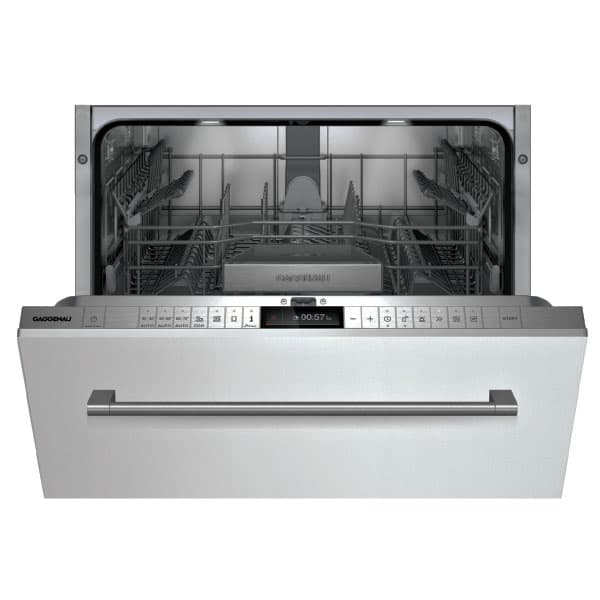

The DF260101 Dishwasher 200 series is a 60 cm model with 13 place setting capacity designed for flexible, quiet and efficient dishwashing. It offers 6 programmes with aqua sensor and 3 options, including Power for cleaning and drying from 57 minutes and Intensive for thorough cleaning in the lower basket. With bright interior lighting, a flexible basket system on all levels, glass protection with zeolite and Home Connect digital services, it supports a superior kitchen experience.

Key Features

6 programmes with aqua sensor and 3 options, including Power from 57 minutes and Intensive for thorough lower basket cleaning.
Flexible basket system on all levels with adjustable upper basket, folding spines and racks, and dividers for glass support.
Optimal glass protection with zeolite using low temperature drying, elaborated basket design and intelligent water softening.
Bright interior lighting from two LED lights positioned at the top front for a clearly illuminated interior.
Very quiet operation at a noise level of 43 dB (re 1 pW).
TFT display and touch key operation showing remaining or end time, refill indicators and water inflow status.
Remaining time projection onto the kitchen floor, with visual and acoustic end of programme indicator.
Personalisation function for saving individual combinations of programmes.
Drying assistant for optional door opening at the end of the programme.
Selected digital services via Home Connect including programme assistant, downloadable programmes and temporary noise reduction.
Energy efficiency class B with water consumption from 9.5 l and energy consumption from 0.635 kWh.
13 place setting capacity with maximum glass loading capacity of 23 wine glasses.
Safety features include Aqua stop, soft lock and triple self-cleaning filter system.
Included accessories of 1 x baking tray spray head and 1 x stainless steel trim kit.

Technical Specifications

Product name	Dishwasher 200 series, DF260101
Width	60 cm
Place settings	13 place setting capacity
Energy efficiency class	B (range A to G)
Water consumption	From 9.5 l water
Energy consumption	From 0.635 kWh
Noise level	43 dB (re 1 pW)
Programmes	6 programmes: Auto 35 °C – 45 °C; Auto 45 °C – 65 °C; Auto 65 °C – 75 °C; Eco 50 °C; Quick wash 45 °C (35 min.); Personalisation function (default setting: Pre-rinse).
Options	Intensive; Power; Half Load; Machine Care
Maximum dish sizes	(Upper/lower basket) 27/25, 24.5/27.5 or 22/31 cm respectively
Maximum glass loading	Maximum glass loading capacity 23 wine glasses
Interior lighting	Two LED lights positioned at the top front
Display and controls	TFT display, touch key operation, information key, time delay up to 24 hours
Connectivity	Integrated WiFi module for digital services (Home Connect); selected digital services (Gaggenau Home Connect)
Water connection	Water connection with 3/4 ' screw joint; connection to hot or cold water possible
Total connected load	2.0 KW – 2.4 KW
Power consumption (standby/network)	2 W
Power consumption (left-on-mode)	0.5 W
Power consumption (off-mode)	0.5 W
Time auto-standby/network	2 min.
Left-on-mode duration	0 min.
Height-adjustable feet	Height-adjustable feet; rear feet adjustable at front

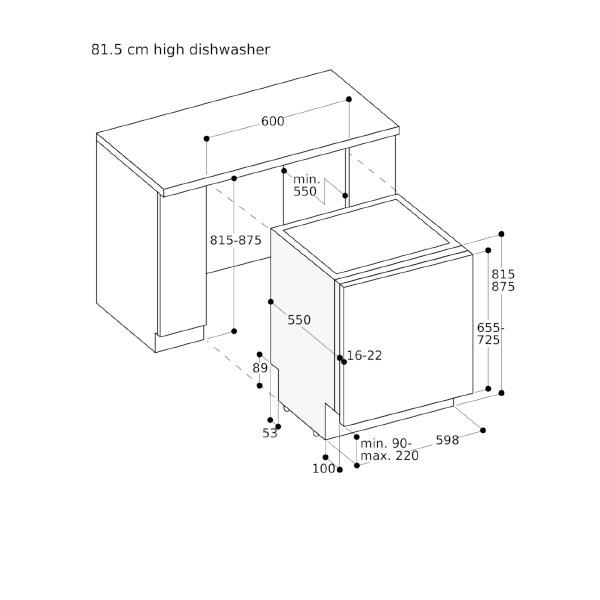

Appliance plinth recess	100 mm (see drawing)
Door weight	Door weight up to 8.5 kg
Installation notes	To display the remaining time projection, a minimum plinth protrusion must be present (40 mm + thickness of the furniture front). The maximum plinth height must be reduced by 30 mm to provide an optimal display of the remaining time projection.
Connecting cable	Connecting cable plugable
Date of document	2025-12-12

Programmes, Interior and Usage Details

Programmes and options

The appliance provides 6 programmes with aqua sensor: Auto 35 °C – 45 °C, Auto 45 °C – 65 °C, Auto 65 °C – 75 °C, Eco 50 °C, Quick wash 45 °C (35 min.) and a personalisation function with default setting Pre-rinse. Three options (Intensive, Power and Half Load) and Machine Care are available, with flexible cycle time reduction possible even during an active cycle.

Handling and user interface

A TFT display indicates remaining or end time, refill for salt and rinsing agent, and inflow of water. Operation is via touch keys, with an information key providing use indications. A time delay of up to 24 hours, visual and acoustic end of programme indicators, remaining time projection and a drying assistant for optional door opening at the end of the programme support convenient use.

Interior layout and loading

The flexible basket system includes over extension in the upper basket, optional extra cleaning area by activating additional spray nozzles, and Rackmatic with 3 levels, adjustable in height up to 5 cm. The upper basket features 6 folding spines and 4 folding racks for optimal protection of glass. The lower basket provides 8 folding spines, 2 folding racks for glass protection, a dividable glass support and a cutlery basket.

Features and protection

Key features include glass protection with zeolite, aqua sensor, load sensor, automatic detergent function, regeneration electronics, heat exchanger, continuous flow heater and a triple self-cleaning filter system. Soft lock and Aqua stop add further protection. Bright interior light and remaining time projection contribute to an enhanced kitchen environment.

Digital services

Selected digital services (Gaggenau Home Connect) include programme assistant, downloadable programmes, temporary noise reduction and software updates, supported by an integrated WiFi module for digital services (Home Connect). The availability of the Home Connect functionality depends on the availability of the Home Connect Services in the relevant country. Home Connect Services are not available in every country.

Installation and planning notes

Height-adjustable feet and rear feet adjustable at the front support precise installation. An appliance plinth recess of 100 mm is required. For remaining time projection, a minimum plinth protrusion of 40 mm plus the thickness of the furniture front is necessary, and the maximum plinth height must be reduced by 30 mm. Door weight is up to 8.5 kg, and door panel dimensions depend on the plinth height of the kitchen furniture.

Included and optional accessories

Included: 1 x baking tray spray head
Included: 1 x stainless steel trim kit
Optional: DA021000: Retractable hinge f. high corpus dimens.
Optional: DA041061: Cutlery Drawer
Optional: DA042030: Silver polishing cassette
Optional: DA043000: Holder for long-stemmed glasses
Optional: GZ010011: inlet and outlet hose extention
Installation accessories: DA021000: Retractable hinge f. high corpus dimens.
Installation accessories: GH045010: Handle ss 45 cm
Installation accessories: GZ010011: inlet and outlet hose extention

Frequently Asked Questions

How many place settings can the DF260101 hold?

The dishwasher offers a 13 place setting capacity with a maximum glass loading capacity of 23 wine glasses.

Which wash programmes are available?

Programmes include Auto 35 °C – 45 °C, Auto 45 °C – 65 °C, Auto 65 °C – 75 °C, Eco 50 °C, Quick wash 45 °C (35 min.) and a personalisation function with default setting Pre-rinse.

How quiet is the DF260101 in operation?

The appliance is described as very quiet, with a noise level of 43 dB (re 1 pW).

Does this dishwasher protect delicate glassware?

Yes. It offers optimal protection for sensitive glassware through low temperature drying with zeolite, elaborated basket design, intelligent water softening and folding racks for optimal protection of glass.

Is the DF260101 compatible with Home Connect services?

The dishwasher features an integrated WiFi module for digital services (Home Connect) and supports selected digital services. Availability of Home Connect functionality depends on the availability of Home Connect Services in the country, and these services are not available in every country.

What are the water and energy consumption values?

Product rating values are from 9.5 l water and from 0.635 kWh, with an energy efficiency class of B on a scale from A to G.

DF260101

Gaggenau 200 Series DF260101 Dishwasher
