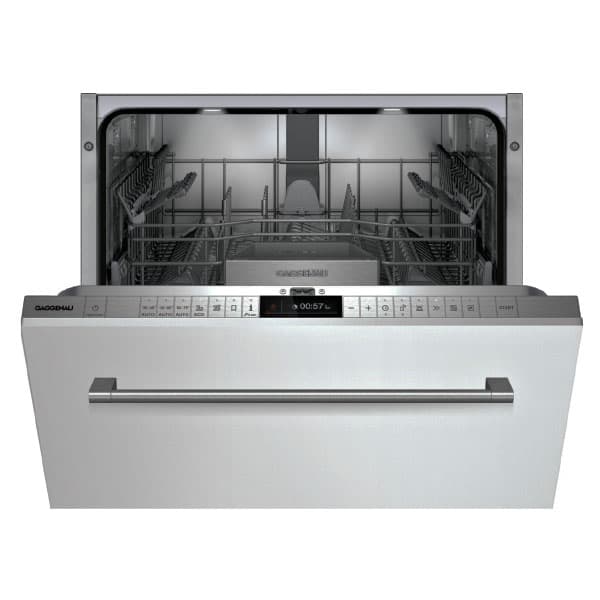

The DF261101 is a 60 cm built-in Dishwasher 200 series with 6 programmes, 3 options and a flexible basket system designed for up to 13 place settings. It offers bright interior lighting, remaining time projection on the kitchen floor and very quiet operation at 43 dB. With glass protection using zeolite, selectable digital services via an integrated WiFi module and an energy efficiency class B rating, it is suitable for households seeking efficient, versatile dishwashing.

Key Features

6 programmes with aqua sensor and 3 options including Power from 57 minutes and Intensive for thorough cleaning in the lower basket.
Very quiet operation with a noise level of 43 dB (re 1 pW).
Flexible basket system on all levels with adjustable upper basket and multiple folding spines and racks.
Optimal glass protection thanks to low temperature drying with zeolite, elaborated basket design and intelligent water softening.
Bright interior lighting from two LED lights positioned at the top front.
Remaining time projection onto the kitchen floor for clear programme status.
TFT display and touch key operation showing remaining or end time, refill indicators and water inflow.
Flexible cycle time reduction, available even during an active cycle.
Personalisation function for saving individual combinations of programmes (default setting: Pre-rinse).
Drying assistant enabling optional door opening at the end of the programme.
Energy efficiency class B at a range of energy efficiency classes from A to G.
Low water and energy consumption from 9.5 l water and from 0.635 kWh.
13 place setting capacity with a maximum glass loading capacity of 23 wine glasses.
Comprehensive protection systems including aqua sensor, load sensor, regeneration electronics, heat exchanger, aqua stop and triple self-cleaning filter system.
Selected digital services (Gaggenau Home Connect) such as Programme assistant, downloadable programmes, temporary noise reduction and software updates.
Integrated WiFi module for digital services (Home Connect), subject to service availability in the country.
Flexible installation planning with height-adjustable feet and rear feet adjustable from the front.
Included accessories of 1 x baking tray spray head and 1 x stainless steel trim kit.
Optional accessories available including retractable hinge for high corpus dimensions, cutlery drawer, glassware holders and hose extension.

Technical Specifications

Product series	Dishwasher 200 series
Model	DF261101
Width	60 cm
Place setting capacity	13 place setting capacity
Maximum glass loading capacity	23 wine glasses
Energy efficiency class	B (range A to G)
Water consumption	From 9.5 l water
Energy consumption	From 0.635 kWh
Noise level	43 dB (re 1 pW)
Programmes	6 programmes: Auto 35 °C – 45 °C; Auto 45 °C – 65 °C; Auto 65 °C – 75 °C; Eco 50 °C; Quick wash 45 °C (35 min.); Personalisation function (default setting: Pre-rinse).
Options	Intensive; Power; Half Load; Machine Care.
Interior lighting	Two LED lights at the top front.
Display and controls	TFT display; touch key operation.
Projection	Remaining time projection onto the kitchen floor.
Glass protection	Glass protection with zeolite and intelligent water softening.
Sensors and systems	Aqua sensor; load sensor; automatic detergent function; regeneration electronics; heat exchanger; continuous flow heater; triple filter system, self-cleaning.
Safety	Soft lock; aqua stop.
Digital services	Selected digital services (Gaggenau Home Connect): Programme assistant; downloadable programmes; temporary noise reduction; software updates.
Connectivity	Integrated WiFi module for digital services (Home Connect); availability depends on country services.
Upper basket features	Over extension; optional extra cleaning area via additional spray nozzles; Rackmatic with 3 levels (height adjustable up to 5 cm); 6 folding spines; 4 folding racks for glass protection.
Lower basket features	8 folding spines; 2 folding racks for glass protection; dividable glass support; cutlery basket.
Maximum dish sizes (upper/lower)	29/28, 26.5/30.5 or 24/34 cm respectively.
Included accessories	1 x baking tray spray head; 1 x stainless steel trim kit.
Optional accessories	DA021000: Retractable hinge for high corpus dimensions; DA041061: Cutlery Drawer; DA042030: Silver polishing cassette; DA043000: Holder for long-stemmed glasses; DA045060: 3. Basket; GZ010011: inlet and outlet hose extension.
Installation accessories	DA021000: Retractable hinge for high corpus dimensions; GH045010: Handle ss 45 cm; GZ010011: inlet and outlet hose extension.
Height-adjustment	Height-adjustable feet; rear feet adjustable at front.
Appliance plinth recess	100 mm (with further notes on projection and plinth height reduction).
Door weight	Up to 10 kg.
Door panel dimensions	Dependent on plinth height of kitchen furniture.
Total connected load	2.0 KW – 2.4 KW.
Connecting cable	Plugable.
Water connection	3/4 ' screw joint; connection to hot or cold water possible.
Power consumption standby/network	2 W.
Power consumption left-on-mode	0.5 W.
Power consumption off-mode	0.5 W.
Time auto-standby/network	2 min.
Left-on-mode duration	0 min.
WiFi module deactivation	Please check the user manual for how to switch off the WiFi module.

Programmes, Operation and Installation

Programmes and options

The appliance provides 6 programmes with aqua sensor: three Auto programmes (35 °C – 45 °C, 45 °C – 65 °C, 65 °C – 75 °C), Eco 50 °C, Quick wash 45 °C (35 minutes) and a Personalisation function (default: Pre-rinse). Options include Intensive, Power, Half Load and Machine Care.

Handling and controls

A TFT display indicates remaining or end time, refill for salt and rinsing agent, and inflow of water. Operation is via touch keys. Features include flexible cycle time reduction (even during an active cycle), a personalisation function for saving programme combinations, a drying assistant for optional door opening, an information key with use indications, time delay up to 24 hours, and visual and acoustic end of programme indicators.

Interior layout

The flexible basket system comprises an upper basket with over extension, optional extra cleaning area via additional spray nozzles, Rackmatic with 3 height levels (up to 5 cm), 6 folding spines and 4 folding racks for glass. The lower basket includes 8 folding spines, 2 folding racks for glass protection, a dividable glass support and a cutlery basket, allowing flexible loading and glass care.

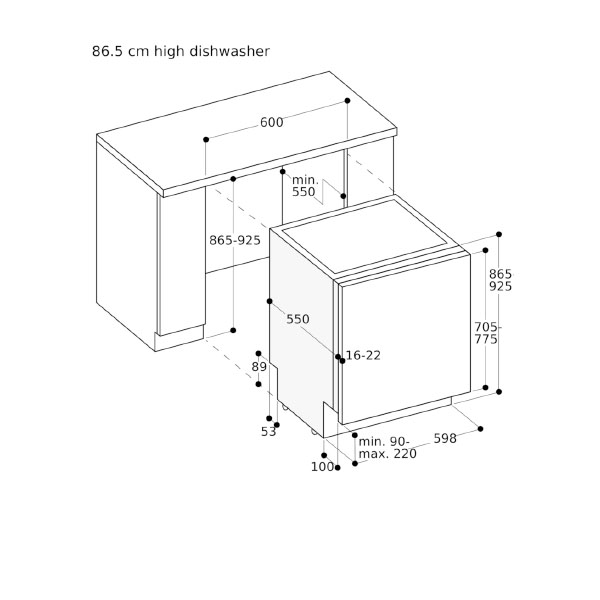

Installation notes

The appliance has height-adjustable feet with rear feet adjustable from the front. The appliance plinth recess is 100 mm. To display the remaining time projection, a minimum plinth protrusion is required (40 mm plus furniture front thickness), and the maximum plinth height must be reduced by 30 mm for optimal display. Door weight can be up to 10 kg and door panel dimensions depend on the plinth height of the kitchen furniture. Water connection uses a 3/4 ' screw joint to hot or cold water.

Frequently Asked Questions

How many place settings does the DF261101 hold?

The DF261101 has a 13 place setting capacity and can hold up to 23 wine glasses.

What are the main wash programmes available?

The dishwasher offers 6 programmes: Auto 35 °C – 45 °C, Auto 45 °C – 65 °C, Auto 65 °C – 75 °C, Eco 50 °C, Quick wash 45 °C (35 minutes) and a Personalisation function with default setting Pre-rinse.

How does this dishwasher protect delicate glassware?

Glassware is protected by low temperature drying with zeolite, an elaborated basket design, intelligent water softening, folding glass racks, a dividable glass support and options such as a holder for long-stemmed glasses as an accessory.

Is the DF261101 suitable for open-plan kitchens?

The dishwasher operates at 43 dB (re 1 pW), described as very quiet, and offers temporary noise reduction via selected digital services, which can be beneficial in open-plan environments.

Does the appliance support Home Connect features?

Yes, an integrated WiFi module enables selected digital services (Gaggenau Home Connect) including Programme assistant, downloadable programmes, temporary noise reduction and software updates, subject to the availability of Home Connect services in the country.

Can I reduce the running time of a programme that has already started?

The appliance offers flexible cycle time reduction, even during an active cycle, allowing you to shorten the programme duration.
