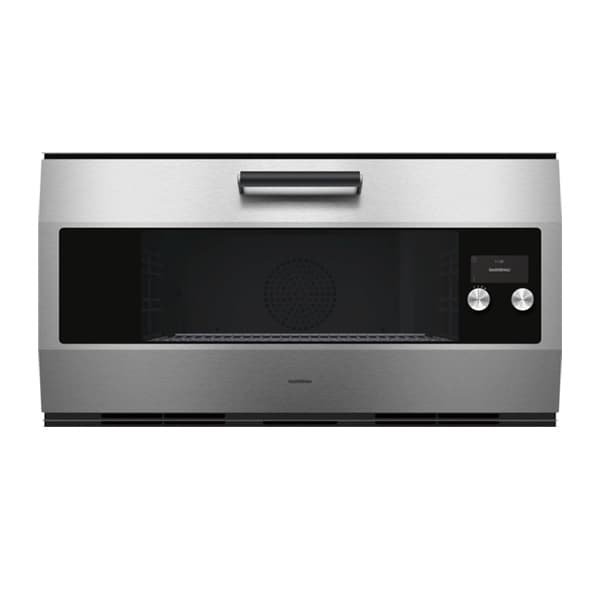

The Gaggenau EB333111 is a 90 cm built-in oven with an 83 litre net volume, designed with a one-piece front-hinged door and precision crafted 3 mm stainless steel front panel. It offers 17 heating methods, including baking stone, rotisserie spit and dough proofing functions, supported by a core temperature probe with automatic programmes. A pyrolytic system, TFT touch display and selected digital services via Home Connect provide convenient operation, cleaning and remote control options.

Key Features

17 heating methods including hot air, grills, baking stone function, roaster function, dough proofing, defrosting and keeping warm.
Pyrolytic system with pyrolysis-safe enamelled side shelf supports for easy cleaning.
Three-point core temperature probe with automatic shut-off and estimation of cooking time.
Rotisserie spit and baking stone socket for versatile roasting and baking options.
83 litre net volume with enamelled side shelf supports and 3 tray levels.
Electronic temperature control from 30 °C to 300 °C with actual temperature display and rapid heating.
TFT touch display and rotary knob with clear text, information key and option to save individual recipes.
Panel-free appliance design with control module behind glass and cushioned door opening and closing system.
Thermally insulated door with quintuple glazing plus child lock, safety shut-off and cooled housing with temperature protection.
Selected digital services (Gaggenau Home Connect) including automatic programmes, remote control, monitoring and recipes via LAN or WiFi.
Energy efficiency class A at a range of energy efficiency classes from A+++ to D.
Comprehensive included accessories such as enamel baking tray suitable for pyrolytic clean, rotary spit, grill shelf, grill tub with grid and pluggable meat probe.

Technical Specifications

Model	EB333111
Appliance type	90 x 48 cm oven, stainless steel
Net volume	83 litres net volume
Heating methods	17 heating methods with core temperature probe, rotisserie spit and baking stone function: Hot air; Eco hot air; Top + bottom heat; Top + 1/3 bottom heat; Top heat; 1/3 top + bottom heat; Bottom heat; Hot air + bottom heat; Hot air + 1/3 bottom heat; Full surface grill + circulated air; Full surface grill; Compact grill; Baking stone function; Roaster function; Dough proofing; Defrosting; Keeping warm.
Temperature range	Electronic temperature control from 30 °C to 300 °C
Door design	One-piece front-hinged door with 3 mm precision crafted stainless steel front door panel; 90° door opening angle; cushioned door opening and closing system
Interior lighting	60 W halogen light on the top; 2 x 10 W halogen light on the side; diagonally positioned light sources for optimal interior lighting
Controls & display	Rotary knob and TFT touch display operation; panel-free appliance with control module behind glass; clear text display; information key with use indications
Core temperature probe	Three-point core temperature probe with automatic shut-off and estimation of cooking time; option to save individual recipes (incl. core temperature probe)
Hot air fan	Hot air fan rotates in both directions for ideal heat distribution
Automatic programmes	Automatic programmes with personalisation and selected digital services via Home Connect
Timer functions	Cooking time; cooking time end; timer; stopwatch; long-term timer (certified by Star-K)
Cleaning system	Pyrolytic system; Gaggenau enamel; heated air cleaning catalyser
Safety features	Thermally insulated door with quintuple glazing; child lock; safety shut-off; cooled housing with temperature protection
Included accessories	1 x enamel baking tray, suitable for pyrolytic clean; 1 x rotary spit; 1 x grill shelf; 1 x grill tub with grid; 1 x pluggable meat probe.
Optional accessories	BA018105: 1 telescopic shelf rail, 76 cm/90 cm oven; BA028115: Baking tray, for 76 cm/90 cm oven; BA038105: Wire shelf, for 76 cm/90 cm oven; BA058115: Heating element 230 V, for 76 cm/90 cm oven; BA058135: Baking stone for 90 cm oven; BA090100: Black rotary knobs for oven; BS020003: Pizza paddle; GN340230: Gastronorm roaster GN 2/3, oven 90 x 48 cm, stainless steel.
Digital services	Selected digital services (Gaggenau Home Connect): automatic programmes; remote control and monitoring; recipes; home network integration via LAN (recommended) or WiFi; availability depends on Home Connect Services in the country
Energy efficiency class	Energy efficiency class A at a range of energy efficiency classes from A+++ to D
Total connected load	5.4 kW
Standby power consumption	Power consumption standby/display on: 0.7 W; Power consumption standby/display off: 0.5 W; Power consumption standby/network: 1.5 W.
Auto-standby times	Time auto-standby/display on: 20 min; Time auto-standby/display off: 20 min; Time auto-standby/network: 20 min.
Installation depth	To achieve the 550 mm installation depth, the connection cable needs to follow the slanted edge on the corner of the housing.
Door projection	Door panel surface extends 40 mm from the furniture cavity; Outer edge of the door handle extends 90 mm from the furniture cavity.
Installation under cooktops	Distance between underside of cooktop and top edge of oven housing: min. 15 mm; planning notes for cooktops must be taken into account.
Connections required	Plan a connection cable; plan a LAN cable; main socket needs to be planned outside of the niche; LAN port at the back on the upper left side.
WiFi module	Please check the user manual for how to switch off the WiFi module.

Functions, Cleaning and Installation

Programmes and handling

Handling is via a rotary knob and TFT touch display with clear text display and information key with use indications. The oven offers automatic programmes, which can be personalised, and an option to save individual recipes including settings for the core temperature probe. Rapid heating and actual temperature display support precise cooking, while the hot air fan rotates in both directions for ideal heat distribution.

Cleaning

Cleaning is supported by a pyrolytic system, Gaggenau enamel and a heated air cleaning catalyser. The enamelled side shelf supports with 3 tray levels are pyrolysis-safe, allowing thorough cleaning of the cavity during the pyrolytic cycle.

Safety

Safety features include a thermally insulated door with quintuple glazing, a child lock, safety shut-off and a cooled housing with temperature protection. Timer functions such as long-term timer (certified by Star-K) further support controlled operation.

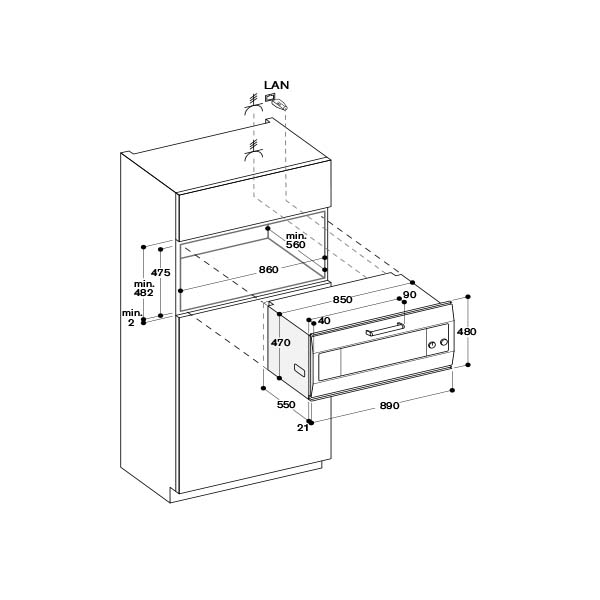

Planning and installation notes

Door panel surface extends 40 mm and door handle 90 mm from the furniture cavity.
For installation underneath cooktops, a minimum distance of 15 mm between the underside of the cooktop and the top edge of the oven housing is required.
To reach a 550 mm installation depth, the connection cable must follow the slanted edge on the housing corner.
The main socket must be positioned outside of the niche.
A LAN cable should be planned; the LAN port is located at the back on the upper left side.
Plan a suitable connection cable for the total connected load of 5.4 kW.

Frequently Asked Questions

What heating methods does the EB333111 oven offer?

The oven provides 17 heating methods: hot air, Eco hot air, top + bottom heat, top + 1/3 bottom heat, top heat, 1/3 top + bottom heat, bottom heat, hot air + bottom heat, hot air + 1/3 bottom heat, full surface grill + circulated air, full surface grill, compact grill, baking stone function, roaster function, dough proofing, defrosting and keeping warm.

What accessories are included with the EB333111?

Included accessories are one enamel baking tray suitable for pyrolytic clean, one rotary spit, one grill shelf, one grill tub with grid and one pluggable meat probe.

Does the oven support remote control and monitoring?

Selected digital services via Gaggenau Home Connect include automatic programmes, remote control and monitoring, recipes and home network integration, using either a LAN cable connection (recommended) or wireless via WiFi, depending on the availability of Home Connect Services in the country.

How easy is it to clean the EB333111 oven?

The oven features a pyrolytic cleaning system, Gaggenau enamel surfaces and a heated air cleaning catalyser. Enamelled side shelf supports with 3 tray levels are pyrolysis-safe, allowing them to remain in the cavity during the cleaning process.

What is the temperature range and capacity of the oven?

The EB333111 offers electronic temperature control from 30 °C to 300 °C and has an 83 litre net volume.

What safety features are provided?

Safety features include a thermally insulated door with quintuple glazing, child lock, safety shut-off and a cooled housing with temperature protection. Timer functions such as long-term timer (certified by Star-K) further support safe operation.
