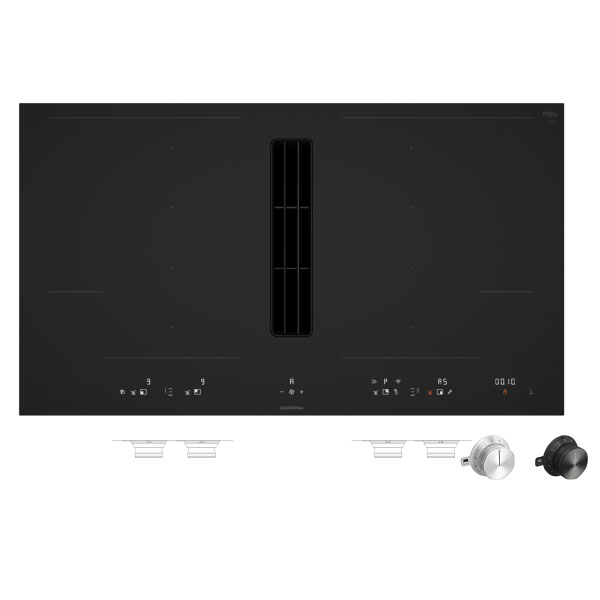

The CV492105M is a 90 cm flex induction cooktop with an integrated, highly efficient ventilation system. It offers flexible positioning of cookware across combined cooking areas, supported by flex and booster functions plus a frying sensor. A non-reflective matte surface reduces visible fingerprints and scratches, while a solid stainless steel knob with optional black robust finishing provides precise control and personalisation. The system supports both air extraction and recirculation, with dishwasher-safe metal grease filters for easy cleaning.

Key Features

Flex induction cooktop with integrated ventilation system 400 series for combined cooking and extraction in one 90 cm unit.
Flexible positioning of cookware inside combined cooking areas with automatic extension up to 30 cm / 32x30 cm.
2 flex induction cooking areas each side 23x20 cm (2200 W, booster 3700 W), linked to 23x40 cm (3300 W, booster 3700 W).
Highly efficient ventilation system with fully automatic ventilation functions and energy-saving, low-noise fan.
Air extraction or recirculation system with integrated activated charcoal filter easily removable from above.
Large-scale metal grease filter that is easy to remove and dishwasher-safe, plus removable overflow protection and container.
Non-reflective matte surface effectively reduces the visibility of fingerprints and scratches.
Solid stainless steel knob, also selectable in black robust finishing, with illuminated ring and clear markings for precise control.
Electronic power control in 12 stages with user-friendly two-colour display (white / orange).
Flex function, frying sensor and booster function to support different cooking methods and rapid heating.
Automatic sensor-controlled performance adjustment and activation of the ventilation system when a cooking zone is used.
Interval ventilation and run-on functions including 6 min interval ventilation and sensor-controlled or manual run-on.
Selected digital services (Gaggenau Home Connect) including remote control and monitoring of ventilation and cooking zones, plus remote diagnostics.
Energy efficiency class A with ventilation efficiency class A and grease filter efficiency class B.
Comprehensive safety features including child lock, pot detection, residual heat indicators and safety shut-off.
Compatible optional accessories such as flex pans, Teppan Yaki plates, griddle plate, acoustic filter, recirculation kits and induction knobs.

Technical Specifications

Product type	Flex induction cooktop with integrated ventilation system 400 series
Width	90 cm
Surface finish	Non-reflective surface with matte finish
Cooking zones	2 flex induction areas 23x20 cm (2200 W, booster 3700 W), linked 23x40 cm (3300 W, booster 3700 W), automatic extension up to 32x30 cm (3300 W, booster 3700 W); repeated for both sides (total 4 flex areas).
Ventilation modes	Air extraction or recirculation system
Air extraction output (level 3 / Intensive)	532 / 636 m³/h (according to EN 61591)
Air extraction sound power level	70 / 74 dB (A) re 1 pW (according to EN 60704-3)
Air recirculation output (level 3 / Intensive)	487 / 611 m³/h (according to EN 61591)
Air recirculation sound power level	67 / 72 dB (A) re 1 pW; 55 / 61 dB (A) re 20 μPa
Fan technology	Highly efficient, brushless DC motor with airflow-optimised interior
Energy efficiency class	A (range A+++ to D)
Energy consumption	56.9 kWh/year
Ventilation efficiency class	A
Grease filter efficiency class	B
Sound level (normal mode)	Min. 61 dB / max. 70 dB
Bottom cabinet width (min.)	60 cm
Worktop depth (min.)	60 cm with unducted recirculation; 65 cm with ducted recirculation/extraction
Immersion depth	227 mm
Overflow container capacity	0.9 litre, removable, dishwasher-safe
Clearance below worktop	Min. 300 mm to remove and empty overflow container
Equivalent ducting length	Lmax 28 m to ensure good performance
Air outlet connection	Backside air outlet can be directly accessed with flat duct element (DN 150)
Outflow surface area (recirculation)	Recommended at least 400 cm² for optimum performance
Total connected load	7.4 kW
Connecting cable	1.50 m without plug
Standby power (display off)	0.5 W
Standby power (network)	2 W
Appliance weight	Approx. 32 (unit not stated in source)
Energy labelling illumination efficiency	Illumination efficiency class –

Functions, Installation and Usage Details

Controls and Functions

Control knobs with illuminated ring, cooking zone and output level markings.
Electronic power control in 12 stages (1…12).
User-friendly control with two colour display (white / orange).
Ventilation system with 3 electronically controlled power levels and 1 intensive mode.
Flex function for rectangular cooking areas.
Frying sensor function.
Booster function.
Automatic sensor-controlled performance adjustment of the ventilation system.
Automatic activation of the ventilation system when a cooking zone is used.
Interval ventilation, 6 min.
Automatic sensor-controlled or manual run-on function.
Grease filter and activated charcoal filter saturation indicator.
Stopwatch and short-term timer.
Memory function and options menu.
Power management.

Cleaning and Maintenance

Large-scale metal grease filter is removable and dishwasher-safe.
Grease filter unit is removable and dishwasher-safe.
High-grade black zinc die-casted cover for ventilation system is dishwasher-safe.
Detachable, dishwasher-safe two-stage overflow protection.
Removable overflow container (0.9 litre), dishwasher-safe.
Integrated activated charcoal filter is easily removable from above for the air recirculation system.

Safety Features

Operation indicator.
Pot detection.
2 stage Hh residual heat indicator for each zone.
Child lock.
Safety shut-off.

Cookware and Operation

The appliance operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.

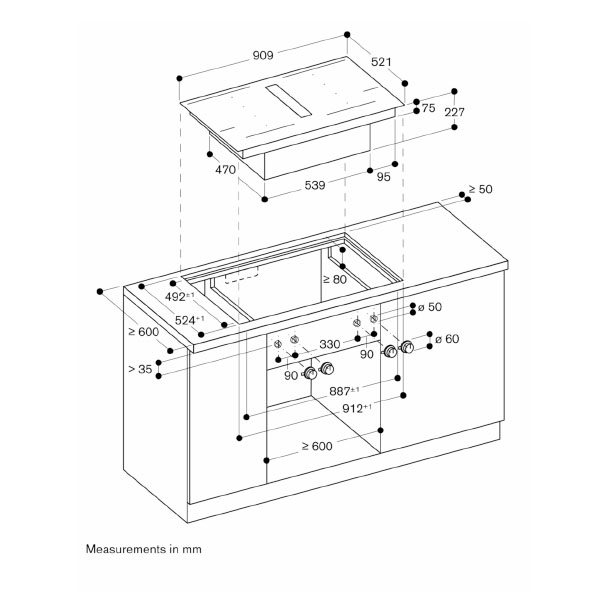

Installation Notes

Bottom cabinet width minimum 60 cm.
Worktop depth minimum 60 cm with unducted recirculation; minimum 65 cm with ducted recirculation or extraction.
Immersion depth 227 mm.
Unducted recirculation set CA082011 requires a vertical aperture of minimum 25 mm behind the furniture back panel; 50 mm suggested for ideal performance.
In air extraction, a one-way flap with a maximum opening pressure of 65 Pa should be installed.
Appliance must be fixed from underneath and must be freely accessible from below.
Installation is possible in worktops made of stone, synthetics or solid wood; heat resistance and watertight sealing of cut edges must be observed. For other materials, consult the worktop manufacturer.
Bearing capacity and stability, especially with thin worktops, must be supported with suitable substructures, taking into account appliance weight and additional loads.
Groove must be continuous and even to ensure uniform placing of the appliance on the gasket; do not use discontinuous lining.
Joint width may vary due to dimensional tolerances of the glass ceramic cooktop and worktop cut-out.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs a suitable safety switch.
The appliance’s air outlet on the backside can be directly accessed with a flat duct element (DN 150).
Please check the user manual for how to switch off the WiFi module.

Optional Accessories and Kits

Optional accessories:

CA050300: Flex pan set, 3 pcs.
CA051300: Teppan Yaki (large).
CA051301: Teppan Yaki.
CA052300: Griddle Plate.
CA055300: Flex pan large.
CA084010: Acoustic filter.
CA282112: Recirculation replenishment filter CV.

Installation accessories:

AD857050: Plinth diffusor for CV282/482/492.
CA082011: Kit unducted recirculation.
CA082061: Kit ducted recirculation, 60 cm worktop.
CA082071: Kit ducted recirculation, 70 cm worktop.
CA084010: Acoustic filter.
CKI440000: 4 knobs, induction, black.
CKI440010: 4 knobs, induction, stainless steel.

Special accessories (order as spare parts):

Part No. 17006018: Frying sensor pan, ø 20 cm.
Part No. 17006184: Frying sensor pan, ø 24 cm.
Part No. 17006185: Frying sensor pan, ø 28 cm.
Part No. 17006019: Frying sensor pan, ø 32 cm.

Frequently Asked Questions

What type of cookware can I use on the CV492105M?

The cooktop operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.

Does the appliance support both extraction and recirculation?

Yes, the integrated ventilation system can be used as an air extraction or recirculation system. An integrated activated charcoal filter is provided for recirculation and is easily removable from above.

Are the filters and ventilation components easy to clean?

The large-scale metal grease filter and grease filter unit are removable and dishwasher-safe. The high-grade black zinc die-casted cover and the two-stage overflow protection and overflow container are also dishwasher-safe.

What safety features are included?

Safety features include an operation indicator, pot detection, 2 stage Hh residual heat indicator for each zone, child lock, safety shut-off, detachable overflow protection and a removable overflow container.

What minimum cabinet and worktop dimensions are required?

A minimum bottom cabinet width of 60 cm is required. The worktop depth must be at least 60 cm with unducted recirculation and at least 65 cm with ducted recirculation or extraction.

Can the CV492105M be connected to digital services?

Selected digital services via Gaggenau Home Connect are supported, including remote control and monitoring of the ventilation, remote monitoring of cooking zones and remote diagnostics.
