CI292

Colour

• Colour of Surface

  :  Frameless - Stainless Steel Frame

• Colour of Frame

  :  Stainless steel

Energy Details

• Energy Input

  :  Electric

• Gas Type

  :  N/A

• Electrical Connection Rating (W)

  :  11100W

• Voltage (V)

  :  220-240V

• Current (A)

  :  3 -16A

• Frequency (Hz)

  :  50-60Hz

• Approval Certificates

  :  AENOR - CE

• Connection Rating (W)

  :  11100

Capacity

• Total Number of Positions

  :  5

Dimensions

• Height

  :  55mm

• Depth

  :  520mm

• Dimensions (packed)

  :  126H - 603W - 1073D mm

• Required Niche Size - Height

  :  55mm

• Required Niche Size - Width

  :  880-880mm

• Required Niche Size - Depth

  :  490-490mm

Features

• Built-in

  :  Built-in

• Control Panel Location

  :  Hob front

• Type of Controls

  :  Twist-Pad control with removable magnetic knob - User friendly control with two color display white / orange - Cooking zone  and cooking area marking - Electronic power control in 17 output levels

• Safety Device

  :  Main switch - Operation indicator - Pot detection - 2-stage residual heat indication - Child lock - Safety shut-off

• Additions

  :  Residual Heat Indicator : Separate

Build Material

• Basic Surface Material

  :  Ceramic

Accessories

• Included Accessories

  :  electrical supply cord 1500 mm

• Optional Accessories

  :  CA060300 - CA230100 -GP900001 - GP900002 - GP900003 - GP900004

Weight

• Gross Weight (Kg)

  :  24.00Kg

• Net Weight (Kg)

  :  22.00Kg

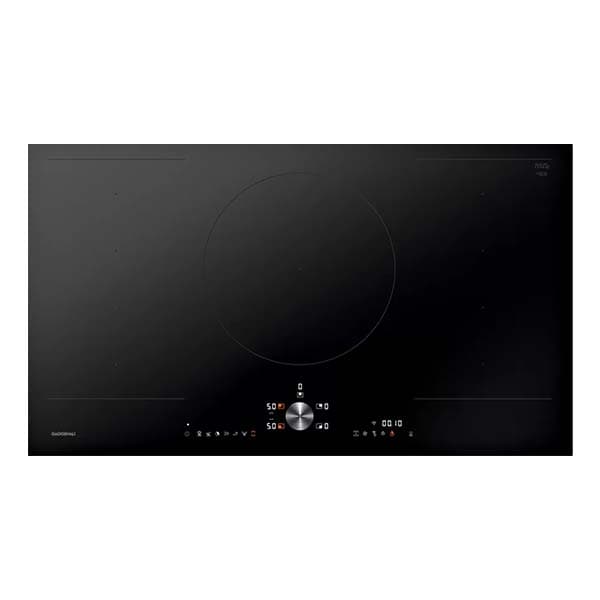

90cm - INDUCTION HOB - FRAMELESS - 5 ZONES - 2 FLEX ZONES - TRIPLE RING ZONE - TWIST-PAD

200 series 90cm INDUCTION HOB, FRAMELESS, 5 ZONES, 2 FLEX ZONES, TRIPLE RING ZONE, TWIST-PAD (Replaces CI292101) CA051 & CA052 included HC Ready
